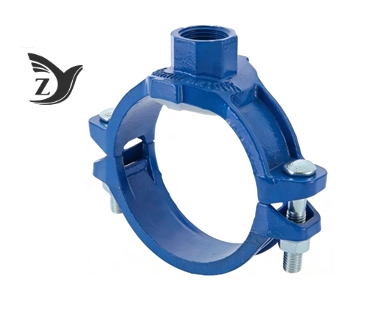

Water Grooved Mechanical Tee - Professional 3-Way Branch Solution
Looking for an efficient branching solution for your water pipe systems? Our Water Grooved Mechanical Tee gives a coordinate department outlet at any area on a pipe run, dispensing with the require for cutting the fundamental pipe or utilizing numerous standard fittings. This inventive saddle-type fitting permits you to cut a gap into the run pipe whereas the mechanical tee lodging clamps safely around it, fixed by a pressure-responsive gasket. You'll spare noteworthy establishment time and dodge exorbitant hot work licenses, making your ventures more proficient and safer.
Our precision-engineered tee fitting addresses basic industry challenges by expelling perilous welding prerequisites and diminishing establishment man-hours compared to conventional threading or flanging strategies. Whether you're working on complex pressure driven formats or require fast retrofitting capabilities, this arrangement encourages framework extension without destroying your fundamental header.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Ductile Iron (ASTM A536, Grade 65-45-12) |
| Working Pressure | 300-500 PSI (size dependent) |
| Temperature Range | -30°F to +230°F (-34°C to +110°C) |
| Gasket Material | Grade 'E' EPDM |
| Surface Treatment | Alkyd Enamel Paint / Hot-Dipped Galvanized |
| Tensile Strength | Min 65,000 psi |
| Connection Type | Grooved Mechanical Joint |
Key Features
- Superior Quality: Developed from high-grade pliable press for extraordinary durability
- Advanced Fixing: EPDM gasket innovation guarantees leak-proof connections
- Corrosion Resistance: Accessible with galvanized coating for unforgiving environments
- Easy Establishment: No welding required - diminishes labor costs and security risks
- Pressure Appraised: Outlined for high-pressure applications up to 500 PSI
- Temperature Safe: Performs dependably in extraordinary temperature conditions
- Retrofit Neighborly: Culminate for framework developments without major modifications
Dimensions and Specifications Table
| Size (inches) | Pipe OD (mm) | Branch Size | Bolt Holes | Weight (kg) |
|---|---|---|---|---|
| 2" x 2" | 60.3 | 2" | 4 | 2.8 |
| 3" x 2" | 88.9 | 2" | 4 | 4.2 |
| 4" x 2" | 114.3 | 2" | 6 | 6.5 |
| 6" x 3" | 168.3 | 3" | 8 | 12.1 |
| 8" x 4" | 219.1 | 4" | 8 | 18.7 |
Materials and Surface Treatment
Our fittings utilize premium bendable press acclimating to ASTM A536 guidelines. The Review 65-45-12 detail gives prevalent ductile quality and affect resistance compared to standard cast press alternatives.
Surface Protection Options:
- Standard Paint: Alkyd finish for indoor applications
- Hot-Dipped Galvanizing: Improved erosion resistance per ASTM A153
The EPDM gasket fabric offers extraordinary resistance to oxidation and hot water maturing, guaranteeing long-term unwavering quality in requesting applications.
Application Areas
Fire Security Frameworks: Perfect for sprinkler head drops and department lines in high-rise buildings. The mechanical plan gives seismic adaptability whereas assembly NFPA 13 requirements.
Commercial HVAC: Essential for chilled water loops in data centers and large commercial facilities. Our Water Grooved Mechanical Tee assimilates commotion and vibration from pumps whereas encouraging simple associations to fan coil units.
Industrial Water Treatment: Culminate for retrofitting filtration systems and slurry lines. The galvanized variation stands up to erosion whereas permitting support get to without framework shutdown.
Installation Instructions
- System Arrangement: Depressurize and deplete the framework at establishment location
- Hole Cutting: Utilize manufacturer-specified gap saw distance across for department size
- Fitting Arrangement: Position the tee lodging around the cut hole
- Gasket Arrangement: Guarantee EPDM gasket seats legitimately in the groove
- Bolt Fixing: Fix jolts to 60-100 ft-lbs until metal-to-metal contact
- Final Check: Confirm rise to crevices on both sides to avoid lodging distortion
Packaging and Shipping
Each fitting comes exclusively wrapped with defensive bundling to avoid harm amid travel. We incorporate establishment rules and torque details with each shipment. Standard lead times are 2-3 weeks for stock sizes, with sped up shipping accessible for pressing projects.
Quality Control
Our fabricating prepare takes after strict ISO9001 quality benchmarks with comprehensive testing protocols:
- Metallurgical Examination: Confirmation of bendable press nodularity (>90%)
- Dimensional Assessment: Exact estimation of basic dimensions
- Hydrostatic Testing: Weight testing at 1.5x to 4x appraised working pressure
- Gasket Testing: ASTM D395 compression set tests for long-term reliability
Every product undergoes thorough review some time recently shipment to guarantee steady quality and performance.
OEM and Customization Services
Shanxi Taigu Zhiyuan offers comprehensive customization administrations for extraordinary applications. Our designing group can alter measurements, materials, and coatings to meet your particular prerequisites. With 26 a long time of casting mastery and yearly generation capacity of 30,000 tons, we provide solid custom solutions.
Frequently Asked Questions
Q: Can installation occur on pressurized systems?
A: No, the system must be depressurized and drained because a physical hole must be cut into the pipe.
Q: What's the correct installation torque?
A: Tighten bolts to achieve metal-to-metal contact at bolt pads, typically 60-100 ft-lbs depending on size.
Q: How does this differ from standard reducing tees?
A: Unlike standard tees requiring three grooved connections, our design clamps onto continuous pipe runs, preserving structural integrity.
Contact Us
Ready to enhance your water system with our professional Water Grooved Mechanical Tee solutions? Our technical team is here to help you select the right specifications for your project.
Email: zhiyuan@mifittings.com
Contact us today for detailed quotations, technical specifications, or custom engineering solutions. We're committed to delivering quality products that meet your exact requirements.
