Water Grooved 90° Elbow
2.90° water pipeline grooved redirection .
3.Potable water system high-pressure elbow .
4.High-strength corrosion-resistant grooved fitting .
5.Precision-manufactured blue/silver water elbow .
6.Industrial water supply 90° grooved joint .
7.Durable water pipe grooved redirection elbow .
8.Blue/silver grooved potable water elbow
Description
Water Grooved 90° Elbow - Professional Pipeline Solutions

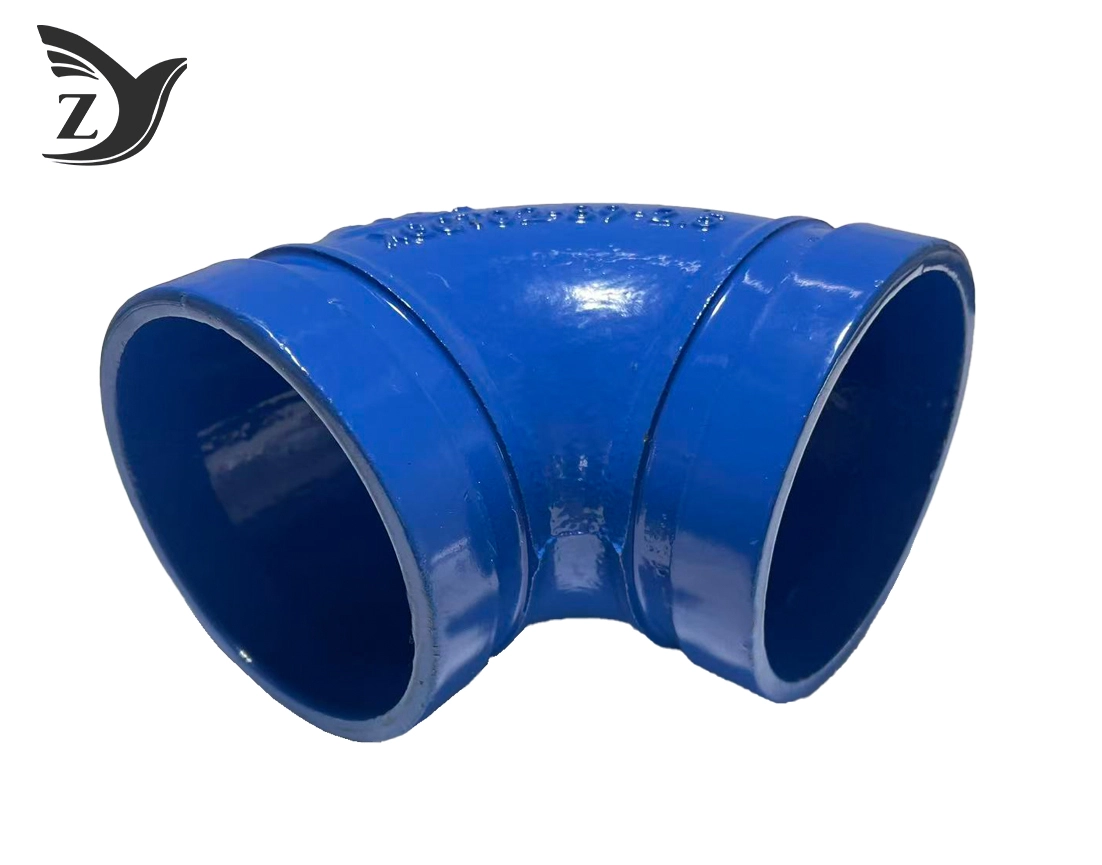

Looking for a reliable pipeline direction change solution? Our Water Grooved 90° Elbow conveys precisely what your mechanical water frameworks require. This specialized pliable press fitting expertly diverts liquid stream by 90 degrees in mechanical channeling frameworks. You'll appreciate its notched closes, made to ANSI/AWWA C606 guidelines, which empower quick mechanical coupling associations without welding or flanging. Cast from high-strength bendable press, this fundamental component changes advanced water transmission framework. With 26 a long time of casting skill, we get it your challenges and give arrangements that work.
Key Features
✓ Dispenses with Hot Works - No welding licenses or security liabilities
✓ Vibration Hosing - Diminishes clamor in HVAC and pump applications
✓ Misalignment Emolument - Handles minor precise deflections
✓ Quick Gathering - Speedy mechanical coupling installation
✓ High-Strength Plan - Predominant pliable quality over dim iron

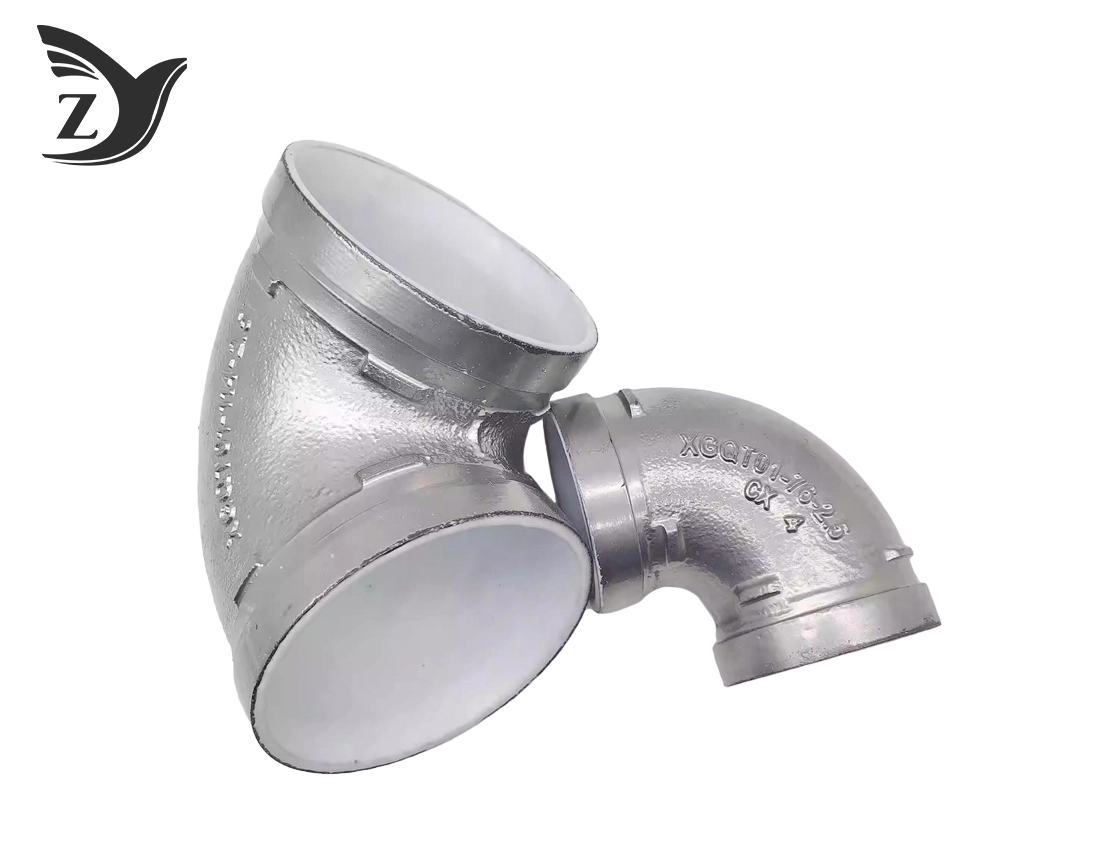

✓ Numerous Surface Choices - Epoxy coating or hot-dip galvanizing available
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Ductile Iron ASTM A536, Grade 65-45-12 |
| Pressure Rating | 300-1000 PSI (20-69 Bar) |
| Groove Standard | ANSI/AWWA C606 |
| Surface Treatment | Fusion-bonded epoxy or hot-dip galvanized |
| Connection Type | Grooved ends for mechanical coupling |
| Temperature Range | -20°C to 120°C |
| Nodularity | >90% nodular graphite |
Dimensions and Specifications Table
| Size (inches) | A Dimension (mm) | B Dimension (mm) | C Dimension (mm) | Weight (kg) |
|---|---|---|---|---|
| 2" | 24.6 | 5.8 | 15.9 | 1.2 |
| 3" | 24.6 | 5.8 | 17.5 | 2.1 |
| 4" | 24.6 | 5.8 | 19.1 | 3.4 |
| 6" | 24.6 | 5.8 | 22.2 | 6.8 |
| 8" | 24.6 | 5.8 | 25.4 | 11.2 |
| 10" | 24.6 | 5.8 | 28.6 | 16.8 |
| 12" | 24.6 | 5.8 | 31.8 | 23.5 |
Materials and Surface Treatment
Your Water Grooved 90° Elbow highlights premium bendable press development. This fabric gives extraordinary quality and solidness. We offer numerous surface medicines to coordinate your application:

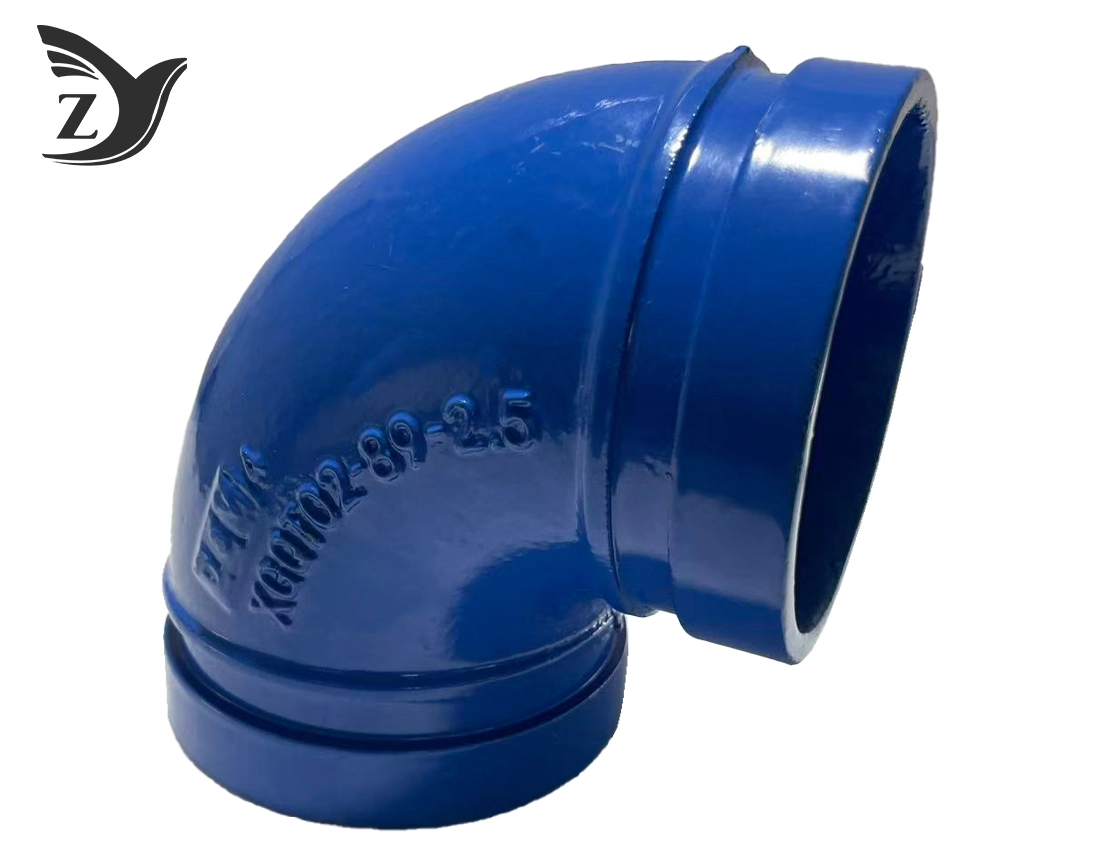

- Blue Epoxy Coating - Culminate for consumable water systems
- Red Epoxy Coating - Perfect for fire assurance applications
- Hot-Dip Galvanizing - Predominant erosion resistance for unforgiving environments
Application Areas
Our furrowed elbows exceed expectations in requesting mechanical environments:
Fire Security Frameworks - Standard fittings for sprinkler risers interfacing vertical to even mains. They withstand weight surges whereas keeping up adaptability amid seismic events.
HVAC Frameworks - Basic for chilled water lines and cooling tower associations. The furrowed plan avoids vibration transmission from pumps to delicate equipment.
Municipal Water Treatment - Large-diameter header applications taking care of crude or treated water. Simple dismantling empowers support without broad shutdowns.
Industrial Prepare Water - Dependable execution in fabricating offices requiring steady water stream course changes.
Installation Instructions
- Prepare the pipe - Guarantee clean, appropriately furrowed pipe ends
- Apply oil - Utilize endorsed coupling oil on gaskets
- Position the elbow - Adjust grooves with coupling gaskets
- Install coupling - Fix jolts to indicated torque values
- Pressure test - Confirm framework judgment some time recently operation
Quality Control
We keep up strict quality measures through comprehensive testing:
- Groove Dimensional Inspection using precision gauges
- Hydrostatic Testing at 1.5 times working pressure
- Metallurgical Analysis ensuring >90% nodularity
- Coating Integrity Testing via spark testing methods
Every product undergoes rigorous inspection before shipment.
OEM and Customization Services
Need particular alterations? We offer comprehensive customization:
- Custom measurements and specifications
- Special surface treatments
- Private labeling options
- Modified weight ratings
- Unique fabric requirements
Our designing group works with you to create arrangements assembly your correct specifications.
Packaging and Shipping
Your orders get cautious bundling assurance. Standard wooden beds guarantee secure transportation. We arrange shipping around the world from our Shanxi office. Express shipping alternatives accessible for critical requirements.
Frequently Asked Questions
Q: What's the difference between short and long radius elbows?
A: Long radius versions reduce friction loss with larger sweep geometry. Short radius fits tight spaces but creates higher pressure drops.
Q: Are these suitable for drinking water?
A: Yes, when they carry NSF/ANSI 61 and 372 certifications ensuring no harmful leaching.
Q: How do I fix connection leaks?
A: Check groove dimensions, verify gasket position, and confirm proper lubricant use.
Q: Can I connect to PVC pipe?
A: Use specialized transition couplings designed for PVC outer diameter compatibility.
Contact Us
Ready to enhance your pipeline system? Our technical team stands ready to assist with your Water Grooved 90° Elbow requirements. We provide expert guidance for optimal fitting selection.
Email: zhiyuan@mifittings.com
Contact us today for quotations, technical specifications, or customization discussions. Experience the reliability difference that 26 years of manufacturing expertise delivers.
