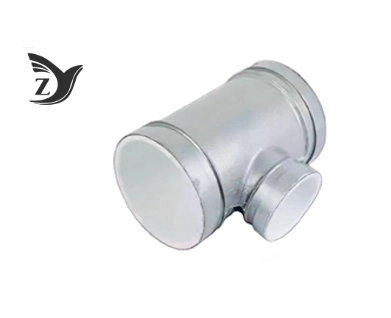

Water Grooved Reducing Tee
2.3-way size-adapting potable water joint .
3.Water supply system high-strength reducer tee .
4.Corrosion-resistant blue/silver grooved tee .
5.Precision-manufactured water reducing grooved tee .
6.Industrial water supply reducing grooved joint .
7.Durable 3-way water size-transition fitting .
8.Pressure-resistant blue/silver water tee
Description
Water Grooved Reducing Tee - Professional Piping Solution
Looking for a reliable pipe fitting that connects different diameter pipes seamlessly? Our Water Grooved Reducing Tee conveys the culminate arrangement for your mechanical channeling needs. This specialized bendable press fitting permits you to interface channels of changing sizes without numerous bushings or couplings. Whether you're working on fire security frameworks, HVAC establishments, or water treatment offices, this component disentangles your associations whereas guaranteeing leak-tight execution. With over 18 a long time of fabricating mastery, we give you with fittings that meet the most elevated industry standards.
Product Overview
The product represents a breakthrough in cutting edge channeling innovation. Not at all like conventional welded associations, this fitting employments a groove-and-coupling instrument that makes secure, self-restrained joints. You get speedier establishment times, improved framework adaptability, and diminished upkeep costs.
Our lessening tee obliges controlled direct development and precise avoidance. This makes it perfect for seismic-resistant establishments and warm recompense in complex channeling frameworks. The precision-machined grooves guarantee compatibility with all major coupling brands.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | ASTM A536 Grade 65-45-12 Ductile Iron |
| Pressure Rating | 300-500 psi (20.7-34.5 bar) |
| Temperature Range | -30°F to 230°F (-34°C to 110°C) |
| Groove Standard | ANSI/AWWA C606 |
| Surface Finish | Red Oxide/Epoxy Powder Coating or Hot-Dip Galvanized |
| Tensile Strength | Minimum 65,000 psi |
| Production Capacity | 30,000 tons annually |
Key Features
- Quick Establishment: Diminishes get together time by up to 50% compared to strung connections
- No Hot Work Required: Dispenses with welding needs, diminishing fire hazards
- Superior Quality: ASTM A536 bendable press gives great stun resistance
- Corrosion Assurance: Accessible with galvanized wrap up for unforgiving environments
- Vibration Control: Segregates commotion and vibration transmission effectively
- Flow Effectiveness: Smooth inner plan minimizes weight drops
Dimensions and Specifications Table
| Size Combination | Main Run (inches) | Branch (inches) | Weight (lbs) |
|---|---|---|---|
| 6×4×4 | 6 | 4 | 28.5 |
| 4×3×3 | 4 | 3 | 15.2 |
| 3×2×2 | 3 | 2 | 8.7 |
| 2½×2×2 | 2½ | 2 | 6.9 |
| 2×1½×1½ | 2 | 1½ | 4.3 |
Custom sizes available upon request
Materials and Surface Treatment
We manufacture our fittings using premium ASTM A536 Grade 65-45-12 bendable press. This fabric choice guarantees uncommon solidness and execution beneath requesting conditions.
Surface Treatment Options:
- Red Oxide/Epoxy Coating: Idealize for indoor HVAC and fire security systems
- Hot-Dip Galvanized (ASTM A153): Perfect for open air establishments and destructive environments
Both wraps up experience thorough salt shower testing to confirm long-term erosion resistance.
Standards and Certifications
Our Water Grooved Reducing Tee complies with:
- ANSI/AWWA C606 standards
- ISO 9001 quality management system
- ASTM material specifications
- UL/FM approval for fire protection applications
Application Areas
Commercial Fire Security Frameworks: Interface fundamental headers to department lines in damp and dry sprinkler frameworks. Culminate for retrofitting existing buildings where welding is prohibited.
HVAC and Chilled Water Frameworks: Basic for interfacing huge chillers and cooling towers in high rises and information centers. The warm development convenience disposes of costly development joints.
Water Treatment Offices: Utilized in filtration slides and turn around osmosis frameworks. The measured notched plan permits speedy dismantling amid upkeep without cutting pipes.
Industrial Prepare Frameworks: Perfect for chemical preparing, nourishment and refreshment, and pharmaceutical applications requiring visit framework modifications.
Installation Instructions
- Ensure pipe closes are legitimately cut and deburred
- Verify groove measurements coordinate AWWA C606 specifications
- Position the tee at the wanted department location
- Apply coupling with gasket over the furrowed connection
- Tighten jolts until metal-to-metal contact happens on jolt pads
- Verify coupling keys are completely locked in in grooves
Important: Continuously take after manufacturer's torque details for ideal performance.
Packaging and Shipping
We bundle each fitting with defensive materials to anticipate harm amid travel. Our vital area in Shanxi Province gives fabulous coordinations get to, guaranteeing provoke conveyance over China and internationally.
Standard packaging includes:
- Individual defensive wrapping
- Moisture-resistant materials
- Clear item distinguishing proof labels
- Detailed pressing lists
Quality Control
Our comprehensive quality assurance program includes:
- Dimensional Confirmation: Each fitting experiences exact estimation concurring to AWWA C606
- Metallurgical Examination: Spectrographic testing guarantees appropriate pliable press composition
- Hydrostatic Testing: Weight testing at 3x working weight approves security margins
- Coating Assessment: Salt shower testing affirms erosion resistance performance
With 156 sets of handling gear and 38 specialized staff, we keep up reliable quality over our whole generation range.
OEM and Customization Services
We offer comprehensive customization alternatives to meet your particular prerequisites. Our building group can create custom sizes, uncommon coatings, or altered plans based on your application needs.
Services include:
- Custom size combinations
- Special surface treatments
- Private labeling options
- Technical consultation support
Frequently Asked Questions
Q: Can these tees handle seismic movement?
A: Yes, the grooved joint design allows both linear and angular movement, making it excellent for earthquake-resistant installations.
Q: What creates the seal in grooved connections?
A: The gasket within the coupling provides the seal. The pressure-responsive design actually strengthens the seal as internal pressure increases.
Q: Are special tools required for installation?
A: No, standard hand tools are sufficient. This eliminates the need for specialized welding equipment or skilled welders.
Q: How do I select the right surface finish?
A: Choose epoxy coating for indoor applications and galvanized finish for outdoor or corrosive environments.
Contact Us
Ready to upgrade your piping system with our Water Grooved Reducing Tee? Our technical team is here to help you select the perfect solution for your application.
Email: zhiyuan@mifittings.com
Contact us today for technical specifications, pricing information, or to discuss your custom requirements. We're committed to providing you with reliable, high-quality piping solutions that exceed your expectations.
