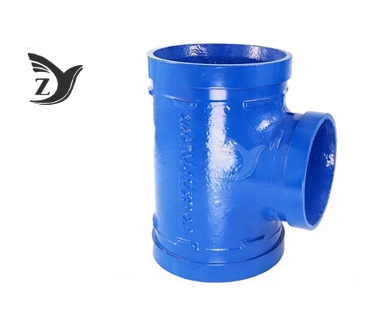

Water Grooved Straight Tee - Premium Ductile Iron Piping Solution
Looking for a reliable three-way connection solution for your piping system? Our Water Grooved Straight Tee offers the idealize adjust of quality, adaptability, and establishment proficiency. This specialized water powered fitting is fabricated from high-strength pliable press and serves as a basic hub in notched mechanical channeling frameworks. Not at all like conventional welded or strung fittings, our tee highlights exactness machine-grooved closes that interface three channels of rise to distance across at a 90-degree intersection.
You'll kill unsafe open-flame welding whereas diminishing establishment labor costs by up to 30%. The inventive plan obliges warm development, compression, and avoidance, guaranteeing your framework keeps up auxiliary astuteness in requesting liquid transport situations. Whether you're working on commercial fire assurance or mechanical water treatment ventures, this fitting conveys unmatched unwavering quality and performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Ductile Iron (ASTM A536 Grade 65-45-12) |
| Size Range | 2" - 12" (DN50 - DN300) |
| Working Pressure | 300-1000 PSI (varies by size) |
| Tensile Strength | Minimum 65,000 PSI |
| Yield Strength | 45,000 PSI |
| Elongation | 12% minimum |
| Connection Type | Machine-grooved ends |
| Standards Compliance | AWWA C606, UL/FM Listed |
| Operating Temperature | -40°F to 200°F (-40°C to 93°C) |
Key Features
Superior Fabric Properties: Our pliable press development gives remarkable affect resistance compared to dim press options. You get dependable execution indeed in high-stress applications.
Flexible Joint Plan: The furrowed association framework permits for common development, retaining vibrations and pleasing building settlement without compromising joint integrity.
Quick Establishment: No welding or threading required. Your establishment group can total associations in minutes or maybe than hours, altogether lessening extend timelines.
Vibration Weakening: The coupling plan successfully hoses clamor transmission, making it perfect for HVAC and pump room applications where sound control matters.
Dimensions and Specifications Table
| Nominal Size | Center-to-End (mm) | Groove Depth (mm) | Groove Width (mm) | Weight (kg) |
|---|---|---|---|---|
| 2" (DN50) | 45 | 2.39 | 18.29 | 1.8 |
| 3" (DN80) | 57 | 2.39 | 18.29 | 3.2 |
| 4" (DN100) | 70 | 2.39 | 18.29 | 5.1 |
| 6" (DN150) | 95 | 2.39 | 18.29 | 9.8 |
| 8" (DN200) | 120 | 2.39 | 18.29 | 16.5 |
| 10" (DN250) | 145 | 2.39 | 18.29 | 24.2 |
| 12" (DN300) | 170 | 2.39 | 18.29 | 34.8 |
Materials and Surface Treatment
We offer different surface treatment choices to coordinate your particular natural requirements:
Electrophoretic Portray (Red/Blue): Standard coating giving great erosion security for indoor applications.
Hot-Dip Galvanizing (ASTM A153): Premium erosion resistance for open air or destructive situations with least 86-micron coating thickness.
Fusion-Bonded Epoxy: NSF-61 certified coating for consumable water frameworks, guaranteeing secure drinking water compliance.
Standards and Certifications
Our fabricating forms entirely take after ISO 9001 quality administration frameworks. All items meet AWWA C606 dimensional guidelines and experience thorough testing conventions. UL/FM postings guarantee compliance with fire assurance framework requirements.
Application Areas
High-Rise Fire Security Frameworks: Idealize for sprinkler department line associations from primary risers. The adaptable plan retains seismic shifts without breaking, assembly exacting security standards.
Commercial HVAC & Chilled Water: Broadly utilized in mechanical rooms for chiller associations, encouraging simple dismantling for framework support without cutting pipes.
Mining and Tunneling Dewatering: In requesting underground situations, our galvanized furrowed straight tee gives essential erosion resistance and joint quality for high-pressure applications.
Industrial Water Treatment: Dependable execution in chemical handling and water treatment offices where framework adjustments are frequent.
Installation Instructions
- Pipe Planning: Guarantee channels are appropriately furrowed agreeing to AWWA C606 specifications
- Gasket Arrangement: Position EPDM gaskets in the fitting grooves, maintaining a strategic distance from pinching
- Assembly: Embed channels into the tee body until they reach the groove
- Coupling Establishment: Put coupling portions around the joint
- Bolt Fixing: Apply indicated torque values to guarantee appropriate seal
Packaging and Shipping
Each Water Grooved Straight Tee is carefully bundled with defensive coating conservation. We utilize durable wooden cases for bigger sizes and fortified cardboard boxes for littler fittings. Our coordinations organize guarantees opportune conveyance inside 15-20 commerce days for standard orders.
Quality Control
Our multi-stage quality assurance includes:
Metallographic Examination: Confirming pliable press nodularity rate surpasses 90% for ideal auxiliary elasticity.
Groove Measurement Confirmation: Accuracy estimation of groove profundity and width against AWWA C606 specifications.
Hydrostatic Weight Testing: Irregular inspecting at 1.5x evaluated working weight to identify any casting defects.
Coating Thickness Review: Guaranteeing surface medicines meet least thickness prerequisites for long-term protection.
OEM and Customization Services
With over 26 a long time of casting mastery and yearly generation capacity of 30,000 tons, we offer comprehensive customization administrations. Our building group can alter measurements, materials, and coatings to meet your particular venture requirements.
Frequently Asked Questions
Q: Can your fittings work with both Schedule 10 and Schedule 40 pipes?
A: Yes, our standard fittings are compatible with both schedules provided the pipe outer diameter meets grooving specifications.
Q: How does seismic performance compare to welded fittings?
A: Grooved connections offer superior seismic performance by allowing deflection and rotation, dissipating energy rather than transferring stress to the fitting body.
Q: What causes joint leakage after installation?
A: Common causes include improper groove depth, pinched gaskets, or insufficient coupling bolt torque. Our technical support team can help troubleshoot installation issues.
