NPT Black Square Face Coupling Pipe Fittings

When you need reliable pipe connections for industrial applications, NPT Black Square Face Coupling Pipe Fittings deliver the durability and performance you demand. These specialized Class 150 malleable press strung connectors highlight fortified square-profiled closes that outflank standard adjusted fittings. Built to ASME B16.3 measures, our square confront couplings give prevalent torque exchange and remarkable resistance to outspread push. You'll discover these fittings fundamental for high-vibration situations where standard shipper coupling equipment essentially can't handle the pressure.

At Shanxi Taigu Zhiyuan Malleable Iron Company, we've been culminating our casting and pipe fitting fabricating for over 26 a long time. Our state-of-the-art generation office guarantees each coupling meets rigid quality benchmarks whereas giving the unwavering quality your ventures require.



Detail Photo​​​​​​​

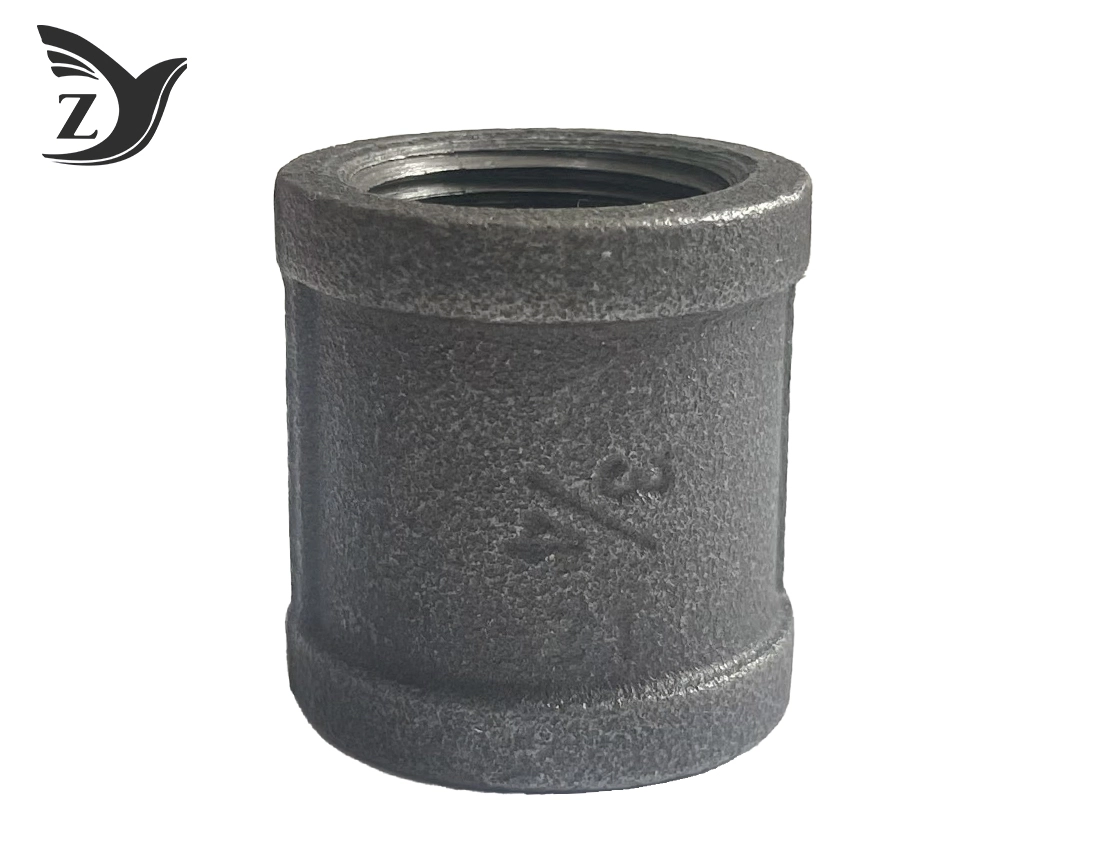

Black Square Face Coupling Pipe Fittings 1

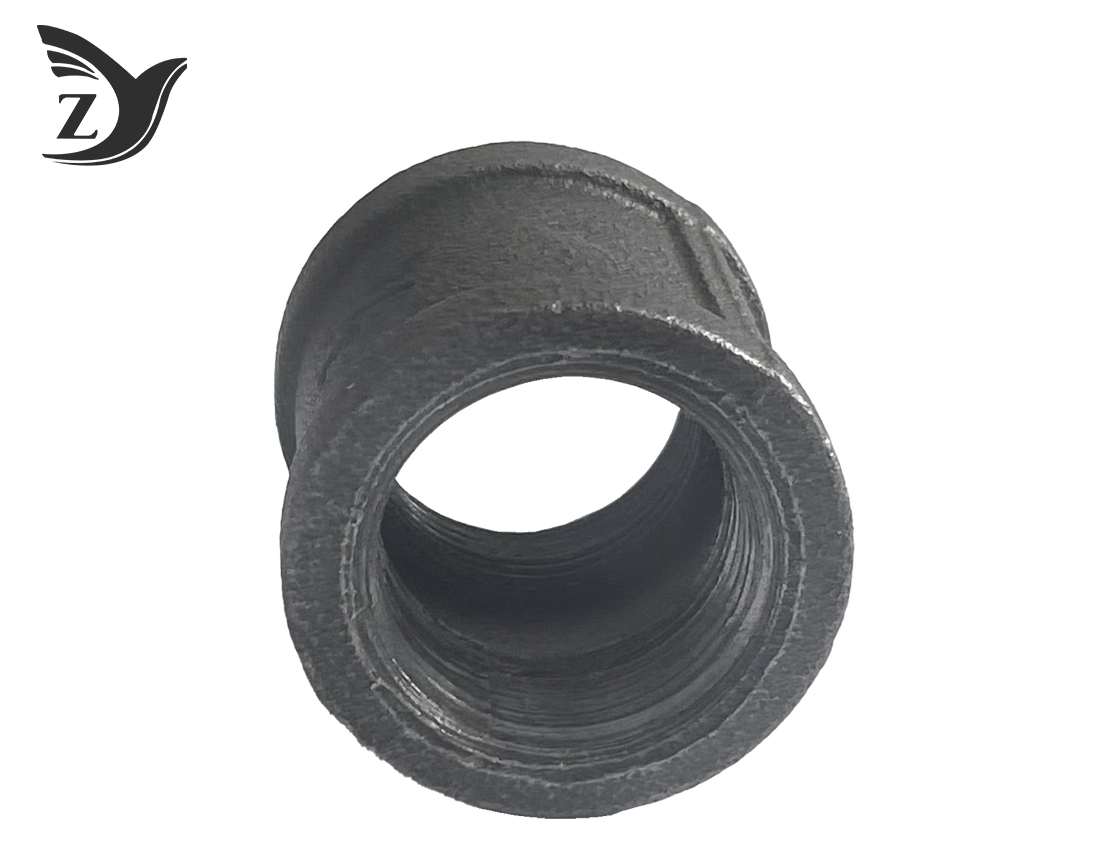

Black Square Face Coupling Pipe Fittings 2

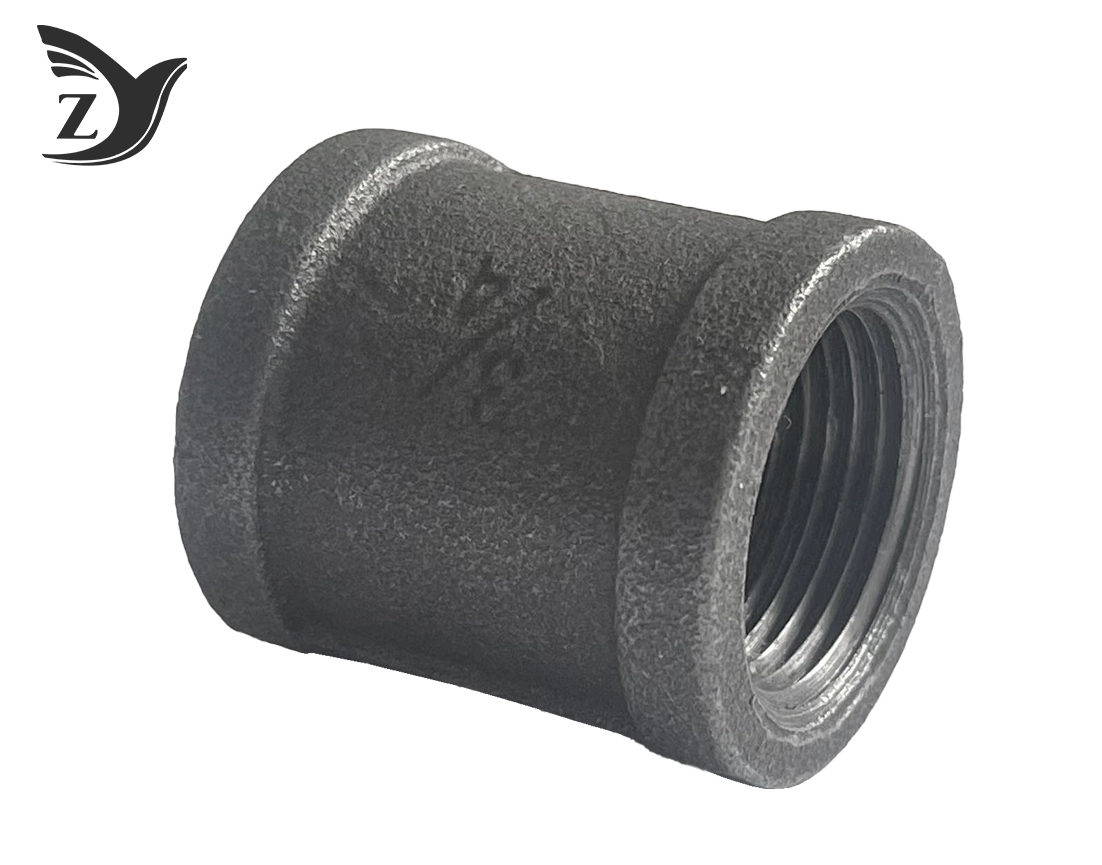

Black Square Face Coupling Pipe Fittings 3

echnical Specifications

Our square face couplings are manufactured from ASTM A197 Cupola Malleable Iron, delivering exceptional mechanical properties:

• Minimum Tensile Strength: 40,000 psi (276 MPa)
• Yield Strength: 30,000 psi (207 MPa)
• Thread Standard: ANSI/ASME B1.20.1 NPT tapered threads
• Thread Angle: 60-degree flank angle with 1°47' taper
• Pressure Ratings: Class 150 (300 psi WOG) or Class 300 for heavy-duty applications

Key Features

The square confront plan offers unmistakable focal points over conventional beaded fittings:

Enhanced Toughness: Thicker divider segments at string section focuses stand up to misshapening amid high-torque assembly.

Superior Grasp Surface: Level, strong surfaces give ideal contact for heavy-duty pipe torques without harming the fitting.

Stress Resistance: Square geometry altogether progresses resistance to spiral stretch and warm expansion.

Precision Threading: NPT strings make dynamic metal-to-metal seals for leak-tight connections.

Dimensions and Specifications Table

Materials and Surface Treatment

Each fitting is made from high-grade flexible press taking after ASTM A197 determinations. The fabric gives 5% stretching, guaranteeing vital ductility to avoid delicate break beneath warm expansion.

Our dark wrap up comprises of a rust-preventative coating that ensures against oxidation amid capacity and travel. This coating won't drop like a few choices, avoiding defilement in delicate valve systems.

Standards and Certifications

All our NPT Black Square Face Coupling Pipe Fittings comply with:

• ASME B16.3 for Malleable Iron Threaded Fittings
• ASTM A197 material standards
• ISO 9001 quality management system

Application Areas

These flexible fittings exceed expectations in requesting mechanical environments:

Industrial Steam Frameworks: Idealize for soaked steam lines up to 150 psi in fabricating plants, where warm cycling resistance is crucial.

Natural Gas Dispersion: The NPT decrease guarantees tight seals against gas movement, assembly strict security codes for commercial construction.

Heavy-Duty Oil and Pressure driven Lines: Perfect for low-pressure return lines where vibration resistance avoids common disappointment points.

Water and Mechanical Liquid Transport: Solid execution in pipeline frameworks requiring reliable, leak-free connections.

Installation Instructions

For ideal execution, take after these establishment guidelines:

1. Clean all strings completely some time recently assembly
2. Apply suitable pipe string compound or PTFE tape
3. Hand-tighten until strings lock in fully
4. Use pipe torques on the square confront surfaces for last tightening
5. Avoid over-tightening to avoid string damage

Packaging and Shipping

We bundle your fittings with care to guarantee they arrive in culminate condition. Standard bundling incorporates defensive wrapping and secure boxing. Our location in Shanxi Province provides excellent logistics connectivity, with convenient access to major transportation networks.

​​​​​​​

Quality Control

Our generation takes after strict ISO 9001 quality administration conventions. Each fitting experiences comprehensive testing to confirm dimensional precision, string accuracy, and weight evaluations. With our yearly generation capacity of 30,000 tons and over 500 gifted workers, we keep up reliable quality over all item lines.

OEM and Customization Services

We offer comprehensive customization administrations to meet your particular necessities. Our designing group can alter measurements, materials, or wraps up to suit interesting applications. Contact us to examine your custom fittings needs.

Frequently Asked Questions

Q: What's the difference between square face and beaded couplings?

A: Square face couplings have flat, reinforced ends that provide better wrench grip and higher stress resistance compared to rounded beaded designs.

Q: Can these fittings handle high-temperature applications?

A: Yes, our malleable iron construction handles thermal cycling well, with ratings up to 366°F for steam applications.

Q: Do you offer different pressure ratings?

A: We manufacture both Class 150 (300 psi WOG) and Class 300 heavy-duty versions to meet various application requirements.

Contact Us

Ready to enhance your piping systems with premium NPT Black Square Face Coupling Pipe Fittings? Our experienced team is here to help you select the right solutions for your projects.

Email: zhiyuan@mifittings.com

Let us put our 26 years of manufacturing expertise to work for you. Contact us today for quotes, technical specifications, or custom solutions that meet your exact requirements.
