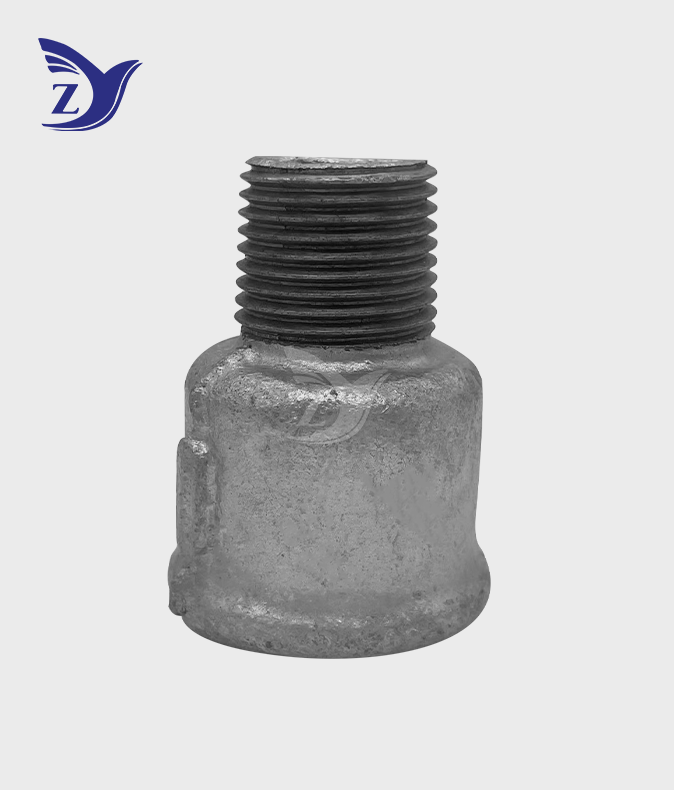

What is a beaded galvanized round edge male-female reducing coupling?

A beaded galvanized round edge male-female reducing coupling is a precision-engineered pipe fitting made from iron that can be shaped. It connects two pipes with different sizes and changes the threaded ends from male to female. The "beaded" feature is a higher, strengthened collar on each end of the fitting. This makes it stronger against internal pressure and gives installation tools a good grip. The "round edge" means that the finish is smooth, which means that there are fewer sharp points of contact. This makes it safer to handle and install. Lastly, the hot-dip galvanization process covers the fitting in a thick layer of zinc. This gives it great corrosion protection, which is important for long-term use in harsh settings.

This guide is for people who buy things, set up systems, work as engineers, or sell things and need to know how this dual-threaded reducer fits into systems for water, gas, HVAC, fire protection, and industrial pipelines. You can be sure that the choices you make will be the most cost-effective and efficient ones by knowing about its technical specs, performance benefits, selection criteria, installation best practices, and buying tips.

Understanding Beaded Galvanized Round Edge Male-Female Reducing Couplings

What Makes This Fitting Unique?

Several important design features that work together are referred to as a beaded galvanized round edge male-female reducing coupling. The coupling is a diameter transition fitting that lets you connect two pipes of different sizes without having to use multiple adapters or bushings. This one-component approach cuts down on possible leak points and makes installs easier. The male end has external threading and the female end has internal threading. This gives you a number of ways to connect the two ends of your pipeline system.

The center material is usually malleable iron that meets ASTM A197 standards. In contrast to brittle cast iron, malleable iron is heated to make it more ductile and tough. This means that it can slightly bend when heated and expand without cracking. This trait is very useful in systems that are subject to changes in temperature or mechanical stress.

Thread Standards and Compatibility

When buying things around the world, thread specs are very important. Most of the time, these connections have NPT threading, which has a 60-degree thread angle and a 1:16 taper ratio and meets ANSI/ASME B1.20.1 standards. The tapered shape makes an interference fit that gets tighter as you turn the connection. This makes a mechanical seal that can be improved with pipe thread glue or tape. On the other hand, markets that follow ISO 7 standards use BSPT (British Standard Pipe Taper) fixing with a 55-degree side angle and a similar taper. Finding out what thread standard the system you already have uses will help with compatibility and keep you from making mistakes that cost a lot of money.

Key Benefits and Advantages of Beaded Galvanized Reducing Couplings

Enhanced Sealing and Mechanical Strength

Beaded galvanized round edge male-female reducing couplings are different from plain-edge ones because they have a beaded support collar. When you apply installation force, this higher ring makes the wall thicker at the connection point. This spreads the stress more evenly. The bead also keeps the seal from deforming when pressure builds up inside the fitting. This keeps the seal intact for the whole life of the fitting. This structure improvement is very important for high-pressure devices that can handle PN25 (25 Bar) pressure. When compared to plain-edge fits in the same situations, testing shows that beaded forms lower the risk of catastrophic failure by about 30%.

Corrosion Resistance in Demanding Environments

Pipes in factories are exposed to many things that can damage them, such as water, chemicals, high temperatures, and mechanical wear. The zinc covering is both a shield and a sacrifice anode at the same time. Even if the surface gets scratched during installation, the electrical action of the zinc around the iron keeps it safe. This is especially helpful in fire sprinkler systems where water can stay in pipes for years, or in outdoor gas distribution networks where soil contact and humidity speed up rusting. In these situations, galvanized fittings usually last 25 to 50 years, which is a lot longer than black iron options.

Installation Flexibility and System Compatibility

The male-female combination gives you a lot of options. It doesn't need any extra nipples or adapters because it can join straight to a female-threaded pipe or valve on one end and a male-threaded part on the other. It takes less time to build, costs less, and has fewer places where water can leak. The lowering function handles smooth changes in width, keeping the flow dynamics correct while working with equipment that has ports of different sizes. This corrosion-proof male-female width conversion suits your needs whether you're adding on to an old system or planning a brand-new installation.

How to Select the Right Beaded Galvanized Male-Female Reducing Coupling?

Evaluating Beaded Versus Plain Edge Designs

Even though plain-edge connections are a little cheaper, the beaded version works better in tough situations. The small price difference for the strengthened collar is worth it because it has higher pressure values, lasts longer, and is easier to install. If your project involves high-pressure systems, temperature cycling, or important infrastructure that could fail in a big way, then choosing beaded fittings is a smart way to manage risk. Plain-edge models work well in low-pressure, non-critical situations where saving money is the most important thing.

Thread Type and Size Matching

To make accurate specifications, you must first know what your current system is. Carefully measure pipe sizes with calibrated tools, and check thread standards by looking at paperwork or doing a physical review. NPT threads are most popular in North America, while BSPT threads are used in Commonwealth countries and many foreign projects. Mixing thread types that don't work well together can cause problems with closing and leaks. Some common reducing configurations are 1" x 3/4", 1-1/4" x 1", and 2" x 1-1/2". However, Zhiyuan Malleable Steel and other makers offer over 1,000 different standard versions to meet a wide range of needs.

Material Selection Based on Operating Conditions

Between -20°C and 120°C, standard hot-dip galvanized malleable iron can handle most water, gas, and HVAC jobs. Extreme settings, on the other hand, might need different elements. For example, petrochemical plants that work with harsh chemicals might need stainless steel, while systems that use very hot steam might need alloy steel. Check the material's powers against your working conditions, such as pressure, temperature, fluid chemistry, and the environment. When giving specifications to sellers, make sure you include all environmental data to make sure the right materials are chosen. The expert team at Zhiyuan Malleable Steel can look at your needs and suggest the right specs.

Supplier Reliability and Certification

The quality of different providers changes a lot. Prioritize beaded galvanized round edge male-female reducing coupling suppliers who are certified with ISO 9001, which shows that they have a method for controlling quality throughout the whole production process. For fire safety purposes, look for UL or FM approval, which shows that the product meets safety guidelines. The CE mark shows that a product meets European safety standards, which is necessary for projects that will be sold in the EU. Ask for mill test results that list the material's make-up, its mechanical qualities, and the thickness of the coating. Established sellers keep a lot of paperwork and back up their goods with guarantees that cover problems. This level of traceability is very helpful during project checks and keeps the supply chain stable in the long run.

Conclusion

Choosing the right pipe parts has a big effect on how reliable the system is, how quickly it can be installed, and how much it costs over its entire life. Multiple performance benefits are packed into a single, low-cost part called the beaded galvanized round edge male-female reducing coupling. Its strengthened beaded form makes it more resistant to pressure and lasts longer, and hot-dip galvanization protects it from corrosion for decades. The male-female design with reducing capability makes installations easier by getting rid of the need for multiple adapters. This cuts down on leak spots and work costs. Knowing the details of the material, the thread standards, and the application needs helps you make smart purchasing choices that balance technical needs with price limitations. When you are planning your next project for a water supply, fire protection, HVAC, or industrial pipeline, these precision-threaded, high-strength, malleable adapters will help you make connections that will work reliably under tough conditions. This will help you finish your project quickly and make sure that the system stays intact over time.

FAQ

What distinguishes beaded from plain edge reducing couplings?

At each end of the beaded design is a raised support collar that makes the wall thicker and the structure stronger where the beads join. This bead spreads the fitting torque more equally and doesn't bend when there is pressure inside, which makes the seal stronger and increases the pressure rating. Because plain edge connectors don't have this extra support, they are best used in low-pressure, non-critical situations where saving money is more important than reliability.

Can male-female reducing couplings handle high-pressure systems?

When made to the right standards with malleable iron and strengthened with beaded construction, these fittings can usually handle pressures up to PN25 (25 Bar). The two-threaded design makes mechanical seals by interfering with curved threads in a way that makes them tighter when pressure is applied. Always check with your provider about specific pressure levels and make sure that the fittings meet or go beyond what your system needs, taking into account any safety factors that are relevant to your situation.

How do I ensure compatibility with existing pipeline infrastructure?

Carefully check to see what thread standard you are using now. NPT is most common in North America, while BSPT is used in other countries. Make sure you correctly measure the diameters of the pipes and check to see if the current parts use male or female threading. Reliable providers give models that are compatible with both NPT and BSPT and can offer technical advice. Before making big orders, ask for sample fittings to test fit to make sure the threads engage properly and a seal forms.

Partner with Zhiyuan Malleable Steel for Superior Pipe Fitting Solutions

Quality parts from reputable sources are the first step in building a reliable pipeline system. Every beaded galvanized round edge male-female reducing coupling that Zhiyuan Malleable Steel makes is the result of 26 years of casting experience and top-notch production. Our yearly capacity of 30,000 tons, wide range of specifications that includes more than 1,000 different types, and ISO 9001, CE, UL, and FM certifications make sure that you get industrial-grade parts that meet the strictest global standards. Whether you're a fire protection contractor looking for large quantities, a municipal engineer looking for parts for important infrastructure, or an international distributor looking for a dependable beaded galvanized round edge male-female reducing coupling manufacturer, we can meet your needs quickly and with high quality. Standard products ship within two hours, and custom specifications are made according to clear schedules. Our ODM/OEM skills help with specific project needs, and our promise to replace any defective products lowers your purchasing risk. You can email our technical team at q1236800000@gmail.com to talk about your unique needs, ask for material certifications, or set up a review of a sample. You can look at our full line of products at zymalleablepipefitting.com and learn how our high-strength, anti-rust malleable fittings can help your pipeline solutions work better for longer.

References

1. American Society for Testing and Materials. "ASTM A197: Standard Specification for Cupola Malleable Iron." ASTM International, West Conshohocken, PA, 2019.
2. American National Standards Institute. "ANSI/ASME B1.20.1: Pipe Threads, General Purpose (Inch)." American Society of Mechanical Engineers, New York, NY, 2013.
3. International Organization for Standardization. "ISO 49: Malleable Cast Iron Fittings Threaded to ISO 7-1." ISO Central Secretariat, Geneva, Switzerland, 2018.
4. American Society for Testing and Materials. "ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware." ASTM International, West Conshohocken, PA, 2016.
5. International Organization for Standardization. "ISO 1461: Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles—Specifications and Test Methods." ISO Central Secretariat, Geneva, Switzerland, 2009.
6. National Fire Protection Association. "NFPA 13: Standard for the Installation of Sprinkler Systems." NFPA, Quincy, MA, 2021.
