Fire Grooved Reducer
2.Size-adapting fire pipeline grooved connector .
3.Fire protection system high-pressure reducer .
4.High-strength corrosion-resistant fire reducer .
5.Precision-manufactured red grooved fitting .
6.Industrial fire sprinkler grooved reducer .
7.Durable red fire pipe grooved adapter .
8.Pressure-resistant fire grooved size reducer
Description

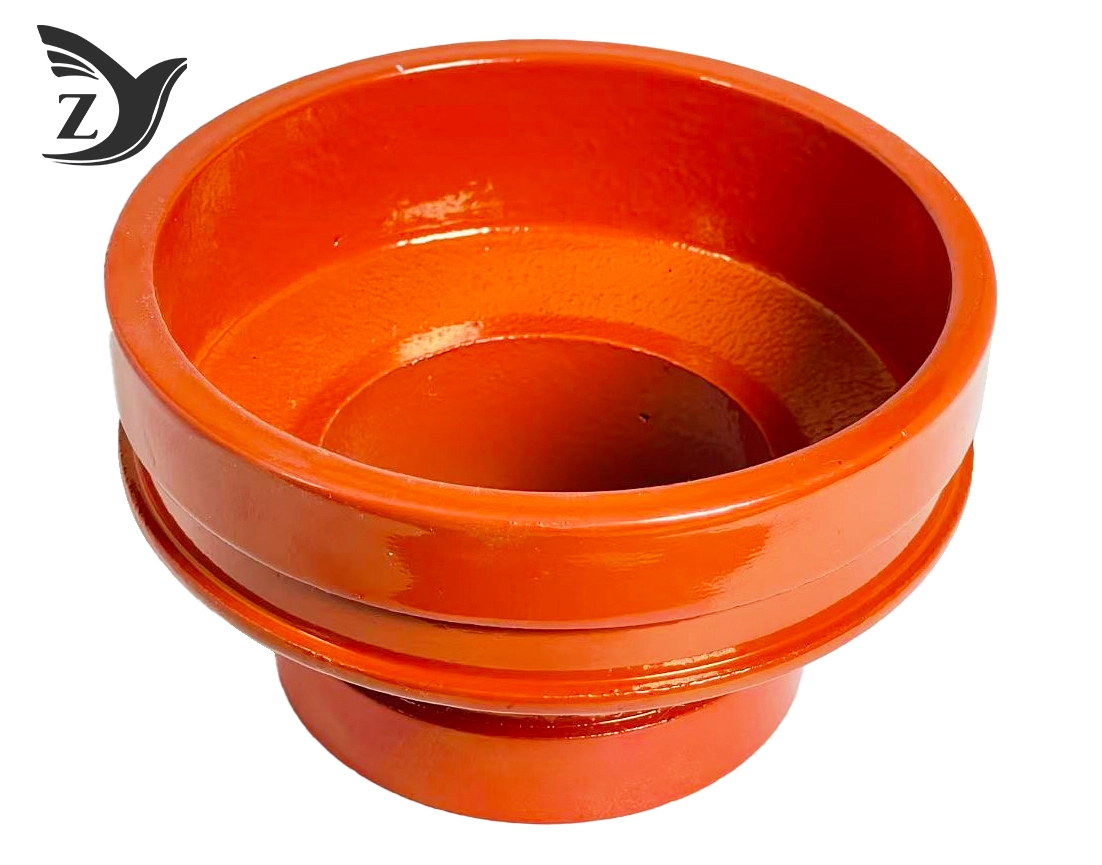

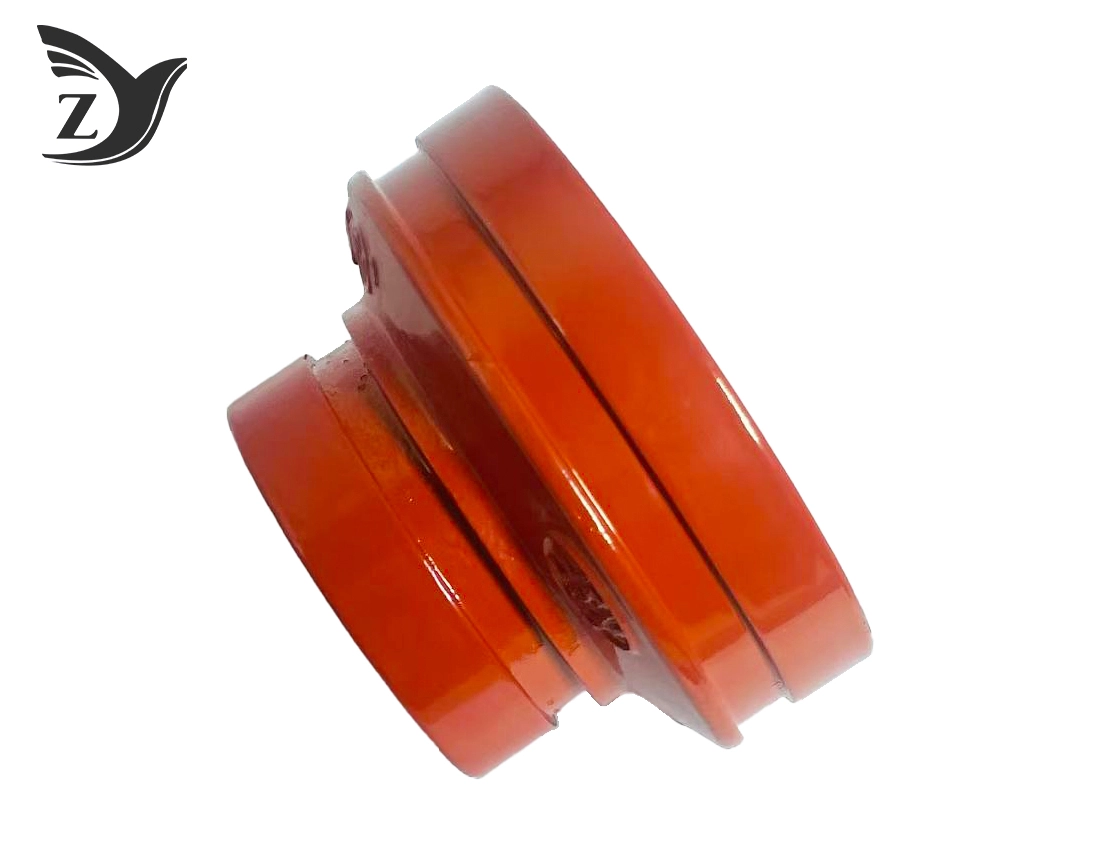

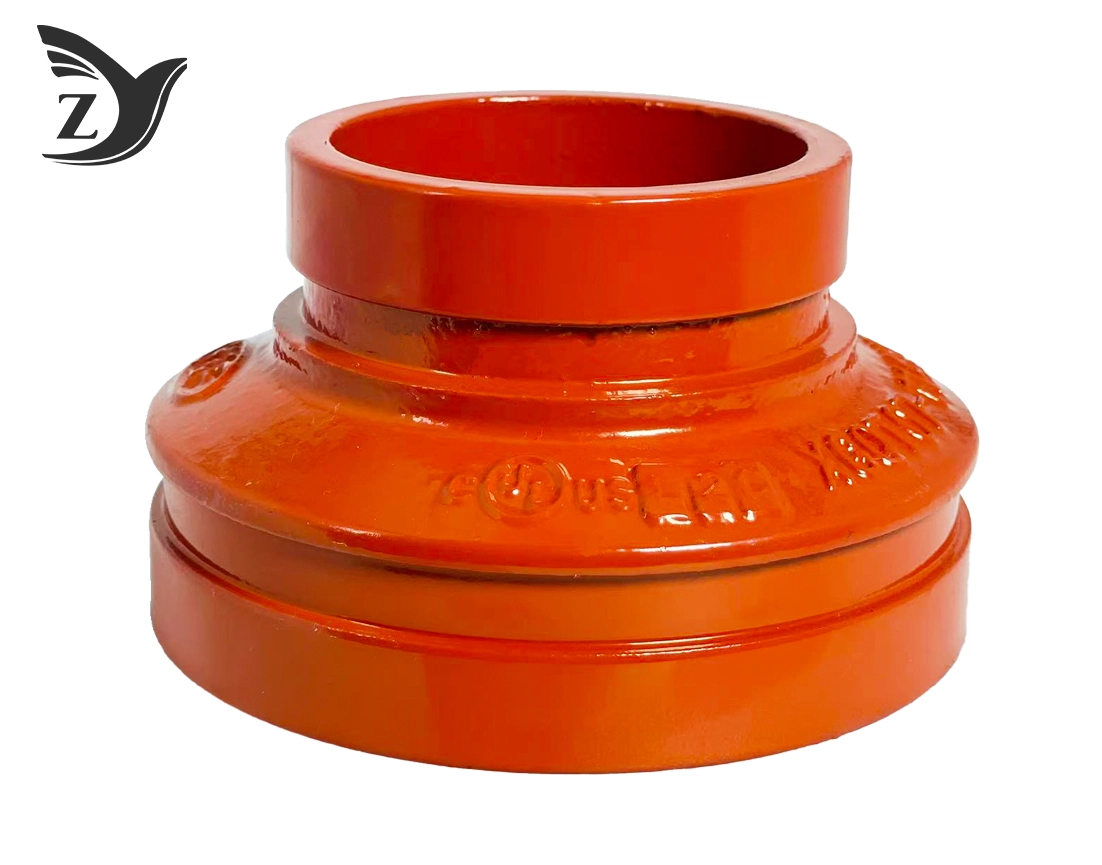

Fire Grooved Reducer - Premium Fire Protection Pipe Fittings
When you need reliable connections between different pipe sizes in fire protection systems, our Fire Grooved Reducer conveys unmatched execution and security. This basic pipe fitting component is particularly built for fire security applications, consistently interfacing pipelines of shifting breadths through progressed furrowed mechanical joinery innovation. Our product eliminates the require for welding or threading, lessening establishment time by up to 60% whereas keeping up predominant framework weight keenness. Built to withstand extraordinary conditions, this fitting assimilates seismic stretch and vibration commonly found in high-pressure sprinkler systems.
Technical Specifications
Our furrowed reducers highlight hydrodynamic inner plan that minimizes turbulence and contact misfortune, guaranteeing exact pressure driven calculations for your fire concealment framework. Each product undergoes thorough testing to meet the requesting prerequisites of cutting edge fire security engineering.
| Parameter | Specification |
|---|---|
| Material | Ductile Iron ASTM A536 Grade 65-45-12 |
| Tensile Strength | Min 65,000 psi |
| Yield Strength | Min 45,000 psi |
| Working Pressure | 300-500 PSI (2.07-3.45 MPa) |
| Size Range | 1" to 12" (25mm to 300mm) |
| Connection Type | Grooved Mechanical |
| Surface Treatment | Fusion-bonded epoxy coating (RAL 3000 Red) |
| Temperature Range | -40°F to 200°F (-40°C to 93°C) |
Key Features
- Superior Quality: Fabricated from high-grade bendable press for extraordinary durability
- Corrosion Resistance: Progressed epoxy coating withstands unforgiving fire assurance environments
- Rapid Establishment: Notched associations dispense with hot work grants in perilous areas
- Seismic Adaptability: Suits warm development and seismic movement
- Pressure Tried: Thoroughly tried to withstand water pound effects
- Optimized Stream: Built inner geometry decreases weight drop
Dimensions and Specifications Table
| Inlet Size | Outlet Size | Length (L) | Weight (lbs) |
|---|---|---|---|
| 2" | 1.5" | 4.5" | 2.8 |
| 2.5" | 2" | 5.0" | 3.5 |
| 3" | 2.5" | 5.5" | 4.2 |
| 4" | 3" | 6.0" | 6.8 |
| 6" | 4" | 7.5" | 12.5 |
| 8" | 6" | 9.0" | 18.2 |
Custom sizes available upon request
Materials and Surface Treatment
You can believe our materials and coating forms to provide long-lasting execution. Each fitting is cast from premium bendable press acclimating to ASTM A536 measures. Our standard wrap up highlights fusion-bonded epoxy coating in fire security ruddy (RAL 3000), giving amazing erosion resistance that surpasses 500 hours in salt splash testing. For situations requiring improved assurance, hot-dip galvanization per ASTM A153 is available.
Standards and Certifications
Our items meet exacting industry measures counting AWWA C606 for notched associations and NFPA 13/14 prerequisites for fire assurance frameworks. All fittings experience comprehensive quality testing to guarantee unwavering quality in basic applications.
Application Areas
Your fire assurance ventures advantage from our reducer's flexibility over numerous applications:
- High-Rise Buildings: Idealize for venturing down fundamental riser distances across at upper floor connections
- Fire Pump Rooms: Unconventional setups anticipate discuss pockets in suction lines
- Industrial Stockrooms: Perfect for dry-pipe and pre-action frameworks in temperature-sensitive environments
- Commercial Complexes: Dependable execution in damp pipe sprinkler systems
- Marine Applications: Corrosion-resistant plan suits shipboard fire suppression
Installation Instructions
Your establishment prepare is direct with notched connections:
- Ensure pipe ends are properly grooved per AWWA C606 standards
- Apply coupling gasket to the grooved pipe end
- Position the Fire Grooved Reducer between connecting pipes
- Install grooved couplings on both ends
- Tighten coupling bolts to specified torque values
- Perform pressure testing per local codes
Packaging and Shipping
We secure your speculation with cautious bundling. Each fitting is separately wrapped and stuffed in durable cartons with defensive fabric. Standard shipping incorporates nitty gritty item documentation and establishment rules. Bulk orders get customized bundling arrangements to minimize dealing with damage.
Quality Control
Your quality affirmation starts with our ISO 9001 certified fabricating prepare. Each reducer experiences dimensional review, weight testing, and surface quality confirmation some time recently shipment. Our 26 a long time of casting ability guarantees steady execution you can depend on.
OEM and Customization Services
We get it your ventures may require particular setups. Our building group gives custom measuring, uncommon coatings, and fabric adjustments to meet your special necessities. With yearly generation capacity of 30,000 tons and over 1,000 item determinations, we suit both standard and specialized applications.
Frequently Asked Questions
Q: When should I use eccentric vs. concentric reducers?
A: Use eccentric reducers on horizontal pump suction lines to prevent air traps. Choose concentric reducers for vertical runs and discharge applications.
Q: Are these compatible with both Schedule 10 and Schedule 40 pipes?
A: Yes, provided pipe ends are properly grooved to standard specifications. Groove validation is essential for thinner wall pipes.
Q: How do these fittings handle seismic movement?
A: The grooved coupling system allows deflection and rotation, accommodating seismic displacement when paired with flexible couplings.
