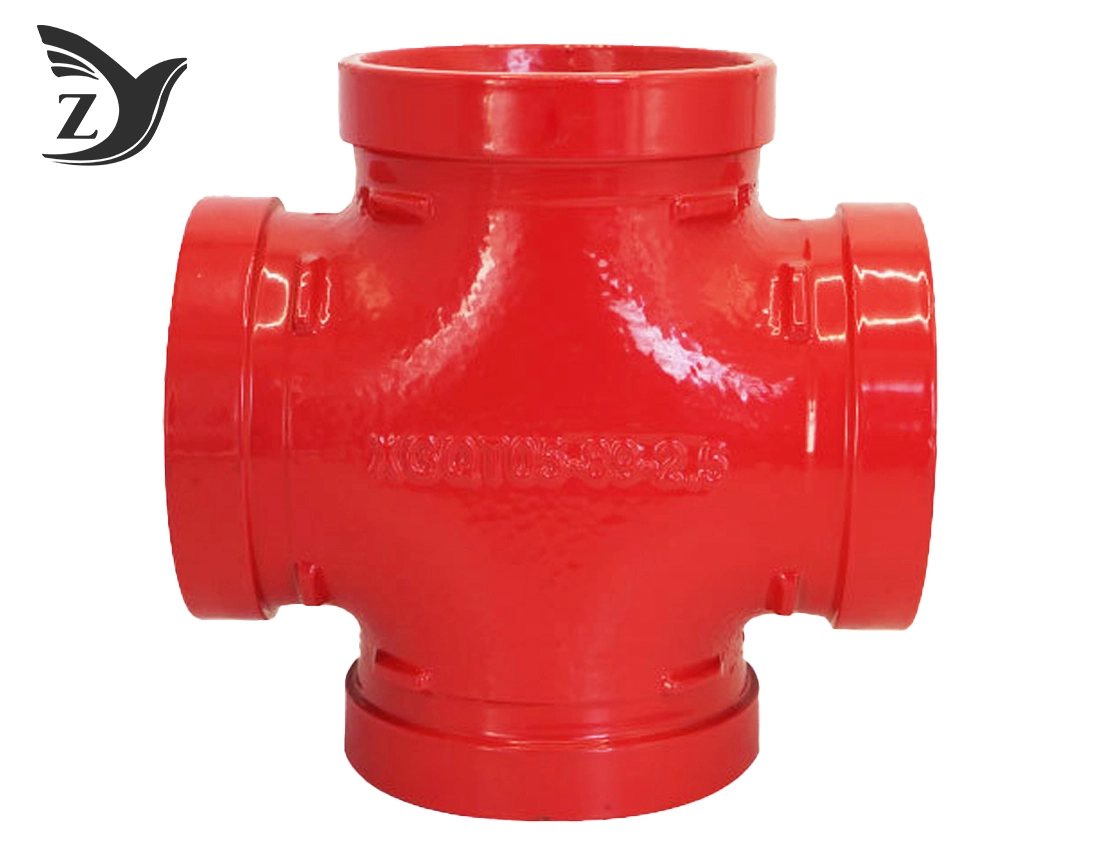

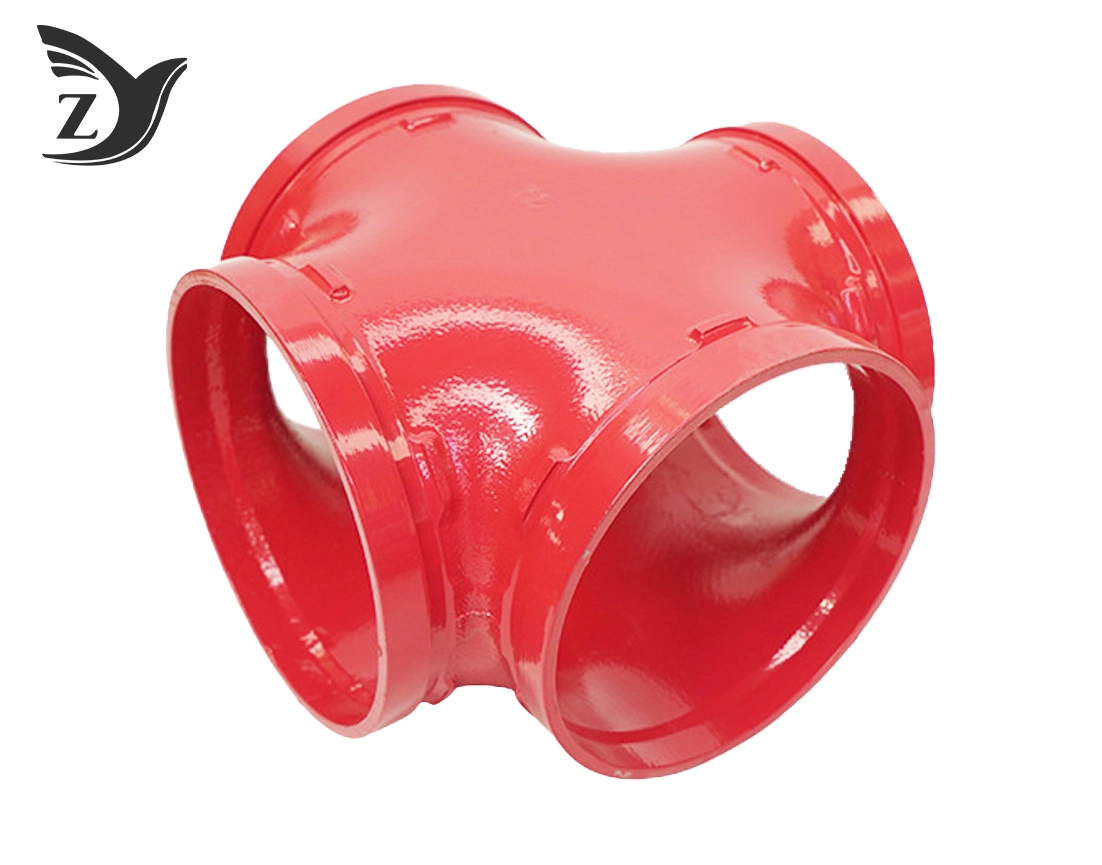

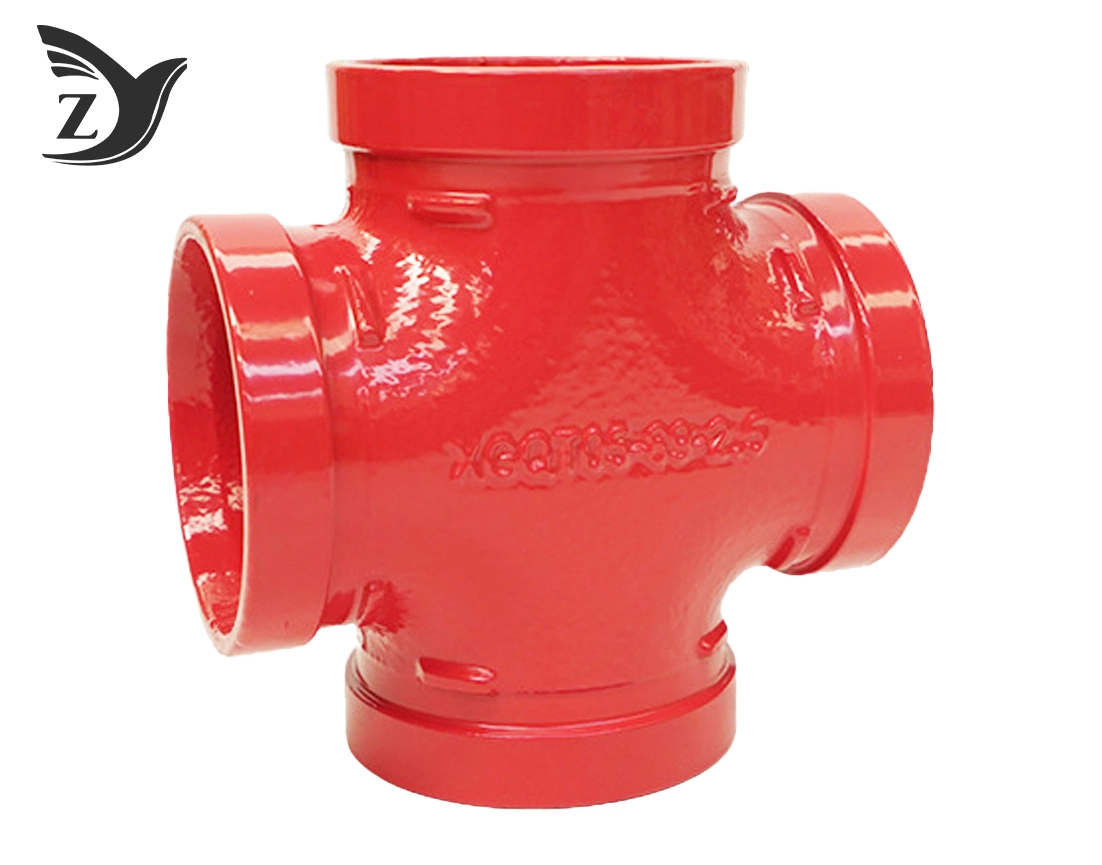

Fire Grooved Cross
2.4-way fire pipeline grooved connection .
3.Fire protection system high-pressure cross .
4.High-strength red fire grooved fitting .
5.Corrosion-resistant fire safety cross .
6.Precision-manufactured grooved fire cross .
7.Industrial fire sprinkler 4-way joint .
8.Pressure-resistant red grooved cross
Description
Fire Grooved Cross - Professional Fire Protection Pipe Fitting
When you need a reliable four-way pipe fitting for your fire protection system, our Fire Grooved Cross delivers exceptional performance and safety. This precision-engineered component makes secure convergences in fire sprinkler systems, permitting liquid stream to part or meet at culminate 90-degree points. Not at all like conventional welded fittings, our notched mechanical coupling framework kills unsafe hot work on-site whereas lessening establishment time by up to 50%. You get the adaptability to oblige warm extension and seismic movement without compromising framework astuteness. Each product from Zhiyuan meets strict industry benchmarks for commercial, mechanical, and regulation fire security applications.
Technical Specifications
Our fire assurance crosses are fabricated from premium bendable press taking after ASTM A536 Review 65-45-12 determinations. This fabric choice gives prevalent malleable quality of least 65,000 psi and fabulous affect resistance. The notched coupling plan complies with ANSI/AWWA C606 measures for mechanical joint systems.
Each fitting features Grade 'E' EPDM gaskets with green stripe identification. These gaskets keep up leak-proof seals over temperature ranges from -30°F to 230°F (-34°C to 110°C). You can believe these components for steady execution beneath cyclic weight loads.
Key Features
Rapid Establishment: Bolt-and-nut gathering implies quicker venture completion
No Hot Work Required: Disposes of welding dangers and permits
Seismic Adaptability: Obliges building development and warm expansion
Leak-Proof Plan: Premium EPDM gaskets guarantee framework integrity
Corrosion Assurance: Ruddy epoxy coating or galvanized wrap up options
High-Pressure Rating: Tried to 4x security variables for reliability
Dimensions and Specifications Table
| Size (inches) | Working Pressure (psi) | Weight (lbs) | Length (mm) | Height (mm) |
|---|---|---|---|---|
| 2" | 300 | 3.2 | 120 | 120 |
| 2½" | 300 | 4.8 | 135 | 135 |
| 3" | 300 | 6.5 | 150 | 150 |
| 4" | 300 | 10.2 | 180 | 180 |
| 5" | 300 | 15.8 | 210 | 210 |
| 6" | 300 | 22.4 | 240 | 240 |
| 8" | 300 | 38.6 | 300 | 300 |
Materials and Surface Treatment
You get fittings created from high-grade bendable press with two wrap up choices. Our standard ruddy epoxy powder coating (RAL 3000) gives fabulous erosion resistance for normal establishments. For cruel situations, hot-dip galvanization per ASTM A153 offers prevalent assurance against dampness and chemical exposure.
The accuracy casting prepare guarantees reliable divider thickness and smooth inside surfaces. This decreases contact misfortune and keeps up ideal stream characteristics all through your fire assurance system.
Standards and Certifications
All products comply with UL (Underwriters Laboratories) and FM (Factory Mutual) approval standards. Our manufacturing facility operates under ISO 9001 quality management systems. Each Fire Grooved Cross undergoes rigorous pressure testing to verify performance ratings of 300-500 psi working pressure.
Application Areas
High-Rise Commercial Buildings: Idealize for vertical riser frameworks dispersing water to numerous floor zones
Industrial Warehouses: Essential components in ESFR (Early Suppression Fast Response) ceiling grids
Subway and Burrow Frameworks: Perfect for underground fire mains requiring vibration resistance
Healthcare Offices: Dependable execution for basic fire security infrastructure
Data Centers: Exact stream control for specialized concealment systems
Installation Instructions
Begin by guaranteeing pipe closes are appropriately cut and notched to producer determinations. Introduce the gasket in the groove, guaranteeing appropriate seating. Position the cross fitting and apply coupling lodgings. Fix jolts continuously in a cross design to indicated torque values. Continuously confirm gasket arrangement some time recently last tightening.
Your establishment group will appreciate the direct gathering prepare. No uncommon apparatuses or certified welders required.
Packaging and Shipping
We ensure each fitting with person wrapping and secure palletizing. Standard shipping incorporates defensive conclusion caps and point by point establishment guides. Our 30-minute nearness to territorial airplane terminals guarantees quick conveyance to your venture site.
Quality Control
Our 26 a long time of casting ability ensures steady quality. Each bunch experiences hydrostatic weight testing and dimensional confirmation. With yearly generation capacity of 30,000 tons and over 1,000 item details, we keep up strict quality benchmarks over all fabricating processes.
OEM and Customization Services
Need particular measurements or extraordinary coatings? Our designing group gives custom item arrangements for interesting venture prerequisites. We offer private labeling and altered details to meet your correct needs.
Frequently Asked Questions
Q: What's the difference between grooved and threaded connections?
A: Grooved connections install faster, provide flexibility, and eliminate threading operations.
Q: Can these fittings handle pressure surges?
A: Yes, our fittings are tested to 4x safety factors and designed for fire system pressure variations.
Q: Are replacement gaskets available?
A: Absolutely. We stock all gasket sizes for immediate shipping.
Contact Us
Ready to specify our Fire Grooved Cross for your next project? Our technical team stands ready to assist with sizing, specifications, and delivery schedules. Contact us at zhiyuan@mifittings.com for detailed quotes and engineering support.
Trust Shanxi Taigu Zhiyuan Malleable Iron Company Limited for reliable fire protection solutions that keep your projects on schedule and your systems performing at peak efficiency.
