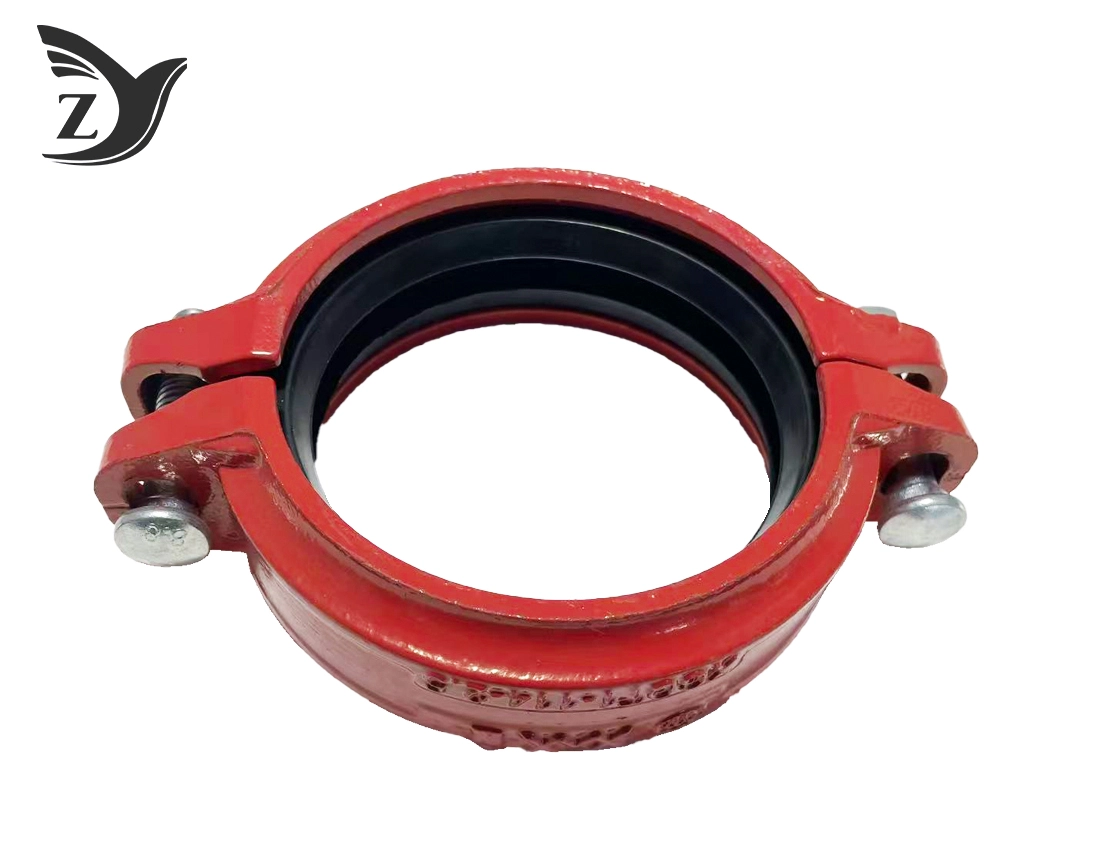

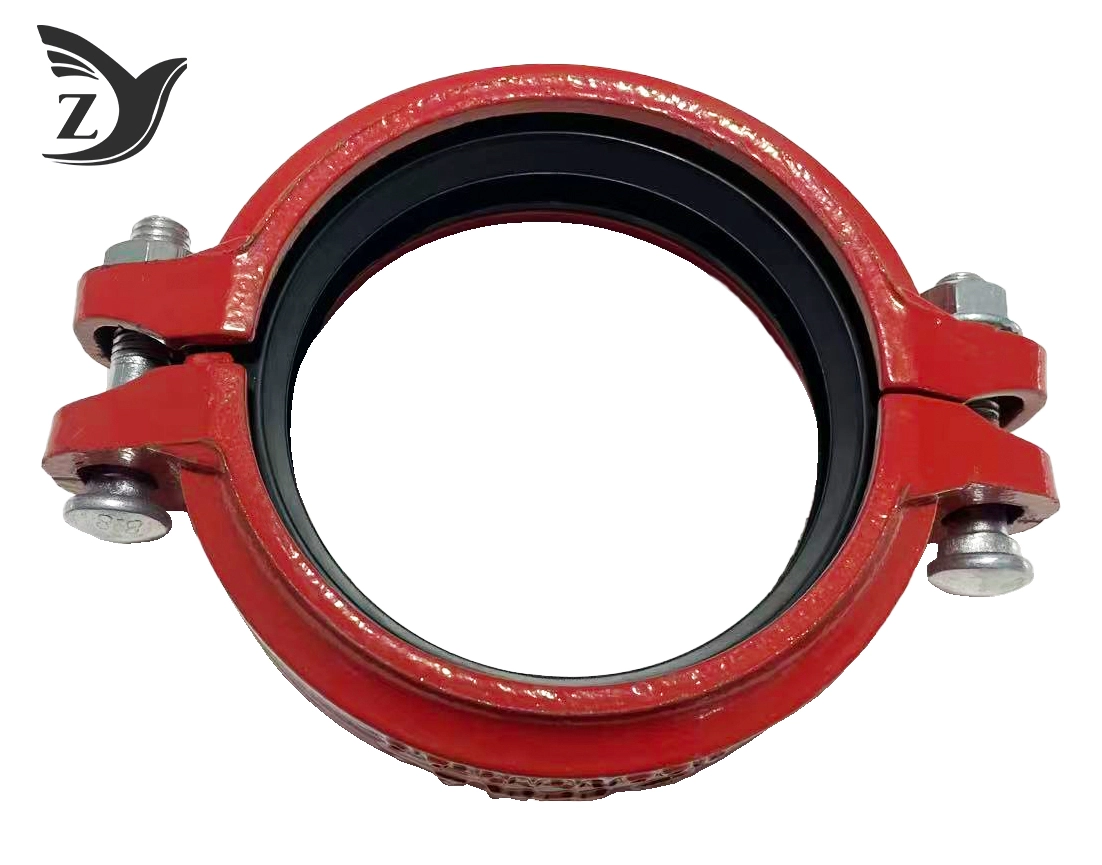

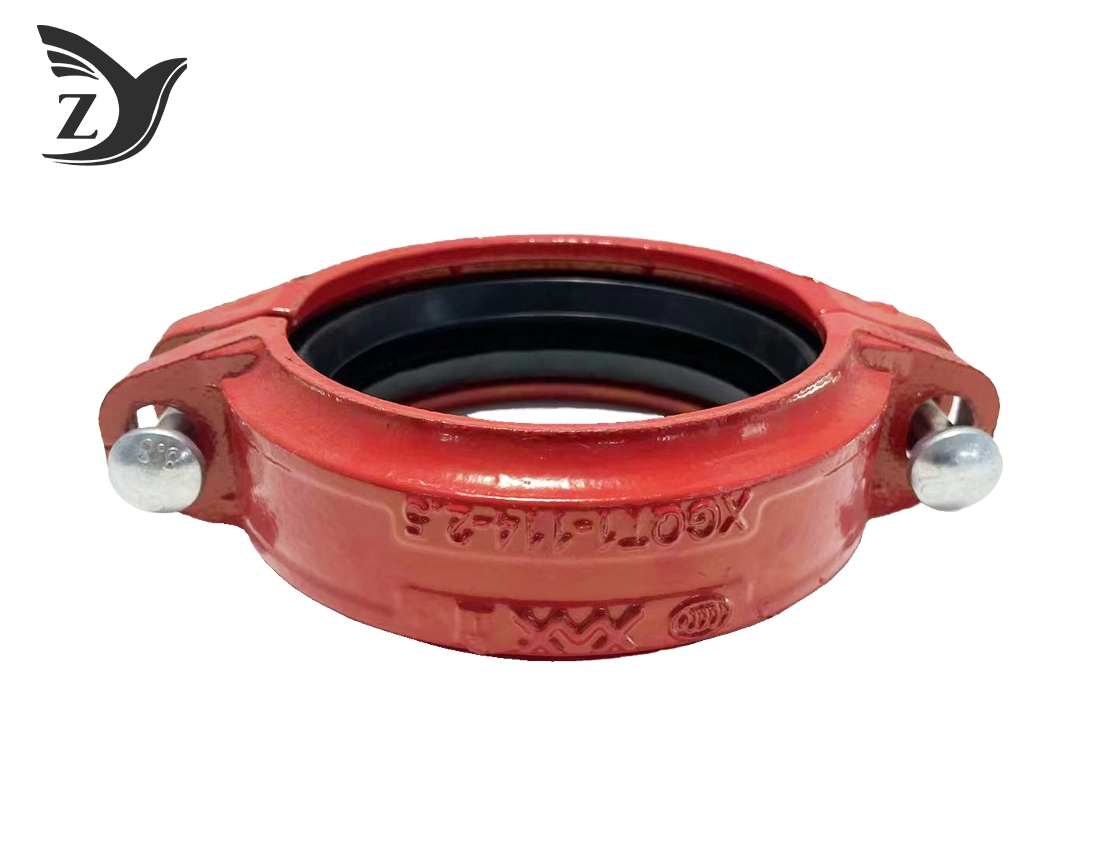

Fire Grooved Clamp
2.Fire pipeline secure grooved connection clamp .
3.Fire protection system high-pressure clamp .
4.High-strength red fire grooved clamp .
5.Corrosion-resistant fire safety clamp .
6.Precision-manufactured grooved fire clamp .
7.Industrial fire sprinkler grooved clamp .
8.Pressure-resistant red grooved clamp
Description
Fire Grooved Clamp - Professional Fire Protection System Solutions
When you're building or maintaining fire protection systems, choosing the right connection technology is crucial for safety and efficiency. Our Fire Grooved Clamp speaks to the gold standard in mechanical pipe joining for sprinkler frameworks, hydrants, and standpipes. These specialized components kill the fire risks related with welding in existing buildings whereas lessening establishment time by up to 50%. You'll discover our notched clamps give remarkable unwavering quality through their fragmented lodging plan and pressure-responsive elastomeric gaskets. The cold-work establishment innovation implies more secure jobsites and speedier extend completion times for your team.
Technical Specifications
Our furrowed clamps are built to meet the most requesting fire security applications. Each product is fabricated from premium pliable press adjusting to ASTM A536 Grade 65-45-12 standards. This fabric choice conveys prevalent ductile quality and affect resistance compared to conventional dim press alternatives.
The sealing mechanism utilizes Grade E EPDM gaskets specifically designed for fire protection services. These gaskets maintain integrity across temperature ranges from -34°C to +110°C and comply with UL 213 and FM 1920 standards.
Key Features
- Fast Establishment: No welding or threading required
- Flexible Plan: Suits warm development and seismic movement
- Corrosion Safe: Different coating choices available
- High Weight Rating: Tried to withstand requesting fire framework pressures
- Vibration Assimilation: Decreases push on channeling networks
- Reusable Lodging: Cost-effective support solutions
Dimensions and Specifications Table
| Size (inches) | Working Pressure (PSI) | Housing Material | Gasket Type | Weight (lbs) |
|---|---|---|---|---|
| 2" | 300 | Ductile Iron ASTM A536 | EPDM Grade E | 2.8 |
| 3" | 300 | Ductile Iron ASTM A536 | EPDM Grade E | 4.2 |
| 4" | 300 | Ductile Iron ASTM A536 | EPDM Grade E | 6.5 |
| 6" | 300 | Ductile Iron ASTM A536 | EPDM Grade E | 12.8 |
| 8" | 300 | Ductile Iron ASTM A536 | EPDM Grade E | 18.5 |
| 10" | 300 | Ductile Iron ASTM A536 | EPDM Grade E | 28.2 |
| 12" | 300 | Ductile Iron ASTM A536 | EPDM Grade E | 42.1 |
Materials and Surface Treatment
You can select from numerous surface treatment choices based on your extend prerequisites. Standard indoor applications advantage from our ruddy electrostatic epoxy powder coating (RAL 3000), which gives great aesthetics and essential erosion protection.
For unforgiving situations, coastal zones, or chemical offices, we suggest hot-dip galvanized clamps assembly ASTM A153 determinations. This treatment anticipates oxidation and expands benefit life significantly.
Standards and Certifications
Our items are made beneath strict ISO9001 quality control frameworks. All clamps experience thorough testing counting hydrostatic weight testing at 1.5x to 4x evaluated working weight. We keep up compliance with AWWA C606 groove measurement measures for widespread compatibility.
Application Areas
The items exceed expectations in assorted foundation scenarios. High-rise commercial buildings depend on these associations for vertical risers where weight resistance and seismic adaptability are basic. Cold capacity offices and mechanical stockrooms advantage from the galvanized choices that withstand stickiness and warm stun conditions.
Underground foundation like tram frameworks and burrows show special challenges. Our flexible Fire Grooved Clamp plan retains steady vibration whereas permitting quick support get to amid basic benefit windows.
Installation Instructions
Installation takes after direct pad-to-pad technique. Basically position the gasket in the groove, adjust the lodging fragments, and fix jolts until the metal cushions meet totally. No torque determinations are required - visual affirmation guarantees legitimate installation.
Always assess groove measurements for AWWA C606 compliance some time recently establishment. Supplant gaskets with each dismantling to keep up seal integrity.
Packaging and Shipping
Each clamp ships with defensive bundling to anticipate coating harm amid transport. We incorporate establishment gaskets and all fundamental equipment. Bulk orders get customized bundling arrangements to optimize your coordinations costs.
Quality Control
Our 26 a long time of casting encounter guarantees steady quality through comprehensive testing conventions. Metallographic examination confirms bendable press nodularity rates surpass 90%. Dimensional exactness testing affirms exact groove fit to anticipate pull-out failures.
EPDM gaskets experience compression set testing and oxygen bomb maturing tests per ASTM D573. Coating grip testing incorporates salt shower introduction surpassing 500 hours for requesting applications.
OEM and Customization Services
Shanxi Taigu Zhiyuan Malleable Iron Company offers total customization capabilities. Our 50,000 square meter office houses progressed casting and machining hardware to meet your particular prerequisites. Uncommon coatings, non-standard sizes, and project-specific alterations are accessible through our designing team.
Frequently Asked Questions
Q: What's the difference between rigid and flexible clamps?
A: Rigid clamps provide fixed connections for straight pipe runs, while flexible versions allow angular deflection for thermal expansion and seismic movement.
Q: Can these clamps be reused?
A: The ductile iron housing often permits reuse when undamaged, but best practice requires replacing the gasket for reliable sealing.
Q: How do I verify proper installation?
A: Unlike flanged connections, grooved clamps use pad-to-pad visual confirmation rather than specific torque values.
Q: Which coating should I choose?
A: Indoor applications typically use red epoxy coating, while corrosive environments require hot-dip galvanizing.
Contact Us
Ready to enhance your fire protection system reliability? Our technical team stands ready to assist with Fire Grooved Clamp selection and specification guidance. Contact us at zhiyuan@mifittings.com for detailed quotations, technical support, or to discuss your specific project requirements.
Experience the difference that professional-grade fire protection components make for your next installation.
