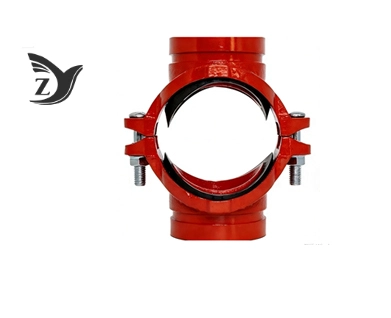

Threaded Mechanical Cross
When you need a reliable four-way connection for your fire protection system, our Threaded Mechanical Cross conveys unmatched execution and establishment effectiveness. This basic bendable press pipe fitting makes a idealize four-way crossing point, permitting liquid stream to part or focalize at exact 90-degree points. Not at all like conventional welded fittings, our furrowed mechanical plan dispenses with fire risks from on-site welding whereas lessening establishment time by up to 50%. You'll appreciate the bolt-and-nut get together that gives vital adaptability for warm development and seismic movement, anticipating exorbitant pipe bursts amid basic stress.
Technical Specifications
Our product features prevalent designing outlined for requesting fire security applications. You get bendable press development acclimating to ASTM A536 Review 65-45-12, giving uncommon malleable quality and affect resistance. The precision-manufactured grooves guarantee idealize compatibility with standard couplings, whereas Review 'E' EPDM gaskets keep up leak-proof keenness beneath cyclic weight loads.
Key Features
- Zero Hot Work Required: Disposes of welding risks amid installation
- Rapid Establishment: Diminishes labor hours by up to 50% compared to conventional methods
- Seismic Adaptability: Obliges building development and warm expansion
- High-Pressure Rating: Withstands working weights up to 500 psi
- Corrosion Security: Ruddy epoxy powder coating or galvanized wrap up options
- Temperature Strong: Works dependably from -30°F to 230°F
Dimensions and Specifications Table
| Size (inches) | Working Pressure (psi) | Weight (lbs) | Material Grade | Gasket Type |
|---|---|---|---|---|
| 4" | 500 | 12.5 | ASTM A536 65-45-12 | EPDM Grade E |
| 6" | 500 | 22.8 | ASTM A536 65-45-12 | EPDM Grade E |
| 8" | 500 | 38.2 | ASTM A536 65-45-12 | EPDM Grade E |
| 10" | 500 | 58.7 | ASTM A536 65-45-12 | EPDM Grade E |
| 12" | 500 | 85.3 | ASTM A536 65-45-12 | EPDM Grade E |
Materials and Surface Treatment
Your fire framework merits the best security. Our fittings utilize premium bendable press with predominant pliable quality of least 65,000 psi. You can select between two defensive wraps up: our standard ruddy epoxy powder coating (RAL 3000) for indoor applications, or hot-dip galvanization (ASTM A153) for cruel situations where erosion resistance is critical.
Standards and Certifications
Every Threaded Mechanical Cross meets rigorous industry standards including UL Listing and FM Approval. Our fabricating prepare takes after strict ISO 9001 quality administration frameworks. You can believe these certifications guarantee worldwide administrative acknowledgment and meet protections prerequisites for your fire assurance system.
Application Areas
Your ventures advantage from flexible applications over different sectors:
- High-Rise Commercial Buildings: Culminate for vertical risers dispersing water to floor-level sprinkler zones
- Logistics and Warehousing: Perfect for ESFR frameworks in expansive dissemination centers
- Subway and Travel Frameworks: Fabulous for underground situations with vibration and dampness challenges
- Industrial Offices: Appropriate for complex channeling formats requiring fast installation
Installation Instructions
Installation is straightforward when you follow these steps:
- Ensure system is depressurized and drained
- Verify groove dimensions meet AWWA C606 standards
- Position the cross fitting at the intersection point
- Install gaskets and coupling housings
- Tighten bolts to specified torque requirements (60-250 ft-lbs depending on size)
- Conduct pressure testing before system activation
Packaging and Shipping
We secure your speculation with cautious bundling. Each fitting gets person wrapping to avoid coating harm amid transport. Standard shipping incorporates defensive crating for bigger sizes. You'll get your arrange with total documentation counting fabric certificates and establishment guidelines.
Quality Control
Your security depends on thorough testing. Each group experiences hydrostatic weight testing at 1.5x evaluated working weight. We confirm dimensional exactness utilizing exactness gages and conduct metallurgical examination to affirm pliable press quality. Salt splash testing guarantees coating toughness, whereas gasket versatility checks ensure long-term fixing performance.
OEM and Customization Services
Need extraordinary details? Our designing group works with you to create custom arrangements. With 26 a long time of casting encounter and yearly generation capacity of 30,000 tons, we handle ventures from model to full generation. You get adaptable fabricating sponsored by our comprehensive quality administration system.
Frequently Asked Questions
Q: Can installation occur on pressurized systems?
A: No, systems must be depressurized for safe installation and proper groove preparation.
Q: How does the fitting handle seismic movement?
A: The grooved design provides angular deflection and axial displacement, meeting NFPA 13 seismic requirements.
Q: What torque specifications should I use?
A: Torque ranges from 60-250 ft-lbs depending on size. Always use calibrated equipment per manufacturer specifications.
Q: Why is FM Approval important?
A: FM Approval indicates rigorous testing including fire exposure and water hammer impact, often required by insurance carriers.
Contact Us
Ready to enhance your fire protection system with our premium Threaded Mechanical Cross? Our technical team stands ready to assist with product selection and custom solutions. With over 500 employees and 38 technical specialists, Shanxi Taigu Zhiyuan Malleable Iron Company delivers the expertise you need.
Contact us today at zhiyuan@mifittings.com for technical specifications, pricing, or to discuss your project requirements. Experience the difference that quality manufacturing and professional service make for your fire protection applications.
