Beaded Galvanized BSPT Round Edge Male-Female Reducing Coupling
2.Dual-threaded reducer, industrial pipe connection .
3.Water/gas pipeline diameter transition fitting .
4.Hot-dipped galvanized, precision-threaded iron .
5.High-strength, anti-rust malleable adapter .
6.NPT/BSPT compatible, dual-thread reducer .
7.Industrial-grade round-edge reducing joiner .
8.Corrosion-proof, male-female diameter converter
Description

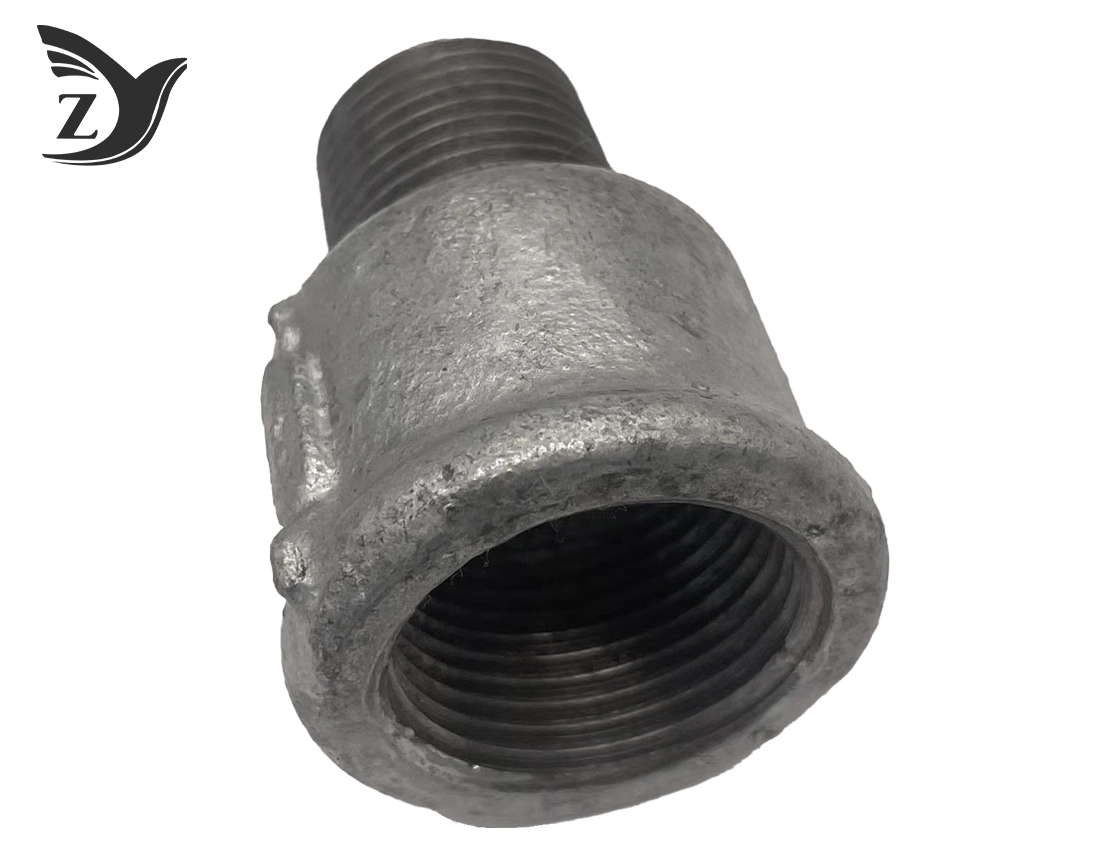

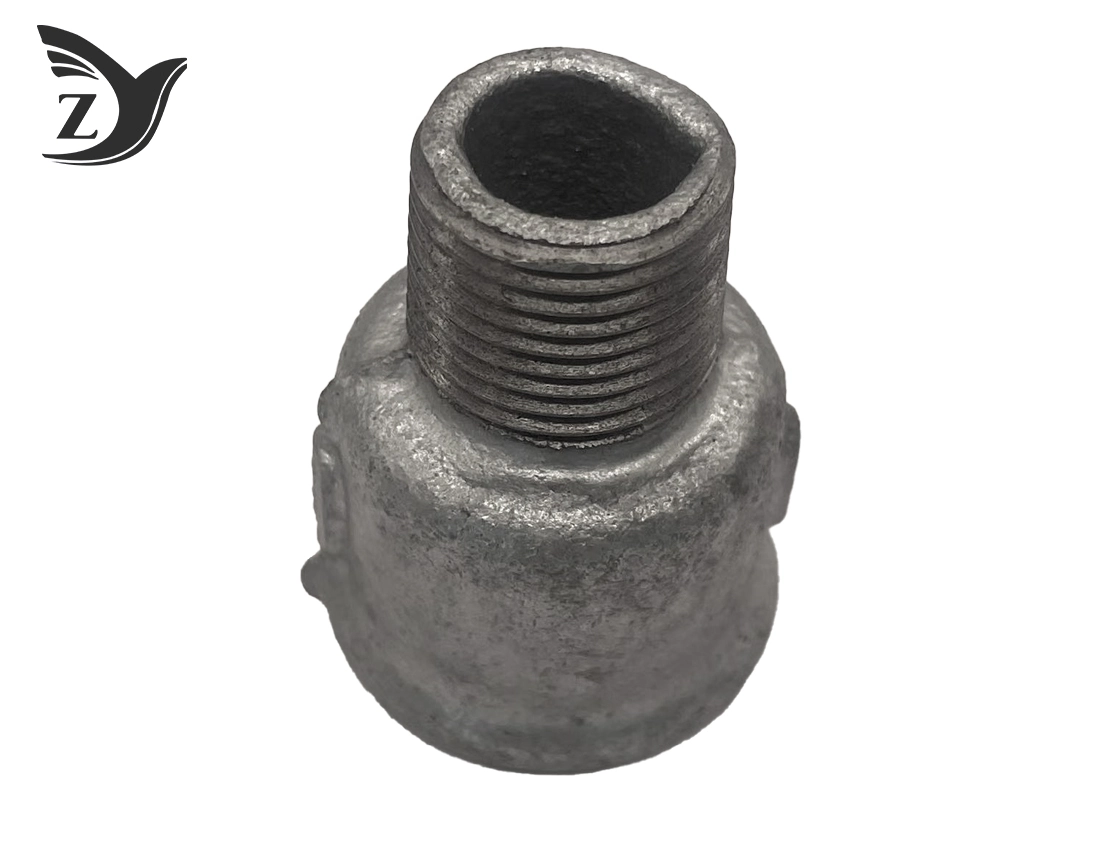

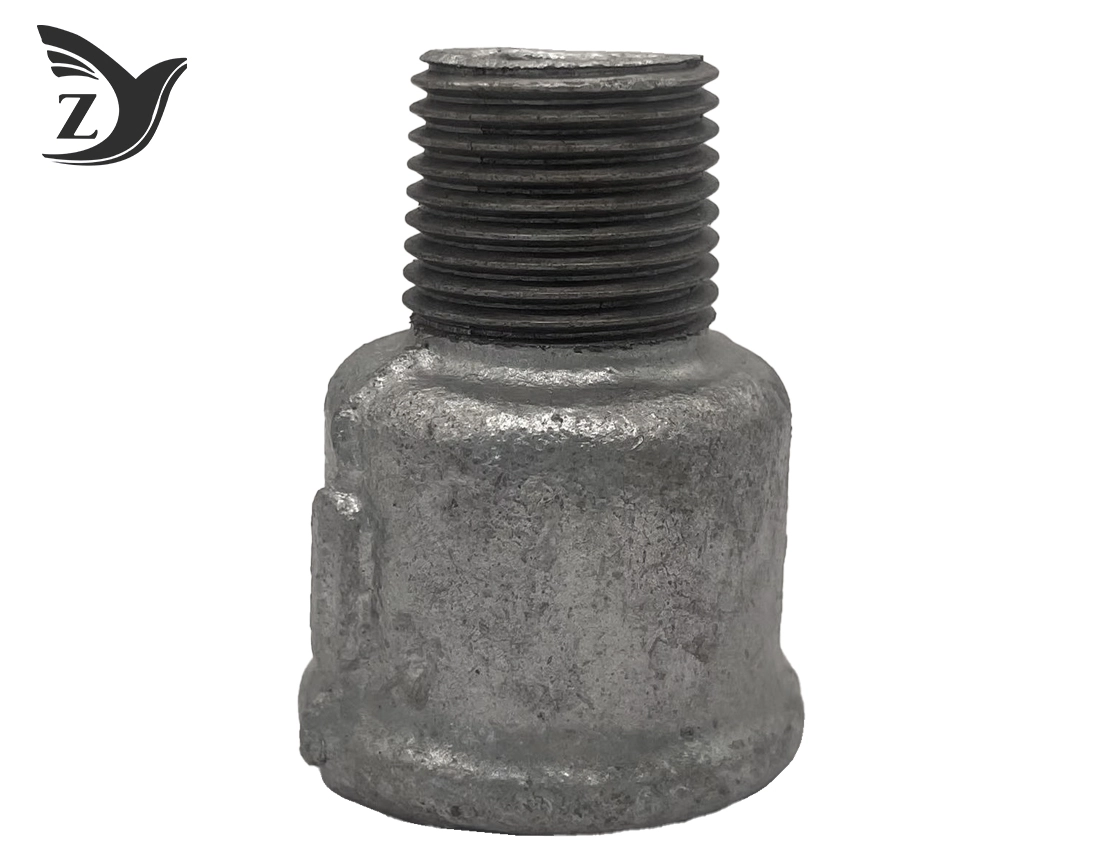

Beaded Galvanized BSPT Round Edge Male-Female Reducing Coupling
The Beaded Galvanized BSPT Round Edge Male-Female Reducing Coupling is a specialized Class 150 malleable iron pipe fitting designed for demanding industrial and commercial applications. This innovative fitting features a unique street configuration with one male NPT thread and one female NPT thread, permitting coordinate associations between channels of diverse breadths. The beaded plan gives upgraded auxiliary astuteness through its fortified, adjusted edge encompassing the female outlet. With prevalent erosion resistance from hot-dip galvanization, this item disposes of the require for middle of the road areolas whereas decreasing establishment time and potential spill focuses in your channeling system.
Technical Specifications
Our flexible press development meets Lesson 150 weight appraisals, guaranteeing dependable execution in high-demand situations. The NPT strings adjust to ANSI/ASME B1.20.1 benchmarks for exact fitting connections.
| Specification | Details |
|---|---|
| Material | Malleable Iron |
| Pressure Rating | Class 150 (300 PSI) |
| Thread Standard | NPT (National Pipe Taper) |
| Configuration | Male x Female (Street) |
| Surface Treatment | Hot-Dip Galvanized |
| Temperature Range | -20°F to 400°F (-29°C to 204°C) |
Key Features
Space-Saving Plan: The road setup dispenses with bulky nipple-coupling combinations, optimizing your channeling get together footprint.
Enhanced Solidness: The beaded fortification gives predominant resistance to mechanical push and high-torque get together compared to plain-end fittings.
Corrosion Assurance: Hot-dip galvanized zinc coating following to ASTM A153 benchmarks guarantees long-term execution in muggy and destructive environments.
Versatile Associations: Coordinate pipe-to-fitting associations diminish fabric costs and establishment complexity.
Dimensions and Specifications Table
| Size Combination | Male End (NPT) | Female End (NPT) | Length | Hex Size |
|---|---|---|---|---|
| 1" x 3/4" | 1" | 3/4" | 1.5" | 1-1/4" |
| 1-1/4" x 1" | 1-1/4" | 1" | 1.75" | 1-5/8" |
| 1-1/2" x 1" | 1-1/2" | 1" | 2" | 1-7/8" |
| 1-1/2" x 1-1/4" | 1-1/2" | 1-1/4" | 2" | 1-7/8" |
| 2" x 1-1/2" | 2" | 1-1/2" | 2.25" | 2-3/8" |
Materials and Surface Treatment
Manufactured from high-grade moldable press, our fittings experience accuracy casting and machining forms. The hot-dip galvanization prepare applies a defensive zinc coating that shapes a metallurgical bond with the base metal. This treatment gives amazing security against galvanic erosion and barometrical exposure.
Standards and Certifications
All products are manufactured in strict accordance with ISO 9001 quality management systems. Our Beaded Galvanized BSPT Round Edge Male-Female Reducing Coupling meets industry standards for dimensional accuracy and pressure ratings.
Application Areas
This fitting exceeds expectations in complex situations requiring strong, space-saving transitions:
Industrial Steam and HVAC Frameworks: Idealize for steam trap gatherings and condensate return lines requiring coordinate diminishment from bigger hardware to littler release channels beneath 150 PSI conditions.
Fire Concealment Frameworks: Perfect for altering existing sprinkler department lines where inflexible moves from bigger mains to littler dispersion channels are necessary.
Agricultural and Open air Gas Conveyance: Fundamental for moderate-pressure common gas or LPG setups uncovered to climate conditions.
Installation Instructions
- Clean all string surfaces altogether some time recently installation
- Apply PTFE tape or affirmed pipe joint compound to male threads
- Hand-tighten the product into the female connection
- Use suitable pipe torques to total the association, dodging over-tightening
- Test the framework at working weight some time recently putting into service
Packaging and Shipping
Products are carefully bundled to avoid harm amid transportation. Standard bundling incorporates defensive wrapping and secure boxing. We offer adaptable shipping choices to meet your venture timelines.
Quality Control
Our comprehensive quality control handle incorporates dimensional review, weight testing, and surface treatment confirmation. Each group experiences thorough testing to guarantee reliable execution and reliability.
OEM and Customization Services
With over 26 a long time of casting and pipe fitting fabricating encounter, we give customized arrangements for particular applications. Our specialized group works closely with clients to create specialized fittings assembly one of a kind requirements.
Frequently Asked Questions
Q: What sealant should I use with NPT threads?
A: PTFE tape or approved pipe joint compound is mandatory for proper sealing up to the rated 300 PSI.
Q: How does the street configuration benefit installation?
A: It eliminates the need for separate nipples, reducing material costs, installation time, and potential leak points.
Q: What causes premature corrosion in galvanized fittings?
A: Damage to the zinc coating during installation or use in dissimilar metal systems without proper dielectric unions can lead to accelerated corrosion.
Contact Us
For technical specifications, custom solutions, or Beaded Galvanized BSPT Round Edge Male-Female Reducing Coupling inquiries, please contact our experienced team at zhiyuan@mifittings.com. We're committed to providing exceptional service and quality products for your piping system needs.
