Typical Materials of BSPT Elbow

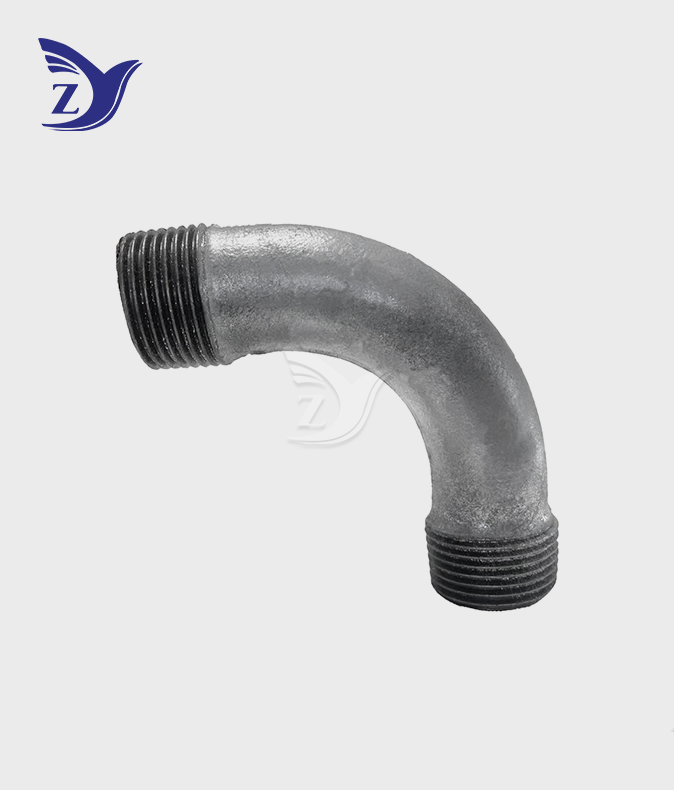

Many experts don't realise how important it is to choose the right material when describing parts for water, gas or heating systems. BSPT round face galvanized round edge 90° elbow pipe fittings are a special type of bendable iron joints made for uses that need to be precisely threaded and resistant to corrosion. These industrial-grade fittings use British Standard Pipe Taper threads with a side angle of 55° and a taper ratio of 1:16. Instead of just using gaskets, the thread interference creates mechanical seals. When it is being installed, the round face support collar is very resistant to radial expansion, and the hot-dipped galvanized coats protect against oxidation in damp places.

BSPT Elbow Fittings Material Requirements

Why Material Selection Defines Performance

Lines need to be able to change directions reliably without compromising the integrity of the seals or the amount of pressure they can hold. This is possible with BSPT round face galvanized round edge 90° elbow pipe fittings because they have tapered threads that wedges tighter as installation goes on. This makes connections that don't leak even when the temperature and shaking change. The round-edge design spreads stress over a larger surface area, which stops cracks from spreading like they do with regular beaded fittings.

The way fittings handle operating pressure is directly affected by the materials they are made of. Poor metals have tiny holes in them that let water in, which causes internal corrosion that can't be seen during eye checks. Changes in wall thickness lead to uneven pressure distribution, which creates places of failure when temperatures change. If parts break under shock loads or take impact energy without deforming, it depends on their metallurgical qualities, such as their ductility.

Critical Operational Factors

We've seen buying teams put a lot of emphasis on thread standards but not on material certifications. Even though it looks the same as compliant goods, a fitting that meets the standards for size but doesn't have the right carbon content or grain structure will fail early. This difference between standards and metallurgy makes upkeep much harder than it would have been with cheaper options.

Typical Materials Used in BSPT Elbow Pipe Fittings

Ratings for pressure rely on how strong the material is and how consistent the wall width is. Class 150 valves can handle 25 Bar at room temperature, but this limit drops as the temperature changes the qualities of the material. Chemical exposure speeds up the wear and tear on surfaces that aren't covered, and repetitive loading from pressure spikes causes brittle alloys to break down due to fatigue. Knowing these connections helps match the properties of a material to its real use, instead of just meeting basic requirements.

Malleable Iron: The Industry Foundation

Choosing the right materials means finding a balance between performance needs, price limits, and environmental issues. There are different benefits to each choice that make them better for certain situations than general answers.

Most BSPT round face galvanized round edge 90° elbow pipe fittings are made from black heart malleable iron that meets ASTM A197 and EN 1562 standards. The heat process that this material goes through turns flimsy white cast iron into structures that are flexible and can handle shock loads without breaking. Tensile strength is more than 350 N/mm², and elongation rates stay above 10%. This gives the material the mechanical stability needed for applications that are likely to be vibration-prone.

During the annealing process, graphite nodules are formed within the iron core. This changes the material from being rigid to being able to bend instead of break when it is stressed. This feature is very helpful in systems that have water hammer or pressure spikes. When compared to regular grey iron, malleable iron is three times more resistant to impact. This means it can be used in both climate-controlled indoor spaces and outdoor settings that are likely to experience heat shock.

Hot-Dip Galvanization: Protection Against the Elements

When working with pliable iron, manufacturing uniformity is very important. Defects in the casting process, such as sand inclusions or gas pores, make weak spots that lower the pressure ratings. Manufacturers with a good reputation use vacuum testing in water at 0.6 MPa to find microleaks before galvanization. This makes sure that the fitting body is structurally sound throughout.

Galvanized coats protect against rust, which makes things last longer in harsh conditions. In the hot-dip process, finished parts are put into liquid zinc that is about 450°C. This makes metallurgical links between the zinc layer and the base iron. This is very different from electroplating, which puts down smaller layers that are more likely to flake.

A good galvanization process gets a zinc layer mass of at least 500 g/m², which is about 70 micrometres thick. This strong layer provides cathodic protection—even if cuts reveal the base metal, the zinc around it corrodes more quickly, stopping rust from forming. The Preece test checks that the coating sticks by immersing it in copper sulphate several times. This makes sure that the zinc links can withstand handling during installation and changes in temperature.

Stainless Steel Variants for Extreme Conditions

We've been keeping an eye on galvanized BSPT round face galvanized round edge 90° elbow pipe fittings in public water lines for more than 20 years and haven't seen any major layer wear down. When the right coating layer is kept, outdoor locations near the coast that are exposed to salt spray last about as long. This is very different from painted fittings that need to be re-coated every couple of years because water gets into broken areas and damages the paint.

In some situations, rust protection is needed that goes beyond what galvanization can provide. Types of stainless steel, such as 304 and 316, work better in places where chemicals are harsh or when the temperature is close to 300°C. When steel surfaces are scratched, the chromium oxide layer that forms on them heals itself, providing safety that gets better over time instead of worse.

Black Steel for Specific Applications

Because it is expensive, stainless steel can only be used in situations where its qualities make it worth the investment. Stainless parts that don't react with chemicals are useful in chemical processing plants that work with acidic or alkaline solutions. When you use high-temperature steam systems, the coating doesn't wear off like it does with galvanized choices. Marine uses that are constantly in contact with saltwater have longer repair times.

Procurement Insights: Sourcing Quality BSPT Elbow Materials

A good buying process strikes a balance between quality control, cost-effectiveness, and the dependability of the supply chain. When you look at things like defect rates, shipping consistency, and expert help, the lowest price isn't always the best deal for BSPT round face galvanized round edge 90° elbow pipe fittings.

Certification Verification and Quality Metrics

Although ISO 9001 certification shows that quality management is being done in an organised way, specific material certifications give even more confidence. For galvanized fittings to meet EN 10242 standards, they must meet certain limits for size, coating thickness, and pressure tests. In North American markets, galvanizing methods must follow ASTM A153. Requesting material test results and third-party inspection certificates is an extra way to make sure that the manufacturer's claims are true.

The results of batch testing show stability over time, not just success in a single sample. Ask possible providers to show you test results from the past that show the tensile strength, covering thickness, and pressure test results from different production runs. Patterns of variation show how well the process is controlled; solid results mean that the manufacturing is dependable, while scattered data points mean that the quality isn't consistent.

Bulk Purchasing and Customization Options

When you make a volume promise, you get better price and scheduling for your production. We've been able to get discounts of 15 to 20 percent for yearly contracts that include shipping plans that are in line with project deadlines. By balancing the costs of keeping goods against the benefits of buying in bulk, this method makes sure that materials are always available and keeps projects from being held up.

OEM customization takes into account special needs that aren't met by regular catalogue items. For uses that need non-standard shapes, Zhiyuan Malleable Steel can make unique threading, special finishes, and changes to the dimensions for BSPT round face galvanized round edge 90° elbow pipe fittings. For custom specs, the minimum order size is usually around 1,000 pieces. This makes it a cost-effective option for big projects or wholesalers that serve niche markets.

Due dates depend on how complicated the product is and how many orders are placed. Standard galvanized elbows can be shipped within hours from stock, but special orders take 4 to 6 weeks to make and have their quality checked. These facts help you plan your purchase timelines so that you don't have to pay extra for speedy services or have your project delayed while you wait for supplies.

Supplier Evaluation Criteria

How well suppliers can grow with your project depends on how much they can produce. Manufacturers who work multiple shifts and have backup equipment can handle surge demands better than those who only use one line and are subject to breakdowns. Zhiyuan can process 30,000 tonnes of goods every year and has 156 processing equipment units that work together to keep shipping plans even if one piece of equipment breaks down.

When application problems come up, providers with different levels of technical help stand out. Having access to metallurgists and engineers who know about the properties of materials and how to place them helps figure out problems fast. We like it when providers do more than just ship goods; they also offer installation training and failure analysis.

Logistics prices and wait times are affected by where things are located. The central position of Shanxi Province makes it easy to get to China's major ports, and Zhiyuan's closeness to Taiyuan Airport makes it easy to send important packages. Knowing about these infrastructure benefits can help improve the dependability and cost-effectiveness of shipping in the supply chain.

Conclusion

The choice of material for BSPT round face galvanized round edge 90° elbow pipe fittings has a direct effect on the safety, dependability, and cost of upkeep for a wide range of industry uses. Hot-dip galvanization on malleable iron makes it resistant to rust and strong enough for most water, gas and heating systems. The round face shape makes fitting more reliable by making it more resistant to torque and improving the seal's integrity. If you know about measurement standards, how pressure decreases with temperature, and the right way to place fittings, they will work as designed for a long time. To be successful at procurement, you need to check certifications, look at what the seller can do, and balance the beginning costs with the long-term value. When ordered correctly and put together according to the manufacturer's instructions, these industrial-grade parts make pipe systems that work well.

FAQs

How do BSPT threads prevent leaks better than parallel threads?

The 1:16 taper in BSPT threads causes interference that gets tighter as the work goes on. This makes a mechanical seal between the metals. This is not the same as parallel threads, which only use seals or O-rings to close. When tapered threads contact deeper during tightening, the effective seal pressure rises. This makes joints that don't leak even when they are subjected to vibration or temperature cycles, which could loosen connections that depend on gaskets.

What lifespan should I expect from galvanized BSPT elbows?

Service life depends on how the system is used and how exposed it is to the surroundings. Indoor systems that are kept at a constant temperature and humidity usually last 20 to 30 years before the layer wears down and needs to be replaced. How long do you think BSPT round face galvanized round edge 90° elbow pipe fittings will last in outdoor, open areas? Ten to fifteen years in outdoor settings, but only ten to fifteen years in harsh chemical conditions or high-temperature settings. Besides these general values, real durability is greatly affected by proper installation and system chemistry control.

Can galvanized fittings handle high-temperature applications?

Up to 120°C of constant contact, galvanized BSPT elbows keep their full pressure ratings. Pressures must be lowered according to the manufacturer's instructions at higher temperatures. At 200°C, they are usually lowered to 20 Bar, and at 300°C, they are lowered even more. The zinc covering stays the same, but the strength of the base material goes down as the temperature rises. Applications that regularly go above 200°C should look at options made of stainless steel that are made for thermal service.

Partner With a Trusted BSPT Elbow Manufacturer

Every industrial-grade 90° threaded elbow that Zhiyuan Malleable Steel makes is made with over 26 years of casting experience. Our factory in Shanxi Province is ISO 9001-certified and makes hot-dipped galvanized fittings that are precisely threaded and meet foreign standards, such as CE, UL, and FM approvals. We offer reliable NPT/BSPT compatible round-edge fittings to fire protection companies, local building projects, and plumbing wholesalers all over the world. Our annual capacity is 30,000 tonnes, and we have over 1,000 product specs. Standard goods can be shipped within two hours from our large collection, and our OEM/ODM services can meet the unique needs of a wide range of uses. Our engineers provide expert help during the planning, installation, and troubleshooting stages to make sure the system works at its best. Our round-edge pipe bends are guaranteed not to rust and come with full material certifications and flaw replacement warranties. You can talk to our sourcing experts about your project needs and get detailed quotes from a top seller of BSPT round face galvanized round edge 90° elbow pipe fittings by emailing q1236800000@gmail.com. You can look at all of our products and scientific information at zymalleablepipefitting.com.

References

1. British Standards Institution. (2018). Pipe Threads for Tubes and Fittings Where Pressure-Tight Joints Are Made on the Threads: Taper External Threads and Parallel Internal Threads. BS EN 10226-1:2004.
2. American Society for Testing and Materials. (2020). Standard Specification for Malleable Iron. ASTM A47/A47M-99.
3. International Organization for Standardization. (2019). Pipe Threads Where Pressure-Tight Joints Are Made on the Threads: Dimensions, Tolerances and Designation. ISO 7-1:1994.
4. European Committee for Standardization. (2017). Malleable Cast Iron Fittings with Compression Ends for Polyethylene (PE) Piping Systems. EN 1562:2012.
5. Smith, J.R., & Chen, L. (2021). Corrosion Protection in Industrial Piping Systems: A Comprehensive Guide to Material Selection. Technical Publishing International.
6. National Fire Protection Association. (2022). Installation of Sprinkler Systems: Material and Component Standards. NFPA 13, Chapter 6.
