NPT Black Square Face Reducing Coupling Pipe Fittings

NPT Black Square Face Reducing Coupling Pipe Fittings

Looking for reliable pipe connections that handle different diameters seamlessly? NPT Black Square Face Reducing Coupling Pipe Fittings are your arrangement for mechanical channeling challenges. These specialized components interface channels of changing sizes whereas keeping up basic keenness and leak-resistant execution. Made from high-grade flexible press, they include fortified square confront plan for prevalent torque grasp amid establishment. You'll appreciate their strong development that withstands high-pressure situations in gas, oil, and steam applications. The dark wrap up gives great erosion resistance without zinc coating interference.



Detail Photo

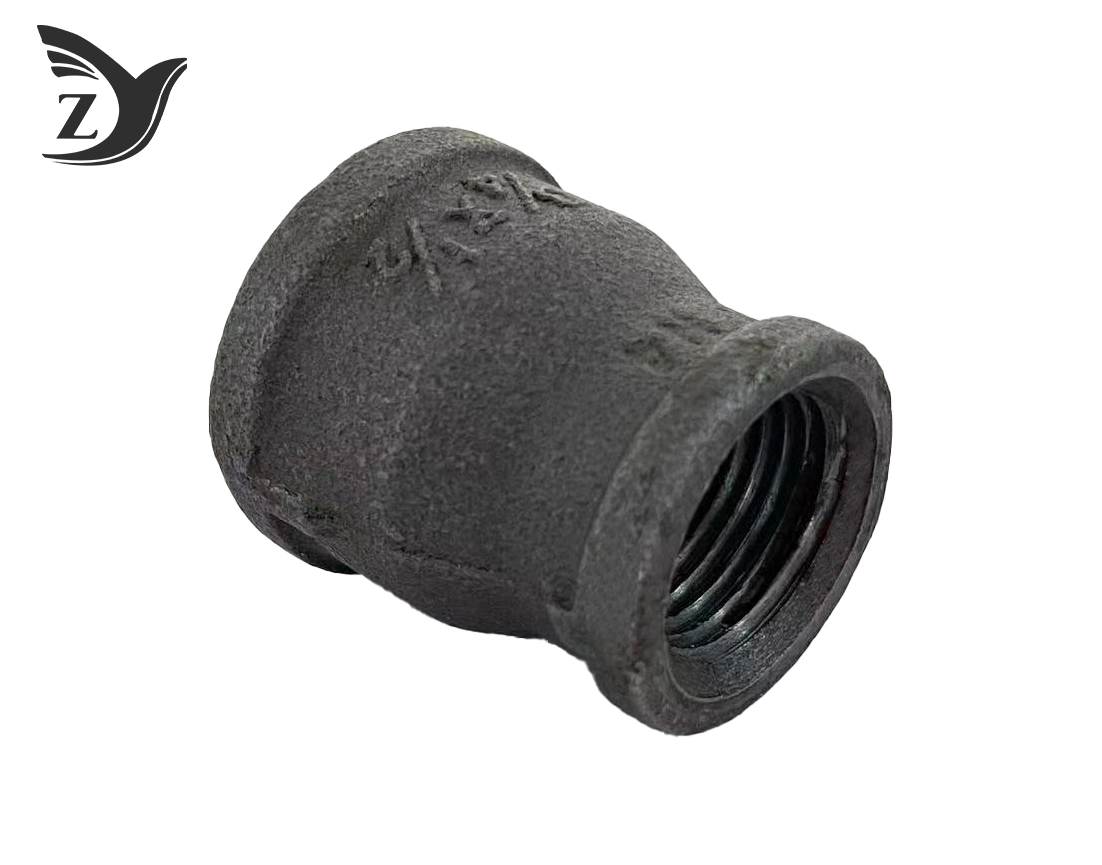

Black Square Face Reducing Coupling Pipe Fittings 1

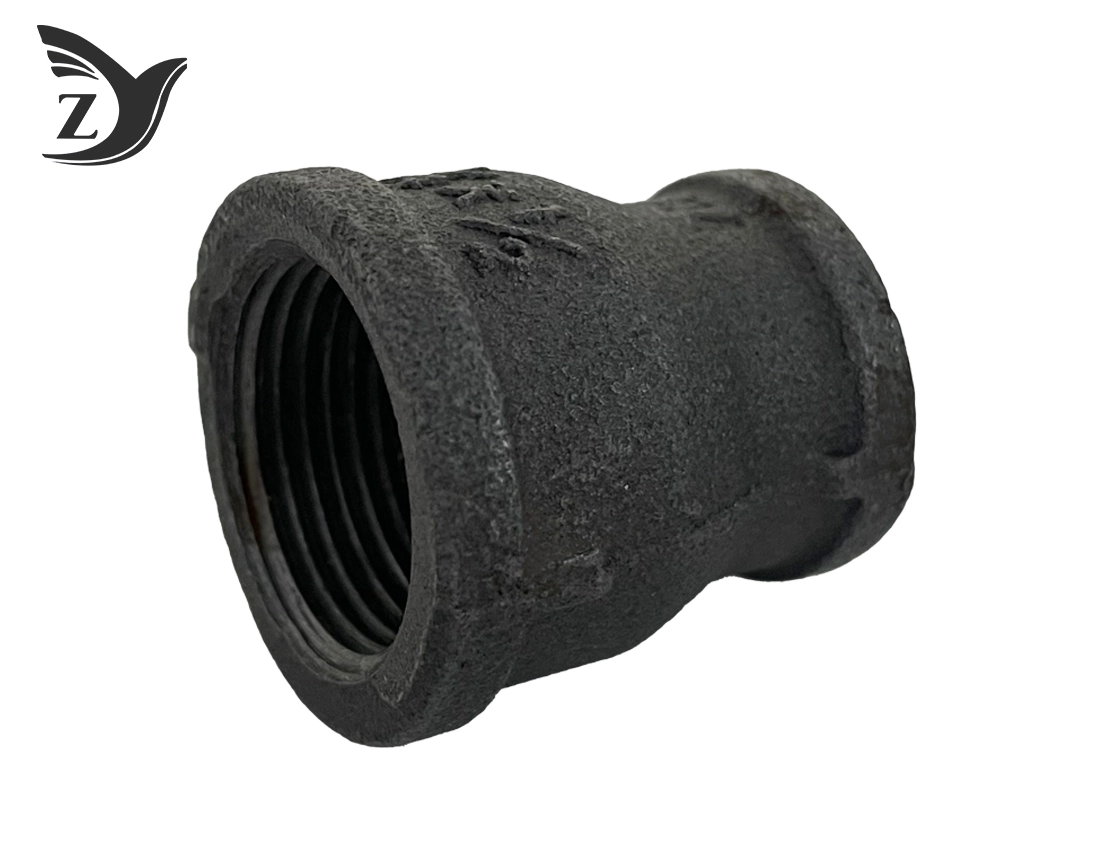

Black Square Face Reducing Coupling Pipe Fittings 2

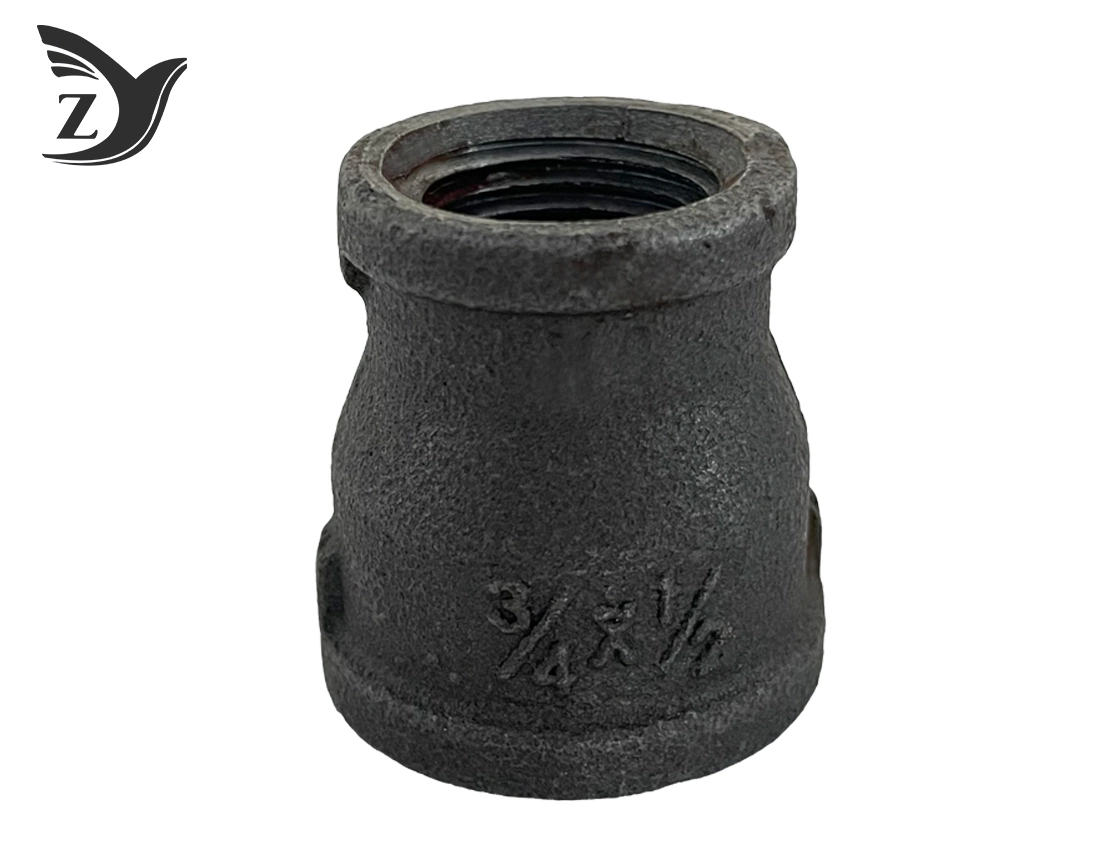

Black Square Face Reducing Coupling Pipe Fittings 3

Technical Specifications

Our diminishing couplings convey uncommon execution through exactness building. The flexible press development offers malleable quality of 40,000 psi with 5% stretching for warm extension resistance. NPT decrease strings highlight 60-degree flank points and 1° 47' decrease for metal-to-metal fixing. The square confront plan gives upgraded divider thickness at string openings, diminishing stretch misshapening amid installation.

Key Features

• High-Strength Pliable Press Development: ASTM A197 certified fabric guarantees durability
• Square Confront Support: Heavy-duty plan avoids misshapening beneath torque
• NPT Decrease Strings: ANSI/ASME B1.20.1 compliant for leak-resistant connections
• Black Corrosion-Resistant Wrap up: Bituminous coating ensures against moisture
• Class 150 Weight Rating: 300 psi at 150°F for dependable performance
• Thermal Extension Compatibility: Handles temperature changes without cracking

Dimensions and Specifications Table

Materials and Surface Treatment

We make these fittings from premium flexible press assembly ASTM A197 determinations. The ferritic lattice with nodular graphite gives uncommon stun resistance and vibration damping. Our dark bituminous coating anticipates oxidation amid capacity and transport whereas keeping up compatibility with oil, gas, and steam applications.

Standards and Certifications

• ASME B16.3 - Malleable Iron Threaded Fittings
• ASTM A197 - Material Composition Standards
• ANSI/ASME B1.20.1 - NPT Thread Specifications
• ISO 9001 Quality Management System Certified

Application AreasIndustrial Gas Distribution

Perfect for natural gas and propane systems where NPT Black Square Face Reducing Coupling Pipe Fittings interface primary supply lines to littler apparatus bolsters. The non-galvanized wrap up anticipates zinc chipping that might clog gas orifices.

Steam Heating Systems

Ideal for interfacing cutting edge smaller-diameter radiator bolsters to bequest large-bore channeling. These fittings handle fast temperature variances without basic failure.

Petrochemical Applications

Essential for oil transport frameworks where welded joints aren't viable. The vigorous development stands up to vibration close pumping stations whereas keeping up seal integrity.

Installation Instructions

1. Clean all strings altogether some time recently assembly
2. Apply suitable string sealant for your application
3. Hand-tighten the fitting first
4. Use pipe torques on the square confront fortification for last tightening
5. Avoid over-tightening to anticipate string damage
6. Pressure test the framework some time recently full operation

Packaging and Shipping

We bundle all fittings in defensive bundling to anticipate harm amid transport. Bulk orders dispatch in wooden cases with dampness assurance. Standard lead times are 2-3 weeks for stock sizes, with sped up shipping accessible upon request.

Quality Control

Every fitting experiences thorough quality review counting dimensional confirmation, string gage testing, and weight testing. Our ISO 9001 certified quality framework guarantees steady execution over all fittings.

OEM and Customization Services

With 26 a long time of casting skill, we offer comprehensive customization administrations. Our designing group can alter measurements, weight evaluations, and wraps up to meet your particular necessities. Yearly generation capacity of 30,000 tons bolsters large-scale custom orders.

Frequently Asked Questions

Q: What's the difference between square face and round face designs?

A: Square face provides heavier wall thickness and better wrench grip for high-torque installations.

Q: Can these fittings handle steam applications?

A: Yes, they're rated for saturated steam up to 366°F with appropriate pressure derating.

Q: Why choose black finish over galvanized?

A: Black finish prevents zinc contamination in gas and oil applications where galvanizing is problematic.

Q: What thread sealant should I use?

A: Use pipe dope or PTFE tape compatible with your specific application medium.

Contact Us

Ready to discuss your piping needs? Our technical team at Shanxi Taigu Zhiyuan Malleable Iron Company Limited stands ready to help you select the right NPT Black Square Face Reducing Coupling Pipe Fittings for your project.

Email: zhiyuan@mifittings.com

Contact us today for technical specifications, custom solutions, or bulk pricing information. We're committed to delivering quality fittings that exceed your expectations.
