NPT Black Union 342 Pipe Fittings
2.Detachable joint, easy pipeline maintenance .
3.Industrial water/gas pipeline fitting .
4.Precision-threaded black malleable iron .
5.High-strength, corrosion-resistant 342 union .
6.NPT/BSPT compatible 342 pipe union .
7.Industrial-grade 342 black malleable fitting .
8.Durable threaded 342 union connector
Description
NPT Black Union 342 Pipe Fittings - High-Quality Malleable Iron Connectors

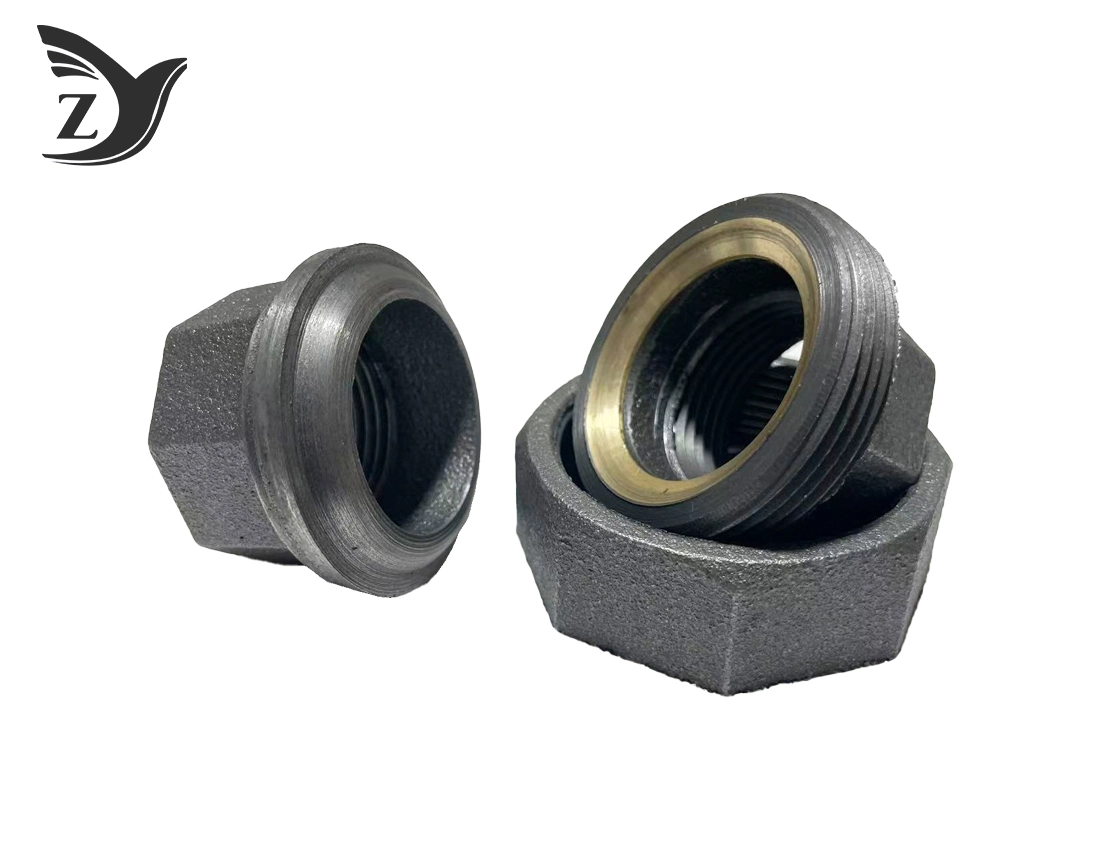

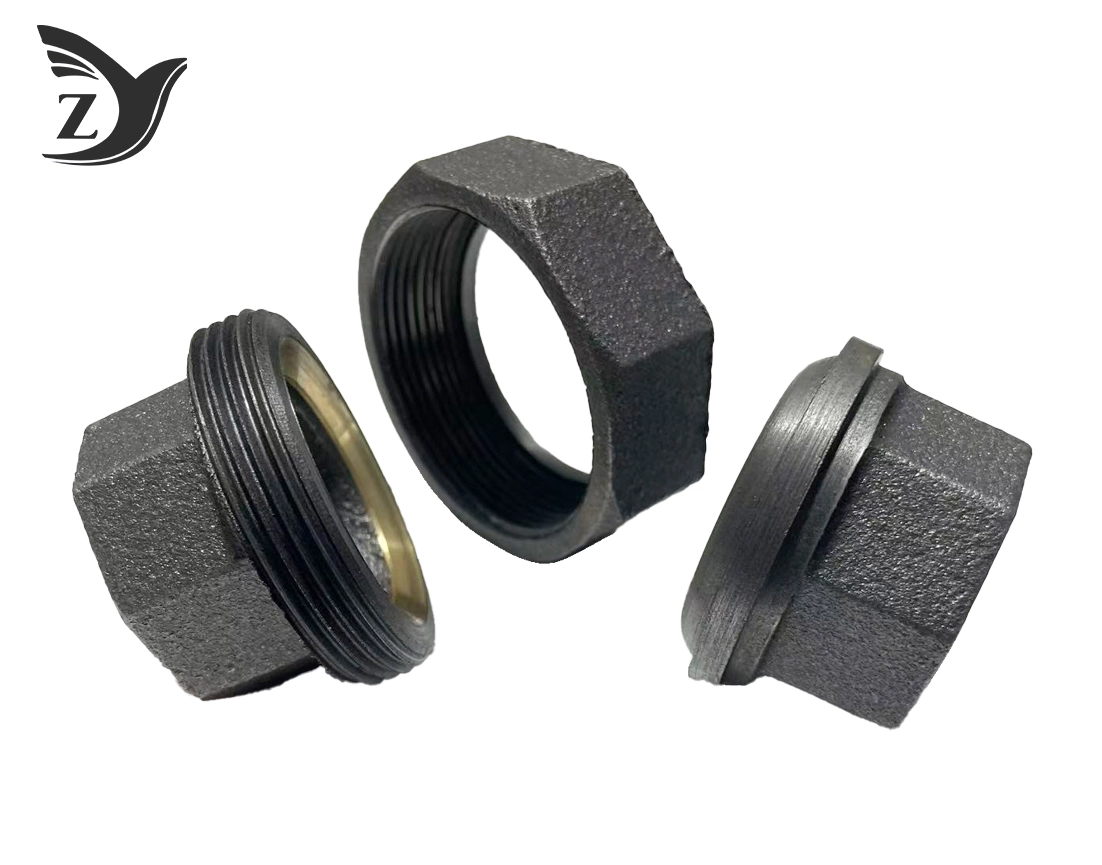

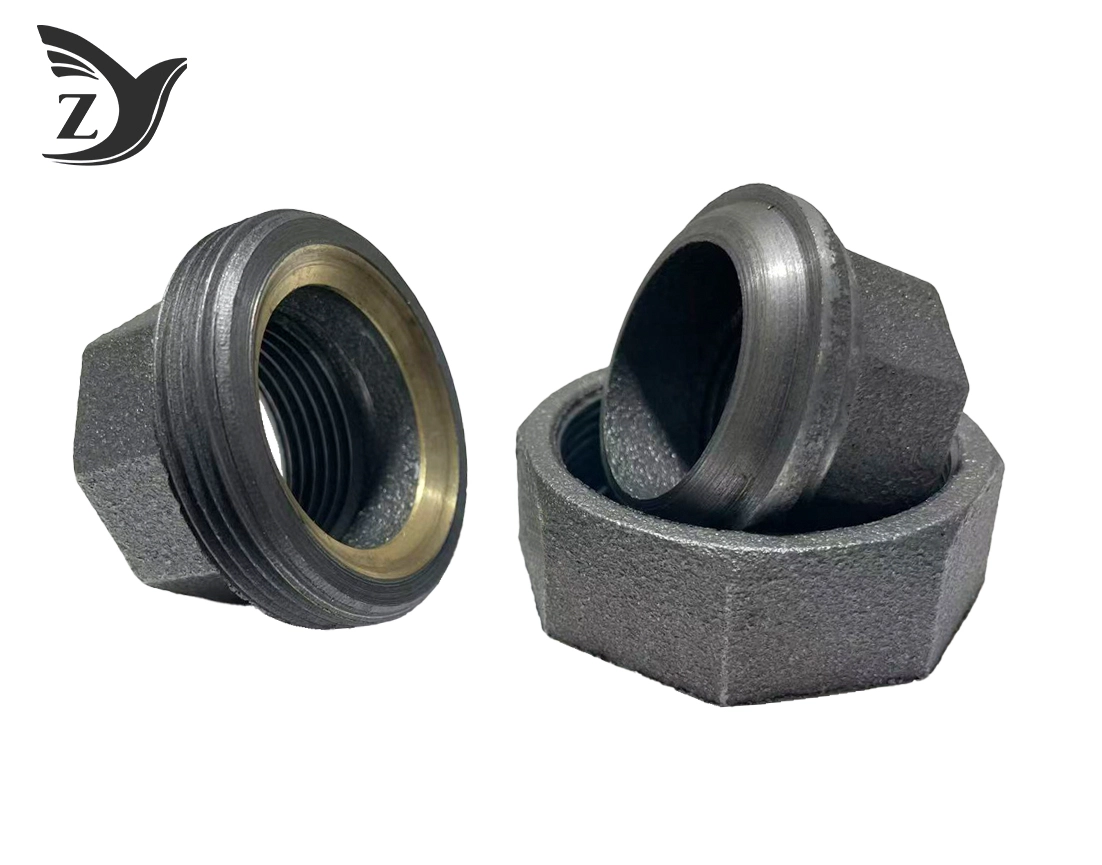

When you need reliable pipe connections that allow for easy disassembly and maintenance, NPT Black Union 342 Pipe Fittings give the culminate arrangement. These specialized flexible press components illuminate the common "cut-to-fix" issue in mechanical channeling frameworks. You can expel whole pipeline areas for valve substitution or cleaning by basically unscrewing the union nut. Our precision-engineered fittings highlight the industry-standard Figure 342 assignment with a prevalent brass-to-iron situate plan, conveying remarkable fixing capabilities compared to standard iron-to-iron unions.
The dark wrap up shows a non-galvanized surface treatment with defensive polish coating. This makes them perfect for oil, gas, and steam applications where zinc coating is superfluous. You'll appreciate the upkeep proficiency and spill anticipation these fittings give in warm cycling environments.
Our Factory
Technical Specifications
Our fittings are fabricated to meet thorough industry standards:
| Specification | Details |
|---|---|
| Material Standard | ASTM A197 Malleable Iron |
| Thread Standard | NPT per ANSI/ASME B1.20.1 |
| Dimensional Standard | ASME B16.3 |
| Pressure Rating | Class 150 (300 PSI at ambient temperature) |
| Temperature Range | -20°F to 366°F |
| Seat Type | Figure 342 Brass-to-Iron Taper Seat |
| Tensile Strength | Minimum 40,000 PSI |
| Elongation | Minimum 5% |
| Surface Finish | Black oxide/varnish coating |
Key Features
Superior Fixing Innovation: The brass situate embed anticipates rust-seizing between union faces whereas giving fabulous fixing performance.
Reusable Plan: You can dismantle and reassemble these fittings different times without losing seal integrity.
Vibration Resistance: The mechanical locking union nut combined with decreased strings offers extraordinary resistance to framework vibration.
Thermal Solidness: Dark pliable press keeps up basic astuteness in high-heat steam applications superior than elective materials.
Easy Establishment: Offers adaptability amid beginning joint make-up, compensating for slight hub misalignments in complex channeling systems.
Dimensions and Specifications Table
| Size (NPT) | L (Length) | H (Height) | Weight (lbs) |
|---|---|---|---|
| 1/8" | 1.50" | 0.84" | 0.15 |
| 1/4" | 1.69" | 0.94" | 0.25 |
| 3/8" | 1.81" | 1.00" | 0.35 |
| 1/2" | 1.94" | 1.12" | 0.45 |
| 3/4" | 2.25" | 1.31" | 0.75 |
| 1" | 2.50" | 1.50" | 1.10 |
| 1-1/4" | 2.88" | 1.75" | 1.65 |
| 1-1/2" | 3.06" | 1.94" | 2.25 |
| 2" | 3.62" | 2.25" | 3.50 |
Materials and Surface Treatment
We manufacture our fittings from high-grade flexible press taking after ASTM A197 details. The fabric gives great ductility with over 10% stretching to anticipate breaking beneath unforeseen framework vibration.
The dark surface treatment comprises of defensive oxide coating or varnish application. This wrap up offers predominant erosion resistance for oil and gas applications whereas keeping up the material's auxiliary properties.
Standards and Certifications
Our manufacturing processes strictly comply with ISO9001 quality management systems. All NPT Black Union 342 Pipe Fittings meet ASME B16.39 dimensional requirements and ASTM A197 material properties standards.
Application Areas
These flexible fittings exceed expectations in different mechanical applications:
- Steam Frameworks: High-temperature steam conveyance networks
- Gas Dissemination: Characteristic gas and propane pipeline systems
- Oil Preparing: Petroleum refining and dissemination systems
- Industrial Water: Non-potable water frameworks and prepare water
- HVAC Frameworks: Warming and cooling dissemination networks
- Fire Assurance: Sprinkler and standpipe systems
Installation Instructions
- Preparation: Clean pipe strings and review for damage
- Threading: Apply suitable string sealant to NPT strings only
- Assembly: Hand-tighten the union components to the pipes
- Tightening: Utilize pipe torques to accomplish legitimate torque
- Final Check: Guarantee union faces mate legitimately without gap
- Important: Never apply sealant to the union faces - the precision ground metal-to-metal contact creates the seal.
Packaging and Shipping
We bundle fittings in defensive cartons with froth embeds to avoid harm amid travel. Standard shipping incorporates following data and conveyance affirmation. Bulk orders get customized bundling solutions.
Our convenient location in Shanxi Province provides excellent logistics access, just 40 kilometers from Taiyuan and 30 minutes from the airport.
Quality Control
Every fitting experiences thorough review including:
- Thread Gaging: Go/No-Go verification per ASME B1.20.1
- Pneumatic Testing: Underwater air testing at 80-100 PSI
- Seat Contact Analysis: 100% circumferential contact verification
- Material Testing: Tensile strength and elongation validation
OEM and Customization Services
With 26 a long time of casting encounter and yearly generation capacity of 30,000 tons, we offer comprehensive customization administrations. Our group of 38 specialized experts can create specialized fittings to meet your interesting requirements.
Frequently Asked Questions
Q: What's the difference between Figure 340 and Figure 342 unions?
A: Figure 342 features a brass-to-iron seat for better sealing and easier disassembly, while Figure 340 uses iron-to-iron seats.
Q: Can these fittings handle potable water applications?
A: No, black malleable iron will rust in oxygenated water. Use galvanized fittings for potable water systems.
Q: How do I identify quality 342 unions?
A: Look for clean castings without sand holes, sharp NPT threads, and distinct brass ring inserts with clear manufacturer markings.
