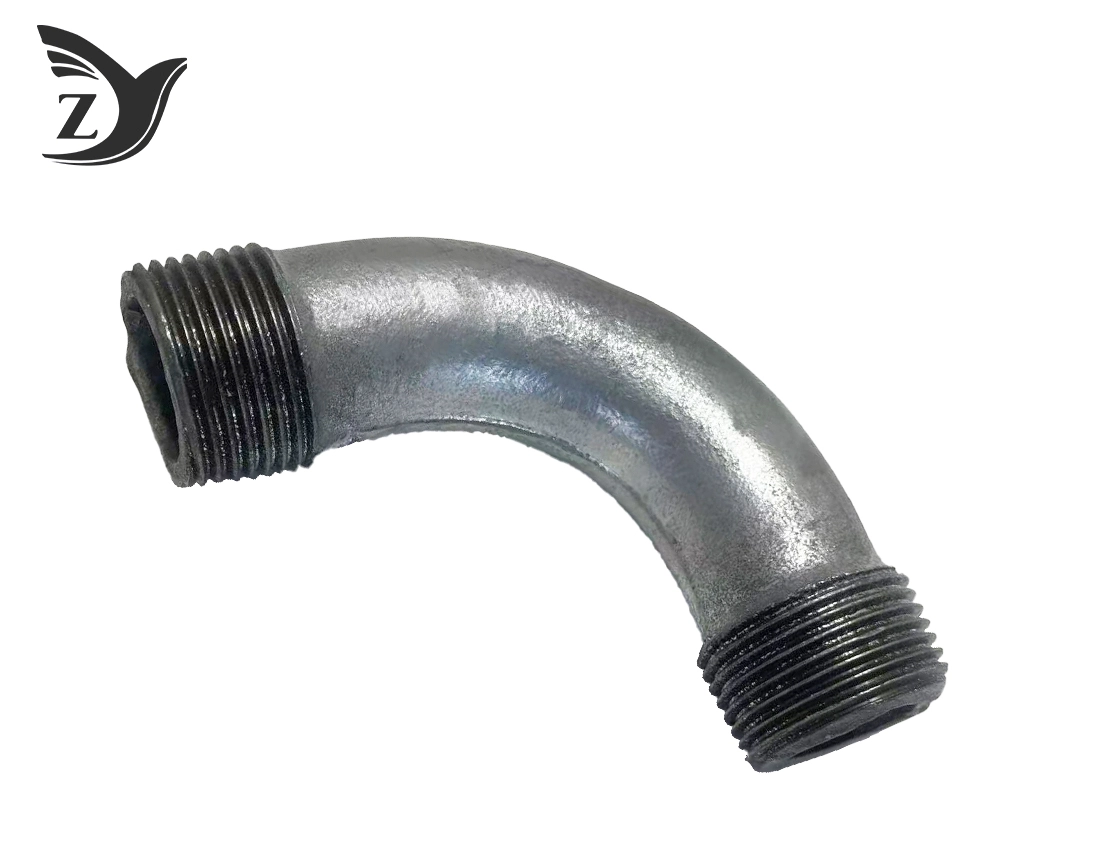

BSPT Round Face Galvanized Round Edge 90° Elbow Pipe Fittings
2.90° pipe bend, corrosion-resistant .
3.Industrial water/gas pipeline redirection .
4.Hot-dipped galvanized, precision-threaded .
5.High-strength, anti-rust malleable iron .
6.NPT/BSPT compatible, round-edge fitting .
7.Industrial-grade 90° threaded elbow .
8.Corrosion-proof round-edge pipe bend
Description

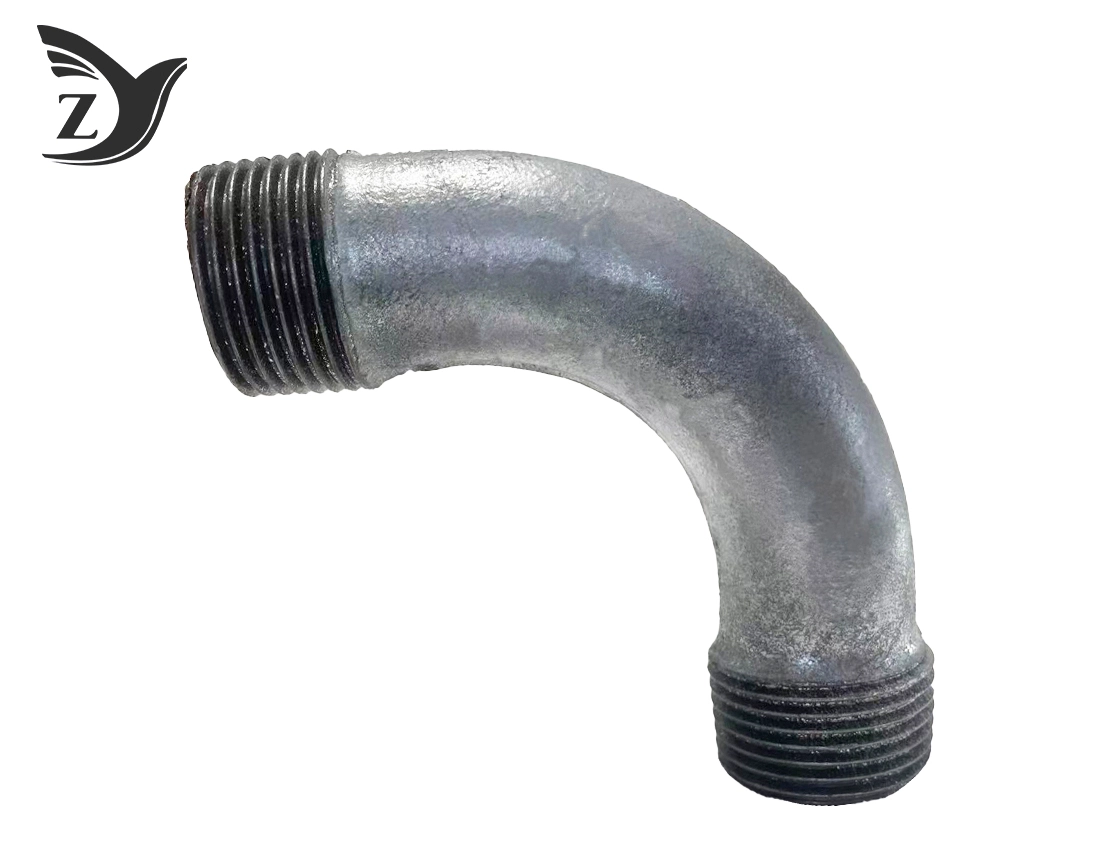

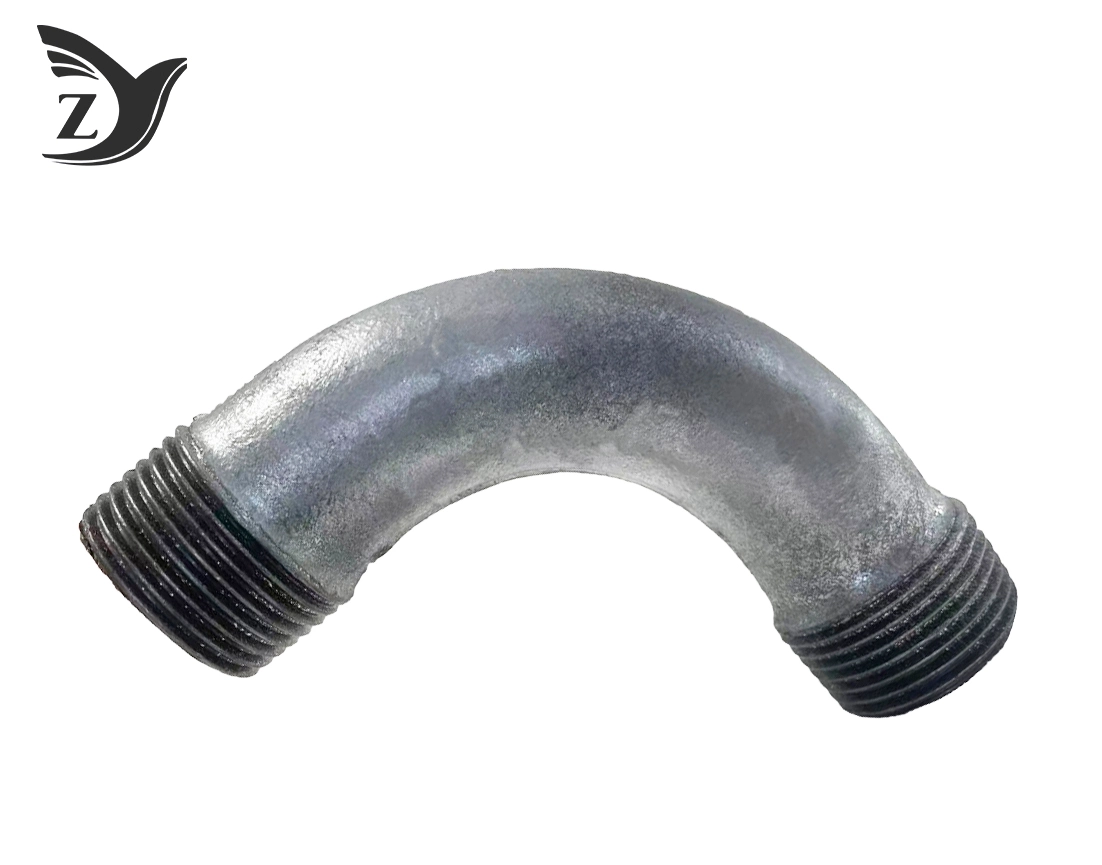

BSPT Round Face Galvanized Round Edge 90° Elbow Pipe Fittings
Looking for reliable pipe fittings that combine durability with corrosion resistance? Our BSPT Round Face Galvanized Round Edge 90° Elbow Pipe Fittings provide extraordinary execution in requesting mechanical applications. These specialized flexible press components are planned to divert liquid stream by 90 degrees whereas keeping up framework judgment. Built with British Standard Pipe Taper compatibility, they include fortified circular edge plan that disseminates stretch equitably amid establishment. The hot-dip galvanized coating gives predominant security against rust and erosion, making them perfect for unforgiving environments.
Product Overview
Our 90-degree elbow fittings speak to the culminate adjust of quality and unwavering quality. Made from high-grade moldable press, these fittings experience thorough quality control forms. The circular confront plan avoids splitting beneath tall torque applications. You get a fitting that performs reliably in water, oil, and gas systems.
The galvanized coating meets worldwide benchmarks for erosion assurance. This amplifies benefit life essentially compared to uncoated options. Each fitting is precision-cast to guarantee appropriate string engagement and leak-free connections.
Technical Specifications
| Property | Specification |
|---|---|
| Material | Malleable Iron (KTH 350-10 / ASTM A197) |
| Thread Type | BSPT (British Standard Pipe Taper) |
| Thread Angle | 55° Whitworth |
| Taper Ratio | 1:16 |
| Bend Angle | 90° ± 2° |
| Tensile Strength | ≥ 350 MPa |
| Elongation | ≥ 10% |
| Hardness | ≤ 150 HB |
| Coating | Hot-Dip Galvanized |
| Zinc Coating Weight | ≥ 500g/m² |
| Pressure Rating | Class 150 (150 PSI steam, 300 PSI WOG) |
Key Features
Round Edge Fortification: The particular circular edge plan gives predominant push dispersion. This avoids spiral splitting amid establishment and operation.
Hot-Dip Galvanized Assurance: Our zinc coating handle guarantees long-lasting erosion resistance. The coating acts as a conciliatory obstruction against natural factors.
Precision Threading: BSPT strings make solid metal-to-metal seals. The 1:16 decrease guarantees tight associations without intemperate sealant dependence.
Malleable Press Development: Not at all like delicate cast press, our moldable press misshapes or maybe than smashs beneath weight. This gives a security edge in requesting applications.
Quality Fabricating: Each fitting experiences strict quality control. We keep up ISO 9001 benchmarks all through production.
Dimensions and Specifications Table
| Size (inches) | Thread Length (mm) | Overall Length (mm) | Center to End (mm) | Weight (g) |
|---|---|---|---|---|
| 1/8" | 9.5 | 20 | 12 | 45 |
| 1/4" | 12 | 25 | 15 | 68 |
| 3/8" | 12 | 28 | 17 | 89 |
| 1/2" | 14 | 32 | 20 | 125 |
| 3/4" | 16 | 38 | 24 | 185 |
| 1" | 18 | 45 | 28 | 275 |
| 1-1/4" | 20 | 52 | 32 | 395 |
| 1-1/2" | 22 | 58 | 36 | 485 |
| 2" | 25 | 68 | 42 | 725 |
Materials and Surface Treatment
We utilize premium moldable press that meets ASTM A197 determinations. The fabric experiences controlled tempering forms to accomplish ideal ductility. This guarantees your fittings can handle warm development and mechanical stress.
The hot-dip galvanizing prepare gives comprehensive assurance. Each fitting is cleaned, cured, and fluxed some time recently zinc application. The result is uniform coating scope that surpasses industry standards.
Application Areas
Commercial HVAC Systems: Perfect for low-pressure steam heating lines. The BSPT Round Face Galvanized Round Edge 90° Elbow Pipe Fittings handle thermal cycling effectively while maintaining leak-proof connections.
Industrial Water Treatment: Perfect for complex channeling systems requiring visit directional changes. The galvanized surface stands up to natural weathering and soil acidity.
Fire Security Frameworks: Fundamental for steering fire concealment lines around basic impediments. The pliable development keeps up astuteness amid seismic action or mechanical shock.
Gas Dispersion Systems: Reasonable for open air gas transport applications where security and unwavering quality are paramount.
Installation Instructions
- Clean all string surfaces completely some time recently assembly
Apply suitable string sealant or PTFE tape
Hand-tighten the fitting until strings lock in properly
Use pipe torques to total establishment - ordinarily 2-3 extra turns
Avoid over-tightening which may harm the threads
Pressure test the framework some time recently commissioning
Packaging and Shipping

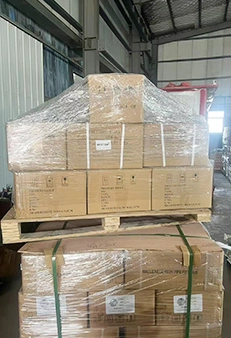

We bundle fittings in defensive cartons to avoid harm amid transport. Bulk orders get wooden carton bundling for upgraded security. Standard shipping incorporates comprehensive documentation and fabric certificates.
Our coordinations organize guarantees opportune conveyance around the world. We work with trusted carriers to keep up item judgment all through the supply chain.
Quality Control
Every bunch experiences thorough testing counting weight testing, dimensional confirmation, and coating thickness estimation. Our quality group keeps up point by point records for full traceability.
We conduct customary reviews of our fabricating forms. This guarantees reliable quality and compliance with worldwide standards.
OEM and Customization Services
We offer customization administrations for one of a kind applications. Our building group can adjust measurements, materials, or coatings to meet your particular requirements.
Private labeling alternatives are accessible for qualified accomplices. We keep up adaptable least arrange amounts to bolster different commerce needs.
Frequently Asked Questions
Q: What's the maximum working pressure?
A: Class 150 rating allows 150 PSI for steam and 300 PSI for water, oil, and gas at ambient temperature.
Q: Are these fittings suitable for potable water?
A: Yes, the galvanized coating is safe for potable water applications when properly installed.
Q: How long does the galvanized coating last?
A: With proper installation and maintenance, expect 15-20 years of corrosion protection in typical environments.
Q: Can I use these with NPT threads?
A: While similar, BSPT and NPT threads have different specifications. We recommend using BSPT throughout your system for optimal performance.
Contact Us
Ready to upgrade your piping system with reliable BSPT Round Face Galvanized Round Edge 90° Elbow Pipe Fittings? Our technical team is here to help you select the right specifications for your application.
Contact us today at zhiyuan@mifittings.com for pricing, technical support, or custom solutions. We're committed to delivering quality fittings that meet your project requirements.
