What are the common uses for galvanized square face 90 degree elbow pipe fittings?

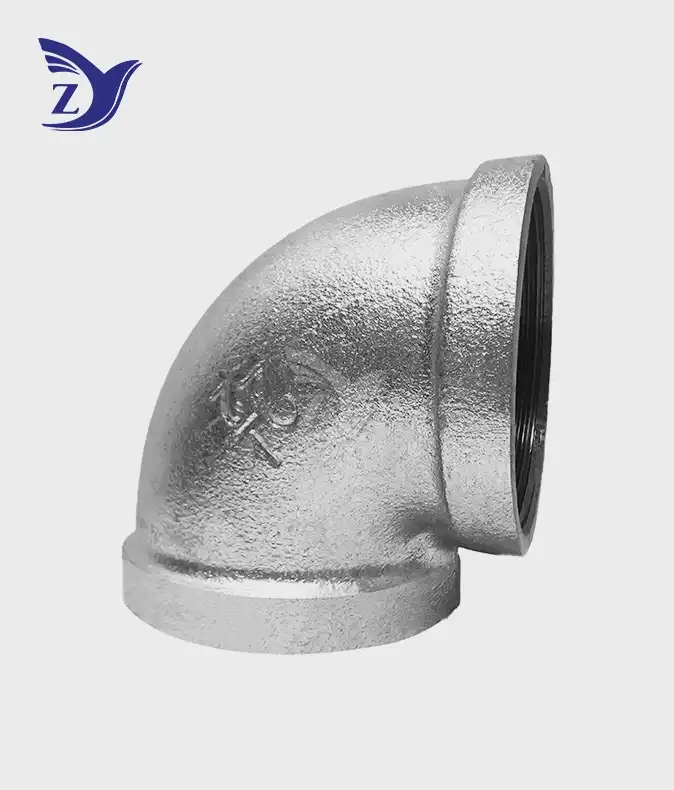

Square face galvanized 90° square edge elbow pipe fittings are high-quality, malleable iron parts that change the flow of pipe at a precise 90-degree angle and have a strengthened flat outer rim at connection places. Because of their unique square face design, these fittings are essential for heavy-duty installations and better structural stability in industrial water systems, HVAC infrastructure, fire protection networks, and city gas distribution. The hot-dip galvanizing process adds a zinc layer that protects against rust. This makes the fittings last longer in tough outdoor and humid conditions where regular fittings would break.

Common Applications of Galvanized Square Face 90° Elbow Fittings

Industrial HVAC and Climate Control Systems

When it comes to industrial HVAC systems, these elbows handle steam lines, chilled water circuits, and condensate drains. They do this because when the temperature changes, the pipes expand and contract. The flexibility of the malleable iron lets it handle heat stress without breaking, and the galvanized layer stops rust from condensation. In many cases, refrigerant lines are routed around structural beams in multi-story buildings. The 90-degree angle keeps the flow going smoothly while saving room.

Fire Protection and Sprinkler Networks

Fire protection building firms use these fittings to connect fire hydrants and pipes in pump houses. The BSPT tapered threads make seals that don't leak even when there are sudden changes in pressure during a fire. Installers can apply the appropriate pressure without breaking the fitting hub because of the square edge band. This is a very important safety feature when working with emergency water supply systems. Our parts are certified by UL and FM, which means they meet NFPA 13 fire sprinkler rules.

Municipal Water and Gas Distribution

These elbows are used by water treatment plants and city utility companies to connect branches. They are used to get pipes around obstacles or change from vertical to horizontal runs. In buried uses, the heavy-duty galvanization guards against acidic soil and salts in groundwater. The zinc coating works as a protective shield against salt spray on seaside structures, making it last longer than 25 years if it is properly kept. Because threaded connections are so strong, they keep low-pressure natural gas transfer from leaking, which is good for gas delivery networks.

Square face galvanized 90° square edge elbow pipe fittings demonstrate why quality assurance and seller confidence are so important to procurement managers. At Zhiyuan Malleable Steel, testing procedures include finding air leaks at 0.6 MPa, using plug gauges to make sure the thread axis is aligned, and tension testing to make sure the material's elongation rates are higher than 10%. This strict quality control cuts down on downtime and makes sure that systems work reliably in the business, government, and industry sectors.

Comparing Galvanized Square Face vs Other Elbow Fittings

Square Face vs Round Face Elbows

Round face elbows have a connection edge that is beveled or rounded, and they are good for low-pressure home plumbing where little fitting force is needed. The square face galvanized 90° square edge elbow pipe fitting gives you better areas that are ready to weld for long-term projects that need to be structurally sound. The flat face of the seal makes it easier to join to flanged valves or equipment, which lowers the risk of leaks in specific areas. In places with a lot of shaking, like pump houses or compressor stations, the square edge's thicker material around the edge keeps it from deforming better than rounded shapes.

Galvanized Steel vs Stainless Steel Options

Most of the time, the choice between coated and stainless steel fittings is based on cost. Galvanized malleable iron elbows usually cost 40 to 60 percent less than stainless steel elbows of the same size, but they protect well against rust in most industrial settings. When exposed to highly toxic environments like acidic chemicals, chlorine, or temperatures above 300°C, stainless steel becomes the best choice. Galvanized fittings work perfectly for water, gas, and general HVAC uses, and they don't cost a lot more. Our hot-dip galvanized coatings can handle pH levels from 6 to 12, which is a wide range that includes most local water sources and process fluids used in industry.

Procurement Considerations for B2B Buyers

Zhiyuan Malleable Steel can send standard-size square face galvanized 90° square edge elbow pipe fittings right away if they are in stock, or it will take two weeks for large orders of more than 5,000 pieces. Our 30,000-ton yearly production ability makes sure that big projects always have what they need. When you buy in bulk, you can save 12 to 18% on orders of 10,000 pieces or more, and you can get flexible ODM/OEM customization for sizes that aren't standard. We use double-layer cardboard boxes to keep things from getting damaged during international shipping. This keeps the number of returns and project delays for buyers from other countries to a minimum.

How to Choose the Right Galvanized Square Face 90° Elbow Pipe Fitting for Your Project?

Dimensional Standards and Compatibility

Check the pipe size suitability by comparing the stated diameter of the fitting to the diameter of the pipes you already have. Standard sizes run from 1/8 inch to 6 inches, and for foreign work, metric numbers are also available. When figuring out the length of a pipe run, the outlet-to-outlet measurement is important to keep in mind. For example, a 1-inch elbow is usually 38 mm center-to-center, which changes the total system length. Make sure the depth of the thread contact fits the length of the thread on your pipe. If the depth is off, the joint will not be as strong or able to handle as much pressure. When engineers ask for them, our technical team gives them thorough dimensional models that help them plan accurate installations.

Certification Requirements for Industrial Compliance

Fittings that meet NSF/ANSI 61 standards for lead-free products are needed for projects that use drinkable water. Fire safety systems need UL or FM approval to make sure the pressure levels and material make-up are correct. Our goods at Zhiyuan Malleable Steel are certified by ISO 9001 for quality control, CE marked for European markets, and meet ASTM A197 standards for malleable iron castings. Material test records, pressure test certificates, and galvanization thickness measurements are all part of documentation packages. These are necessary for regulatory permission and project checks. To avoid delays in compliance, procurement managers should ask for these certificates during the quote phase.

Evaluating Supplier Reliability and Support

A supplier's review goes beyond the specifications of the product to include help after the sale and the stability of the supply chain. Look for makers that offer expert advice during the planning stages of a project to help you choose the right fittings for the job. There should be clear replacement processes and warranty terms that cover manufacturing flaws. For example, our policy says that any faulty products must be replaced within 18 months of delivery. When planning a project, lead times are important. Suppliers with inventory management systems can give you real-time information on stock and faster shipping choices. Our 50,000-square-meter building, 500-person staff, and closeness to Taiyuan Airport make it possible for us to quickly handle pressing requests.

Conclusion

In conclusion, square face galvanized 90° square edge elbow pipe fittings work well in business, industrial, and municipal settings where durability against corrosion and structural stability are very important. The square edge form makes the installation last longer, and hot-dip galvanization makes it last longer in harsh settings. By learning about thread standards, the right way to place them, and how to keep them in good shape, you can make sure that these fittings work perfectly for their whole time. Procurement pros get parts that meet project needs while keeping costs and schedules under control by choosing certified sources with proven manufacturing skills and full support services.

Partner with Zhiyuan Malleable Steel for Reliable Square Face Galvanized Elbow Fittings

If you need to buy square face galvanized 90° square edge elbow pipe fittings that meet strict international standards, Zhiyuan Malleable Steel is ready to help. With 26 years of experience casting, ISO 9001 approval, and thorough quality testing, we make sure that every part meets the performance needs of your project. The building can hold up to 30,000 tons of goods every year, which means it can handle both instant stock sales and large-scale bulk contracts that can be customized. Our expert team can be reached at q1236800000@gmail.com to talk about your needs, ask for examples of our products, or get reasonable quotes. We are a reliable maker of square face galvanized 90° square edge elbow pipe fittings that serve markets around the world. We send standard goods within hours and offer replacement guarantees to help your project succeed from the first question to the long-term use.

FAQ

Can these fittings connect to both NPT and BSPT pipes?

Even though square face galvanized 90° square edge elbow pipe fittings can be made for either NPT or BSPT fitting, you can't use one on top of the other. The screw angle for NPT is 60 degrees, while the angle for BSPT is 55 degrees. If you try to mix them, you will damage the threads and cause leaks. To connect lines with different thread standards, you should always use adapter joints. Check the thread type before you order to make sure it will work with the pipes you already have.

Are galvanized elbows suitable for outdoor plumbing in harsh climates?

Of course. The hot-dip galvanizing method makes a zinc barrier that is meant to protect against the elements. At full pressure, the layer can handle water, UV light, and temperature changes from -40°C to 120°C. Square face galvanized 90° square edge elbow pipe fittings work much better than bare iron in places like seaside areas with salt spray or industrial areas with air pollution. Inspections every 12 to 18 months help find any damage to the layer that needs to be fixed, which extends its useful life beyond 25 years in most outdoor settings.

What is the maximum temperature rating for these fittings?

The malleable iron material can handle temperatures up to 300°C, but as the temperature rises, so does the pressure grade. Fittings usually have PN25 pressure ratings, which is about 363 psi, at normal room temperatures. At 200°C, this drops to about 60% of its normal pressure, and it keeps going down as the temperature rises. For uses with steam or fluids that are very hot, look at pressure-temperature charts that are specific to your fitting size and make sure that the design of the system stays within safe working limits.
