NPT Thread Square Edge Reducing Street Coupling Pipe Fittings

NPT Thread Square Edge Reducing Street Coupling Pipe Fittings

When you need reliable pipe connections that withstand demanding industrial conditions, NPT Thread Square Edge Reducing Street Coupling Pipe Fittings provide remarkable execution. These specialized moldable press strung fittings include a strengthened square edge geometry that gives predominant auxiliary keenness compared to standard round-banded couplings. The particular square confront plan permits your pipe torques to accomplish most extreme torque without slipping, guaranteeing more tightly seals for high-pressure applications. Our galvanized coating offers extraordinary erosion resistance, making these fittings culminate for open air situations and muggy conditions.

Technical Specifications

Our couplings are made to meet strict industry measures counting ASME B16.3 Course 150 details. Each fitting utilizes ASTM A197 flexible press development, giving the culminate adjust of quality and workability. The NPT threading takes after ASME B1.20.1 guidelines with a exact 60-degree string point and 1:16 decrease proportion for leak-resistant mechanical sealing.

Key Features

• Enhanced Strength: Square edge plan includes 15-20% more fabric mass at fitting openings
• Superior Grasp: Level grasping surfaces anticipate torque slippage amid installation
• Corrosion Assurance: Hot-dip galvanized coating with least 86µm zinc thickness
• High Quality: Least ductile quality of 40,000 psi avoids splitting beneath torque
• Temperature Safe: Works dependably from -20°F to 350°F (-29°C to 177°C)
• Leak-Tight Fixing: Exactness NPT strings make impedances fit that fixes beneath pressure

Dimensions and Specifications Table



Detail Photo

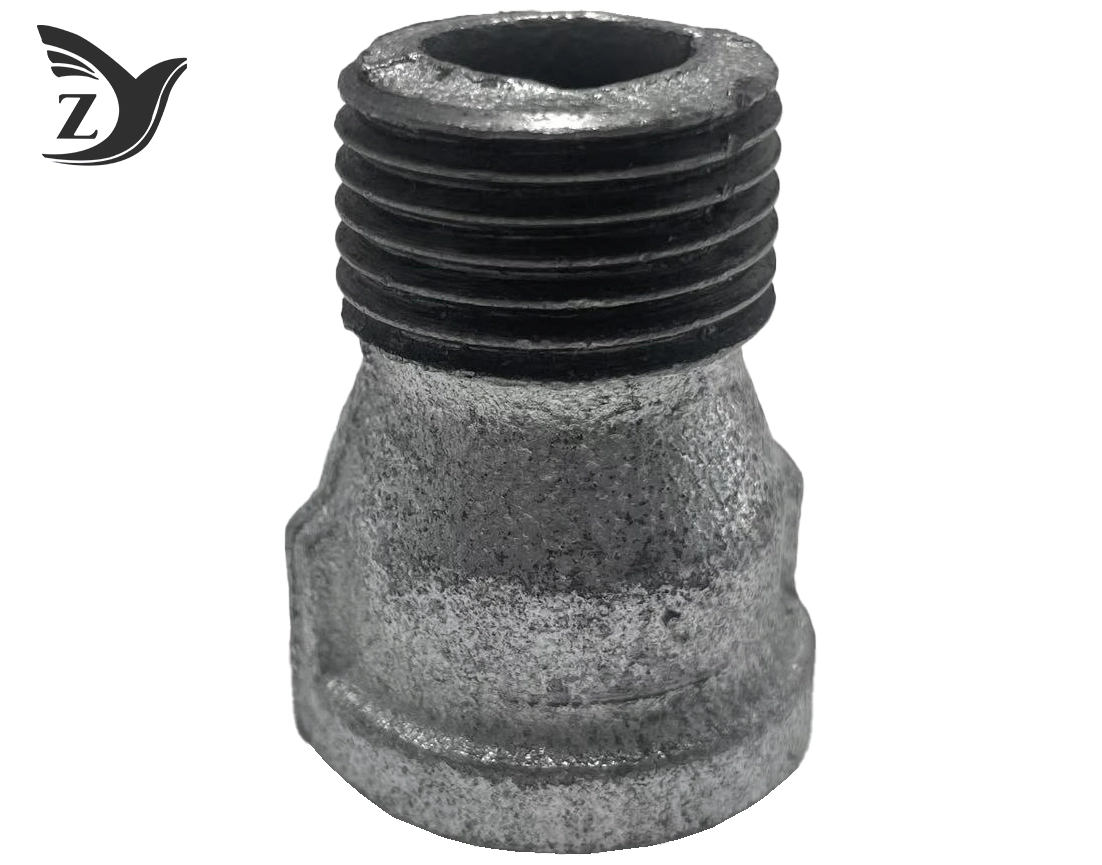

NPT Thread Square Edge Reducing Street Coupling Pipe Fittings1

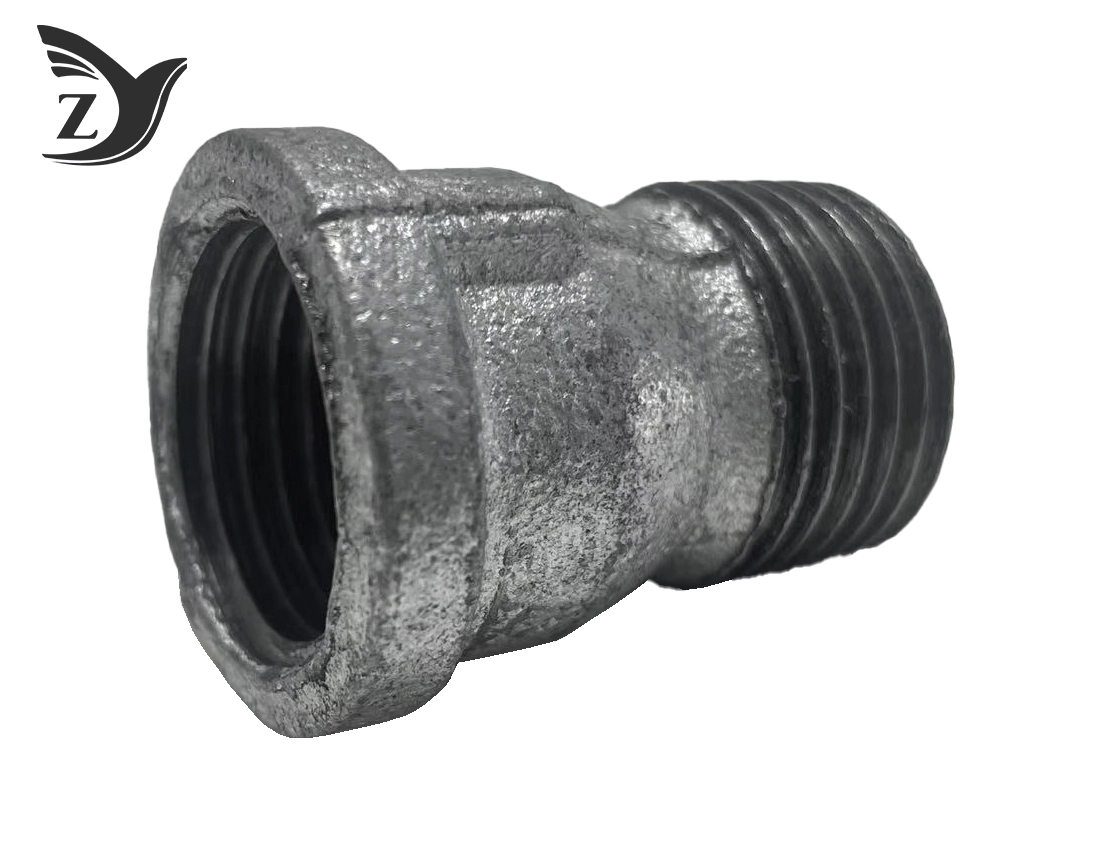

NPT Thread Square Edge Reducing Street Coupling Pipe Fittings 2

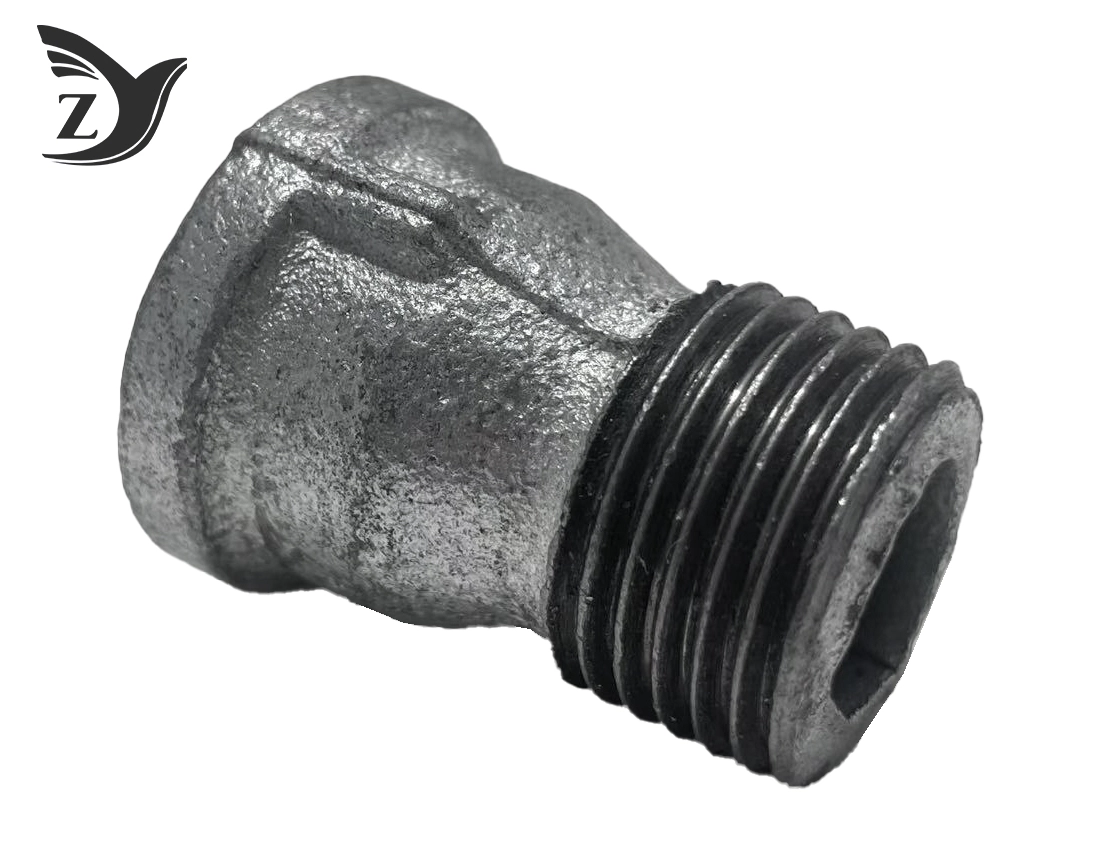

NPT Thread Square Edge Reducing Street Coupling Pipe Fittings 3

Materials and Surface Treatment

We make each fitting from high-grade pliable press taking after ASTM A197 determinations. This fabric gives amazing machinability whereas keeping up basic keenness beneath push. Our hot-dip galvanization handle makes a metallurgical bond between the zinc coating and base metal, advertising prevalent assurance compared to electro-galvanizing methods.

Application Areas

These versatile fittings serve multiple industries and applications:

• Industrial Plumbing: Water conveyance frameworks in fabricating facilities
• Oil and Gas: Moo to medium weight pipeline connections
• HVAC Frameworks: Steam and condensate line connections
• Fire Security: Sprinkler framework installations
• Agricultural: Water system and animals watering systems
• Marine Applications: Corrosion-resistant associations in unforgiving environments

Installation Instructions

1. Clean pipe threads thoroughly before installation
2. Apply appropriate pipe thread sealant or tape
3. Hand-tighten the NPT Thread Square Edge Reducing Street Coupling Pipe Fittings initially
4. Use pipe wrenches on the square edges for final tightening
5. Avoid over-tightening to prevent thread damage
6. Test connections at operating pressure before full service

Packaging and Shipping

We bundle our fittings in defensive cartons with anti-corrosion paper. Standard shipping incorporates nitty gritty item documentation and dealing with enlightening. Bulk orders get customized bundling arrangements to minimize harm amid transport.

Quality Control

Our ISO9001-certified quality framework guarantees each fitting meets determinations. We conduct weight testing, string assessment, and coating thickness confirmation some time recently shipment. Each bunch experiences thorough fabric composition investigation to ensure steady performance.

OEM and Customization Services

With our 26 a long time of casting encounter and 30,000-ton yearly capacity, we offer comprehensive customization alternatives. Our building group can alter measurements, threading details, and coating necessities to coordinate your particular applications. We welcome OEM associations and private labeling opportunities.

Frequently Asked Questions

Q: What's the difference between square edge and standard couplings?

A: Square edge design provides better wrench grip and increased material thickness for higher pressure applications.

Q: Are these fittings suitable for potable water?

A: Yes, our galvanized coating meets drinking water standards when properly installed.

Q: What thread sealant should I use?

A: We recommend high-quality pipe dope or PTFE tape rated for your specific application pressure and temperature.

Q: Can you provide custom sizes?

A: Absolutely. Our manufacturing capabilities allow for custom dimensions and specifications based on your requirements.

Contact Us

Trust our NPT Thread Square Edge Reducing Street Coupling Pipe Fittings for your next project. Ready to experience the reliability of professional-grade pipe fittings? Our technical team stands ready to assist with product selection, custom specifications, and application guidance.

Email: zhiyuan@mifittings.com

We look forward to supporting your piping system needs with our premium quality products and exceptional service.
