NPT Galvanized Union Elbow Threaded Pipe Fittings with Male and Female Ends

NPT Galvanized Union Elbow Threaded Pipe Fittings with Male and Female Ends-Industrial Grade Pipeline Closure Solutions​​​​​​​

When you need a reliable solution for changing pipe direction while maintaining easy maintenance access, NPT Galvanized Union Elbow Threaded Pipe Fittings with Male and Female Ends provide the perfect answer. These specialized pressure driven and pneumatic components are designed from high-quality pliable press to alter channeling course by 90 degrees whereas encouraging simple dismantling. Not at all like standard inactive elbows, this fitting coordinating a three-piece union component that permits you to interface and disengage channels without cutting or pivoting abutting pipe sections.

The one of a kind male and female closes arrangement acts as a practically coordinates road connector. This plan permits coordinate association to a female harbour through the male string and a male pipe by means of the female string. You'll illuminate two basic industry challenges: lessening establishment impression and overcoming upkeep troubles in tight corners.



Product Details​​​​​​​

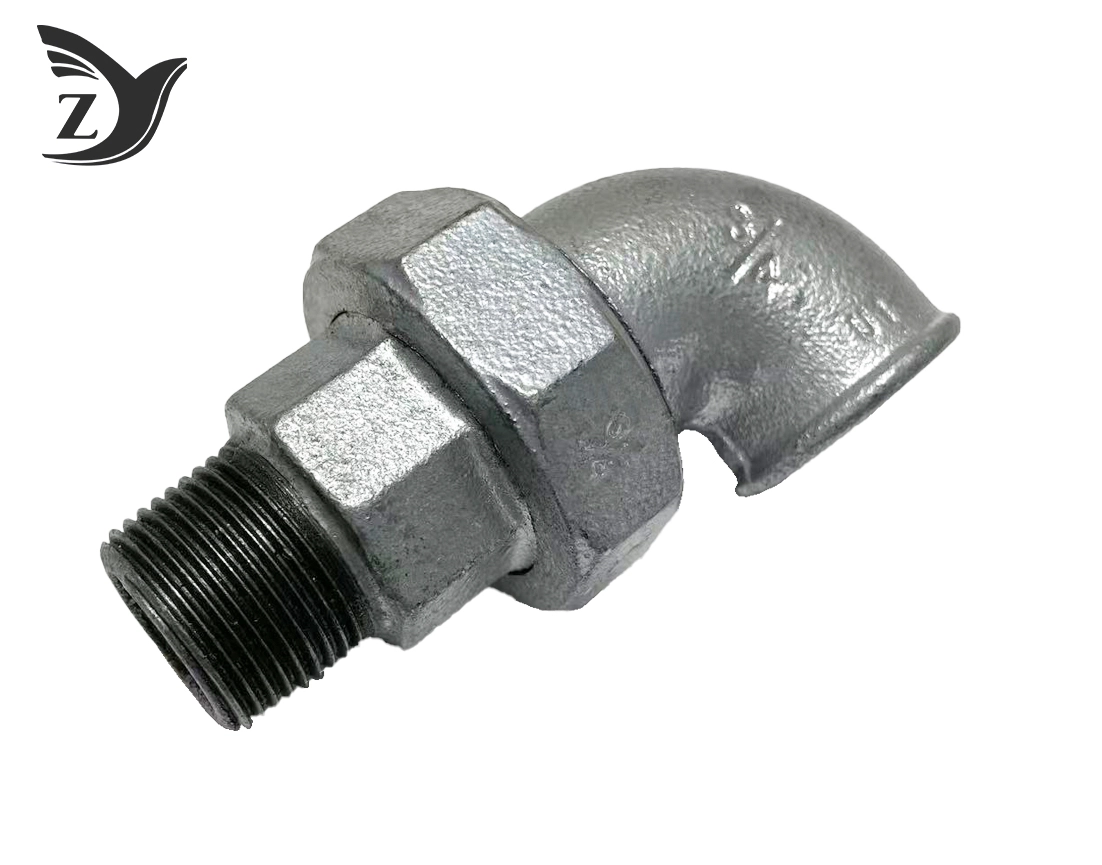

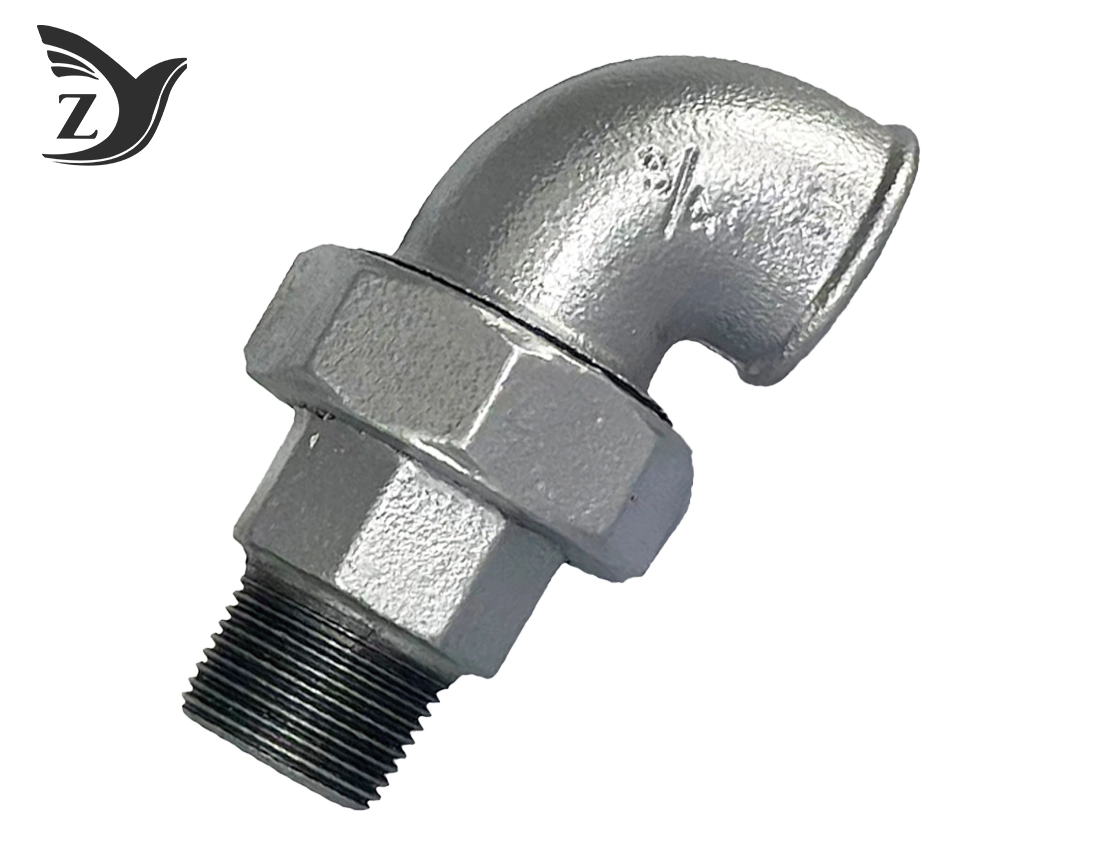

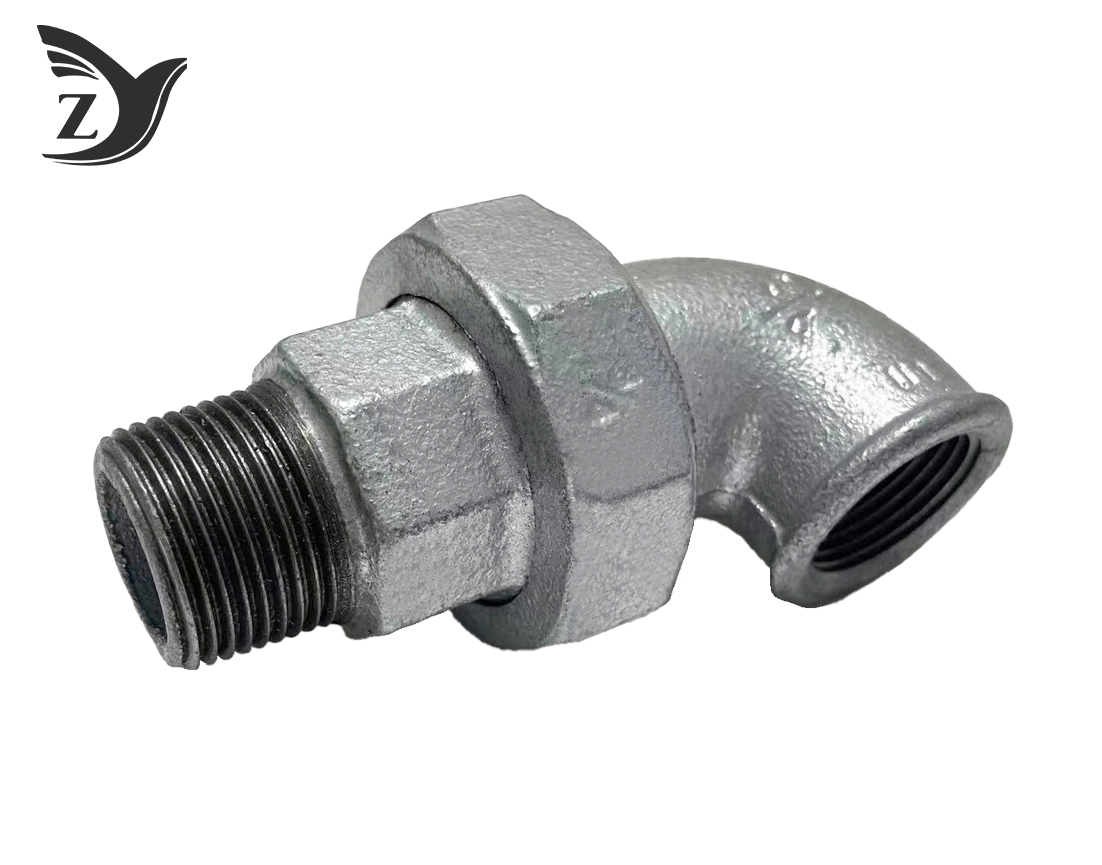

Galvanized Union Elbow Threaded Pipe Fittings with Male and Female Ends 1

Galvanized Union Elbow Threaded Pipe Fittings with Male and Female Ends 2

Galvanized Union Elbow Threaded Pipe Fittings with Male and Female Ends 3

Technical Specifications

Our products are manufactured from Black Heart Malleable Iron with predominant pliable quality. The hot-dip galvanized coating guarantees resistance to oxidation and scaling in damp or air environments.

Material Standards:

• Base Material: ASTM A197 Malleable Iron
• Tensile Strength: Minimum 350 MPa
• Dimensional Tolerances: ASME B16.39
• Thread Profile: ASME B1.20.1 (NPT)
• Galvanization: ASTM A153 specifications

Key Features

• Three-piece union instrument for simple dismantling without pipe rotation
• Hot-dip galvanized coating with 86-micron zinc thickness for prevalent erosion resistance
• Precision NPT threading with 60-degree flank point for leak-proof seal
• High ductility and stun resistance compared to gray cast iron
• Dual-threaded plan for flexible association options
• Professional-grade development appropriate for mechanical applications

Dimensions and Specifications Table

Materials and Surface Treatment

We manufacture our fittings using premium Black Heart Malleable Iron (KTH300-06 grade) for ideal execution. The fabric offers predominant ductile quality and ductility compared to standard cast press alternatives.

Surface Treatment Process:

• Hot-dip galvanization taking after ASTM A153 standards
• Zinc coating thickness surpassing 70 microns
• Dual security: obstruction and cathodic assurance against rust
• Weather-resistant wrap up appropriate for open air applications

Standards and Certifications

Our products comply with international quality standards:

• ISO 9001:2015 Quality Management System
• ASTM A197 (Material Standards)
• ASME B16.39 (Dimensional Standards)
• ASME B1.20.1 (Threading Standards)
• ASTM A153 (Galvanization Standards)

Application Areas

These flexible fittings serve different mechanical applications:

Industrial HVAC Frameworks: Idealize for evaporator room establishments where space is restricted. Interface condensate return lines to pumps productively whereas keeping up simple get to for maintenance.

Natural Gas Metering Stations: Perfect for private and commercial gas meter hookups in low-pressure applications. The galvanized coating gives fabulous climate resistance for open air installations.

Process Gear Associations: Reasonable for fabricating situations taking care of non-acidic liquids. Utilize as association focuses for instrumented and prepare equipment.

Water Dissemination Frameworks: Great for non-potable water applications, counting water system and mechanical water systems.

Installation Instructions

Step 1: Clean all string surfaces altogether some time recently installation.

Step 2: Apply fitting string sealant to male strings only.

Step 3: Hand-tighten the male conclusion into the female harbour until snug.

Step 4: Utilize pipe torques to total the association, turning 1-2 extra turns.

Step 5: Interface the inverse pipe to the female conclusion utilizing the same procedure.

Step 6: Test the framework at working weight some time recently putting into service.

Important: Never over-tighten as this may harm the strings or seating surfaces.

Packaging and Shipping

We ensure your NPT Galvanized Union Elbow Threaded Pipe Fittings with Male and Female Ends arrive safely with professional packaging:

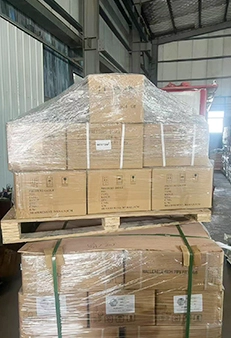

• Individual plastic caps ensure strings amid transit
• Bulk bundling in tough cartons with froth protection
• Clear labeling with measure and determination information

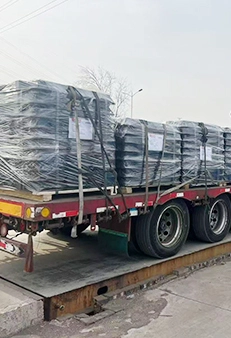

• Standard shipping through dependable coordinations partners
• Express shipping choices accessible for pressing orders

Quality Control

Our comprehensive quality control prepare guarantees reliable item performance:

• Raw fabric assessment upon receipt
• In-process quality checks amid manufacturing
• Final weight testing some time recently packaging
• Thread gage confirmation for appropriate fit
• Galvanization thickness measurement
• Random inspecting for malleable quality testing

OEM and Customization Services

We offer adaptable customization alternatives to meet your particular requirements:

• Custom string details (BSPT, BSP available)
• Special weight appraisals for interesting applications
• Modified measurements for particular installations
• Private labeling and bundling options
• Technical interview for custom solutions

Contact our building group to talk about your particular needs and requirements.

Frequently Asked Questions

Q: What's the difference between union elbows and standard street elbows?

A: Standard street elbows are solid, single-piece castings. Union elbows contain a separable joint that allows disconnection without rotating connected pipes, making maintenance much easier.

Q: Can these fittings be used for potable water systems?

A: This depends on local codes and lead-free compliance requirements. Generally, they're better suited for non-potable water, steam, air, and gas applications.

Q: Do these fittings require gaskets?

A: Our high-quality fittings utilize precision-machined metal-to-metal seating that seals without gaskets when surfaces are clean and undamaged.

Q: How do I identify the pressure rating?

A: Class ratings are typically cast into the fitting body. Class 300 fittings are heavier with thicker walls compared to Class 150 versions.

Q: Why use NPT tapered threads?

A: NPT threads wedge together when tightened, creating a mechanical seal that becomes tighter with torque, ensuring leak-proof connections.

Contact Us

Ready to enhance your piping system with reliable NPT Galvanized Union Elbow Threaded Pipe Fittings with Male and Female Ends? Our experienced team is here to help you find the perfect solution.

Get in Touch:

• Email: zhiyuan@mifittings.com
• Professional technical support available
• Quick response to all inquiries
• Competitive pricing for bulk orders

Contact us today for detailed specifications, pricing information, or technical consultation. We're committed to providing you with high-quality pipe fittings that meet your exact requirements.
