Space-saving Solutions with Thread Square Edge Reducing Street Coupling Pipe Fittings

Thread square edge reducing street coupling pipe fittings become game-changers when industrial projects need small but strong piping solutions. These special connectors make it easy to switch between pipes of different diameters while taking up very little space. This is a huge benefit in crowded mechanical rooms, retrofit situations, and installations with limited space. Because they have a square edge, these fittings are better at engaging wrenches and keeping the seals tight. They are essential for fire safety systems, municipal water distribution, HVAC networks, and petrochemical facilities where space is limited and system reliability can't be compromised.

Thread Square Edge Reducing Street Couplings

Thread square edge reducing street coupling pipe fittings are a more advanced type of pipe connectors that were made to solve two problems at the same time: connecting pipes with different diameters and keeping installation efficiency high in small spaces. The square edge profile is what makes these fittings unique from other types that have beveled or beaded edges. It provides flat gripping surfaces that keep the wrench from slipping during installation and maintenance.

What Makes Square Edge Design Different

In addition to looking nice, the square edge geometry is useful for many other reasons. When installing something in a small space, technicians need to be able to trust the tools they buy to apply the right amount of torque without damaging the fitting body or stripping the threads. When torque is high, traditional rounded profiles often let wrenches slip. This is especially true in installations that are done above or at an odd angle, like fire sprinkler drop installations or plumbing retrofits under the sink. This problem is solved by the square band, which has four flat surfaces that spread the wrench force out evenly over a larger contact area. This new design directly cuts down on installation time, which is very important for project-based engineering buyers who have to keep to tight construction schedules.



Material Composition and Standards Compliance

Good threaded pipe joiners usually use malleable iron that meets ASTM A197 standards. This type of iron is more flexible than regular cast iron. This choice of material keeps the connection from breaking easily when hit or heated, which is a common problem in water and gas pipelines used in factories where temperatures can change. The couplings we make at Zhiyuan Malleable Steel are made from high-strength, anti-rust malleable iron that stays strong at temperatures ranging from -20°F to 350°F.

Our products are hot-dipped galvanized, which goes beyond ASTM A153 standards and gives them a zinc coating that is at least 3.4 mils thick. This treatment keeps the metal from rusting and is necessary for outdoor installations, coastal areas, and underground uses where iron or steel that isn't protected from water could rust. The galvanization greatly increases the service life; field studies show that properly galvanized bendable fittings last 15-20 years longer in corrosive environments than black lacquered alternatives.

Thread Standards and Compatibility

Our precision-threaded couplings work with both NPT (National Pipe Taper per ANSI/ASME B1.20.1) and BSPT (British Standard Pipe Taper per ISO 7-1) standards, so they can be used with a wide range of piping systems in North America and around the world. The NPT configuration has a thread angle of 60 degrees and a taper of ¾ inch per foot. This creates mechanical interference that gets tighter when torque is applied. Instead of just using thread compound, this taper design creates seal pressure through flank-to-flank contact. However, using the right pipe dope is still necessary for the best performance.

BSPT types have a 1:16 taper ratio and can handle working pressures of up to 25 bar (362 psi), but this depends on the size of the fitting and the temperature. This NPT/BSPT compatibility makes it easy to join pipes in multinational projects where equipment with different threading standards is being sourced. This happens a lot when foreign trading companies serve global markets.

Benefits and Applications of Thread Square Edge Reducing Street Couplings

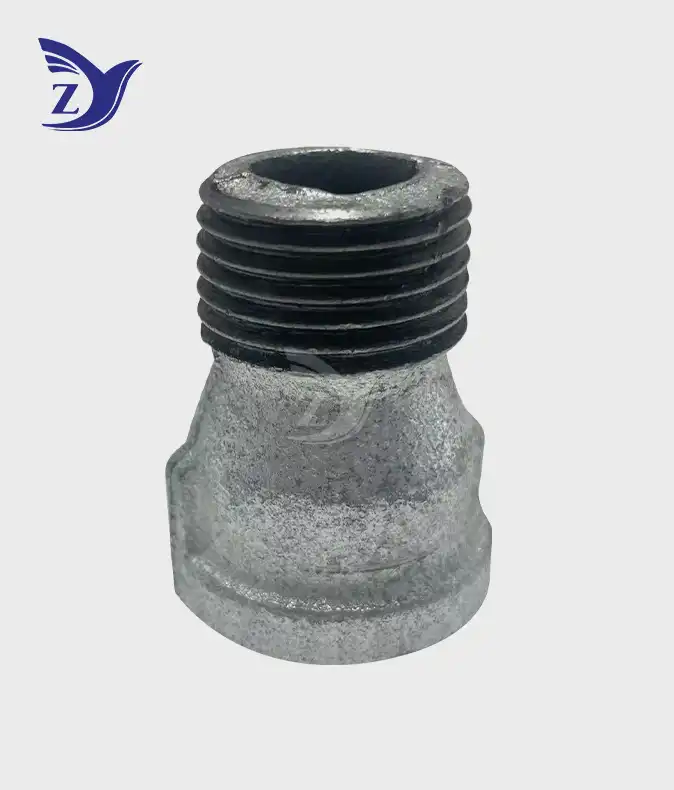

The functional benefits of

​​​​​​​ go far beyond how small they are. Knowing how these benefits work in the real world helps procurement professionals make decisions that are in line with the needs of the project and the budget.

Space-Saving Design Advantages

Reducing street couplings are better than flanged connections or union assemblies because they don't need as many parts and hardware. Two separate flanges, gasket material, and four to eight bolts with nuts are needed for a standard flange connection. These parts add several inches to the length of the connection as a whole. A strong, reliable straight pipe coupling, on the other hand, can make the same diameter change in a lot less space.

This dimensional efficiency comes in handy in situations like retrofitting a mechanical room with existing infrastructure that limits the space between the walls and the equipment. Fire protection system integrators often have to run pipes through crowded buildings to make sure sprinklers cover everything that needs to be covered by the code. The reducing street coupling lets you connect a 1-inch main to a ¾-inch drop directly with a threaded connection, saving 4 to 6 inches of vertical space per connection point.

Pipes that aren't too big on modular equipment skids that are put together for petrochemical processing make shipping and installation easier. When process engineers design skid-mounted systems, every inch of smaller piping envelope means less money spent on shipping and easier installation in existing buildings when capacity grows.

Enhanced Sealing and Maintenance Benefits

The industrial-grade, corrosion-proof coupling design solves problems that keep coming up in places where vibrations are common. Connections that don't come loose under cyclic stress are needed in process plants with reciprocating compressors, heavy machinery, or requirements for seismic activity. The tapered thread interference fit that comes with NPT connections gets tighter as vibrations try to turn the fitting. Parallel thread designs don't have this self-reinforcing feature.

It's much easier to do maintenance when technicians can take joints apart using regular pipe wrenches instead of ones that need extra tools or a wider swing radius. The square edge profile lets you use a wrench even when nearby pipes make it hard to get to one or two sides of the fitting. This happens a lot in pump houses and valve manifolds that are already full. This useful benefit cuts down on maintenance downtime and the costs of labor that comes with it over the system's useful life.

Cross-Industry Application Versatility

Different industries use the unique features of these fittings to solve problems that are specific to their fields. Fire protection engineering firms use reducing street couplings in sprinkler system branch lines where code compliance calls for certain orifice sizes, but the main feeds keep their larger diameters. Compared to multi-component options, the single-piece design eliminates possible leak paths. This is an important reliability factor when the system has to be activated quickly in an emergency and fitting failures can't be tolerated.

Galvanized, bendable fittings are used to connect service lines from distribution mains to individual homes in municipal water supply networks. Water utilities appreciate the long-term corrosion resistance and ease of field installation when crews perform emergency repairs under time pressure. The hot-dipped galvanized finish can stand up to years of soil contact and electrochemical corrosion from metal connections that are not the same.

HVAC contractors serving commercial buildings use these for condensate drain assemblies, heating water distribution, and chilled water systems. Because different pipe sizes can be used in tight ceiling plenums or mechanical chases, designers can find the best pipe sizes for hydraulic efficiency while still meeting architectural needs. Plumbing and hardware wholesalers keep full specification ranges on hand to help contractors who buy everything they need for a project from one place.

Procurement and Ordering Insights for B2B Clients

Effective sourcing strategies for thread square edge reducing street coupling pipe fittings cut down on project timelines while making sure that the quality of the products meets the requirements. Understanding procurement issues helps buyers choose the right suppliers and place orders efficiently.

Supplier Evaluation Criteria

Depending on the size of the project and the level of customization needed, authorized distributors and direct manufacturers each have their own benefits. Distributor networks that keep regional stock and offer fast fulfillment are often helpful for large, standard orders. Manufacturers with engineering resources and production flexibility are usually the only ones who can meet custom specifications or OEM needs.

When project schedules depend on large-batch supply in short amounts of time, production capacity is important. The annual capacity of Zhiyuan Malleable Steel is 30,000 tons, and the company has a large inventory of over 1,000 product specifications to meet both immediate small-quantity needs and large-scale project orders. Our standard products ship within two hours of receiving confirmation of the order, which is a huge benefit when construction delays mean that materials need to be sent right away.

Customization Capabilities and Lead Times

When retrofitting old infrastructure with new equipment, it's common for non-standard size requirements, special threading, or coating requirements to come up. Because our ODM/OEM services offer dedicated engineering support and flexible manufacturing processes, they can meet these needs for customization. International buyers looking for goods for a wide range of markets like that we can make both NPT and BSPT versions at the same time, which makes the supply chain simpler.

Being clear about lead times lets you make realistic plans for projects. Standard catalog items ship right away from stock, but custom specifications usually take 15 to 25 business days, depending on the size and complexity of the order. By sharing size and performance requirements early on in the procurement process, manufacturing planning can be coordinated with construction milestones.

Logistics and After-Sales Support

Shipping logistics have a big effect on total landed costs, especially when buying things from other countries. We are in Taigu District, Shanxi Province, which is very easy to get to by car, train, or plane. We are only 40 kilometers from Taiyuan, and there is a direct airport connection that makes international shipping faster. Understanding freight classifications and packaging requirements can help you avoid delivery delays and cost increases that you didn't expect.

Conclusion

When it comes to industrial piping, where space is limited, reliability is important, and installation efficiency is key, thread square edge reducing street coupling pipe fittings offer clear benefits. The square edge design makes it easier to engage the wrench, and the built-in reducing feature gets rid of the need for multiple-component assemblies, which saves space and lowers the risk of leaks. Long-term performance depends on the quality of the material and how it is treated on the outside. Hot-dipped galvanized malleable iron is durable and doesn't rust, which is what demanding applications need. If you install these fittings correctly and follow the manufacturer's instructions, they will last for decades and not give you any problems in fire protection, municipal infrastructure, HVAC, and industrial process systems.

Partner with Zhiyuan Malleable Steel for Reliable Pipe Fitting Solutions

Zhiyuan Malleable Steel has been making industrial-grade couplings for 26 years and has a lot of experience with them. As a well-known company that sells thread square edge reducing street coupling pipe fittings, we keep our ISO 9001 certification and our CE, UL, and FM approvals, which all meet international quality standards. Our 30,000-ton annual production capacity and inventory of more than 1,000 specifications make sure that your projects get precisely specified parts on time. We offer full OEM/ODM customization services for non-standard needs, backed by our guarantee to replace any defective products and quick technical support. You can email our team at zhiyuan@mifittings.com to talk about your project details and find out how our space-saving coupling solutions can help you get the most out of your piping systems while also lowering installation costs and making sure they will work well for a long time in fire protection, municipal, HVAC, and industrial settings.

FAQs

What distinguishes square edge reducing street couplings from standard pipe couplings?

The square edge profile has flat gripping surfaces that prevent wrench slippage while it's being installed, which is especially helpful in tight spaces. The "street" configuration has both male and female ends in one fitting, and the "reducing" feature can handle changes in diameter without the need for separate bushings. Compared to multi-component assemblies, this integrated design takes up less space and takes less time to install.

How do I determine appropriate torque specifications for these fittings?

The torque needs change based on the thread standard and fitting size. Hand-tighten until there is firm resistance, then add two to four more wrench turns, depending on the diameter. When NPT connections are properly tightened, you can see three to four threads that stick out past the coupling body. For exact torque values, check the manufacturer's instructions. If you over-tighten, the fitting could get damaged, and if you under-tighten, it could leak.

Can these fittings accommodate both NPT and BSPT threading standards?

Because of the different thread angles and taper ratios between standards, good manufacturers make different versions for thread square edge reducing street coupling pipe fittings NPT and BSPT uses. When you try to use thread types that don't work well together, you risk poor sealing and leakage. Before you order, make sure that the thread standard will work with the pipes you already have by checking that it is compatible.

References

1. American Society of Mechanical Engineers. (2020). ASME B16.3: Malleable Iron Threaded Fittings—Classes 150 and 300. New York: ASME Press.
2. Johnson, R.T. & Martinez, P.L. (2019). Industrial Piping System Design and Installation Standards. Houston: Petroleum Engineering Publications.
3. National Fire Protection Association. (2021). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy, MA: NFPA.
4. Thompson, K.W. (2018). "Comparative Analysis of Threaded Pipe Fitting Performance in High-Vibration Environments." Journal of Mechanical Integrity, 45(3), 112-127.
5. British Standards Institution. (2017). BS EN 10242: Threaded Pipe Fittings in Malleable Cast Iron. London: BSI Standards Publication.
6. Miller, D.A. & Chen, S.H. (2022). Corrosion Protection Methods for Ferrous Piping Components in Municipal Water Systems. Denver: American Water Works Association Research Foundation.
