How to identify quality galvanized square face elbow pipe fittings?

To find good galvanized square face elbow pipe fittings, you need to look for a thick, even zinc coating that is more than 85 microns thick; make sure the fittings meet ASTM A197 or EN 1562 material standards; make sure the threading is precise (NPT/BSPT) and free of flaws; make sure the reinforced square edge band is formed correctly; and make sure the fittings have certifications like ISO 9001, FM, or UL. The weight of good square face galvanized 90° square edge elbow pipe fittings stays the same, their surfaces are smooth and free of pits or rough spots, and their dimensions are exact. Reliable makers provide thorough mill test reports and third-party inspection documents to make sure that these threaded elbows work well in water, gas, and industrial piping uses without rusting.

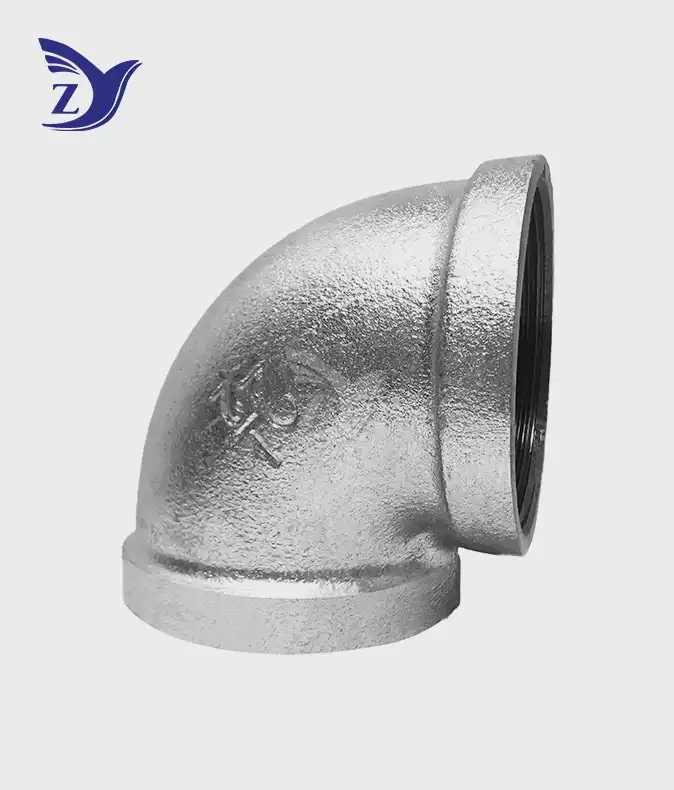

How to Identify Quality Galvanized Square Face Elbow Pipe Fittings

To tell expensive fittings from less-than-stellar options, you need to carefully look at them across a number of quality factors. Professionals in procurement have to check the quality of the material, the accuracy of the production process, the quality of the surface treatment, and that the product meets internationally accepted standards.

Zinc Coating Assessment

The galvanization layer is the first thing that will protect you from rust. Fittings of good quality have even, smooth zinc covering that doesn't have any bare spots, flaking, or big changes in thickness. Using a magnetic scale to check the thickness of the coating should give results that are always between 85 and 100 microns on all surfaces, including the square edge band, the internal threads, and the external bodies.

A close look at the finish can tell you a lot about its quality. Premium galvanization has a matte gray finish that looks smooth and has designs that look like spangles. If parts have white rust (zinc oxide), it means that the coating didn't stick well or that they were exposed to water before being used. The zinc layer shouldn't have any dark spots, lines, or crystalline buildups that would suggest pollution during the dipping process. Instead, the color should be spread out evenly.

Dimensional Accuracy and Thread Quality

The right fit and leak-free square face galvanized 90° square edge elbow pipe fittings are guaranteed by precision production. Using calipers and thread gauges, make sure that all of the measurements match the rules in ASME B16.3 or a similar standard. The 90-degree slope should be within ±1 degree of being perfect. The thread pitch, depth, and thickness must all match NPT or BSPT standards perfectly. If they don't, the seal won't work properly.

Look at the threads in good lighting for signs of bad cutting, such as rough edges, missing threads near the base of the fitting, or tool lines that show the production was rushed. Threads that are of good quality look straight, even, and full all the way along their length. The square edge band should have the same width and thickness all the way around, with no thin spots or distortion.

Material Verification Through Physical Testing

The quality can be reliably judged by its weight. Real square face galvanized 90° square edge elbow pipe fittings made of pliable iron have different weight ranges based on their size and wall thickness. Fittings that are a lot lighter might not be made of good materials or have walls that aren't as thick as they should be, which could lower their pressure ratings. Ask for mill test results that explain the material's make-up, tensile strength (usually 345–415 MPa for malleable iron), and stretch percentage.

A simple magnet test can prove the use of metal materials, but it can't tell the difference between lower-grade iron that can be shaped. For more solid proof, spectroscopy analysis is needed. This is usually done by the maker and recorded in material documents. The results should show that the carbon content is less than 0.35%, the silicon content is between 0.9 and 1.9%, and there aren't many sulfur or phosphorus flaws.

Standards Compliance and Certification

Manufacturers who are legitimate provide a lot of paperwork that shows they follow international standards. Look for ISO 9001 quality management certification. This shows that the company has a method for controlling production and making improvements all the time. UL (Underwriters Laboratories) or CE marking on a product means that it has been tested by a third party that is not connected to the company that made it.

Galvanization meets the minimum thickness and adhesive standards set by ASTM A153. Certification in ISO 7-1 or ASME B1.20.1 shows that the fitting is correct. Manufacturers should easily give you data on measurement checking, pressure tests, and corrosion resistance tests. If you are hesitant or unable to provide these papers, it could mean that there are problems with the quality.

Performance Testing Indicators

Pressure testing shows how well a fitting works in real-world situations. Class 150 fittings should be able to handle 300 psi of water-oil-gas (WOG) working pressure and 150 psi of water-steam-petroleum (WSP) working pressure without leaking or deforming. Higher-grade Class 300 fittings can handle twice as much pressure. Manufacturers who test sample batches for hydrostatic pressure show that they care about quality assurance.

As required by ASTM B117, corrosion resistance testing usually includes being exposed to salt water. Premium square face galvanized 90° square edge elbow pipe fittings don't get much red rust after being exposed to salt fog for 500 hours or more. A test that speeds up the age process mimics years of use in just a few weeks, showing how well the zinc layer holds up against changes in temperature and chemical exposure.

Comparison of Galvanized Square Face Elbow Fittings with Alternative Solutions

When buying teams know how square face galvanized 90° square edge elbow pipe fittings compare to other pipe options, they can make better choices that balance performance goals, price limits, and the needs of the specific application.

Galvanized Square Edge Versus Seamless Elbows

Seamless elbows are made from solid pipe stock by either hot or cold bending. They don't have any threaded connections at all. Seamless options have better flow characteristics and don't allow for possible leak paths, but they need to be welded in place, which raises the cost of work and needs qualified welders. When it comes to mechanical connections, square face galvanized 90° square edge elbow pipe fittings are faster to install, easier to check, and easier to change during upkeep.

Cost and supply are affected by differences in how things are made. Making seamless joints is more difficult and needs special tools, so the price per unit is usually higher. Prices for threaded malleable iron elbows stay low because they are made using well-known casting methods and can be made in large quantities. Even though there is a little more pressure drop through the link, threaded fittings are better for systems that will need to be taken apart from time to time or where soldering is not an option.

Square Face Versus Round Edge Functional Distinctions

The difference in structure between designs with square and round edges has a bigger effect on installation handling than on fluid dynamics. With their beaded edges, round edge fittings spread hoop stress a little more evenly, which could be slightly better in high-pressure situations. In normal working situations, there are still not big differences in how well things work.

When you need a strong wrench grip, square edge fits are the best choice. The flat band gives pipe wrenches and specialized fitting tools a good grip, which lowers the chance of sliding during high-torque installation. This benefit stands out more when working with fittings that have a diameter of 2 inches or more, or when putting in tight areas where there isn't much room to move around. A lot of builders like square-edged designs because they are easier to work with when putting them together.

Best Practices for Procuring and Using Galvanized Square Face Elbow Pipe Fittings

The worth and performance of square face galvanized 90° square edge elbow pipe fittings are maximized throughout their service life by strategic purchasing and correct installation.

Selecting Trusted Manufacturers

A manufacturer's image is a good way to tell if the quality is good. Companies that have been around for a long time, like those in traditional industrial areas, tend to keep their production standards constant. Make sure that any possible sellers are currently certified with ISO 9001 and can give you facility audit reports from large clients. Being a part of industry groups and panels that make standards is another way to show that you care about quality.

Ask for samples of the fits before you place a big order. Physical samples let you check the quality of the galvanization, the accuracy of the threads, and the general workmanship with your own hands. Use the same evaluation factors to compare samples from different sources. Manufacturers who are sure of their square face galvanized 90° square edge elbow pipe fittings' quality are happy to give samples and are open to academic conversations about how they are made and how they check for quality.

When project deadlines are short, production ability is important. Suppliers with more than one production line and yearly capacities of more than 20,000 tons can better meet pressing orders and keep their products available. Find out how much of the standard sizes are in stock. Reliable providers keep common configurations in stock so they can be shipped right away, and they offer reasonable lead times for special specs.

Bulk Purchasing Advantages

Through tiered pricing systems, buying in bulk saves you a lot of money. Orders that are bigger than the minimum sizes (usually 500 to 1000 pieces per size) usually get big savings. Coordinate purchases for multiple projects or combine orders from different departments to hit certain number levels. Setting up annual purchase deals for steady amounts of goods lets sellers improve pricing and make the best use of production schedules.

Logistics for international shipping need to be carefully planned. How efficiently containers are loaded affects how much it costs to ship goods; standard wrapping makes the best use of containers. Double-layer cardboard boxes keep parts safe while they're being shipped and make them easier to handle. To avoid delays, work with providers who know how to handle export paperwork, clearing customs, and moving freight. For faster restocking and lower shipping costs, work with sellers who have warehouses in the places where your goods will be sold.

Conclusion

To find good square face galvanized 90° square edge elbow pipe fittings, you need to pay close attention to the standards for making, the materials used, and the qualifications of the seller. Pay attention to making sure the zinc coating is regular and has a width of more than 85 microns, that the iron is made according to ASTM A197, and that the NPT or BSPT threading is correct. The reinforced square edge design makes fitting easier by giving you a better grip on the wrench, while still keeping reliable flow properties. Strategies for buying things should focus on certified makers who offer thorough documentation, uniform quality, and quick expert help. Installing correctly by following the torque advice and doing regular maintenance checks will make the fitting last longer and the system more reliable. Real-life case studies show that buying high-quality fittings saves a lot of money because they last longer, don't break as often, and don't need as much upkeep. The money is often returned within a few months, and the fittings will keep working well for decades.

FAQs

What is the expected service life of quality galvanized square face elbow fittings?

Quality square face galvanized 90° square edge elbow pipe fittings made from ASTM A197 malleable iron and coated with the right hot-dip zinc usually last 25 to 40 years in normal water supply situations. The actual lifespan depends on things like the nature of the fluid, how often the temperature changes, and how well the machine is maintained. Systems that work in harsh environments (high salt content, acidic conditions) may only last 15 to 20 years, while systems that work in mild environments can last more than 50 years.

Can galvanized fittings be used in chemical processing environments?

Fittings made of galvanized steel can handle water with a normal pH, natural gas, air, and many fuel products. They can't be used with strong acids, alkaline solutions above pH 12, or fluids that have a lot of chloride in them because chloride attacks zinc coats. Before using zinc fittings for chemical service, you should always make sure they are chemically compatible. For toxic uses, stainless steel options should be thought about, even though they cost more at first.

How can I verify quality certifications from international suppliers?

Ask for full paperwork packages that include ISO 9001 certificates, test reports from the material mill, records of measurement inspections, and pressure test results. Check the accuracy of the certificate by calling the granting certification bodies directly using contact information from their websites instead of the information given by the seller. Inspection services run by outside parties can check out factories and make sure quality controls are working properly before big orders come in. Reputable makers accept this kind of check and keep contact open throughout the whole process of buying something.

Partner with Zhiyuan Malleable Steel for Superior Square Face Galvanized 90° Square Edge Elbow Pipe Fittings

With more than 26 years of experience, Zhiyuan Malleable Steel has been making high-quality square face galvanized 90° square edge elbow pipe fittings that meet the strict needs of fire safety, city infrastructure, and industry uses. Our factory in Shanxi Province is ISO 9001-certified and has eight modern medium-frequency electric furnaces and precise CNC machining equipment. It can make more than 30,000 tons of products every year, meeting more than 1,000 different specs. Our company is a reliable source for square face galvanized 90° square edge elbow pipe fittings. We offer a wide range of quality documents, such as FM, UL, and CE certifications, along with strict inspection processes.

Our hot-dip galvanization process provides even zinc coatings that are more than 90 microns thick. This gives them better corrosion protection and years of reliable service. We keep a large stock of standard sizes that can be shipped right away—usually within two hours for in-stock items—and we offer open ODM/OEM customization for unique needs. Our responsive technical team helps with application advice from specification to installation, and Zhiyuan's double-layer cardboard packing protects your investment during foreign shipping. You can talk to our procurement experts about your project needs, ask for samples, or get reasonable quotes for large orders by emailing q1236800000@gmail.com or visiting zymalleablepipefittin g.com. We stand behind our goods by offering free replacements for any parts that don't work. This shows how much we care about the success of your project.

References

1. American Society for Testing and Materials. "ASTM A197: Standard Specification for Cupola Malleable Iron." ASTM International, West Conshohocken, PA, 2019.
2. American Society of Mechanical Engineers. "ASME B16.3: Malleable Iron Threaded Fittings, Classes 150 and 300." ASME Standards Committee, New York, NY, 2016.
3. British Standards Institution. "BS EN 1562: Founding - Malleable Cast Irons." BSI Standards Publication, London, UK, 2012.
4. International Organization for Standardization. "ISO 7-1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads - Part 1: Dimensions, Tolerances and Designation." ISO Standards Catalogue, Geneva, Switzerland, 2018.
5. National Association of Corrosion Engineers. "Galvanized Steel in Water and Wastewater Systems: Corrosion Performance and Service Life Assessment." NACE International Publications, Houston, TX, 2017.
6. Factory Mutual Research Corporation. "FM Approval Standard for Pipe Fittings and Couplings Used in Fire Protection Service." FM Approvals Technical Standards, Johnston, RI, 2020.
