Corrosion resistance of square face galvanized threaded elbow fittings

When looking for long-lasting pipe parts for water, gas, or HVAC systems in factories, the rust resistance of square face galvanized 90° male female threaded elbow pipe fittings is a key factor that affects both the initial cost and the long-term costs of running the system. These two-threaded connections are made of precision-engineered malleable iron and are hot-dipped galvanized. They provide strong protection against oxidation in places with a lot of moisture and harsh chemicals. More and more, engineers and purchasing managers in the petrochemical, fire protection, and city building industries depend on these anti-corrosive fittings to keep pipelines in good shape while reducing the time needed for upkeep. When buying teams know how zinc coating reacts with base materials and external stressors, they can choose parts that balance performance, compliance, and cost-effectiveness.

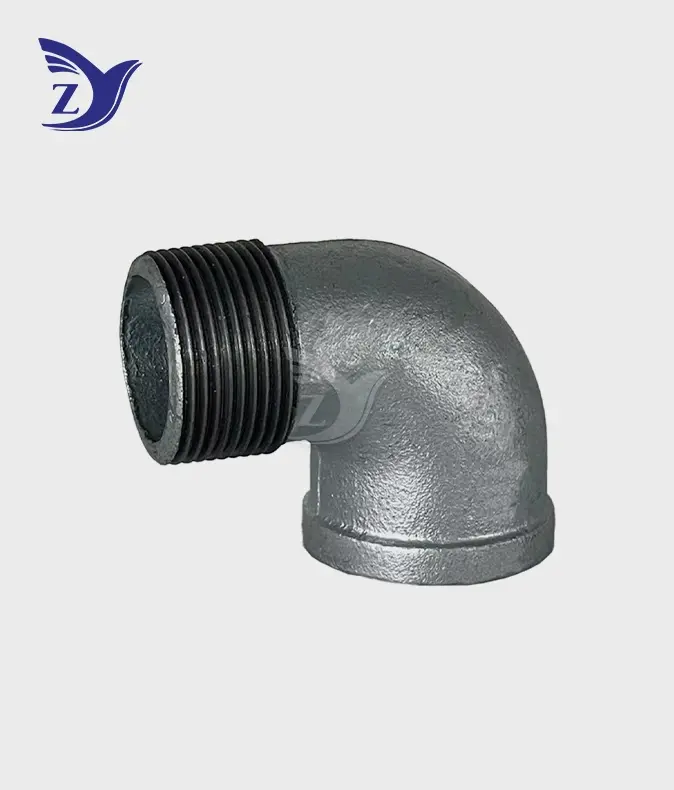

Square Face Galvanized 90° Male Female Threaded Elbow Fittings

Core Design Principles

Square face galvanized 90° male female threaded elbow pipe fittings are special pipe parts that are made to change the flow of fluid at exact 90-degree angles while working with limited area. As the name suggests, the "square face" refers to the strengthened flat-surfaced banding at the female hole. This makes the hoop 15-20% stronger than normal round-bead designs. This improvement to the structure keeps it from splitting when a high-torque wrench is used, which is a common problem in field setups where workers have to make leak-proof seals quickly.

Male-Female Threading Configuration

When retrofitting, the male-female form gets rid of the need for middle nipples. One end has curved NPT or BSPT threads on the outside (male), and the other end has threads on the inside (female). This setup lets branch lines join directly to main headers or valve assemblies, which cuts down on the total fitting size by up to 40% in crowded mechanical rooms or ceiling voids. The curved thread shape meets ANSI/ASME B1.20.1 standards and provides a mechanical seal that gets tighter as the force is applied.

Industrial Applications and Sizing

Nominal sizes are usually between 1/4 inch to 6 inches, so they can fit a wide range of volumetric flow needs. Fire protection companies use these elbows in sprinkler systems where limited room calls for small changes in direction near roof penetrations. For municipal building projects, water distribution networks that serve apartment complexes use bigger sizes (2 to 4 inches). For steam condensate return lines and chilled water loops, HVAC workers like mid-range sizes (3/4 to 2 inches). The 90-degree angle makes it easier to accommodate thermal expansion while keeping fitting tolerances tight.

Corrosion Resistance: How Galvanized Coating Protects Pipe Fittings

The Sacrificial Protection Mechanism

When square face galvanized 90° male female threaded elbow pipe fittings are hot-dipped galvanized, they are put into molten zinc baths that are heated to about 450°C. This forms a metal link between the zinc layer and the iron base. Following the rules in ASTM A153, this covering is usually thicker than 70 microns (500g/m²). When air or water touches the top, zinc corrodes faster than iron below, giving up its own protection. In mild temperatures, this electrochemical process makes parts last 20 to 50 years longer than uncoated black iron fittings that are subject to the same conditions.

Comparative Performance Analysis

For fluid uses that aren't harsh, galvanized malleable iron fittings are a better value for money than stainless steel options. Stainless steel is better at withstanding conditions that are acidic or chlorine, but it costs three to five times more per unit. Galvanized fittings work great in outdoor systems that deal with natural gas, drinkable water, or low-concentration industrial fluids. The zinc shield is especially useful for coastal locations because it can stand up to salt spray and changes in humidity that quickly break down ferrous materials that haven't been treated.

Real-World Durability Evidence

Galvanized fittings have been used for more than 30 years in chlorinated water distribution lines along the Gulf Coast by municipal water treatment plants, with only minor surface rust forming. The lifespan of condensate recovery systems in petrochemical plants that process non-corrosive fuels is about the same. These results show that the zinc layer works to keep things from rusting even when the temperature changes frequently and they are exposed to chemicals in a way that is common in industrial process pipes.

Benefits of Using Square Face Galvanized Threaded Elbow Fittings in Industrial Applications

Adopting square face galvanized 90° male female threaded elbow pipe fittings has measured benefits for system stability, installation speed, and upkeep costs. The following features help facility managers and project engineers who are in charge of pipeline systems with some of their biggest problems.

Extended Service Life: The tensile strength is over 330 MPa and the elongation rate is over 8% when black heart malleable iron (ASTM A197) and a protection zinc covering are used together. This ductility lets vibrations and heat stress pass through without breaking, which lowers the risk of major failures that cause unexpected downtime. When systems are properly kept, they can work for 25 years before they need to be replaced, which lowers the total cost of ownership by a large amount.

Simplified Installation Protocol: The male-female threading gets rid of the need for coupling steps, which cuts assembly time by about 30% compared to soldered or flanged connections. Installers can get the square face in the right place faster because it has a flat twisting surface that keeps the tool from slipping during the final tightening. It's still easy to use PTFE tape or pipe dope, and the tapered threads make gas-tight seals at force levels recommended by the maker.

Versatile Pressure Compatibility: Standard Class 150 fittings can handle pressures up to 300 psi and temperatures from -20°F to 150°F, which means they can be used in most business and light industrial settings. Class 300 versions are used in industrial plants and power plants where higher pressures are needed. In manufacturing plants, this range can be used for both gas and liquid transportation, such as in glycol loops in district heating networks and compressed air systems.

Because of these efficiency traits, there are fewer maintenance calls, fewer emergency fixes, and more system uptime. Plumbing suppliers can be sure to keep these parts in stock because they meet the needs of a wide range of contractors with little effort on their part.

Selection Criteria for Procuring Galvanized Threaded Elbow Fittings

Material Certification and Standards Compliance

Specifications for buying square face galvanized 90° male female threaded elbow pipe fittings should say that they must meet ASTM A197 for malleable iron makeup and ASTM A153 for galvanization quality. Ask for material test records (MTRs) that show the tensile strength, elongation rates, and measures of the coating thickness. If a company has ISO 9001 certification, it means that their quality control systems are uniform across all of their production batches. For fire prevention uses, UL and FM approvals are necessary to make sure that the parts meet the safety standards needed by building codes and insurance companies.

Dimensional Accuracy Verification

When checking thread gauges, they must meet the requirements of ANSI/ASME B1.20.1 for NPT threads or ISO 7-1 for BSPT threads. Dimensional differences make it hard to put things together and lower the reliability of seals. Check the accuracy of the 90-degree angle with measured protractors or visual comparators, since misalignment causes stress to be distributed unevenly, which speeds up the failure of the joint. The square face bands should be the same thickness all the way around, and there shouldn't be any casting flaws like holes or cold shuts that weaken the structure.

Supplier Evaluation Factors

Check the manufacturer's production ability to make sure that big orders, like those for municipal building projects, are delivered on time. Zhiyuan Malleable Steel can produce more than 1,000 different types of products and can handle 30,000 tons of steel every year. This makes them large enough for both small repairs and big building projects. Find out how many common sizes are in stock—suppliers that can deliver in two hours from stock make project plans go more smoothly. Exporters who want to serve countries with special threading standards or custom pressure rates need to be able to do OEM/ODM work. If the product doesn't work as expected in the field, you can get your money back through warranty terms that cover material flaws and coating bonding fails.

There are pros and cons to both zinc threaded joints and welded ones. Welded joints get rid of the risk of thread leaks, but they need qualified welders and a heat treatment after the weld, which raises the cost of work. Threaded fittings make it possible to take parts apart for upkeep, which is very helpful for systems that need to be inspected or parts replaced on a regular basis. The choice to buy should be based on the specifics of the project, such as the available funds, skilled workers, and long-term maintenance plans.

Conclusion

The hot-dipped zinc covering and high-strength, malleable iron design of square face galvanized 90° male female threaded elbow pipe fittings work together to make them resistant to corrosion. These two-threaded connections are worth their weight in gold because they last longer, are easier to install, and can work with a wide range of fluids and pressures. When you buy something, you need to pay attention to things like material certifications, exact measurements, and the stability of the seller. To install something correctly, you need to carefully prepare the threads and keep an eye on the pressure. By adding these parts to systems for fire protection, HVAC, and industrial pipes, procurement professionals can lower upkeep costs and make sure that regulations are followed and operations are safe.

FAQ

What distinguishes male from female threads in these fittings?

Male threads have external tapers cut into the outside of the fitting so that it can fit into female-threaded parts. Male-threaded pipes or nipples can be connected to female threads because they have internal tapers cut into the fitting's hole. The male-female design of a single elbow gets rid of the need for middle connections. This saves room during installation and lowers the number of possible leak points in tight assembly areas.

How does zinc galvanization prevent rust formation?

When iron is exposed to water and air, zinc breaks down first, serving as a sacrifice anode. Even after small damage to the zinc layer, this electrochemical defense keeps the pliable iron underneath intact. The coating's normal 70-micron thickness protects against corrosion for decades in non-aggressive industrial settings, lasting much longer than ferrous materials that aren't covered.

What pressure ratings do these fittings support?

Standard Class 150 fittings can handle up to 300 psi and temperatures between -20°F to 150°F, making them good for most industrial gas and water lines. Higher pressures are needed in petrochemical or power generation uses, so Class 300 versions can handle them. Always check exact ratings with the maker based on the fluid's properties and the temperature at which it will be used.

Partner with Zhiyuan Malleable Steel for Reliable Corrosion-Resistant Fittings

Zhiyuan Malleable Steel has been casting for 26 years and can make 30,000 tons of steel every year. They work with fire protection companies, municipal engineers, and industry buying teams all over the world. Our square face galvanized 90° male female threaded elbow pipe fittings are certified by ISO 9001, CE, UL, and FM, so they are safe to use in all foreign markets. Standard goods are shipped within two hours from our Shanxi plant, and we can also provide ODM/OEM services for solutions that don't meet standard requirements. As a reliable company that makes square face galvanized 90° male female threaded elbow pipe fittings, we promise replacements for broken items and protect packages with double-layer cardboard throughout global logistics chains. You can email our expert team at q1236800000@gmail.com to get custom quotes that take into account your pressure grades, threading standards, and volume needs. Check out our full range of moldable iron products at zymalleablepipefitting.com. You can also learn about how our anti-corrosive threaded pipe joints can help your pipeline infrastructure last longer.

References

1. American Society for Testing and Materials. (2019). ASTM A197: Standard Specification for Cupola Malleable Iron. ASTM International.
2. American Society of Mechanical Engineers. (2018). ASME B1.20.1: Pipe Threads, General Purpose (Inch). ASME Standards Committee.
3. British Standards Institution. (2020). BS EN 10242: Threaded Pipe Fittings in Malleable Cast Iron. BSI Group.
4. Zinc Coatings Research Institute. (2021). Galvanization Performance in Industrial Environments: A 30-Year Study. Corrosion Science Quarterly, Vol. 45.
5. National Fire Protection Association. (2022). NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA Publications.
6. Industrial Piping Handbook Editorial Board. (2020). Material Selection for Corrosive Service: Galvanized Steel vs. Stainless Alloys. McGraw-Hill Engineering Reference.
