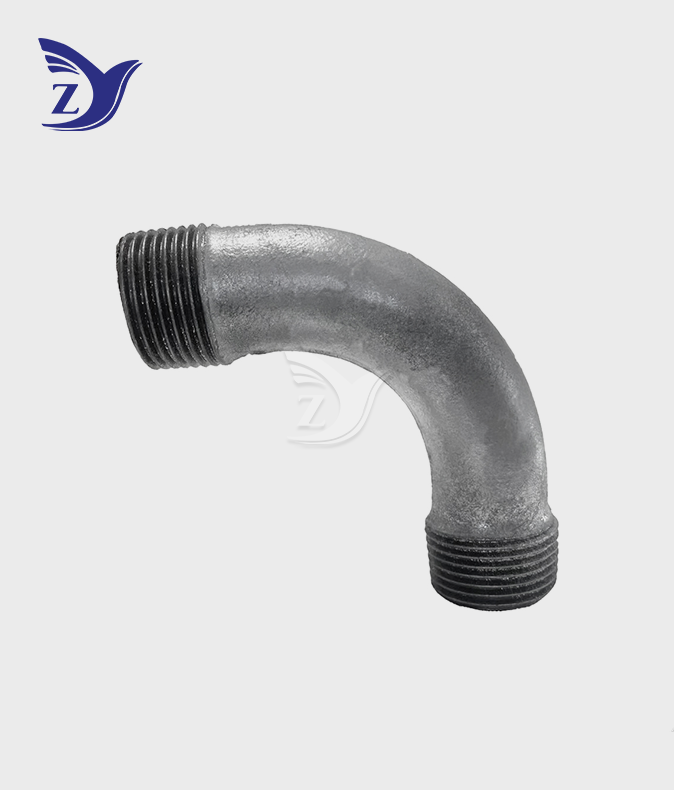

A 90 Degree Elbow In A Horizontal Pipe

Choosing the correct directional fitting is critical for the performance and endurance of horizontal pipe systems that engineers construct for industrial applications. A horizontal pipe with a 90-degree elbow is the fundamental element that changes the direction of fluid flow while keeping the pressure just right and preventing any turbulence from happening. When it comes to water, gas, and HVAC applications in construction, municipal engineering, and fire protection systems, round face galvanized round edge 90° elbow pipe fittings are the go-to choice for professionals due to their reliability, resistance to corrosion, and seamless integration.

Installation and Usage Best Practices in Horizontal Pipes

If you want your horizontal pipe system with 90-degree elbows to last and work as intended, you need to follow the installation instructions to the letter. Across a wide range of industrial applications, professional installation procedures aim to maximize joint dependability while minimizing stress concentrations.

Pre-Installation Preparation

Engineers must check pipe alignment and component dimensions before installation processes may commence. By checking the threads with calibrated gauges, we can make sure that the male and female threads are up to code, which prevents any assembly problems that may ruin the system. Because horizontal lines need sufficient support spacing to avoid drooping, which might put stress on elbow connections, it is crucial to install pipe supports correctly when integrating directional changes.

To ensure effective installation, it is necessary to clean all surfaces thoroughly to eliminate any dirt, grease, or oxidation products. This is known as thread preparation. Accurate thread sealants or PTFE tape are applied by skilled installers to male threads, making sure to cover them completely without leaving surplus material that might block flow passageways or cause hydraulic turbulence.

Installation Methodology

First, thread the elbow onto the pipe by hand until a secure fit is achieved. Then, use a wrench to tighten it until it reaches the desired engagement depth. There is less chance of thread damage during installation because to the improved grip surfaces provided by the fittings' round face shape, which distributes wrench forces more evenly. The recommended level of thread engagement for threaded joints is two to four times the hand-tight state, with the exact number varying with pipe size and pressure demands.

When installing horizontal pipes, it is crucial to pay close attention to the orientation and alignment of the pipes. To avoid binding pressures that can cause failure too soon, the 90-degree angle has to have exact geometric connections. Smooth directional changes free of mechanical stress are achieved with the use of alignment tools and measurement instruments.

Application-Specific Considerations

Elbows used in fire prevention systems must be certified and installed in accordance with NFPA regulations. Wet pipe sprinkler systems rely on the galvanized coating to prevent the corrosion that would otherwise quickly erode ferrous components exposed to standing water. The lead-free nature of current galvanizing methods makes them ideal for use in municipal water supply systems, which are required to adhere to safety standards for drinking water.

Thermal cycling and managing condensation are two of the specific difficulties that arise in HVAC systems. Condensate may collect in horizontal lines during cooling operations, but the galvanized coating prevents corrosion and the malleable iron structure allows for thermal expansion without compromising joint strength.

Comparing Round Face Galvanized Elbow Fittings to Other Options

When making engineering decisions, it's crucial to have a thorough grasp of how different kinds of fittings function under different operating situations. Round face galvanized elbows are the superior choice over other designs and materials due to their substantial performance benefits, as shown by comparative studies.

Round Face Versus Square Face Design

Although they are less expensive, square face fittings have clear drawbacks when subjected to severe stress. Installation forces are concentrated at corner sites due to the angular shape, which might cause stress risers and perhaps start crack development during tightening processes. The stresses are distributed more evenly throughout the circle in round face designs, which reduces peak stress levels and improves fatigue resistance.

Round face configurations are also better for flow characteristics than square face designs because the smooth transition geometry reduces pressure losses and turbulence. In uses where preserving pressure and energy efficiency are paramount, this hydraulic benefit becomes crucial.

Material Comparison Analysis

Stainless steel substitutes are more resistant to corrosion, but they have different thermal expansion properties and are much more expensive to produce. Pipes made of carbon steel and stainless steel have very different coefficients of thermal expansion, which might lead to stress concentrations at metal-to-metal contacts. For large-scale installations, galvanized malleable iron offers the best of both worlds: corrosion protection and thermal compatibility at a price that won't break the bank.

The higher temperatures experienced in many industrial processes are too great for PVC and other polymer alternatives, which lack the mechanical strength needed for high-pressure applications. In comparison to metallic alternatives, plastics have lower fire resistance ratings and much greater thermal expansion rates.

Economic Considerations

Despite having a higher initial purchase price compared to uncoated alternatives, round face galvanized round edge 90° elbow pipe fittings give greater value according to life-cycle cost analysis. Reduced system downtime and elimination of replacement expenses due to corrosion-related failures are two benefits of galvanized protection's prolonged service life. Galvanized components almost never need preventative coating treatments and need very little inspection, thus reducing maintenance costs.

The use of bulk buying tactics may have a major effect on procurement prices. Typically, purchases that exceed the typical minimum quantities are eligible for volume discounts. It is crucial to manage inventories accordingly when scheduling projects that include galvanized fittings, since their lead times might vary from two to six weeks based on size requirements and order quantities.

Procurement Guide for Round Face Galvanized 90 Degree Elbows

Understanding the skills, quality standards, and logistical issues of suppliers is crucial for strategic procurement of industrial pipe fittings. To maintain constant product quality and dependable supply chains, professional buyers must consider a number of aspects.

Supplier Evaluation Criteria

The basis of supplier evaluation is quality certification, and compliance with ISO 9001 indicates that quality management systems are in place. Top manufacturers ensure compliance with relevant safety and performance requirements by maintaining certifications from reputable testing labs. These certifications include UL, FM, and CE designations. Products with these certifications have shown themselves to be reliable in demanding applications and to fulfill the high standards of their respective industries.

Production capacities, inventory management systems, and the ability to process big orders within certain timeframes are all part of a manufacturing capacity review. Compared to businesses that outsource coating processes, suppliers with specialized galvanizing facilities usually provide superior quality control and quicker lead times.

Customization and OEM Services

Products from the standard catalog cannot meet the unique dimensions requirements of many industrial applications due to their non-standard configurations. If you need specialized threading, coatings, or geometric configurations, you may get it from a professional manufacturer that offers ODM and OEM services. When used in retrofit situations, these capabilities become invaluable since regular fittings may not work.

Procurement managers can keep track of items as they move through intricate supply chains with the help of custom marking and certification services, which also guarantee that all paperwork is up to code for individual projects. Essential paperwork for critical applications requiring material traceability is heat lot tracking and material certifications.

Ordering and Logistics Management

When it comes to bespoke configurations, specialist manufacturers frequently demand large volume commitments from their customers, and the minimum order numbers might vary greatly across vendors. When fewer quantities are required for maintenance and repair, standard catalog products are a good choice because of their lower minimum requirements.

Careful packing to avoid damage in transit and meeting import/export requirements are two factors to think about when exporting internationally. Expert vendors provide thorough packaging to safeguard galvanized surfaces from harm and facilitate safe storage and handling.

Enhancing Decision Making: Why Choose Round Face Galvanized Round Edge Elbows?

Throughout the lifespan of industrial installations, the choice of pipe fittings affects system performance, maintenance needs, and operating costs in the long run. The benefits of round face galvanized round edge 90° elbow pipe fittings are very attractive and in line with the goals of sustainability and contemporary engineering.

Performance Advantages

Galvanized fittings are extensively used in several sectors due to their resistance to corrosion. The protective sacrificial zinc coating keeps working even after surface damage has occurred, extending the service life of the product in harsh environments. This safeguard is especially useful in subterranean applications, high-humidity settings, and outdoor installations.

Another major perk is the dependability of the installation, which is greatly improved by the round face shape, which both makes assembly easier and less prone to mistakes. Installers can get the joint engaged properly without damaging the threads or compromising the seal integrity by using the strengthened collar design, which gives clear tactile feedback during tightening processes.

Environmental and Safety Considerations

Coatings made using modern galvanizing techniques do not include lead or any other harmful substances that might pollute water sources, and they also meet environmental laws. Applications where environmental safety is of the utmost importance, such as potable water systems, are made possible by this compliance. Due to their durability, galvanized coatings cut down on component replacements, which in turn lowers waste and helps with sustainability efforts.

Constructed from malleable iron, it maintains structural integrity at extreme temperatures when polymer equivalents would collapse catastrophically, meeting the requirements of building codes for fire prevention systems. For uses where system dependability in crisis situations could affect human life safety, this fire performance is critical.

Return on Investment Analysis

The higher price of high-quality galvanized fittings is justified in the long run by the savings in maintenance and replacement costs. Emergency repairs caused by corrosion may frequently cost more than the cost of upgrading the components initially, making galvanized choices a more affordable choice for important applications.

Because round face designs have better hydraulic properties, they decrease pumping costs in large-scale systems and minimize pressure losses, leading to advances in energy efficiency. The initial investment in premium components yields demonstrable returns over time due to the compounding effect of these operational savings.

Choose Zhiyuan Malleable Steel for Superior Round Face Galvanized Fittings

Zhiyuan Malleable Steel has established itself as a trusted round face galvanized round edge 90° elbow pipe fittings manufacturer through decades of expertise in metallurgical engineering and precision manufacturing. Our state-of-the-art facilities in Shanxi Province maintain strict ISO 9001 quality standards while delivering the customization capabilities and responsive service that modern industrial projects demand. With annual production capacity exceeding 30,000 tons and comprehensive certifications including CE, UL, and FM approvals, we provide the reliability and technical support that procurement professionals require for mission-critical applications. Contact our engineering team at zhiyuan@mifittings.com to discuss your specific requirements and discover how our proven manufacturing excellence can enhance your next project's success.

Conclusion

A crucial design choice that affects system performance, maintenance needs, and operating costs throughout the installation's service life is the adoption of 90-degree elbows in horizontal pipe systems. Modern industrial applications need round face galvanized round edge 90° elbow pipe fittings because they provide the best combination of corrosion resistance, installation dependability, and long-term value. Engineering experts may maximize system dependability, minimize life-cycle costs, and guarantee successful project results by carefully considering material qualities, installation techniques, and supplier capabilities.

FAQ

What are the primary advantages of round face design over square face fittings?

Round face fittings distribute installation stresses more evenly around the circumference, reducing stress concentrations that could lead to cracking or failure. The smooth geometric transition also provides superior flow characteristics with reduced turbulence and pressure losses compared to square face alternatives.

How does hot-dip galvanization differ from other coating methods?

Hot-dip galvanization creates a metallurgical bond between zinc and iron that forms multiple alloy layers, providing active cathodic protection that continues functioning even when surface damage occurs. This process produces substantially thicker and more durable coatings compared to electroplating or spray applications.

What threading standards are compatible with these fittings?

Professional-grade round face galvanized elbows accommodate both NPT (National Pipe Taper) and BSPT (British Standard Pipe Taper) threading specifications, ensuring compatibility with North American and international piping systems while maintaining leak-tight seal performance.

What quality certifications should buyers look for when selecting suppliers?

Essential certifications include ISO 9001 quality management compliance, along with product-specific approvals such as UL, FM, and CE markings. These certifications verify that manufacturing processes and product performance meet recognized industry standards for safety and reliability.

References

1. ASTM International. "Standard Specification for Cupola Malleable Iron." ASTM A197-87, 2019.

2. American Society of Mechanical Engineers. "Pipe Threads, General Purpose (Inch)." ASME B1.20.1-2013.

3. National Fire Protection Association. "Standard for the Installation of Sprinkler Systems." NFPA 13, 2022 Edition.

4. International Organization for Standardization. "Pipe Threads Where Pressure-Tight Joints Are Made on the Threads." ISO 7-1:1994.

5. ASTM International. "Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware." ASTM A153/A153M-16a.

6. American Society of Mechanical Engineers. "Malleable Iron Threaded Fittings: Classes 150 and 300." ASME B16.3-2018.
