Forged Socket Weld 90 Degree Elbow High Pressure Pipe Fitting

Forged Carbon Steel Socket Weld Tee High Pressure Pipe Fitting

Designed for direction change in heavy-duty high-pressure industrial pipelines, our ASTM A105 forged socket weld 90° elbow is a reliable piping option for demanding engineering projects. With precisely machined standard socket weld openings, it supports full-penetration argon arc welding to form tight zero-leak joints and simplifies on-site pipeline installation.

It is integrally die-forged from solid A105 carbon steel, boasting compact monolithic microstructure and outstanding impact toughness. The elbow can steadily withstand harsh high-temperature and high-pressure working conditions, complying fully with ASME B16.11 Class 3000 & 6000 industrial specifications. Uniform sandblasted surface treatment delivers stable rustproof and chemical-resistant performance, lengthening the service lifespan for pipelines deployed indoors and outdoors.

Regular dimensions spanning 1/2" to 3" are stocked to ensure prompt bulk shipments. Custom wall thickness, laser OEM logo engraving and bespoke dimensional machining are all supported. The fittings are widely applied in power plants, petrochemical facilities, shipbuilding projects, heating networks and fire protection high-pressure piping systems.



Product Details

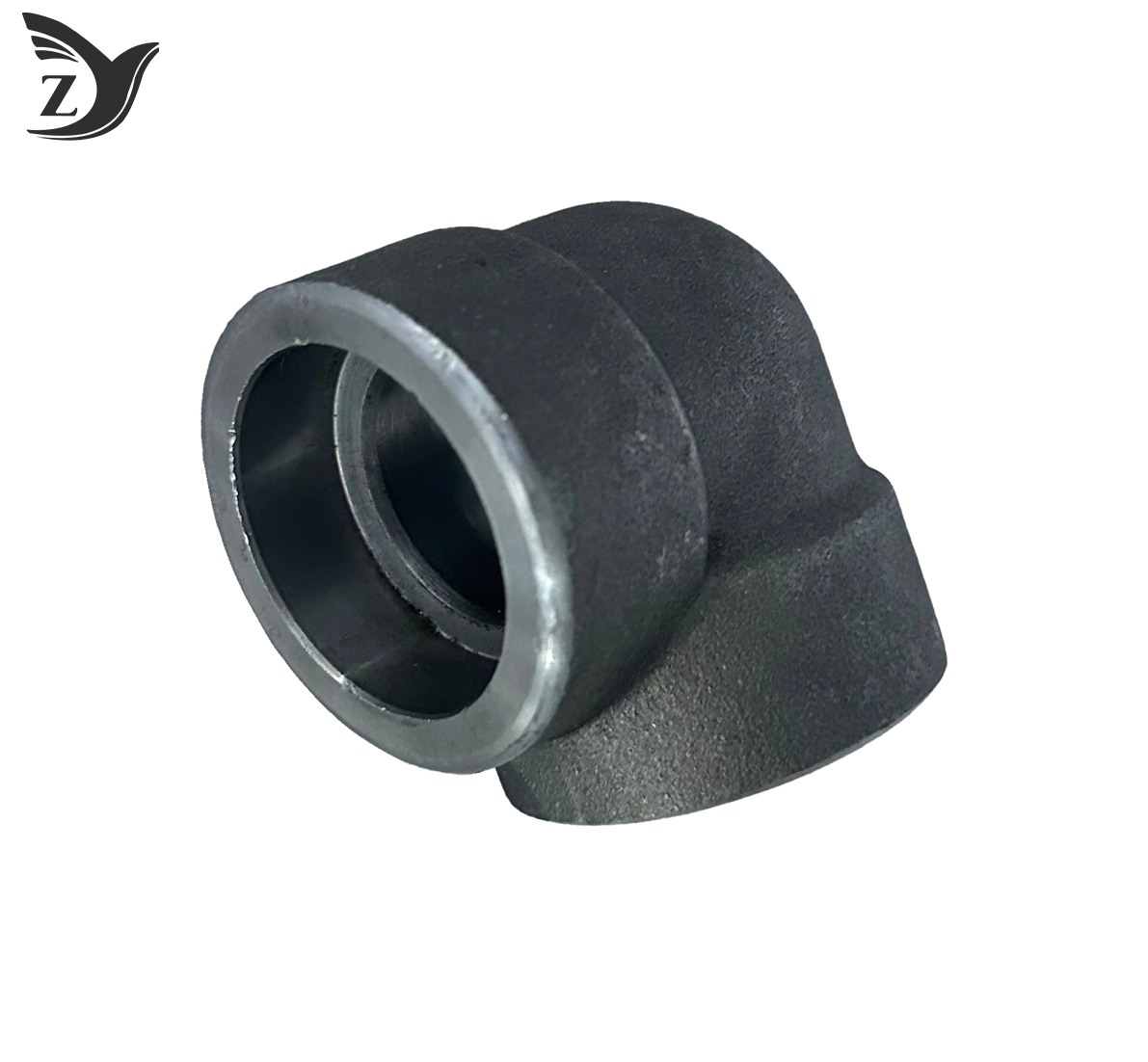

Forged Socket Weld 90 Degree Elbow High Pressure Pipe Fitting 1

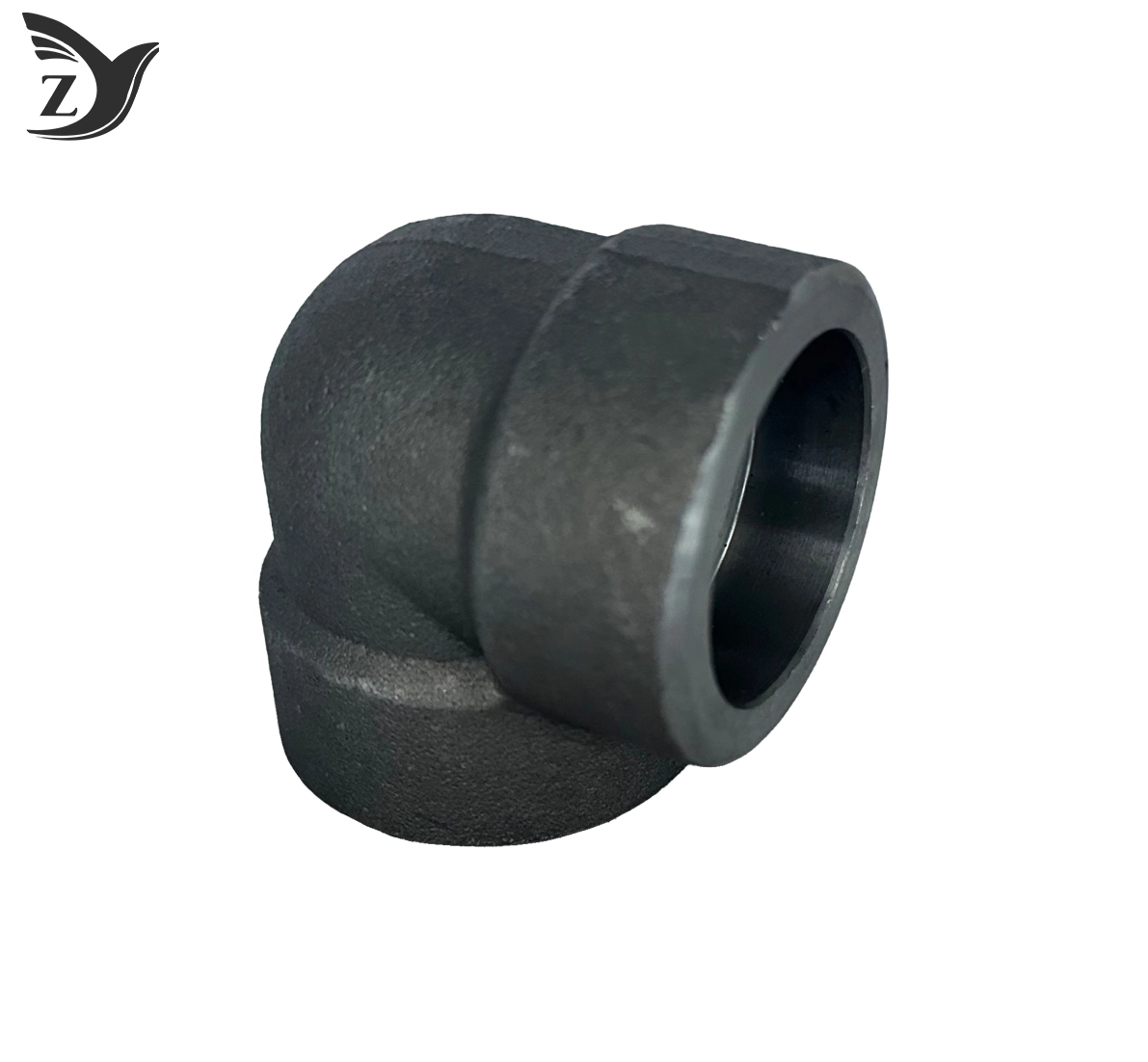

Forged Socket Weld 90 Degree Elbow High Pressure Pipe Fitting 2

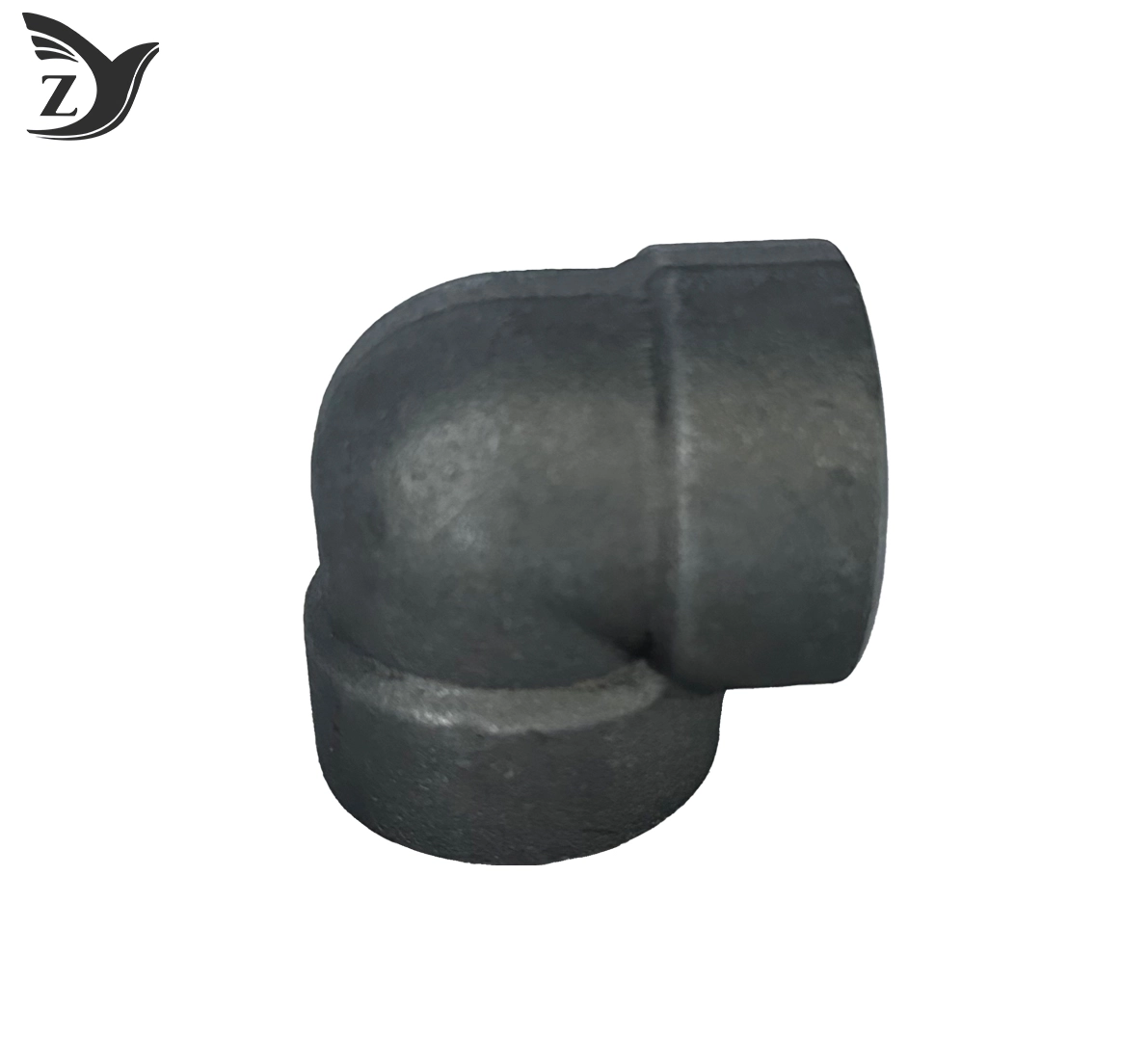

Forged Socket Weld 90 Degree Elbow High Pressure Pipe Fitting 3

Technical Specifications

Key Features

1.Superior Anti-corrosion & Moisture-proof Performance

Precision sandblasted surface is coated with anti-rust oil to block dampness and mild chemical erosion. The fitting maintains steady durability whether deployed in indoor workshops or outdoor harsh pipeline environments.

2.Leakproof Dual Socket Weld Joints

Two accurately machined socket grooves enable deep full-penetration welding. The compact 90° transition structure avoids assembly gaps, delivering long-term zero leakage under high-pressure pipeline working states.

3.Convenient Field Pipeline Redirection Installation

Optimized bent geometry guarantees smooth fluid steering at 90 degrees. It is fully compatible with regular on-site welding processes, removing the need for extra transition adapters and shortening construction cycles.

4.Solid One-piece Forged Mechanical Property

Adopt monolithic die forging of ASTM A105 carbon steel with fine internal grain structure. Outstanding shock and pressure endurance satisfies Class 3000 & 6000 ratings, strictly following ASME B16.11 industrial specifications.ion & Full Customization Support

5.Broad Usage Scenarios With Flexible OEM Options

Widely applicable for power stations, petrochemical facilities, marine piping, heating networks and firefighting high-pressure lines. Regular dimensions from 1/2'' to 3'' are stocked in bulk; customized wall thickness, laser engraving and bespoke dimension machining are all available.

Dimensions and Specifications

Our Class 3000/6000 forged socket weld 90° elbows support full standard inch sizes, mainstream options include:

• 1/2", 3/4", 1"
• 1-1/4", 1-1/2", 2", 2-1/2", 3"
• Custom size, OEM laser logo engraving and special export packaging requests are acceptable

Every elbow is manufactured with tight dimensional tolerances. The robust one-piece forged bent structure effectively resists structural deformation and prevents leakage during long-term service under high-temperature and high-pressure operating environments.

Materials and Surface Treatments

1.Main Body Raw Material

Solid A105 carbon steel complying with ASME B16.11 features outstanding mechanical toughness and impact resistance. It delivers stable performance under Class 3000 & 6000 heavy pressure ratings, perfectly fitting pipeline layouts that require 90-degree direction turning.

2.Surface Finish

Uniform sandblasting builds a compact anti-corrosion metal layer to defend against rust, moisture and mild chemical media, granting dependable service for industrial pipelines both indoors and outdoors. Anti-rust oil coating can be applied as per customer demands.

3.Connection Processing

Two socket weld ends are machined with consistent standard depths to support full-penetration argon arc welding. It forms leakproof 90° transition joints when assembled with standard carbon steel pipes.

Standards and Certifications

Our products comply with rigorous international industry standards:

• Compliant with ASME B16.11 (Class 3000 / 6000 Forged Socket Weld Pipe Fittings)
• ISO9001 quality management system certified

All forged socket weld 90° elbows undergo comprehensive testing for pressure resistance, socket dimensional matching and sealing performance before packaging delivery.

Applications

1.Petrochemical & Power Pipeline

Fit for high-temperature steam, oil, gas and corrosive fluid high-pressure directional-turn piping in power plants and chemical factories.

2.Shipbuilding Pipeline Systems

Applied to marine fuel, hydraulic and heating high-pressure pipeline direction-changing connections.

3.Fire Protection & Heating Piping

Suitable for fire sprinkler and central heating high-pressure circulation pipeline corner layouts.

4.Heavy Industrial Fluid Delivery

Used for compressed air, high-pressure industrial fluid transfer, petroleum and process industrial pipeline bend layouts.

Installation Instructions

1. Weld Preparation: Clean the inner socket groove and pipe outer surface, remove rust, oil and burrs before welding.
2. Position Alignment: Insert pipes fully into the two socket shoulders, keep the elbow body properly positioned without offset or tilt.
3. Full Penetration Welding: Adopt argon arc full penetration welding on both socket ports, ensure uniform weld bead without air holes or cracks.
4. Pressure Leak Test: Complete high-pressure hydrostatic test after cooling to check zero leakage of the two welding joints.
5. Periodic Inspection: Regularly inspect the two weld seams to guarantee long-term high-pressure pipeline safety.

Follow industrial high-pressure pipeline welding specifications and local safety standards during installation work.

Packaging and Shipping

Each forged socket weld 90° elbow is wrapped with anti-collision protective film to prevent scratches and deformation during transit. Moisture-proof packaging keeps the sandblasted anti-corrosion surface intact. Bulk orders are loaded on standard export pallets for convenient handling and container shipment.

Our factory is located in Taigu, Shanxi. We cooperate with mature global logistics channels covering major overseas ports, providing fast, cost-effective mass delivery for all industrial pipeline projects.

Quality Control

1.Raw Material Spectral Composition & Mechanical Test

Every batch of A105 carbon steel raw forgings will undergo full spectral analysis and tensile impact testing to meet ASME B16.11 Class 3000/6000 high pressure performance standards.

2.Dual-port Hydraulic Burst Pressure Inspection

Random finished forged socket weld 90° elbows are selected to conduct hydraulic burst test according to the rated working pressure of the pipeline.

3.Double Socket Dimension Precision Calibration

Special custom go-no-go gauges measure the depth, inner diameter and step of two socket ports to ensure perfect matching with standard carbon steel pipes and leakproof welding joints.

4.Full Surface Visual Defect Screening

100% manual visual inspection after sandblasting to remove burrs, rust stains, cracks and machining flaws, guarantee stable long-term anti-corrosion performance.

OEM and Customization Services

We reach an annual production capacity of 30,000 tons and support large-volume OEM & ODM customized orders. Our professional engineering team provides one-stop customization solutions: custom wall thickness, non-standard inch sizes, laser engraving brand logos and exclusive export packaging for all kinds of heavy industrial pipeline projects. We possess complete forging moulds covering 1/2"~3" specifications, which greatly shorten sample production and mass delivery lead time.

FAQ

Q: Can this forged socket weld 90° elbow be buried underground?

A: Extra external anti-corrosion coating is mandatory for underground buried installation. Direct burial without protective anti-corrosion treatment will greatly shorten the service life of the elbow pipeline fitting. Custom anti-corrosion coating solutions can be provided on request.

Q: What is the standard installation method for this Class 3000/6000 forged socket weld 90° elbow?

A: Fully insert the pipe into the socket positioning shoulder of each port, adopt full penetration argon arc welding for the two joints, strictly avoid incomplete weld penetration to prevent high-pressure leakage.

Q: Can it withstand pipeline thermal expansion?

A: This is a rigid integrated forged elbow fitting. We recommend installing expansion joints for long-distance pipelines with large temperature fluctuation ranges to absorb thermal deformation stress.

Q: Is it compatible with different steel pipes?

A: It perfectly matches standard carbon steel pipes with matched outer diameter for socket welding. Please confirm the outer diameter and wall thickness of the pipe before formal welding construction.

Q: Why choose forged socket weld 90° elbow instead of stainless steel pipe fittings?

A:Integral ASTM A105 die forging brings excellent mechanical impact toughness and stable Class 3000/6000 high pressure bearing capacity. The sandblasted anti-corrosion surface has outstanding cost performance for heavy-duty industrial high-pressure elbow pipeline systems.

Contact Us

Searching for dependable forged socket weld 90° elbows to advance your industrial piping projects? Our seasoned technical team delivers end-to-end product selection guidance together with comprehensive technical backup. support.Email:q1236800000@gmail.com We can furnish official full-version technical datasheets, affordable bulk wholesale quotations and dependable delivery timelines. Our premium forged high-pressure elbow fittings are widely supplied to international projects across power generation, petrochemical sectors, shipbuilding works and firefighting pipeline systems.
