Forged Socket Weld Tee High Pressure Pipe Fitting

Forged Carbon Steel Socket Weld Tee High Pressure Pipe Fitting

For high-pressure industrial pipeline branching distribution, our ASTM A105 forged socket weld tee serves as the optimal piping solution for heavy-duty engineering. Equipped with three uniform standard socket weld bores, it supports full penetration argon arc welding to form tight, zero-leakage joints, eliminating the need for extra transition fittings.

Manufactured from solid A105 carbon steel through integrated die forging molding, the tee owns a dense seamless monolithic structure with superior mechanical impact toughness, capable of enduring extreme high temperature and pressure operating environments, fully meeting ASME B16.11 Class 3000 & 6000 technical specifications. Uniform sandblasted raw surface provides stable anti-rust and chemical corrosion resistance, greatly extending the service cycle of indoor and outdoor pipeline projects. Standard sizes ranging from 1/2" to 3" are kept in stock for fast bulk delivery. Custom wall thickness, laser OEM logo engraving and special dimension processing are all acceptable. It is extensively adopted in power plants, petrochemical factories, shipbuilding, heating supply and fire protection high-pressure piping projects.



Product Details

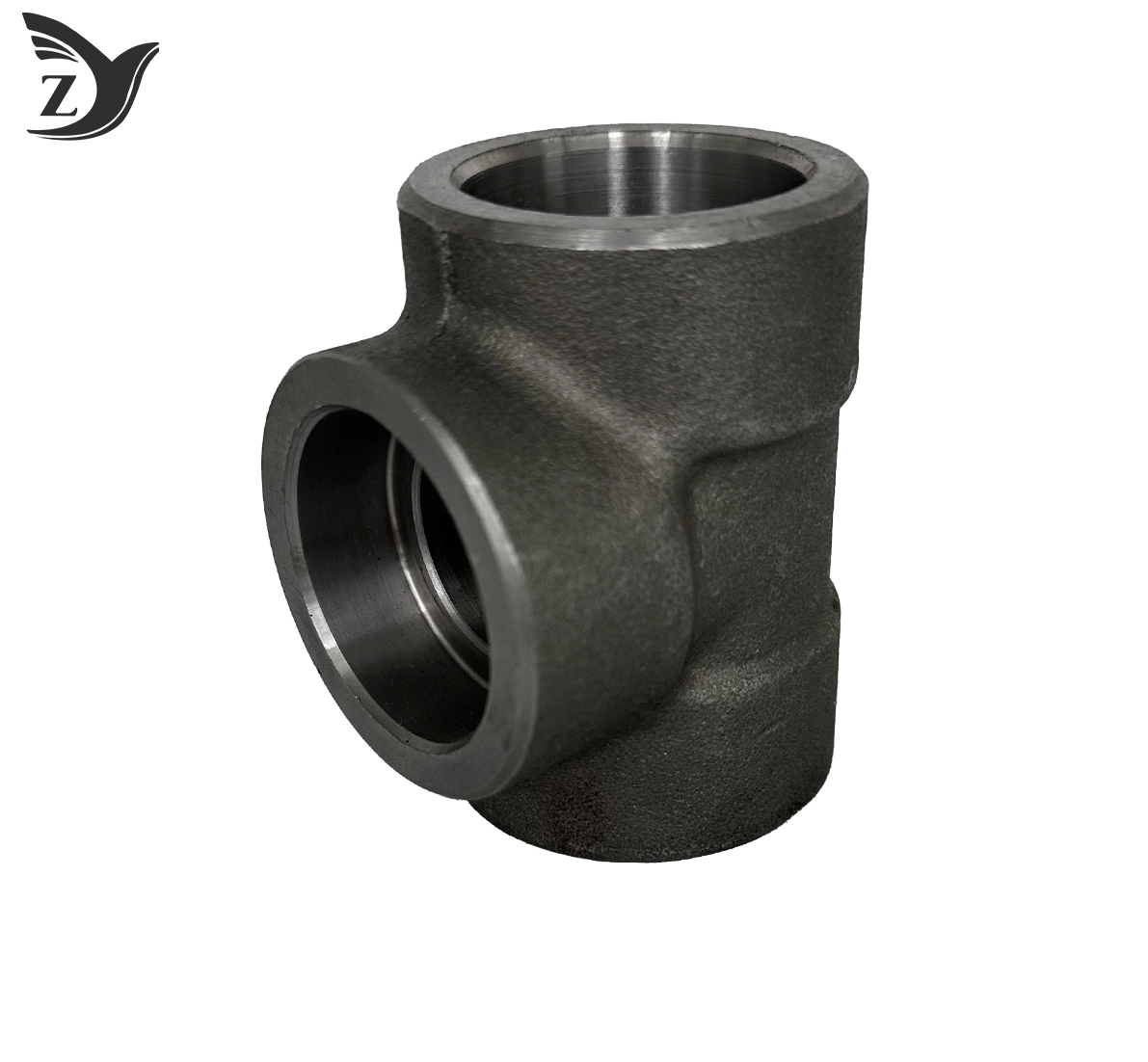

Forged Socket Weld Tee High Pressure Pipe Fitting 1

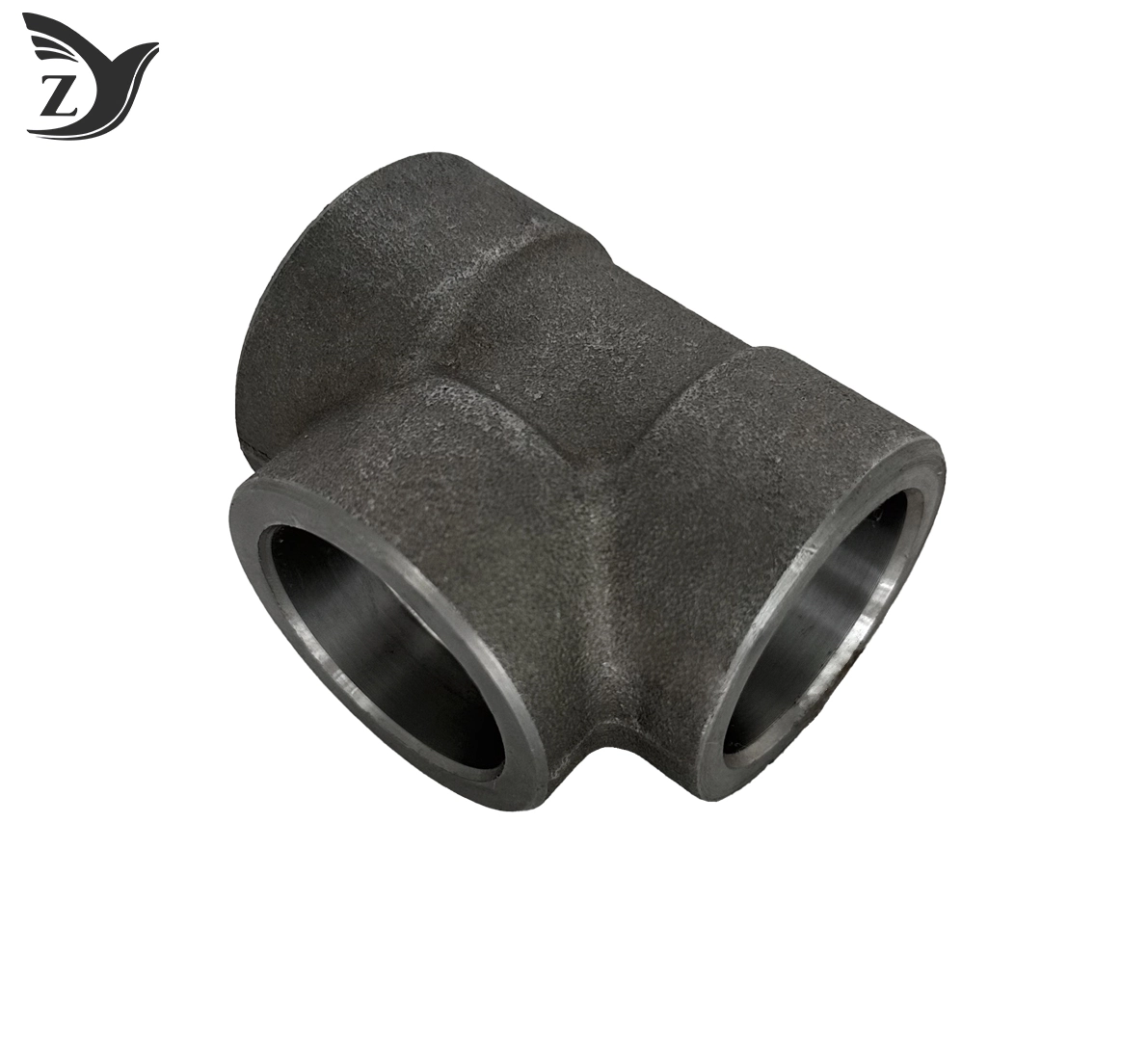

Forged Socket Weld Tee High Pressure Pipe Fitting 2

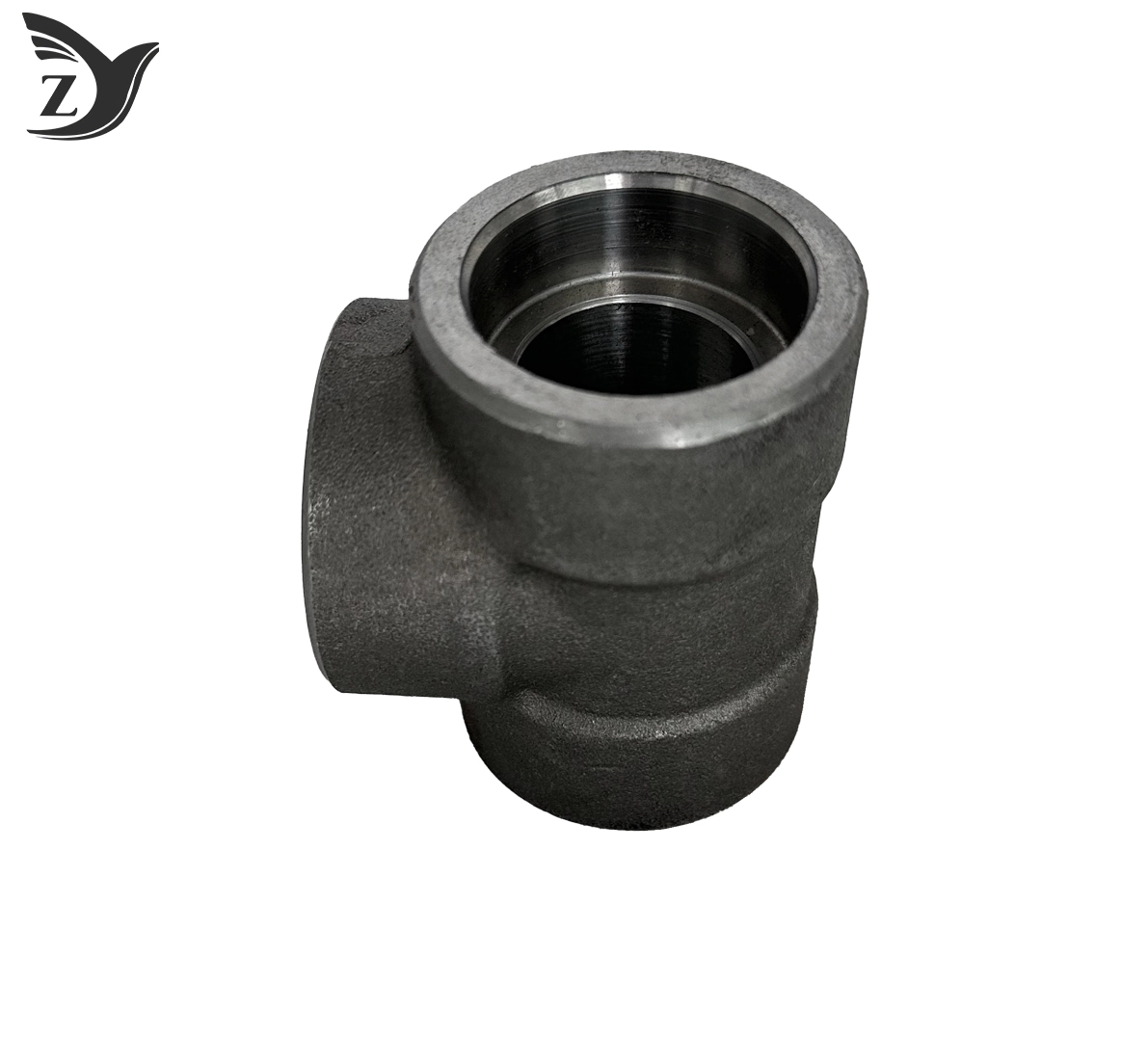

Forged Socket Weld Tee High Pressure Pipe Fitting 3

Technical Specifications

Key Features

1.Excellent Anti-corrosion & Chemical Resistance

Sandblasted dense metal surface effectively resists rust, moisture and corrosive fluid. Stable long service life for indoor & outdoor heavy industrial high-pressure pipeline projects.

2.Tight Three-Way Socket Weld Sealing

Standard uniform triple socket groove design for full penetration welding. Achieves zero-leakage three-branch connection without extra fittings, reliable for high temperature & pressure media.

3.Efficient On-site Pipeline Branching Installation

Three-way split structure realizes one-step pipeline flow shunting, compatible with standard welding operation. No extra adapters needed to shorten construction period massively.

4.High Toughness Forged Structure

Integral one-piece A105 carbon steel die forging, seamless monolithic body with strong impact resistance. Meets Class 3000/6000 high pressure standard, conforms to ASME B16.11.

5.Wide Industrial Application & Full Customization Support

Suitable for power, petrochemical, shipbuilding, heating and fire-fighting high-pressure branch pipelines. Full stock sizes 1/2"-3", support OEM customized wall thickness, laser logo marking and special dimension drawing processing.

Dimensions and Specifications

Our Class 3000/6000 forged socket weld tees support full standard inch sizes, mainstream options include:

• 1/2", 3/4", 1"
• 1-1/4", 1-1/2", 2", 2-1/2", 3"
• Custom size, OEM laser logo engraving and special export packaging requests are acceptable

Every tee is produced with strict precise dimensional tolerance. Solid integral one-piece forged three-way structure effectively avoids deformation and leakage under long-term high temperature & high pressure working conditions.

Materials and Surface Treatments

1.Main Body Raw Material

Solid A105 carbon steel (compliant with ASME B16.11) features high mechanical toughness, strong impact resistance and stable performance under Class 3000 & 6000 heavy pressure rating, ideal for three-way flow distribution pipelines.

2.Surface Finish

Uniform sandblasted finish forms dense anti-corrosion metal surface, resisting rust, moisture and various weak chemical media for long-term indoor & outdoor industrial pipeline service. Anti-rust oil can be added on demand.

3.Connection Processing

Standard uniform depth triple socket weld ends for full penetration argon arc welding, stable zero-leakage three-way joint when matched with standard carbon steel pipes.

Standards and Certifications

Our products comply with rigorous international industry standards:

• Compliant with ASME B16.11 (Class 3000 / 6000 Forged Socket Weld Pipe Fittings)
• ISO9001 quality management system certified

All forged socket weld tees undergo comprehensive testing for pressure resistance, socket dimensional matching and sealing performance before packaging delivery.

Applications

1.Petrochemical & Power Pipeline

Fit for high-temperature steam, oil, gas and corrosive fluid high-pressure shunting piping in power plants and chemical factories.

2.Shipbuilding Pipeline Systems

Applied to marine fuel, hydraulic and heating high-pressure pipeline branch distribution connections.

3.Fire Protection & Heating Piping

Suitable for fire sprinkler and central heating high-pressure circulation pipeline branching tees.

4.Heavy Industrial Fluid Delivery

Used for compressed air, high-pressure industrial fluid transfer, petroleum and process industrial pipeline split layout.

Installation Instructions

1. Weld Preparation: Clean the inner socket groove and pipe outer surface, remove rust, oil and burrs before welding.
2. Position Alignment: Insert pipe fully into the three-way socket shoulder, keep the tee body horizontal without offset or tilt.
3. Full Penetration Welding: Adopt argon arc full penetration welding on all three socket ports, ensure uniform weld bead without air holes or cracks.
4. Pressure Leak Test: Complete high-pressure hydrostatic test after cooling to check zero leakage of all three welding joints.
5. Periodic Inspection: Regularly inspect all three branch weld seams to guarantee long-term high-pressure pipeline safety.

Follow industrial high-pressure pipeline welding specifications and local safety standards during installation work.

Packaging and Shipping

Each forged socket weld tee is wrapped with anti-collision protective film to prevent scratches and deformation during transit. Moisture-proof packaging keeps the sandblasted anti-corrosion surface intact. Bulk orders are loaded on standard export pallets for convenient handling and container shipment.

Our factory is located in Taigu, Shanxi. We cooperate with mature global logistics channels covering major overseas ports, providing fast, cost-effective mass delivery for all industrial pipeline projects.

Quality Control

1.Raw Material Spectral Composition & Mechanical Test

Every batch of A105 carbon steel raw forgings will undergo full spectral analysis and tensile impact testing to meet ASME B16.11 Class 3000/6000 high pressure performance standards.

2.Three-Way Hydraulic Burst Pressure Inspection

Random finished forged socket weld tees are selected to conduct hydraulic burst test according to the rated working pressure of the pipeline.

3.Triple Socket Dimension Precision Calibration

Special custom go-no-go gauges measure the depth, inner diameter and step of three socket ports to ensure perfect matching with standard carbon steel pipes and leakproof welding joints.

4.Full Surface Visual Defect Screening

100% manual visual inspection after sandblasting to remove burrs, rust stains, cracks and machining flaws, guarantee stable long-term anti-corrosion performance.

OEM and Customization Services

We reach an annual production capacity of 30,000 tons and support large-volume OEM & ODM customized orders. Our professional engineering team provides one-stop customization solutions: custom wall thickness, non-standard inch sizes, laser engraving brand logos and exclusive export packaging for all kinds of heavy industrial pipeline projects. We possess complete forging moulds covering 1/2"~3" specifications, which greatly shorten sample production and mass delivery lead time.

FAQ

Q: Can this forged socket weld tee be buried underground?

A: Extra external anti-corrosion coating is mandatory for underground buried installation. Direct burial without protective anti-corrosion treatment will greatly shorten the service life of the three-way pipeline fitting. Custom anti-corrosion coating solutions can be provided on request.

Q: What is the standard installation method for this Class 3000/6000 forged socket weld tee?

A: Fully insert the pipe into the socket positioning shoulder of each port, adopt full penetration argon arc welding for all three joints, strictly avoid incomplete weld penetration to prevent high-pressure leakage.

Q: Can it withstand pipeline thermal expansion?

A: This is a rigid integrated forged three-way fitting. We recommend installing expansion joints for long-distance pipelines with large temperature fluctuation ranges to absorb thermal deformation stress.

Q: Is it compatible with different steel pipes?

A: It perfectly matches standard carbon steel pipes with matched outer diameter for socket welding. Please confirm the outer diameter and wall thickness of the pipe before formal welding construction.

Q: Why choose forged socket weld tee instead of stainless steel pipe fittings?

A:Integral ASTM A105 die forging brings excellent mechanical impact toughness and stable Class 3000/6000 high pressure bearing capacity. The sandblasted anti-corrosion surface has outstanding cost performance for heavy-duty industrial three-way high-pressure pipeline systems.

Contact Us

Looking for reliable forged socket weld tees for your industrial pipeline project? Our professional technical team provides one-stop product selection & full technical support.Email:q1236800000@gmail.com We supply complete official technical datasheets, competitive bulk wholesale quotation and stable accurate delivery schedule. We manufacture premium forged high-pressure three-way pipe fittings for global power plant, petrochemical, shipbuilding and fire-fighting pipeline engineering projects.
