Why Choose Galvanized Straight Tee Fittings with NPT Thread?

NPT round face galvanized round edge straight tee pipe fittings are the best choice for pipe fittings used in important infrastructure projects. These fittings have precision-threaded NPT connections and are hot-dipped galvanized. They make a corrosion-resistant 3-way branch option for distributing water and gas in industrial settings. The smooth round edge design makes the seal stronger, and the high-strength, pliable iron construction makes sure it works well even in tough circumstances. These fittings give your projects the durability and safety they need, whether you're in charge of fire safety systems, local water supply networks, or petrochemical sites.

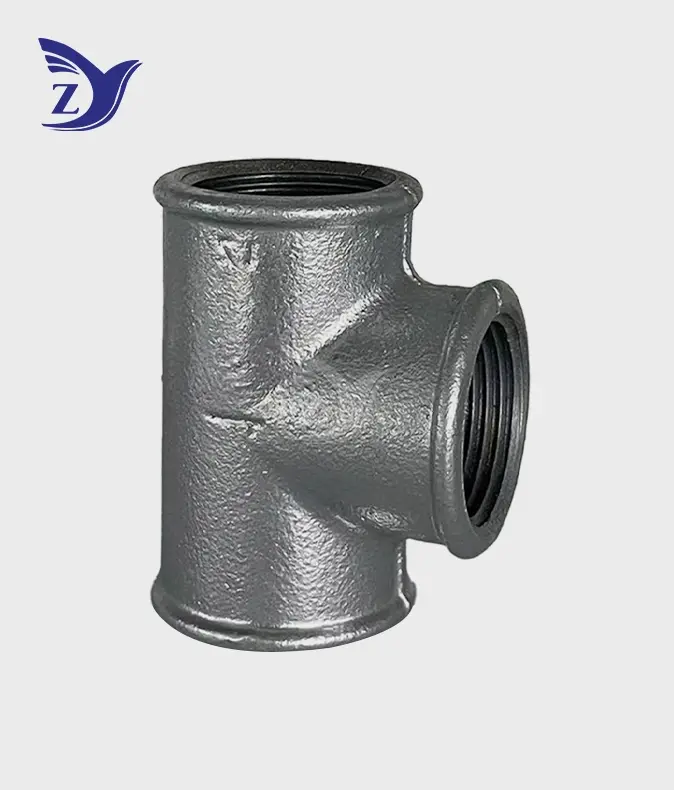

Galvanized Straight Tee Fittings with NPT Thread and Round Edge

The Fundamentals of NPT Threading Technology

NPT round face galvanized round edge straight tee pipe fittings are one of the most important parts of American industrial plumbing standards. As required by ASME B1.20.1, the National Pipe Thread taper works at exactly 0.75 inches per foot and a 60-degree thread angle. In many situations, this curved design makes metal-to-metal contact that gets tighter as it is installed, creating a hydraulic seal without the need for extra sealants. Our NPT/BSPT interchangeable round-edge fittings work with both American and British threading standards. This gives you options for working on foreign projects and integrating different types of equipment.

Round Face and Smooth Edge Design Excellence

The round face shape isn't just nice to look at; it's also very important for engineering. This design spreads mechanical stress evenly around the fitting's edge, stopping stress collection points that cause failure before they should. When compared to square-edge options, smooth round edges make assembly easier by moving pipe threads easily into alignment. This can cut installation time by up to 30%. The rounded shape also lowers the chance of damaging the gasket while it is being tightened, so the seal will stay good for thousands of connection cycles.

Material Specifications and Galvanization Standards

Industrial-grade equal pipe tees made from ASTM A197 malleable iron have a tensile strength of more than 40,000 psi. This choice of material strikes a good mix between mechanical strength and ease of manufacture, allowing for accurate thread formation without breaking. Hot-dipped galvanization puts on a zinc covering that is thicker than 86 microns, which meets ASTM A153 standards. This covering acts as a sacrifice barrier—zinc corrodes faster than the iron underneath, keeping the fitting base safe even if the top gets scratched. The galvanization method makes a much stronger metal bond than electroplating, which makes sure that the coating stays on even when temperatures change and there is mechanical shaking, which is common in industrial settings.

Compliance with Industry Standards

We strictly follow ASME B16.3 for Class 150 malleable iron threaded fittings when we make them. Tolerances for important measures stay within ±0.005 inches, which makes sure that parts from different production batches can be used interchangeably. At room temperature, the pressure limits go up to 150 psi for saturated steam use and 300 psi for water, oil, and gas (WOG) service. Our dedication to international quality standards is backed up by certifications like ISO 9001, CE, UL, and FM. These provide procurement managers with the proof they need to follow the rules and handle risk.

Key Benefits of Choosing Galvanized Straight Tee Fittings with Round Face and Smooth Edge

Superior Durability and Extended Service Life

The galvanized layer protects very well against electrochemical rust, which means that systems that are well taken care of can last for 50 years or more. This long-lasting quality is especially helpful in city water supply situations, where the cost of repair includes more than just the materials. It also includes digging, causing traffic problems, and stopping service. Field data from heating supply systems shows that galvanized fittings keep their structural integrity in pH ranges from 6.5 to 8.5, longer than bare steel, which breaks down after 8 to 12 years in the same conditions.

Here are the main reasons why NPT round face galvanized round edge straight tee pipe fittings work better:

Environmental Resistance: The zinc coating doesn't break down when it comes in touch with water, dirt, or the air. This makes these fittings perfect for outdoor fire hydrant connections and underground cable networks that are hard to get to for upkeep.
Mechanical Strength Retention: Malleable iron stays flexible under stress, taking shock loads from water hammer events that would break brittle cast iron options. This lowers the risk of catastrophic failure in systems that are under a lot of pressure.
Temperature Stability: These fittings work reliably from -20°F to 400°F, so they can be used for both chilled water systems and low-pressure steam distribution. Changes in the metal's structure don't affect how well they work.

These benefits directly lead to lower total cost of ownership by reducing the number of times things need to be replaced and the amount of money needed for emergency repairs, which can add up to 10 to 15 times the initial cost of purchase over the life of a project.

Simplified Installation and Maintenance Procedures

Installing things is a lot easier when you use round-edge 3-way safe fluid distribution parts. The smooth edge design gets rid of sharp corners that catch on pipe threads. This lets threads connect faster and keeps installers from getting tired on big projects. Compared to square-edge fits, they require about 15% less torque, which reduces tool wear and lets you tighten them by hand in tight areas where powered tools can't work safely. Thread oil spreads out more evenly around smooth surfaces, which stops galling and makes it possible to take the system apart in the future to make changes or replace parts.

The ability of galvanization to fix itself is helpful for maintenance plans. Small scratches in the covering re-passivate through zinc oxidation, creating protective zinc carbonate layers that slow the rusting process. Visual checks make it easy to spot possible problems—the formation of white zinc oxide shows that the covering is intact, while red iron oxide shows that the area needs attention. This openness lets repair plans be planned ahead of time instead of just reacting to emergencies.

Versatile Application Across Multiple Industries

Precision-threaded malleable tees work just as well in a wide range of industry settings. Fire protection engineering firms recommend these fittings for sprinkler systems because they are UL and FM certified, which protects against insurance problems and responsibility. They are used in HVAC setups in construction projects because the fittings' thermal conductivity makes heat movement more efficient while keeping the structure strong when temperatures change back and forth. Galvanized tees are used in process water lines at petrochemical plants where chemicals that break down materials need to be strong.

It can work with different pipe rates, from Schedule 40 to Schedule 80, which gives designers more options. We can make pipes from 1/4 inch to 6 inches in diameter, which is 95% of the most common sizes used in commercial settings. Custom specifications are made for specific needs, like thread types that aren't normal, longer body lengths, or special coatings for harsh work conditions.

Technical Specifications and Procurement Insights

NPT Sizing and Pressure Ratings

The standard NPT sizes run from 1/8 inch to 6 inches for theoretical pipe size. Different diameters have different thread counts. For example, 1/2-inch fittings have 14 threads per inch, while 2-inch parts have 11.5 threads per inch. Minimum engagement depth is 0.4 times the standard diameter plus three thread pitches. This makes sure that there is enough thread contact for the rated pressure.

Rates of pressure vary on the size and temperature. At 70°F, NPT round face galvanized round edge straight tee pipe fittings are rated at 300 psi WOG. At 200°F, it drops to 240 psi because the material loses strength at higher temperatures. At a peak temperature of 366°F, steam service lowers connections to a maximum of 150 psi. Knowing these limits keeps you from over-specifying, and it also makes sure that the system design pressures and temperatures have safe working gaps.

Selecting the Right Fitting Configuration

Fitting selection factors are set by the needs of the system. Schedule 40 lines work with normal wall fittings for air and water systems that don't need to go above 150 psi. Fittings with reinforced body parts are needed for Schedule 80 heavy-wall uses that deal with higher pressures or corrosive fluids. Reducing tees allow branch connections that are smaller than the main run. This means that separate reduction fittings are not needed, which speeds up installation.

Material choices are affected by the environment. Lighter galvanization coats can be used for indoor installations in climate-controlled rooms, but heavy hot-dipped galvanization over 100 microns thick is needed for outdoor or underground installations. Extra protection coatings or chromate treatments that make galvanization last longer in chloride-rich settings are helpful in coastal areas where things are exposed to salt.

Procurement Best Practices

Choosing authorized makers makes sure that the products are consistent and that the rules are followed. With 26 years of experience in casting research and development, Zhiyuan Malleable Steel can safely make products that are precise enough to meet foreign standards. Our 30,000-ton annual production capacity lets us work on big projects and keep an eye on quality throughout all of our production runs. Our dedication to process stability is shown by our ISO 9001 certification, and our UL and FM approvals meet the needs of insurance companies and building codes in the United States.

Some of the benefits of buying in bulk are volume savings, which usually range from 8% for orders over 5,000 pieces to 15% for orders over 20,000 units. Lead times depend on the design. Standard catalog items ship within 48 hours from our 50,000-square-meter plant, while unique setups need 15–25 days to prepare the tools and set up production. Ordering freedom allows for project phasing, which means that orders can be timed to fit with building plans so that there is less need for storage on-site.

Anti-counterfeiting measures are kept safe by product authentication proof. Genuine fittings have permanent marks that show their size, pressure number, production standard, and the name of the person who made them. Material test records, dimensional inspection certificates, and measurements of coating thickness that can be linked to particular production lots are all part of documentation packages. These quality assurance steps help with handling warranty claims and allow for forensic research if problems happen in the field.

Conclusion

These NPT round face galvanized round edge straight tee pipe fittings are designed answers to real problems in the industrial world. Using hot-dipped rust protection, precision threading, and stress-optimized shape together makes installation faster, operations more reliable, and the cost of ownership lower over time. These valves are used in many industries, from fire defense to petrochemical processes, to make sure that fluids are distributed safely in tough situations. International approvals and decades of industrial experience back up Zhiyuan Malleable Steel's commitment to making sure that every fitting meets the strictest requirements. Your infrastructure should have parts that have been through a lot of testing and service in the field. These are the kinds of parts that turn buying decisions into practical benefits.

FAQ

What advantages does NPT threading provide for galvanized tee fittings?

With NPT threads, metal-to-metal rings are made that get tighter as they are installed. The standard taper and 60-degree thread angle make sure that products from different makers can work together. The leak-tight links don't need gaskets. This self-sealing feature cuts down on the number of parts needed and gets rid of gasket age as a cause of failure, which makes NPT round face galvanized round edge straight tee pipe fittings more reliable over time.

How do galvanized fittings compare to stainless steel for outdoor applications?

Galvanized malleable iron is a lot cheaper than stainless steel and is resistant enough to rust for most outdoor conditions. Stainless steel is only needed in places where chemicals are directly present or where there is a lot of salt in the air. For common outdoor water, gas, and HVAC uses, hot-dipped galvanization gives the same service life at a lot lower costs for purchasing and installing.

Can I order custom sizes or non-standard configurations?

Our production skills allow for a lot of customization, such as non-standard sizes, threading, and body shapes that aren't the same. Custom orders need to be looked at by engineers to make sure the structure is sound and that the order can be made. For custom specs, the minimum order quantity is usually 500 pieces, and wait times range from three to six weeks, based on how complicated the order is. Get in touch with our expert team to talk about your unique needs and get accurate quotes.

Partner with Zhiyuan Malleable Steel for Premium NPT Round Face Galvanized Round Edge Straight Tee Pipe Fittings

Zhiyuan Malleable Steel can help you with your industrial pipe projects because they have been making for 26 years and can make up to 30,000 tons of steel each year. As a top provider of NPT round face galvanized round edge straight tee pipe fittings, we keep strict quality control through ISO 9001 certification and sell goods that are approved by CE, UL, and FM. Our 50,000-square-meter building has 156 precise machining units and eight medium-frequency electric ovens that make sure the quality of all big orders is the same. Standard goods can be shipped within 48 hours from our large collection, and our ODM/OEM services can meet the specific needs of any project. We offer competitive logistics benefits for both local and foreign clients because we are only 40 kilometers from Taiyuan and have direct access to the airport. You can email our expert team at q1236800000@gmail.com to get personalized engineering help, full product details, and bulk prices on zinc malleable tee fittings. You can look through our full catalog of products at zymalleablepipefitting.com and see why purchasing managers in the industrial, fire protection, and city building fields trust Zhiyuan to provide them with important pipe parts.
