When to use a long radius elbow?

When changing the direction of a pipe while keeping the flow characteristics and system efficiency at their best, long radius elbows are a vital component. Industrial applications that need top-notch hydraulic performance, minimal pressure drop, and increased durability in harsh conditions often choose for galvanized male female 90° long radius elbow pipe fittings.

An essential part of any industrial plumbing system, elbow pipe fittings allow for quick and easy directional adjustments. Galvanized male female 90° long radius elbows are an essential component in several industrial settings due to its extended lifespan, resistance to corrosion, and simplicity of connection. Procurement experts, engineers, and technical specialists may find all the information they need in this detailed reference, which covers the fittings' specs, uses, installation, and supplier selection. The purpose of this guide is to help readers make well-informed purchase selections that meet operational needs and industry standards by providing clear information on technical qualities, practical use advantages, and procurement techniques.

Understanding Long Radius Elbows and Their Specifications

Technical Design and Construction

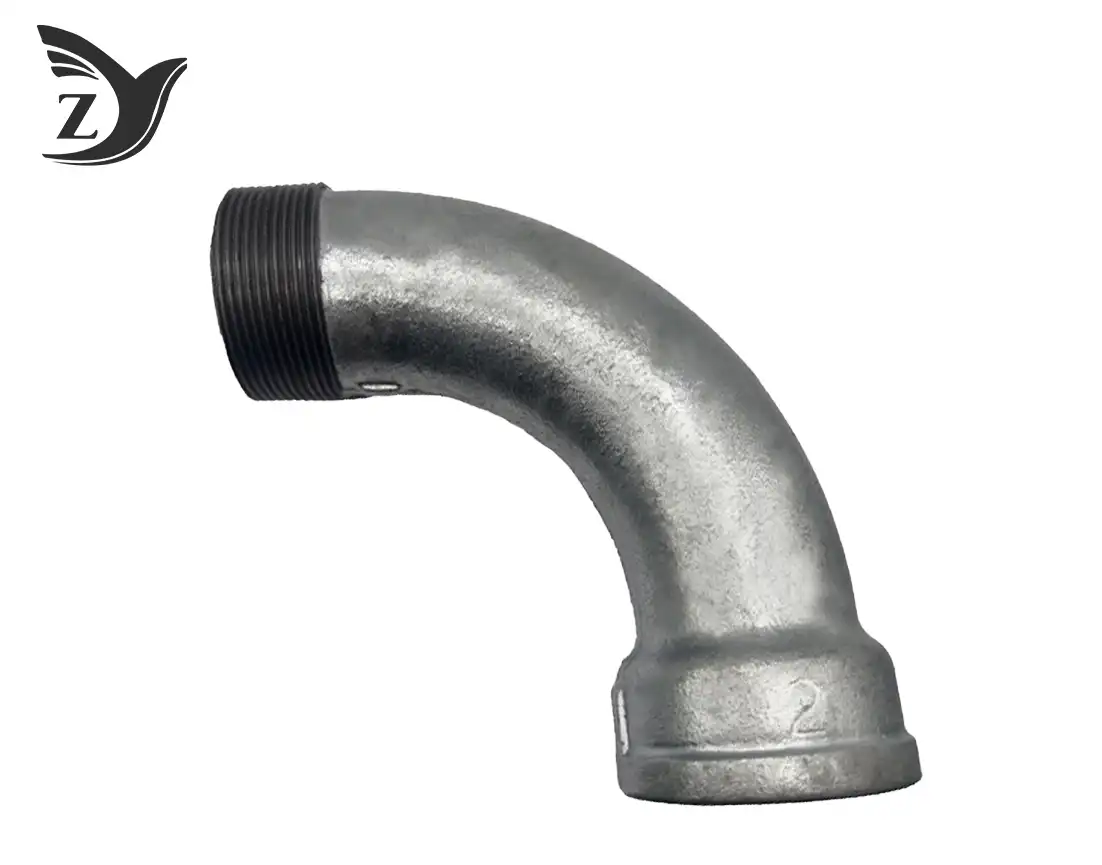

Designed specifically to allow for smoother directional shifts with a bigger bend radius than short radius elbows, galvanized male female 90° long radius elbow pipe fittings minimize pressure losses and flow interruptions. An suitable threaded junction for modular construction, the male-female connection guarantees a solid fit.

The precision-machined NPT/BSPT threading of these fittings allows for the creation of dependable connections between various pieces of pipe. In comparison to elbows with a regular pattern, the long radius design greatly improves flow characteristics by keeping the curvature radius about 1.5 times the nominal pipe diameter.

Material Properties and Standards

The ASTM A197-manufactured high-strength malleable iron used in the core structure has a remarkable tensile strength of more than 350 MPa. In industrial settings, thermal shock is a typical occurrence, yet this material's composition makes it resistant to brittle fracture.

A protective zinc coating, with a thickness of 70-85 microns, is applied by hot-dip galvanization following ASTM A153 standards. In non-acidic situations, this coating's cathodic protection increases the service life beyond 20 years. Under mechanical stress, the galvanized layer is resistant to chipping and peeling because it is metallurgically linked.

Standard pipe diameters and thread sizes are in accordance with global standards, and galvanization adds strong resistance to corrosion, making products last longer even in extreme conditions. Quality assurance via certified production in accordance with ISO, ASTM, and other important standards makes these fittings a dependable option for intricate industrial pipelines that need durability and consistent performance.

When to Use Long Radius Elbows?

High-Pressure and High-Flow Systems

When reducing pressure drop and turbulence is of the utmost importance in systems with high pressure and high flow, long radius elbows are the way to go. While allowing for bigger fits, the gentle bend design lowers wear and tear and accommodates space limits.

The improved flow characteristics are very useful for industrial pipeline redirection applications, such as water and gas. Reduced energy consumption in pumping systems and less erosion-corrosion at impact walls are both achieved by maintaining a smooth fluid flow across the expanded curve.

Industry-Specific Applications

In applications where constant water pressure and flow rates are crucial for safety compliance, such as sprinkler systems, hydrants, and pump houses, these fittings are relied upon by fire protection engineering firms. Installation is facilitated quickly without compromising system integrity by virtue of the threaded 90° bend arrangement.

Installing gas pipelines, water supplies, drainage systems, and HVAC systems is a common occurrence in construction and municipal engineering projects that make heavy use of these connections. Reliability in subterranean or exposed installations is guaranteed by the corrosion-proof 90° radius pipe fitting design.

These long elbows, which are made of industrial-grade male and female connections, are essential for process pipes in petrochemical and power generating plants due to their high chemical resistance and pressure capabilities.

Economic and Performance Advantages

They are more resistant to corrosion in industrial environments after galvanization, which means they last longer and need less maintenance. Galvanized long radius fittings are superior than short radius or other materials elbows in terms of cost-effectiveness, longevity, and corrosion protection. This makes them perfect for a wide range of industries, including oil and gas, water treatment, and manufacturing facilities.

Operating expenses are lowered during the fitting's service life due to the reduced pressure drop characteristics. During the first working period, the greater initial cost is usually recouped by energy savings from more efficient flow.

How to Install Galvanized Male Female 90° Long Radius Elbow Fittings?

Pre-Installation Preparation

Galvanized male female 90° long radius elbow pipe fittings must be installed correctly to ensure the system remains intact and leaks are prevented. To guarantee tight, leak-proof connections without harming threads, the procedure begins with precise identification of pipe diameters and thread types and continues with careful assembly.

First and foremost, you must ensure that the threads are compatible with one other. Appropriate identification avoids expensive installation mistakes; dual-threaded systems that are compatible with NPT and BSPT accommodate a variety of international threading standards.

Installation Procedures

Thread preparation with the right cutting oil or pipe dope is the first step in the installation sequence. This will guarantee a smooth engagement. For best seal compression without thread damage, hand-tighten first, then tighten with a wrench according to manufacturer recommendations.

Stress concentration during installation might cause components to break before their time if not properly aligned. There are fewer possible leak spots and less installation time due to the male-female arrangement, which permits direct connection to ports or valves without needing intermediary nipples.

Maintenance and Inspection

System failures may be prevented by being aware of typical difficulties, such as thread incompatibility and corrosion at joints. The best way to find wear and maximize the lifetime of installed elbows is to perform regular maintenance, which includes inspections and surface cleaning.

Deterioration of the zinc coating, thread wear, and joint tightness should all be checked visually as part of the inspection routine. Coating breakdown may be detected early on, allowing for preventative maintenance to be performed before structural damage occurs.

With the use of regular maintenance procedures that prolong the fitting's service life, technical teams may achieve long-term operational dependability, as outlined in this section.

Procurement Guide: Selecting and Buying the Right Long Radius Elbow Fittings

Supplier Evaluation Criteria

Consider the supplier's track record, certification compliance, warranty policies, and supply chain dependability when choosing a galvanized long radius elbow provider. Reliability and consistency in production are shown by quality certifications such as ISO 9001, CE, UL, and FM clearances.

Making ensuring suppliers can satisfy project schedules and volume requirements is the job of production capacity evaluation. In general, the infrastructural stability required for large-scale projects is shown by manufacturing facilities with an annual output capacity of 30,000 tons or more.

Cost Analysis and Value Engineering

Custom manufacturing provides individualized solutions for particular requirements, whereas bulk buying and lead times have a major influence on project schedules. The initial investment should be balanced with the long-term savings in maintenance and durability in a cost-benefit analysis.

You need to include in installation labor, maintenance needs, and replacement frequency when you calculate the total cost of ownership. Investing in higher-quality fittings that are more resistant to corrosion may pay off in the long run, even if they may cost more initially.

Order Management and Logistics

Having a good grasp of shipping logistics, minimum order quantities (MOQs), and after-sales support (including technical consulting and warranty coverage) is crucial for effective procurement. For time-sensitive needs, standard goods with sufficient stock may be delivered within hours.

The intricacy of the specifications and the quantity of the order determine the usual custom manufacturing lead times, which may vary from two weeks to four weeks. To keep projects on track, it's important to plan procurement timelines around these periods.

In order to maintain key application supply while keeping costs down, this handbook equips procurement managers to make quality-driven, cost-effective purchasing choices in global industrial marketplaces.

Trusted Brands and Suppliers of Galvanized Long Radius Elbows

Industry Leadership and Quality Standards

The hallmarks of a reliable B2B plumbing brand are high-quality products, strict adherence to certification requirements, and extensive customer assistance. Galvanized elbow fittings from top manufacturers are tested and shown to be long-lasting and environmentally safe.

With 26 years of specialized expertise in casting research and pipe fitting manufacturing, Shanxi Taigu Zhiyuan Malleable Steel Co., Ltd. exhibits industry excellence. The organization has important certifications such as CE, UL, and FM clearances, and it also has a quality management system in place that is ISO 9001 compliant.

Manufacturing Excellence and Capabilities

Eight sets of medium frequency electric furnaces, two energy-saving annealing kilns powered by natural gas, and environmental protection galvanizing facilities are also part of the company's manufacturing capabilities. More than 1,000 product requirements may be accommodated by this infrastructure, allowing for an annual manufacturing capacity of 30,000 tons.

Every step of the manufacturing process, from obtaining raw materials to delivering the finished product, is subject to quality control procedures. Extensive testing is performed on all galvanized male female 90° long radius elbow pipe fittings to ensure compliance with coating thickness regulations, thread quality, and dimensions.

Partnership Benefits and Support

Cooperation with authorized dealers improves supply continuity by guaranteeing genuine items, protecting warranties, and facilitating prompt local sourcing. Product selection advice, installation suggestions, and troubleshooting help are all part of technical support.

Furthermore, there is an increasing expectation in the industry for environmentally responsible buying, which may be met by giving preference to suppliers that are dedicated to sustainable production processes. Here, customers may find trustworthy partners that provide high-quality galvanized elbows and work to build lasting partnerships based on mutual trust and technical knowledge.

Conclusion

For applications that need top-notch flow characteristics, increased durability, and dependable performance in tough industrial settings, galvanized male female 90° long radius elbow pipe fittings are the way to go. These fittings are essential for contemporary pipe systems because to their improved hydraulic design, corrosion-resistant galvanized coating, and precise threading. Decisions that provide long-term value and operational dependability may be made by procurement specialists with an understanding of the technical requirements, correct installation processes, and criteria for supplier selection. Lower maintenance costs, more efficient systems, and longer service lives are the results of investing in high-quality long radius elbows for a wide range of industrial uses.

Partner with Zhiyuan Malleable Steel for Premium Pipe Fitting Solutions

Zhiyuan Malleable Steel delivers industry-leading galvanized male female 90° long radius elbow pipe fittings backed by 26 years of manufacturing expertise and comprehensive quality certifications. Our state-of-the-art production facilities maintain strict ISO 9001 standards while providing competitive pricing and reliable supply chain management for projects of any scale.

With annual production capacity of 30,000 tons and inventory management enabling two-hour delivery for standard products, we serve as your trusted galvanized male female 90° long radius elbow pipe fittings supplier for critical industrial applications. Our technical team provides complete ODM/OEM customization services and comprehensive after-sales support including defective product replacement guarantees.

Contact our procurement specialists at zhiyuan@mifittings.com to discuss your specific requirements and receive competitive quotations tailored to your project timeline and specifications.

FAQ

What is the difference between long radius and short radius elbows?

Long radius elbows feature a curvature radius of 1.5 times the nominal pipe diameter, while short radius elbows have a 1.0 times ratio. This difference significantly impacts pressure drop, with long radius elbows reducing flow resistance by up to 30% compared to short radius alternatives.

How does galvanization improve elbow fitting durability?

Hot-dip galvanization creates a metallurgically bonded zinc coating that provides cathodic protection against corrosion. The zinc layer acts as a sacrificial anode, protecting the underlying steel even when the coating is scratched or damaged, extending service life beyond 20 years in most environments.

Are galvanized male female long radius elbows suitable for high-pressure applications?

Yes, these fittings are rated for Class 150 service with working pressures up to 300 psi for water, oil, and gas applications at ambient temperatures. The malleable iron construction provides tensile strength exceeding 350 MPa, ensuring reliable performance under high-pressure conditions.

What thread standards are compatible with these fittings?

The fittings accommodate both NPT (National Pipe Taper) and BSPT (British Standard Pipe Taper) threading standards. NPT features a 60° thread angle with 1°47' taper, while BSPT uses a 55° angle with 1:16 taper ratio, providing flexibility for international applications.

How should these fittings be stored before installation?

Store fittings in dry environments away from direct moisture exposure. While the galvanized coating provides excellent corrosion resistance, proper storage prevents premature coating degradation and maintains thread quality for optimal installation performance.
