What Sizes Do Square Edge Reducing Street Couplings Come In?

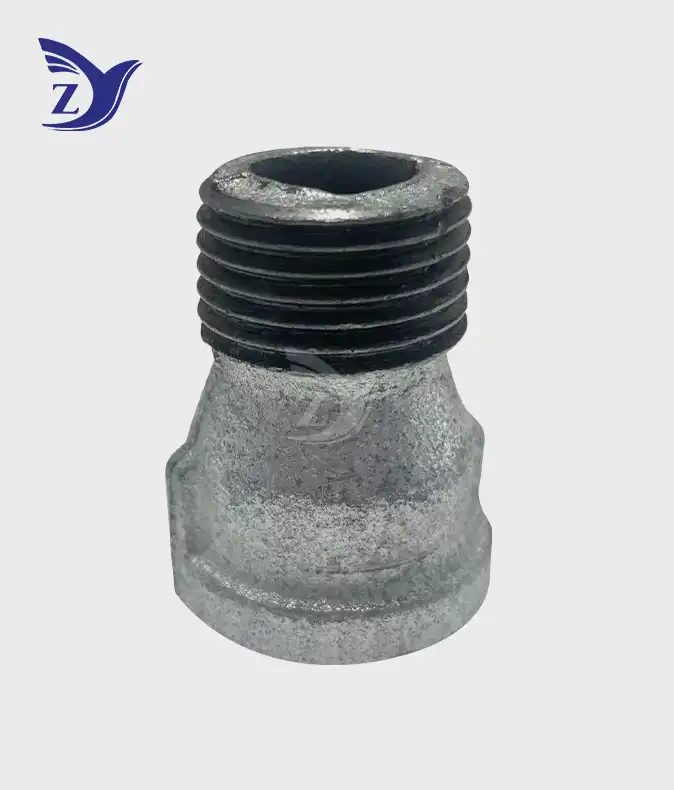

Square edge reducing street couplings typically range from 1/8" to 4" in Nominal Pipe Size (NPS), covering common reducing pairs such as 1/2" × 1/4", 3/4" × 1/2", 1" × 3/4", 2" × 1-1/2", and 4" × 3". A thread square edge reducing street coupling pipe fitting connects two pipes of different diameters in a male-to-female (street) configuration, with a flat-sided body that gives wrenches a firm grip. These thread square edge reducing street coupling pipe fittings conform to ASME B16.3 and ANSI/ASME B1.20.1 standards and are available in NPT and BSPT thread forms.

Understanding Square Edge Reducing Street Couplings and Their Dimensions

What Makes the Square Edge Design Different?

The outside band of a square-edge body has flat machined areas, which is different from joints with a round edge or bands. This shape keeps the wrench from moving around while installing something with a lot of force, which is useful in tight areas. People who work on radiators in real life depend on that flat surface being strong enough to push on without damaging the pipes next to it.

Typical Size Ranges and Physical Dimensions

As a general rule, NPS sizes range from 1/8" to 4". Hot-dipped galvanized 1" × 3/4" malleable iron couplings are usually about 2.36 inches long and have walls that are thick enough to handle Class 150 pressures of up to 300 psi at room temperature. As the size gets bigger, like 2" × 1-1/2", the walls get thicker and the thread engagement depths get longer.

How Material Choice Affects Dimensions?

Iron that has been coated (ASTM A197) and iron that has been bent are usually used to connect gas and water pipes in plants. Some types are made of stainless steel for acidic media, but the walls can't be too thick. The surface finish is also based on the material. Hot-dipped galvanized finishes that follow ASTM A153 add about 3.4 mils of zinc thickness, which makes the outside diameter a little bigger without changing the thread sizes.

Detailed Dimensional Breakdown of Square Edge Reducing Street Couplings

NPS Terminology and Common Reducing Pairs

The diameter that is being measured is not the nominal pipe size (NPS), which is just a name for it. Typical reduction pairs in industrial pipe are 3/4" × 1/2", 1" × 3/4", 1-1/2" × 1", 2" × 1-1/2", 3" × 2", and 4" × 3". Each pair sets the length of the thread contact on both the male and female ends. The overall length of the coupling changes because of this.

Thread Specifications and Tolerance

According to ASME B1.20.1, NPT threads on thread square edge reducing street coupling pipe fittings have a length of 3/4 inch and a pitch of 60°. It is 55° for BSPT threads, and they all taper at the same rate. At the gage plane, it's 1.2386 inches wide for a 1" NPT male end. A ±1 turn range from the L1 plane is fine for the gage. Marked ring and plug gages can be used to check this. How well parts further downstream seal without leaks depends directly on how well the threads are made.

Custom and Non-Standard Sizes

When an ODM/OEM project needs a 2-1/2" × 1" cut but doesn't have a size in stock, manufacturers like Zhiyuan Malleable Steel can make unique sizes. Most of the time, special orders need new figures for thread depth and longer body lengths to keep the structure strong under rating pressure. Sometimes it takes longer to make something, but after the plans are accepted, most non-standard sizes can be made in 3–5 weeks.

Choosing the Right Size: Factors and Decision Criteria

Matching Pressure Class to Size

It is possible for ASME B16.3 Class 150 fittings to work with steam, water, oil, and gas (SWOG). The hot-dipped galvanized coupling is 1" x 3/4" and is used in a 100 psi gas distribution line. It is good for Class 150. Buyers should ask for Class 300 fittings if the working pressure is close to 300 psi. These fittings are bigger overall, have thicker walls, and contact threads deeper.

Evaluating Square Edge Against Alternatives

A reducer bushing does the same thing, but it doesn't add any body length and sits flat. A thread square edge reducing street coupling pipe fitting, on the other hand, makes the length of the unit longer, which is good for putting instruments or valves farther apart. A body with a square edge also lasts longer in areas that need a lot of care, since makeup and breakout cycles can make round-edge profiles look less sharp after a while.

These are the main things that buying teams think about when they make choices:

• Thread standard compatibility: Confirm whether the downstream system uses NPT or BSPT before ordering, since mixing thread forms causes leaks even at low pressure.
• Pressure and temperature rating: Verify the fitting's rated class against system design parameters; galvanized coatings begin degrading above 392°F (200°C), so black malleable iron or stainless steel suits high-temperature lines.
• Reducing ratio: Large reductions (e.g., 4" × 1-1/2") may require a two-step reduction using two couplings rather than one, to maintain thread engagement length within standard tolerances.

The engineering and buying teams don't have to redo expensive work or send things back because the sizes don't match because of these factors.

Installation and Maintenance Tips for Sized Square Edge Reducing Street Couplings

Recommended Tools and Fitting Procedures

On NPT or BSPT threads, you should always use PTFE tape or pipe dope before putting something together. This is because these tapered threads need a sealant to cover the spiral leak path at the thread root and top. You should use an open-end or pipe wrench on the square edge band. Don't use pliers because they can bend the stone. For most 1" couplings, you need to hand-tighten it three or four times and then use a wrench to turn it two or three times.

Common Installation Mistakes to Avoid

When you put a 3/4" coupler in a cast iron hole, the female part can break if you stretch it too much. If you don't fix a 2" gas line well enough, it could leak and only show up when the pressure is high. The threads will be stripped right away if you accidentally put a 3/4" male end into a 1" female socket. Always check the NPS marks that are stamped on the fitting body before fitting.

Maintenance Intervals and Inspection Best Practices

In wet or open places, check metal parts once a year. Check how thick the zinc coating is with a magnetic gage. If the reading is less than 2.0 mils, the layer is worn down and rust will happen faster. For steam systems that go through cycles above 250°F, check the thread contact stability every two years with a borescope or by breaking the joint when the system is supposed to be shut down.

Procurement Guide: Sourcing Square Edge Reducing Street Couplings by Size

Identifying Qualified Manufacturers

If a business wants to buy something from Alibaba International, Made-in-China, or Global Sources, they should ask for mill certificates, ASTM A197 compliance paperwork, and thread gage inspection records. Since 2006, Zhiyuan Malleable Steel has been in business and is based in Taigu District, Shanxi Province. ISO 9001, CE, UL, and FM have all approved it. The company has more than 1,000 product specifications and can make 30,000 tons of goods every year. They are a one-stop shop for wholesalers that need thread square edge reducing street coupling pipe fittings.

Pricing, Volume Discounts, and Lead Times

Prices change based on the surface's size, material, and finish. Because they are heated and dipped in zinc, hot-dipped galvanized ones cost more than black iron ones. Standard sizes that are always in stock run from 1/2" x 1/4" to 2" x 1-1/2". Most of the time, these sizes ship within two hours of becoming available. There are different prices for 1 ton, 5 tons, and 20-foot barrels, so traders can easily see how much money they can make.

OEM vs. Aftermarket: What to Prioritize

OEMs get their fittings from a well-known plant that makes malleable iron. The metal is made evenly, and the heat numbers can be watched. A lot of the time, trading companies that sell aftermarket parts can't keep track of each batch. This means that returns are necessary when thread pitch or galvanization thickness changes from one shipment to the next. To avoid returns, distributors who sell to hardware shops or installation workers must make sure that each batch is the same.

Conclusion

For thread square edge reducing street coupling pipe fittings that work with NPS sizes from 1/8" to 4", there are dozens of standard reducing pairs based on ASME B16.3 and ANSI/ASME B1.20.1. To pick the right size, you need to make sure that the material, thread standard (NPT or BSPT), and NPS are all correct. Water and gas lines below 392°F still use hot-dipped galvanized iron that can be shaped. Buying groups can better keep an eye on prices, track quality, and make sure deliveries always happen on time when they work directly with qualified foundries. All of these things keep earnings and return rates low further down the line.

FAQ

What is the largest standard size available?

As per ASME B16.3, the largest catalog size is 4" NPS, which is a 4" × 3" reduction pair. When it comes to sizes bigger than 4", flanged or grooved fittings are more common than threaded ones.

Can I get BSPT threads in the same size range?

In the same NPS range as NPT ones, you can get BSPT (British Standard Pipe Taper) ones. You should know what the thread standard is before you place your order because the thread angles are not the same (55° vs. 60°).

How long does a custom size order take?

It usually takes 3–5 weeks after the plans are accepted for non-standard lowering pairs to be made to order. This is based on how many orders there are and the foundry's plan.

Do galvanized and black iron versions share the same body dimensions?

Yes. Galvanizing the zinc covering only makes it 3.4 mils thicker, according to ASTM A153, and it doesn't change the thread size or NPS name.

What sealant should I use with NPT threads?

For NPT threads, you need either PTFE tape or pipe thread glue, which is also called "pipe dope." If you want to seal metal to metal, you need NPTF threads instead of standard NPT threads. They need something to shut off the spiral leak path.

Request a Quote from Zhiyuan Malleable Steel

Zhiyuan Malleable Steel has been making hot-dipped galvanized, perfectly threaded thread square edge reducing street coupling pipe fittings made of malleable iron since 2006. This means that every package has been certified by ISO 9001, CE, UL, and FM. Our factory-direct prices let distributors make the money they need, whether they need standard stock sizes or unique lowering pairs. If you go to zymalleablepipefitting.com or email q1236800000@gmail.com, you can get a tiered price list and check to see if your next container order is still open.

References

1. ASME B16.3 — Malleable Iron Threaded Fittings: Classes 150 and 300, American Society of Mechanical Engineers, 2021.
2. ANSI/ASME B1.20.1 — Pipe Threads, General Purpose (Inch), American Society of Mechanical Engineers, 2013.
3. ASTM A197 — Standard Specification for Cupola Malleable Iron, ASTM International, 2020.
4. ASTM A153 — Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware, ASTM International, 2023.
5. Nayyar, M. L. — Piping Handbook, 7th Edition, McGraw-Hill, 2000.
6. Mohinder L. Nayyar — Piping Databook, McGraw-Hill, 2002.
