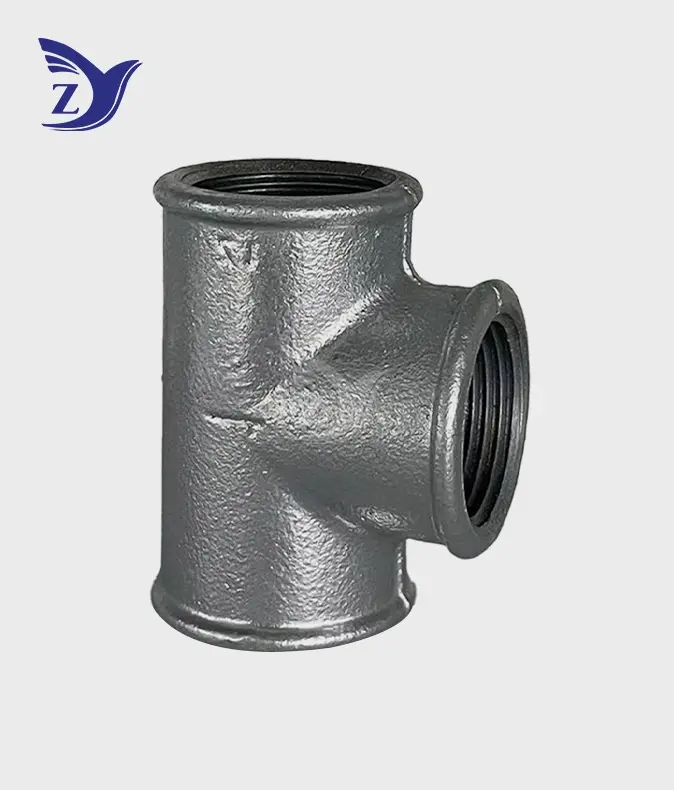

NPT Round Face Galvanized Round Edge Straight Tee for Water & Gas Pipeline Systems

For important water and gas delivery networks, NPT round face galvanized round edge straight tee pipe fittings are an important junction option that offers corrosion resistance, mechanical strength, and installation dependability. These three-way branch fittings are made of malleable iron that has been hot-dipped galvanized and threaded precisely. They ensure safe fluid distribution in household, business, and industrial pipeline systems. By learning about their technical qualities, how they should be used, and what to think about when buying them, engineers and purchasing professionals can make smart choices that affect the safety and life of systems.

Comparing Different Types of Tee Fittings for Pipeline Systems

Knowing the differences between the different types of tee fittings helps match the right component to the right application. The choice between a round face and a square face, different types of materials, and different fitting standards all affect how well a system works and how it is installed.

Round Face Versus Square Face Design Considerations

When branch exits meet the fitting body, NPT round face galvanized round edge straight tee pipe fittings have continuously curved surfaces. This spreads stress over a bigger surface area. The rounded shifts in this shape make it better for applications that are subject to changes in pressure or vibration because they reduce the number of places where fatigue cracks can start. Even though square face shapes are a bit smaller, they make transition angles that are sharper, which can focus stresses when the load is applied in cycles. Pressure testing shows that round face designs keep their seals intact at pressures that are 15 to 20 percent higher than similar square face fits when they are heated and cooled many times.

Galvanized Steel Versus Alternative Materials

For corrosion protection, black steel pipe fittings need to be coated in the field. This adds quality control issues and work costs that often outweigh the initial price benefit. These worries are taken away because galvanized parts come ready to be installed and have protection already applied by the maker. Brass fittings work best in systems that handle drinkable water because they don't dezincify easily. However, they are usually twice as expensive as galvanized malleable iron and aren't as strong. The choice of material is based on balancing the original investment against the costs over the life of the product. Galvanized malleable iron is the best choice for cost-sensitive uses that need strong mechanical properties.

NPT Threading Standards and Installation Impact

Parallel threading methods, such as BSPP (British Standard Pipe Parallel), are very different from NPT threading. As connections get tighter, the taper in NPT threads causes interference, which forms seal pressure between the thread sides. This gets rid of the need for extra closing washers, but the threads must be properly engaged, which usually means hand-tightening for 3–5 turns and then using a wrench to tighten. BSPT (British Standard Pipe Taper) is similar in function but has slightly different thread profiles. Good makers make fittings that are suitable with both standards, which means they can be used in foreign markets where specification tastes vary.

Installation and Application Best Practices for NPT Round Face Galvanized Tee Fittings

The dependability and service life of a technology are directly affected by how well it is installed. By knowing what the suggested practices are, you can avoid common failure modes and get the most out of the performance benefits that come with using high-quality parts.

Essential Tools and Preparation Steps

To install NPT round face galvanized round edge straight tee pipe fittings correctly, you need the right tools, like pipe wrenches that are the right size for the fitting, thread sealant or PTFE tape that is rated for the fluid being sent, and wire brushes that clean the threads. Before putting the parts together, check the threads and clean off any zinc flakes or production residue that could get in the way of proper contact. Use little thread sealant because too much of it can pollute water systems or block gas flow. Only cover the male threads and leave the first two threads clear to keep the sealant from squeezing out into the pipeline.

Proper Tightening Techniques and Torque Specifications

Tighten the fitting by hand until it becomes more resistant, then use the wrench to make two or three more turns. If you tighten the fitting too much, the body can get stressed and the malleable iron can crack. If you tighten it too little, the threads don't connect enough to make a good seal. Different fitting sizes need different amounts of torque. For example, 1/2-inch fittings need 25 to 30 ft-lbs, while 2-inch fittings need 60 to 80 ft-lbs. To keep the pipe from rotating, which could damage existing joints, use two tools: one to hold the downstream fitting in place, and the other to turn the part that is being installed.

Water and Gas Pipeline Compatibility

When placed correctly, NPT round face galvanized round edge straight tee pipe fittings can safely handle both water and gas uses. When working with gas systems, you need to be extra careful about safety. Instead of regular white tape, use yellow PTFE tape or paste seals that are made for gas service. White tape may break down when exposed to natural gas smells. For water systems, the pressure test should go up to 1.5 times the working pressure. For gas setups, a soap-solution leak test should be done. Inspections are often required by municipal codes before a system can be turned on. Find out what the local rules are during the planning stages of the project.

Why Choose Zhiyuan Malleable Steel NPT Round Face Galvanized Round Edge Straight Tee Fittings?

There's more to choosing the right source than just looking at price sheets. Commodity deals are different from strategic partnerships that help a project succeed because of things like manufacturing skills, quality consistency, and support after the sale.

Superior Manufacturing Precision and Quality Control

Our factory has eight SN KGDX-3500 3T medium frequency electric furnaces that carefully control the chemistry of the melt, making sure that the mechanical traits stay the same from one production run to the next. Two 100-ton annealing kilns that use natural gas to save energy provide controlled heat treatment that makes malleable iron flexible. Electric heating environmental protection heaters are used for galvanizing to keep the zinc coating thickness uniform. 156 sets of machining tools are used for precision threading that meets ASME B1.20.1 standards. When providers transfer important parts of the production process, quality differences happen. This integrated manufacturing method gets rid of those differences.

Comprehensive Product Range and Custom Solutions

Our catalog has more than 1,000 standards for minimum sizes ranging from 1/8 inch to 6 inch. This means that it can be used for everything from plumbing branches in homes to industrial process pipeline distribution networks. In addition to basic goods, our expert team works with customers to make fittings that are specifically designed for their needs. With an annual production capacity of 30,000 tons, it is always available, even for big city building projects that need to get large amounts of materials quickly. Double-layer cardboard boxes protect items during foreign shipping so they arrive damaged-free and ready to be installed.

Reliable Service and Technical Support

We know that buying is more than just delivering goods. Our 38 professional and expert staff members offer pre-sale consultations where they answer questions about pressure rates, temperature limits, and code compliance that are specific to the application. Field teams can avoid making common mistakes that damage systems by following installation instructions. Customers are protected from the cost effects of the rare manufacturing flaw that our quality control systems miss when we have defective product exchange policies in place. Standard items are shipped from stock within two hours of proof of an order, and custom items are made according to clearly stated production plans that allow for accurate project planning.

Conclusion

NPT round face galvanized round edge straight tee pipe fittings have been shown to be reliable for splitting water and gas pipelines in homes, businesses, and factories. Their construction of malleable iron gives them dynamic strength of more than 40,000 psi, and hot-dipped galvanization protects against corrosion, which increases their service life in harsh settings. Engineers and purchasing workers can choose parts that meet performance needs and price limits if they know about different materials, the best ways to install them, and how to buy them. Partnering with well-known companies that offer a wide range of products, the ability to customize them, and quick technical support can turn buying parts from a business task into a strategic advantage that helps the project succeed.

FAQs

What size options are available for NPT round face galvanized straight tee fittings?

Standard sizes for pipes run from 1/8-inch to 6 inches in nominal size, and their measurements meet ASME B16.3 standards. Through ODM production methods, custom sizes can be made to fit needs that aren't standard.

How does corrosion resistance compare to stainless steel?

Galvanized malleable iron protects against rust well enough for most water and gas uses at a much lower cost. Stainless steel is more resistant to highly toxic chemical conditions, but it costs 300–400% more than other materials.

Can these fittings safely serve both water and gas pipelines?

When put correctly, galvanized tee fittings can be used for both of these tasks properly. For gas installations, seals must be rated for hydrocarbon exposure and leak sensors must be checked before the system is turned on.

What pressure ratings do these fittings support?

At room temperature, Class 150 fittings can handle 150 psi of full steam and 300 psi of WOG (Water, Oil, and Gas). For derating curves at high temperatures, check the manufacturer's instructions.

Partner With a Trusted NPT Round Face Galvanized Round Edge Straight Tee Pipe Fittings Manufacturer

Zhiyuan Malleable Steel can help you with your water and gas pipeline projects because they have been making for 26 years and can make up to 30,000 tons of steel each year. Our production methods are certified by ISO 9001, CE, UL, and FM, and they produce quality products that meet more than 1,000 different standards. Whether you need standard inventory items shipped within two hours or custom solutions created through our OEM services, our team can help. We offer expert advice, cheap bulk pricing, and guarantees for replacing faulty products that keep your project on schedule and within budget. Email our salespeople at q1236800000@gmail.com for application-specific advice and quotes on large orders. Check out our full line of products at zymalleablepipefitting.com to learn more about how our precision-threaded, corrosion-resistant NPT round face galvanized round edge straight tee pipe fittings help fluids move reliably in a wide range of industrial settings. Let us show you why Zhiyuan Malleable Steel is the source of choice for fire protection companies, local building firms, and wholesale distributors around the world.

References

1. American Society of Mechanical Engineers. ASME B16.3-2016: Malleable Iron Threaded Fittings, Classes 150 and 300. New York: ASME Press, 2016.
2. American Society for Testing and Materials. ASTM A197-00: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM International, 2018.
3. American Society for Testing and Materials. ASTM A153-16a: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. West Conshohocken: ASTM International, 2016.
4. American Society of Mechanical Engineers. ASME B1.20.1-2013: Pipe Threads, General Purpose (Inch). New York: ASME Press, 2013.
5. Malleable Founders' Society. Engineering Properties of Malleable Iron Castings. Cleveland: Malleable Founders' Society Technical Publications, 2014.
6. National Fire Protection Association. NFPA 13-2019: Standard for the Installation of Sprinkler Systems. Quincy: NFPA Publications, 2019.
