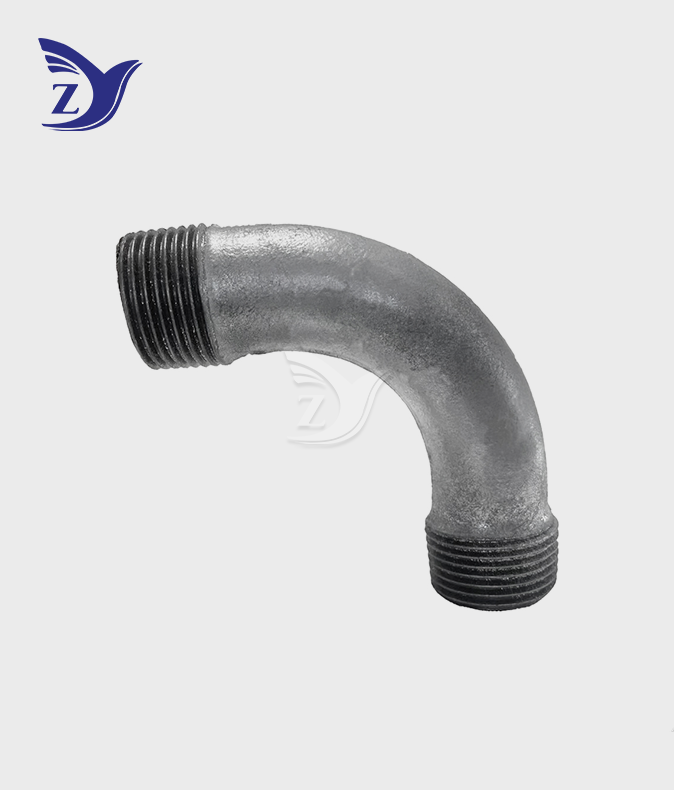

How Do Galvanized BSPT Elbow Fittings Prevent Corrosion?

BSPT round face galvanized round edge 90° elbow pipe fittings prevent corrosion through a zinc coating applied to the malleable iron base, acting as a sacrificial barrier that oxidizes before the underlying metal does. A BSPT round face galvanized round edge 90° elbow pipe fitting, for example, combines hot-dip galvanization with precision-tapered British Standard threads to seal joints tightly and block moisture ingress. The zinc layer — typically exceeding 70µm thickness per EN 10242 — provides cathodic protection, meaning it corrodes in place of the iron. This mechanism extends service life significantly, even in humid, coastal, or chemically aggressive environments common to industrial water and gas pipeline systems.

Understanding BSPT Round Face Galvanized Elbow Fittings

Before evaluating corrosion protection, it helps to know what makes these fittings different from other pipe joints on the market before looking at how well they protect against rust.

What Makes BSPT Threading Different

ISO 7-1 says that BSPT (British Standard Pipe Taper) threads have a side angle of 55° and a taper ratio of 1:16. When the fitting is tightened, this curve makes a metal-to-metal interference seal. This is different from parallel threads, which use external covers. NPT threads, on the other hand, use a 60° angle. This means that BSPT round face galvanized round edge 90° elbow pipe fittings and NPT are not physically compatible and should never be used together without the right fittings.

The Round Edge Design Advantage

At the edge of the female thread hole, the "round face" or beaded edge is a collar that is stronger. This collar spreads radial stress more evenly while it is being tightened, which lowers the chance of cracking or deformation when the torque is high. This shape is standard in fittings that meet BS EN 10242 standards. The design works especially well in industrial-grade 90° threaded elbow situations where shaking and temperature cycles are common problems.

How Galvanization Prevents Corrosion in BSPT Elbow Fittings

Corrosion is more than just a problem on the surface. Rust can cause the walls of water and gas pipes to thin, which can cause pressure problems and expensive system shutdowns. At the metallurgical level, galvanization takes care of this risk.

The Science of Zinc Cathodic Protection

In hot-dip galvanization, the bendable iron part is put into liquid zinc that is heated to about 450°C. It forms a stacked alloy structure that lasts much longer than spray paint or electroplating because the zinc bonds mechanically to the iron base. The American Galvanizers Association says that hot-dip zinc coatings can keep steel from rusting for 50 to 70 years in many settings. The zinc acts as a sacrifice; it corrodes more quickly than the iron below, even if the layer is scratched.

Galvanized pipe fittings are different from white or black steel ones because they can fix themselves. With this coating, a corrosion-proof round-edge pipe bend stays strong in places where iron that hasn't been treated would break down in months. For this reason, buying teams always ask for hot-dipped galvanized, precision-threaded fittings in Middle Eastern markets where high humidity and salt air speed up rust.

Real-World Performance Evidence

Studies in the journal Corrosion Science show that zinc layers thicker than 65µm offer long-lasting cathodic protection in places with a lot of chloride. A distribution network in coastal Southeast Asia moved from black iron to galvanized malleable elbows and saw a 60% drop in repair calls over three years. This was a clear example of the small price increase for galvanized parts paying off.

BSPT Round Face Galvanized Elbow vs Alternative Elbow Fittings

When picking a fitting type, you have to think about how much it will cost up front, how long it will last, and the needs of the operating environment. Here are the main differences that buying workers always look at:

• Galvanized BSPT vs Black Steel: Black steel elbows are cheaper at first, but they don't protect against corrosion at all. When they are outside or wet, they need to be painted or maintained regularly, which adds to the long-term costs. A steel 90° pipe bend gets rid of that ongoing cost.
• Galvanized BSPT vs Stainless Steel: Stainless steel is more resistant to corrosion, especially against acids, but it costs three to five times more than hot-dipped galvanized malleable iron. Most of the time, stainless steel is too heavy for normal water and gas duct redirection.
• Galvanized BSPT vs Brass: Brass valves work well in systems that handle drinkable water, but they are too heavy per unit to use for high-pressure gas lines. For industrial gas uses, galvanized malleable iron round-edge fittings that are compatible with BSPT offer a better balance of strength and cost.

These differences are most important when choosing fittings for bulk import, because committing to the wrong standard for a 40HQ container order causes an inventory problem that is hard to fix and costs a lot of money.

Installing and Maintaining BSPT Round Face Galvanized 90° Elbow Fittings

If fitted poorly, even the best corrosion-resistant elbow fitting will not work as well as it should. Following the right steps will protect the zinc layer and make sure the joint doesn't leak.

Step-by-Step Installation Guidance

Before putting the parts together, use a wire brush to clean the male pipe threads. As an extra measure, put PTFE tape or an approved pipe thread sealer around the thread in the direction of the taper. This will help the mechanical seal and keep water out. Tighten the fitting by hand until it fits snugly, then use a pipe wrench to make the last 1.5 to 3 turns. Do not use too much torque, as this can break the beaded collar or remove the zinc from the thread roots.

Maintenance Practices That Extend Service Life

Plan to do eye checks on a regular basis, especially at the thread entry points where the zinc is thinnest from the tools touching it during installation. If white zinc oxide crystals show up, that's just normal cathodic activity and doesn't mean the battery is failing. Red rust, on the other hand, means that zinc has been used up in that area and needs to be replaced with a zinc-rich cold galvanizing compound. In humid places, keeping the fitting surface free of built-up dirt and grime can also stop crevice corrosion.

Choosing and Procuring BSPT Round Face Galvanized Elbow Fittings for Industrial Use

Import traders make decisions about where to buy things based on more than just price per unit. If a supply relationship can be trusted to grow, it depends on things like certifications, consistency across big production runs, and how responsive the seller is.

Check that the maker of BSPT round face galvanized round edge 90° elbow pipe fittings follows EN 10242 or ASTM A153 for zinc coating mass, and ask for material test records (MTRs) to ensure that the Black Heart Malleable Iron composition follows ASTM A197. Check to see if the seller can meet your OEM labeling and custom packing needs. This is very important for traders who are building their own brand in local markets.

Since 2006, Zhiyuan Malleable Steel has been in business in Taigu District, Shanxi Province. They can make 30,000 tons of steel each year and have more than 1,000 product specifications. The business is certified by ISO 9001, CE, UL, and FM. Standard products are shipped within two hours of an order being confirmed, as long as they are in stock. The facility also allows ODM/OEM customization, which includes logo, packaging, and labeling, for traders who want to sell to Commonwealth-standard markets in Southeast Asia, the Middle East, Africa, and South America. Without a doubt, defective goods are exchanged, which lowers the quality risk that first-time buyers worry about the most. You can look at the full range of products and technical information at zymalleablepipefitting.com.

Conclusion

Zinc cathodic protection, precision taper threading, and reinforced round-edge geometry all work together to keep BSPT round face galvanized round edge 90° elbow pipe fittings from rusting. The zinc layer gives up its own protection to keep the iron core safe, and the BSPT thread shape makes a seal that keeps water out. Hot-dipped galvanized malleable iron is a sensible choice that meets international standards and is more durable than options like black steel, painted steel, or brass. Galvanized 90° BSPT elbows are a technically sound and financially viable choice for fittings used in industrial water systems, gas pipes, or distribution to local hardware stores.

FAQ

1. Why choose galvanized BSPT elbows over stainless steel for gas pipelines?

Galvanized bendable iron elbows can handle pressures of up to 25 Bar at room temperature and are approved by EN 10242 for use with gas. Stainless steel is much more expensive and is usually only used for chemicals that are corrosive and not for normal gas distribution. Galvanized is the practical specification for buying things in Commonwealth-standard markets that are on a budget.

2. Can I verify zinc coating quality before a shipment ships?

Yes. Ask for a report on the thickness of the coating using magnetic induction gauging in line with ISO 2178, and compare the zinc coating mass to the EN 10242 minimum of 500 g/m². Before the cargo is loaded, this can be done at the factory by third-party inspection companies like SGS or Bureau Veritas.

3. Are BSPT and NPT threads interchangeable on-site?

No, BSPT threads are 55° and NPT threads are 60°. Mixing them leads to thread damage, leakage, and partial contact. Before you place a large order, you should always check to see what the thread standard is in your area.

4. What is the typical service life of a hot-dipped galvanized elbow in a humid climate?

Hot-dip zinc coatings that are 70 µm thick can last 20 to 30 years in normal industrial settings before they need to be fixed. In coastal or high-humidity areas, this may drop to 15–20 years, but it is still a lot longer than uncoated iron.
