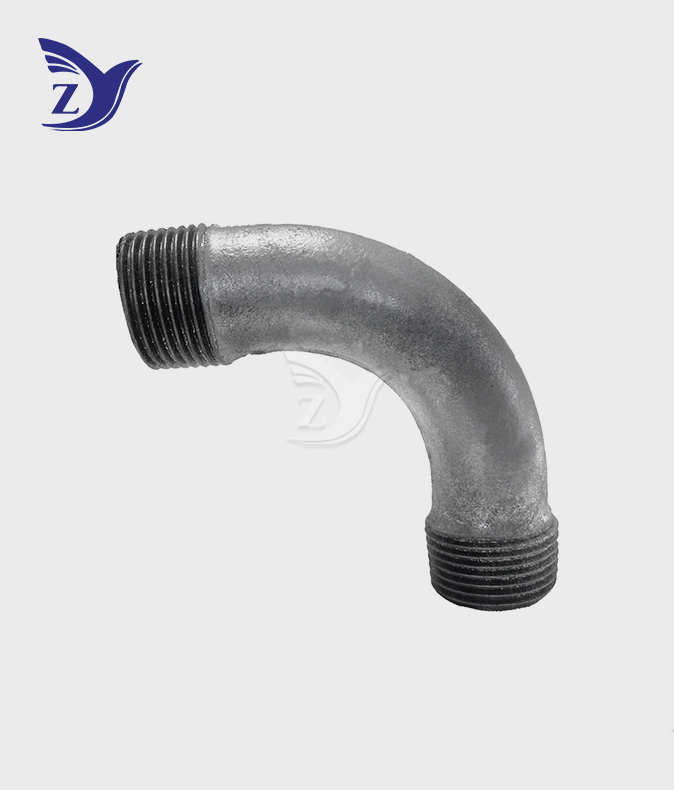

Galvanized BSPT Elbow Fittings: Benefits, Applications, and Sizes

When sourcing pipe fittings for industrial or construction projects, the right elbow fitting can make or break your system's long-term reliability. BSPT round face galvanized round edge 90° elbow pipe fittings are among the most trusted components in global piping infrastructure — engineered to redirect fluid flow precisely while resisting corrosion in demanding environments. This guide walks through everything procurement professionals and trade buyers need to know: what these fittings are, how they perform, where they're used, and how to choose the right supplier for consistent quality at scale.

Understanding Galvanized BSPT Elbow Fittings

What Makes BSPT Threading Different

BSPT (British Standard Pipe Taper) threads have a side angle of 55° and a taper ratio of 1:16. They are based on ISO 7-1. Because of this shape, the threads can make a pressure-tight seal by interfering with each other, so there's no need for gaskets. That's a big difference from NPT (National Pipe Taper), which has an angle of 60° and is most common in North American markets. Commonwealth countries, the Middle East, Southeast Asia, and parts of South America all use BSPT fittings as normal. These are areas where demand for these fittings stays strong.

The Round Edge Design Advantage

These BSPT round face galvanized round edge 90° elbow pipe fittings don't have a "round face" or beaded edge for looks' sake. The reinforced collar at the rim spreads the radial expansion forces more widely while the bolt is being tightened. This makes it much less likely that the thread will break when the torque is high. When you combine this structural shape with hot-dip galvanization, you get a fitting that stays together even when the temperature, pressure, and shaking change.

It also matters what the base is made of. As per ASTM A197 or EN 1562, these parts are made of Black Heart Malleable Iron, which is very flexible and can absorb shock well. In contrast to rigid cast iron, malleable iron can bend slightly before breaking, which is an important trait for pipelines that are always changing.

Benefits and Performance of Galvanized BSPT 90° Elbow Pipe Fittings

With hot-dip galvanization, a zinc covering with a minimum mass of 500 g/m² (about 70 µm thickness) is applied, which is in line with EN 10242 and ASTM A153. This coating offers active cathodic protection, which means that even if the surface is scratched, the zinc gives up its own safety to protect the iron below. It's not possible for paint coatings to protect against corrosion that well.

Because of how well they work, these BSPT round face galvanized round edge 90° elbow pipe fittings are a popular choice across many industries:

• Pressure rating: These fittings are rated at Class 150 (PN 20/25), which means they can handle up to 25 Bar of pressure at normal temperatures (-20°C to 120°C) and 20 Bar of pressure at high temperatures up to 300°C. This means they can be used in both low-pressure and high-pressure systems.
• Zero-leak performance: The tapered BSPT threads and the beaded round edge work together to make sure a good seal even when the pressure and vibration change, which can happen in water, gas, and oil pipelines.
• Cost efficiency: Hot-dipped galvanized malleable iron elbows offer similar corrosion protection at a much lower unit cost compared to stainless steel options. This is a direct benefit for import traders who are trying to meet their margin goals.

Because of how well they work, they are a smart and long-lasting choice for projects that need to last a long time and have low care costs.

Applications of Galvanized BSPT Elbow Fittings in Industry

Where These Fittings Are Deployed

BSPT round face galvanized round edge 90° elbow pipe fittings made for industrial use are used in a lot of different areas. Municipal water supply networks, natural gas distribution lines, HVAC ducting systems, and fire protection pipelines all rely on corrosion-proof round-edge pipe bends to manage directional flow reliably. Galvanized BSPT elbows are commonly used by builders in the Middle East and Southeast Asia for structural pipe systems because they are known to meet BS EN 10242 standards.

Chemical processing plants and hydraulic systems also benefit from their ability to handle pressure and keep walls from thinning due to rust, which is a failure mode that can make systems less safe over time.

A Practical Example

Use a ½" BSPT round face galvanized round edge 90° elbow pipe fitting as an example. This is one of the sizes that is most often kept in stock. This fitting changes the flow at each floor joint in the water distribution pipe of a multi-story apartment building. Its zinc layer can handle the damp conditions inside wall spaces, and its beaded edge can handle the repeated shaking from pump cycles. Over a 20-year working life, this means that the building owner will have to pay less for replacements and upkeep staff.

How to Choose and Install BSPT Round Face Galvanized Elbow Fittings

BSPT vs. NPT: Getting Thread Compatibility Right

This is where a lot of bad choices about buying in bulk go wrong. You can't use BSPT threads on an NPT thread. Because the angles are different (55° vs. 60°), cross-threading will happen. This will damage the joint and cause leaks. Make sure you know the piping standard of the people you want to sell to before you place an order for a container. BSPT round face galvanized round edge 90° elbow pipe fittings are the right choice for many countries, including India, Indonesia, Thailand, the UAE, Saudi Arabia, Nigeria, and South Africa.

Installation Best Practices

It is important to prepare the thread correctly. Apply PTFE tape or an approved thread sealant in the direction of the thread and clean the threads well. Then, tighten to the torque range stated by the maker, which for BSPT tapered connections is usually two to three turns past hand-tight. Too much tightening is a common reason why fittings fail, so don't do it. After installing the zinc covering, you should always check it for damage. If you find any, you can fix it by applying a zinc-rich cold galvanizing solution.

For bulk buyers, it's important to make sure that the measurements are always correct across batches. To keep quality from dropping on large orders, make sure that each shipment comes with a thread gage inspection report and a zinc coating weight certificate.

Supplier and Brand Insights for BSPT Galvanized Elbow Fittings

In this area, a supplier's image is very important. Traders who bring BSPT round face galvanized round edge 90° elbow pipe fittings into the country often complain about quality differences between runs. This has direct effects when local builders or hardware stores report fails to fit.

Zhiyuan Malleable Steel was founded in 2006 and is based in Taigu District, Shanxi Province. With 26 years of experience, it has become one of the best pipe fitting makers in Shanxi. The company has ISO 9001, CE, UL, and FM certifications and can handle 30,000 tons of cargo each year. A quality control system oversees the whole production process, including casting, galvanizing, cutting, and packing. Standard goods can be sent out within two hours.

Zhiyuan offers custom branding, packaging, and labeling to help import traders position their products in the local market when they need OEM/ODM services. The company accepts both T/T and LC as payment terms, and the goods come with all the paperwork needed to clear customs. The website zymalleablepipefitting.com has more information.

Conclusion

It has been shown that BSPT round face galvanized round edge 90° elbow pipe fittings have the corrosion protection, mechanical strength, and thread durability that industrial pipe systems need. They play an important and useful role in everything from city water systems to gas lines that connect markets in the Commonwealth and the Middle East. Picking the correct fittings with confirmed zinc coating standards, the right thread specification, and a supply source that can be tracked will protect your profits, your reputation, and your customers' infrastructure.

FAQ

1. Are BSPT and NPT fittings interchangeable?

The BSPT thread angle is 55°, while the NPT thread angle is 60°. When you try to join them directly, you damage the threads and cause leaks. If your machine uses both standards, don't force a cross-standard link. Instead, use a dedicated thread adapter.

2. What zinc coating standard should I look for?

As per EN 10242 or ASTM A153, the layer must have a minimum mass of 500 g/m², which is about 70 µm. This amount of hot-dip galvanization provides active cathodic protection instead of just a surface barrier, which is very important in places that are wet or salty.

3. Can these fittings handle elevated temperatures?

Yes. For full pressure (PN25) up to 120°C, malleable iron BSPT round face, galvanized round edge 90° elbow pipe fittings are rated. For derated pressure up to 300°C, they are rated. Before putting it in high-temperature process lines, make sure you get the exact rating from your supplier.

4. What sizes are typically available?

Different standard sizes, from ⅛" to 4" BSP, are available for most home, business, and light industry uses. For bigger projects, you might need custom or extended-range quotes.

5. Is OEM labeling available for import traders?

Yes. To help private-label sales in local markets, companies like Zhiyuan Malleable Steel offer full OEM services, which include unique logos, packaging, and labeling.

Source Your BSPT Galvanized Elbow Fittings with Confidence

Zhiyuan Malleable Steel is a certified BSPT round face galvanized round edge 90° elbow pipe fittings manufacturer that works directly with customers. They can also do OEM work, are in line with ISO 9001, and offer logistics support for containers. Our team is ready to offer samples, technical documentation, and competitive pricing, whether you're placing a test order or increasing the volume to three times the previous quarter's level. To get a quote, email us at q1236800000@gmail.com right now.

References

1. BS EN 10242: Threaded Pipe Fittings in Malleable Cast Iron — British Standards Institution, 2015.

2. ASTM A197: Standard Specification for Cupola Malleable Iron — ASTM International, 2020.

3. ISO 7-1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads — Taper External Threads and Parallel Internal Threads — International Organization for Standardization, 2022.

4. ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware — ASTM International, 2016.

5. EN 1562: Founding — Malleable Cast Irons — European Committee for Standardization, 2019.

6. Corrosion Engineering, Science and Technology — Taylor & Francis, 2021.
