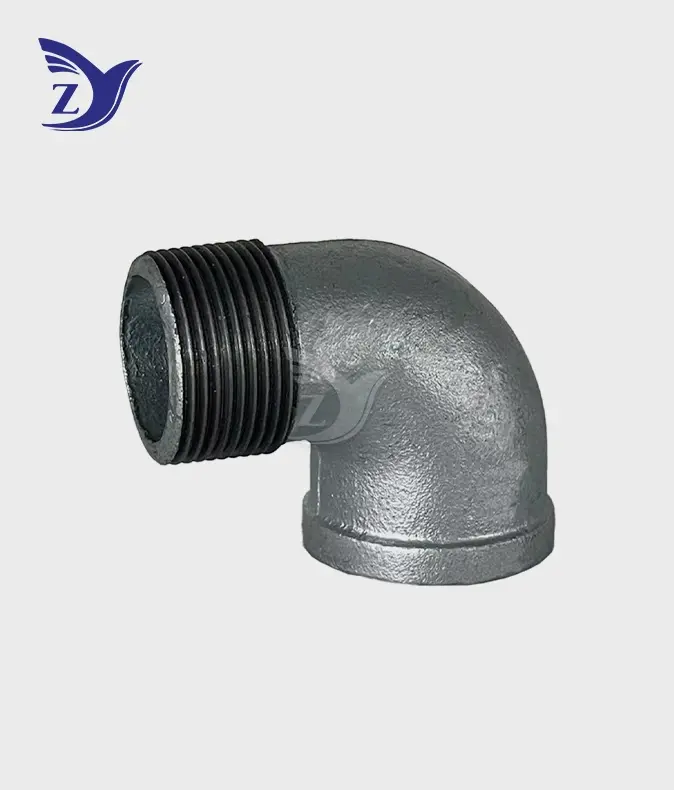

Can I get custom sizes of square face galvanized 90° male female threaded elbow pipe fittings from suppliers?

You can get square face galvanized 90° male female threaded elbow pipe fittings in any size you need from reputable sellers. Manufacturers of malleable iron pipe fittings usually offer customization services that go beyond standard sizes. This means that you can choose specific dimensions, thread types (NPT or BSPT), and coating thicknesses that are perfect for your project. This adaptability meets the growing needs of fire protection engineering firms, city building projects, and businesses in industry areas that have limited space or need to set up pipes in non-standard ways. Customized galvanized elbow fittings are a useful option for complicated pipe systems because they can be made by reliable suppliers with strong production capabilities that meet strict quality standards and reasonable wait times.

Can Suppliers Provide Custom Sizes for These Fittings?

Customization Options Beyond Standard Ranges

Advanced casting manufacturers can make bendable iron elbows in non-standard sizes to meet the needs of a particular project. Customization goes beyond just changing the diameter. It also includes changing the wall thickness, the length of the threads, and even the angle of bending for projects that need bends that aren't exactly 90 degrees. For instance, a petroleum plant might need precision-threaded elbows with an extended female socket depth to fit special valve assemblies, or a fire sprinkler system designer might need fittings with certain centerline-to-face dimensions to work with the building's design.

The choice of material is another way to customize. Standard fittings are made of black heart malleable iron (KTH330-08 or KTH350-10), but higher-grade materials with tensile strengths higher than 350 MPa can be better for some uses. Customizing the thread type lets users choose the exact thread standards, so it works perfectly with current pipeline systems that are set up in the United States, Europe, or Asia.

Key Factors Impacting Custom Orders

When buying square face galvanized 90° male female threaded elbow pipe fittings plan to get anti-corrosive threaded pipe elbows in custom sizes, they should think about a number of practical issues. Depending on how complicated the design is and how busy the maker is, the minimum order quantity is usually between 500 and 2,000 pieces. Custom fits usually have longer lead times than standard products, taking an extra 4 to 8 weeks to deliver because they need special pattern making, casting setup, and quality control procedures.

The cost effects depend on how much the changes are made. Small changes to the sizes of an item could make it cost 15–25% more, and completely custom designs that need new casting models could make it cost 40–60% more. Clear contact with source engineers during the specification stage helps keep things under control and makes sure the final product meets both technical needs and price limits.

Selecting the Right Supplier for Custom Galvanized Square Face Elbow Fittings

Verified Manufacturing Certifications Matter

If you buy industrial-grade square face galvanized 90° male female threaded elbow pipe fittings from a company that has the right certifications, you can be sure that they meet quality standards. Product-specific certifications like UL, FM, and CE show that a product meets safety and performance standards for fire protection, plumbing, and industrial uses. ISO 9001 certification shows that quality management is carried out in a planned way throughout the manufacturing process. When it comes to quality control, direct producers with these skills usually do a better job than distributors who just buy from a few foundries.

Production Capacity and Quality Assurance

How well a seller can handle both big orders and custom requests at the same time depends on how much they can produce. Multiple medium-frequency electric ovens, specialized galvanizing lines, and a lot of machining equipment can be found in facilities that can handle a wide range of orders without delaying deliveries. Looking at a company's quality checking procedures shows how dedicated they are to making sure their products are always the same. Look for providers that use calibrated Go/No-Go tools to check the thread size, do hydrostatic testing at 0.6 MPa to find flaws in the casting, and use magnetic testing to find out how thick the zinc coating is.

After-sales service is what sets great providers apart from average ones. Manufacturers who give replacement policies for broken goods and expert support during installation show that they are sure of the quality of their high-strength, anti-rust, malleable iron parts. This help is very helpful when fixing problems with complicated pipe systems or answering questions about compatibility while a job is being carried out.

Transparent Pricing and Flexible Logistics

Knowing how all the costs work together helps people who work in buying make smart comparisons. Suppliers you can trust give you thorough quotes that break down the prices of materials, customization, galvanizing, and quality testing. Shipping operations that are flexible can handle both big packages for building projects and urgent orders for repairs. Standard-size suppliers who keep a lot of stock can usually meet urgent requests within hours, while special orders are made according to agreed-upon schedules.

Why Choose Square Face Galvanized 90° Male Female Threaded Elbow Fittings?

Advantages Over Alternative Fitting Types

When you compare these joints to socket weld or PVC options, you can see that they work better. The male-female threading design makes assembly faster than welded connections. This saves money on work and makes it easier to take parts apart for repair or system changes. PVC breaks down in UV light and can only be used at temperatures below 140°F. Galvanized malleable iron, on the other hand, can handle pressures up to PN25 (25 Bar) and temps up to 300°F in industrial water and gas pipeline systems. Because threaded connections are modular, it's easier to fix things because techs can just change the parts they need without having to cut lines or drain whole systems.

Customization as a Strategic Procurement Advantage

When you force standard parts into non-standard uses, you have to make trade-offs. Tailored fits get rid of those problems. To avoid having to repair expensive pipes, a local water authority that is updating old infrastructure might need elbows that are the exact same size as old fittings. Custom specs guarantee accurate alignment, which cuts down on installation time and the number of possible leak spots. Customization turns technical needs into useful solutions, like when you can order fittings with certain thread contact lengths or wall sections with extra support for places with a lot of shaking.

Real-World Application Success

Customized square face galvanized 90° male female threaded elbow pipe fittings are often helpful for fire protection engineering firms that are putting in sprinkler systems in old buildings that have odd ceiling heights or architectural features. One system installer said that moving to custom-sized street elbows that didn't need to be modified in the field cut installation time by 30%. By selecting a thicker zinc coating on their NPT/BSPT compatible 90° flow turn valves, industrial sites that work with corrosive chemicals can go longer between repair visits. These examples show that buying parts that are properly defined pays off by making systems more reliable and lowering their costs over their entire lives.

Conclusion

Custom-sized square face galvanized 90° male female threaded elbow pipe fittings are a useful way to solve plumbing problems in factories that standard parts can't handle. Customization from qualified makers lets procurement professionals choose the exact sizes, thread types, and performance qualities that meet the needs of their specific projects. When choosing a supplier, make sure they have verified certificates, a history of production, and thorough quality testing methods. These corrosion-resistant links will work reliably for decades in fire protection, public infrastructure, and industry settings as long as they are installed and maintained correctly. Customization has many strategic benefits, such as making the best use of space and ensuring compatibility. These benefits often make up for the small extra cost compared to standard fittings.

FAQ

How long does it typically take to receive custom-sized galvanized elbow fittings?

Lead times for custom fits are usually between 4 and 8 weeks after the order is confirmed. This depends on how complicated the changes are and how busy the maker is at the moment. For urgent projects, suppliers with specific custom production lines and a lot of casting capacity may be able to speed up orders to 3–4 weeks. Standard-sized fittings in stock usually ship within 48 hours. It's best to order custom parts well before the due date of a job and keep standard sizes on hand in case they are needed right away.

Are there limitations on how much I can customize these fittings?

Most makers can make threads and walls that are any width and length, from 1/8 inch to 6 inches in diameter. Extreme changes that need completely new casting designs are limited by the capabilities of the foundry tools and the properties of the material. The best way to do this is to talk to supplier experts early on in the design process to find out what the limits of feasibility are and what other options will work to meet your performance goals within the limits of production.

How do I ensure compatibility between custom elbows and my existing pipeline system?

Give specific details like the exact thread type (NPT or BSPT), the nominal pipe size, the schedule rate, and any measurement drawings of parts that are already in place. Before placing a big order, ask for sample sizes so that you can check the fit and function in person. Reputable makers offer technical support to make sure their products are compatible and may suggest changes that make it easier to work with your present systems while still protecting the security of the system.

Partner with Zhiyuan Malleable Steel for Your Custom Fitting Needs

To meet your needs for handmade square face galvanized 90° male female threaded elbow pipe fittings, Zhiyuan Malleable Steel has been casting for 26 years and can make 30,000 tons of steel each year. Our ISO 9001-certified factory in Shanxi Province has 156 sets of precision cutting equipment, eight medium-frequency electric ovens, and environmental protection galvanizing lines. This makes sure that the quality of every order is the same. Our UL, FM, and CE-certified products meet foreign standards and are used by fire protection experts, city builders, and industrial companies all over North America.

We can customize more than just standard products; we can also make them in non-standard sizes, with unique thread setups and better coating specs for tough jobs. We mix responsiveness with manufacturing precision by having a large stock of standard sizes that can be shipped within two hours and custom orders that are given on time as agreed upon. Email our team at q1236800000@gmail.com to talk about the details of your job and get a full quote. We are a reliable company that sells square face galvanized 90° male female threaded elbow pipe fittings. We stand behind every product we sell by offering free replacements for any problems and ongoing technical support. You can look at our whole line of products at zymalleablepipefitting.com and learn how our solutions made from pliable steel can make your plumbing systems work better.

References

1. American Society for Testing and Materials. "ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware." ASTM International Standards, 2019.
2. International Organization for Standardization. "ISO 7/1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads—Part 1: Dimensions, Tolerances and Designation." ISO Standards Catalogue, 2018.
3. National Fire Protection Association. "NFPA 13: Standard for the Installation of Sprinkler Systems—Pipe and Fittings Requirements." NFPA Technical Committee Documentation, 2022.
4. European Committee for Standardization. "EN 10242: Threaded Pipe Fittings in Malleable Cast Iron." CEN Standards Database, 2020.
5. American Water Works Association. "AWWA Manual M11: Steel Pipe—A Guide for Design and Installation, Fourth Edition." AWWA Publications, 2017.
6. Malleable Founders Society. "Engineering Properties of Malleable Iron Castings: Material Performance in Pressure Applications." MFS Technical Bulletin Series, 2021.
