BSPT Threaded Elbow Fittings: Applications and Selection Guide

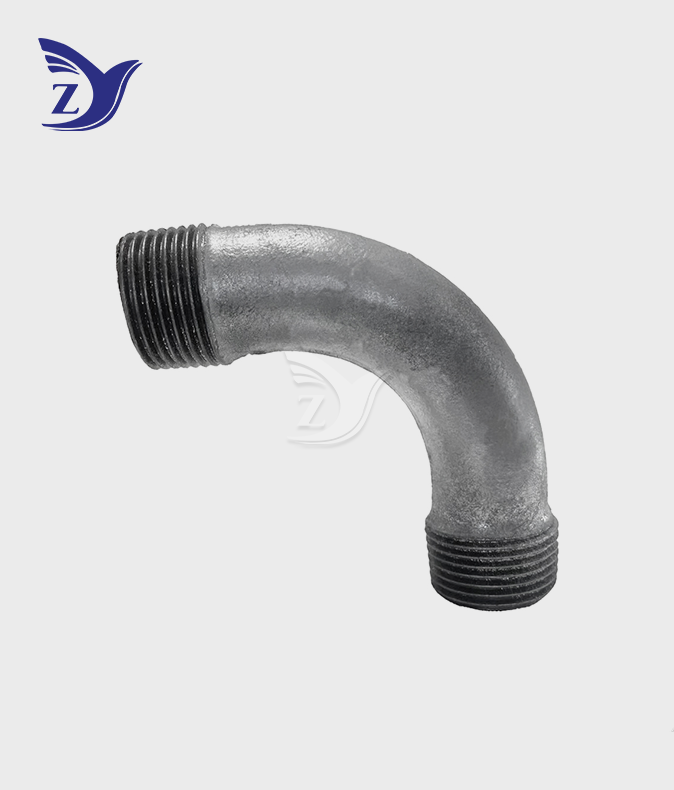

If you source pipe fittings for industrial or construction projects, understanding BSPT threaded elbow fittings is not optional — it is essential. These corrosion-resistant components serve as the backbone of fluid redirection systems across dozens of industries. Among the most specified products in Commonwealth-standard markets are BSPT round face galvanized round edge 90° elbow pipe fittings, engineered from high-strength malleable iron and coated with hot-dipped zinc for long-term anti-rust performance. This guide walks you through their specifications, real-world applications, selection criteria, and procurement strategy.

Understanding BSPT Threaded Elbow Fittings and Their Specifications

What Makes BSPT Threading Distinct

BSPT stands for British Standard Pipe Taper. Its threads have a side angle of 55° and a taper ratio of 1:16. This means that the fitting can seal itself by thread interference alone, without the need for gaskets. This is a very important difference from NPT (National Pipe Taper), which has a side angle of 60° and is most common in North American markets. Putting BSPT and NPT threads together on the same joint will damage the threads and cause leaks right away, so checking the thread standard before buying is a must.

Round Edge Design and Galvanization

The round edge, which is sometimes called the "beaded collar," is a stronger rim around the hole for the female thread. This shape spreads out rotational forces while tightening, which lowers the chance of cracking when torque is high. It also makes it easier to hold a wrench during installation in the field, which is important when pipes need to be put together quickly.

Hot-dipped galvanization applies a zinc coating that is at least 500 g/m² thick, which meets EN 10242 or ASTM A153 standards. This zinc layer acts as a cathode, which means it gives up its own electrochemical balance before the iron below rusts. When used in wet coastal areas or gas delivery networks, this choice of metal directly leads to longer service life. Galvanized malleable iron fittings are usually 30–40% cheaper than stainless steel elbows, but they still prevent corrosion just as well in non-acidic settings.

Applications and Practical Uses of BSPT Round Face Galvanized 90° Elbow Fittings

Where These Fittings Perform Best

The industrial-grade 90° threaded elbow is a mainstay part in systems that need to change directions precisely in small pipe plans. The round-edge pipe bend form that doesn't rust makes it especially effective in the following places:

• Water treatment plants — Hot-dipped galvanized precision-threaded elbows are used to change the flow path of water without introducing rust contamination. This is especially important in distribution networks where pipe walls come into direct contact with treated water.
• Gas distribution infrastructure — The pressure-tight BSPT round face galvanized round edge 90° elbow pipe fittings taper seal is very important in natural gas and LPG systems, where no leaks when the system shakes is a safety requirement, not a choice.
• HVAC and building services — Contractors who put in heating and cooling pipes in businesses rely on NPT/BSPT compatible round-edge fittings because they are consistent in size and easy to line up when putting on multiple floors.
• Oil and chemical processing — The high-strength, anti-rust malleable iron can handle mild heat cycling (up to 300°C at lower pressure), which means that these elbows can be used in light industrial process lines.

These applications share a common demand: reliable direction change that doesn't leak or break down due to corrosion over many years of use.

Installation Best Practices

It is common practice to seal the male BSPT thread with PTFE tape or pipe thread sealing solution before putting it together. First tighten by hand, then use a pipe wrench to add 1.5 to 3 more turns. Not tight enough on a curved fitting can cause the collar to crack, and too tight of a fitting can let water leak. Before joining pipe sections, you should always check the thread gauge.

Comparison and Decision-Making: Selecting the Right Elbow Fittings

BSPT vs. NPT: A Technical Breakdown

Because BSPT and NPT have different thread angles (55° vs. 60°), these two standards can't be used together physically. India, Southeast Asia, the Middle East, Australia, and Africa are all places where British engineering standards are still used today, and BSPT controls most of those markets. In North America and some parts of Latin America, NPT is still the standard. When importing goods for Commonwealth-standard markets, importers must clearly state BSPT on buy orders to avoid costly mistakes.

Galvanized Malleable Iron vs. Stainless Steel

Some galvanized iron elbows, like the BSPT round face galvanized round edge 90° elbow pipe fittings, have a Class 150 (PN 20/25) grade and can handle 25 bar of pressure at room temperature. Because they are made of Black Heart Malleable Iron (ASTM A197 / EN 1562), they are able to bend without breaking, which is a quality that stainless steel austenitic types can't match for the same price. Stainless steel works great in places that are very acidic or full of chlorides, where zinc coating would wear off quickly. When not in those harsh conditions, coated iron is a better deal per unit of pressure.

Round edge fittings always do better than sharp edge options when it comes to torque tolerance. The strengthened collar takes on the stress that is put on the hoop when the wrench is tightened. This extends the service life in situations where the part needs to be taken apart and put back together again and again.

Procurement Tips: Buying BSPT Galvanized Elbow Fittings for Your Business

If you are looking for BSPT round face galvanized round edge 90° elbow pipe fittings, it is best to deal with companies that have certifications that can be checked. At the very least, they should have ISO 9001 certification, and CE, UL, or FM certifications show that they meet international safety and pressure standards. Before you place a large order, make sure you get material test certificates (MTCs) and reports on the thickness of the galvanization.

Here are the real-world factors that affect how efficiently procurement works:

• MOQ flexibility — Reliable manufacturers let you try out one or two 20GP containers before placing a 40HQ order. This lowers your financial risk on the first order and lets you test the quality in your local market.
• OEM and custom labeling — Suppliers who offer ODM/OEM services let importers put their own brand on packaging and labels, which gives them a big edge in Southeast Asian and Middle Eastern markets where the goods are sold.
• Documentation support — A good BSPT elbow provider will give you all the paperwork you need to send the goods, like packing lists, commercial bills, material licenses, and certificates of origin. This makes it easier to get the goods through customs in your country.
• Payment terms — T/T with a 30% deposit when the order is confirmed and the remaining 70% due before the shipment. This is how most business relationships work. First-time buyers can feel safer about their finances when they buy from suppliers who accept Letters of Credit (LC).

These things together decide whether or not your supply chain stays stable during regular demand changes.

Building Trust With BSPT Galvanized Elbow Fitting Brands and Suppliers

When choosing a supplier, it's not just about price; it's also about how reliable they are. Shanxi Taigu Zhiyuan Malleable Steel Co., Ltd. was established in 2006 and has been making pipe fittings for more than 26 years. They are a certified company that can make more than 30,000 tons of products every year and meet more than 1,000 standards. The company has 8 medium-frequency electric furnaces, 156 machining units, and a hot-dip galvanizing workshop with environmental protection furnaces. All of these are organized under ISO 9001 quality management.

Zhiyuan Malleable Steel stands out in foreign business-to-business buying because it offers full-cycle service. Standard items are shipped within two hours of being in stock. Products that are broken are always replaced without dispute. Double-layer cardboard packaging keeps fittings safe during ocean freight, which lowers the risk of damage during the 30–45 day shipping window to international markets. Their ODM/OEM program lets buyers who need private-label product lines change the name of the products they sell.

Some of the certifications that are held are CE, UL, and FM, which are acceptable for quality checks in most target trade markets. Buyers who have worked with Zhiyuan say that the thread tolerances are always the same, the zinc coating thickness is always the same, and technical communication is always quick and clear.

Conclusion

BSPT round face galvanized round edge 90° elbow pipe fittings are a reliable and affordable way to change the path of industrial pipelines in water, gas, oil, and HVAC systems. Long-term efficiency and leak-free service depend on choosing the right thread standard, surface treatment, and edge shape. Working with a certified, high-capacity manufacturer like Zhiyuan Malleable Steel lowers the risk of buying while protecting profit margins for imports that sell to Commonwealth-standard markets.

FAQ

1. How do I identify BSPT threads in the field?

The flank angle of a BSPT thread is 55°, and the thread taper is 1:16. A thread gauge can help you be sure of this. With NPT tools, which use a 60° angle, the threads won't fit together properly. If you're not sure, ask your provider for a dimensional proof.

2. What is the core difference between BSPT and NPT threads?

For BSPT, the thread angle is 55°, and for NPT, it's 60°. They are both tapered, but they can't be switched out. In Commonwealth-standard markets, BSPT is the most common type, while in North America, NPT is the standard. The only safe way to connect the two is with adapters.

3. Are galvanized BSPT elbows suitable for highly corrosive environments?

Hot-dipped zinc parts work well in damp, outdoor, and slightly corrosive conditions. The zinc covering protects against cathodic damage. If the environment is very acidic or has a lot of chlorine, talk to your provider about other coatings or stainless steel choices.

4. What pressure rating do these fittings carry?

Fittings that are standard Class 150/PN 25 can handle 25 bar at room temperature and lower rates at temperatures up to 300°C.

Request a Quote from Zhiyuan Malleable Steel

Zhiyuan Malleable Steel sells approved BSPT round face galvanized round edge 90° elbow pipe fittings that are fully OEM-capable, compliant with ISO 9001, and have been checked for CE, UL, and FM certifications. Our team responds quickly with competitive prices and all the export paperwork you need, whether you are placing a trial order or a full container order. To talk about your needs, email us at q1236800000@gmail.com.
