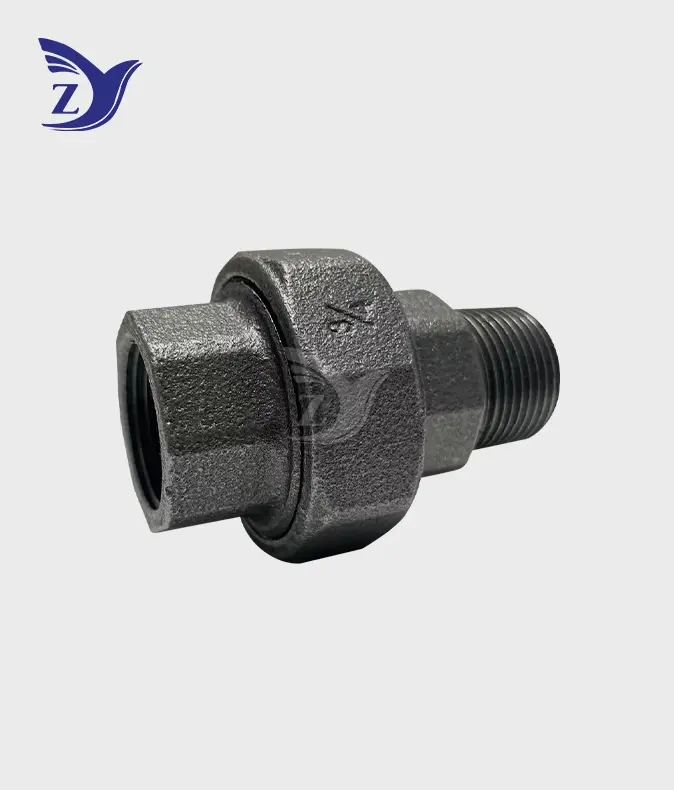

Black Male-Female Union 331 Pipe Fittings Dimensions​

For projects to be successful, it's important to know the exact specs of black male-female union 331 pipe fittings when looking for parts for industrial pipeline systems. These iron fittings can be shaped and come in specified sizes from 1/8" to 6". The thread sizes match either NPT (ASME B1.20.1) or BSPT (ISO 7-1) standards. The overall length varies by size, usually between 2.5 inches for smaller sizes and over 8 inches for bigger ones. The hex nut width makes it easier to use a wrench when installing. Pressure rates usually meet Class 150 standards, which means they can handle up to 300 psi for water, oil, and gas uses. To make sure they don't leak, it's important that the dimensions are correct.

Dimensional Specifications Across Common Sizes

Accurate readings make sure that the new system will work with the old ones. When engineers are specifying, these are the usual sizes they use:

Small Diameter Fittings (1/8" to 1/2")

The length of these small unions is between 2.5 and 3.5 inches. The male threaded part is usually between 0.75 and 1 inch long, and the depth of the female port fits the normal lengths for pipe thread engagement. Standard wrench sizes can fit hex nuts with widths between 0.8 and 1.25 inches. For NPT, the thread pitch follows Class A tolerance, and for BSPT, it follows Class 1 tolerance. This makes sure that a good pipe thread sealer does its job.

Medium Range (3/4" to 2")

Black male-female union 331 pipe fittings are between 4 and 6 inches long, which are the most popular sizes used in industrial plumbing and HVAC systems. Thread engagement goes up in a straight line, about 1.25 to 1.5 inches on the male end. This gives you more contact area for uses that need more pressure. The locking nut's width increases to 1.5 to 2.5 inches, which means that bigger pipe wrenches are needed for fitting. The wall thickness at the union seat is about 0.25 to 0.35 inches. This makes the 331 union structure stronger against shaking and hydraulic shock because it is high-strength and doesn't rust.

Large Bore Applications (2-1/2" to 6")

These big black male-female union 331 pipe fittings are used in heavy industrial setups. The total length of the unit is 7 to 10 inches. The male thread sticks out at least 2 inches, and the depth of the female socket makes sure that the pipe threads that are meeting fully join. Hex sizes get bigger to 3 to 5 inches across flats, so chain wrenches are often needed to apply the right amount of force. The strong design can handle flow rates higher than 500 GPM and keeps the structure strong up to Class 150 pressures.

These consistent sizes make it easier for plumbing hardware suppliers to keep track of their stock. They also like that products made by companies that follow ASME and ISO standards can be used interchangeably. When coordinating big orders across different project sites, procurement teams find it easier when measurements are all the same.

Procurement and Sourcing of Black Male-Female Union 331 Pipe Fittings

To get around in global supply chains, you need to know about wait times, minimum order amounts, and how to check the quality of goods. Purchasing managers who have to balance the prices of black male-female union 331 pipe fittings with the timelines for projects need to work with suppliers they can trust to do a good job every time.

Supplier Selection Criteria

Manufacturers that have been around for a while and have ISO 9001 certification provide recorded quality control that makes sure that all production batches are the same size. Ask for material test records (MTRs) that prove compliance with ASTM A197, especially for projects that need to be inspected by a third party or have proof of code compliance. When suppliers keep stock in the United States, lead times drop from 8 to 12 weeks for foreign production to 2 to 7 days for local stock. This is a huge benefit for supporting tight building plans.

Look at how much production ability you have compared to how many orders you have. Facilities that can make 30,000 tons per year can handle big orders without affecting delivery times. Smaller specialty shops may be able to accommodate unique designs, but they may have trouble with large orders that take more time to make than they can handle. Compare these things to what the project needs, keeping in mind that having a variety of vendors lowers supply chain risks.

Pricing Dynamics and Cost Optimization

The prices of iron ore and scrap metal affect the costs of materials, which make up about 40 to 50 percent of the prices of final fittings. Size has a big effect on unit prices. For example, 1/2" unions cost about $3–$5 each when bought in thousand-piece lots, while 3" versions cost $35–$55. Black finishes are 15–20% less expensive than galvanized ones, which makes a big difference when you need to buy dozens of unions for full valve packages.

Volume savings start at 500 pieces of each size and go up to 1,000, 5,000, and full-pallet orders. These savings can be unlocked by combining purchases made at different stages of a project, though the costs of keeping goods in stock may cancel out some of the benefits. Talk about blanket buy orders with planned releases to get good prices and keep your stock levels low.

Customization and Lead Time Considerations

Standard NPT/BSPT suitable male-female unions are in stock and ready to ship, meeting the needs of your project right away. Depending on the production queue, manufacturing wait times can be anywhere from 4 to 8 weeks for custom thread types, special finishes, or non-standard sizes. If an OEM buyer wants private labeling, they should include marking information in the initial quote so that production setup doesn't get held up.

International shipping takes an extra 3 to 6 weeks for ocean freight. For immediate needs, plain express is available at a higher cost. Domestic sellers like Zhiyuan Malleable Steel keep a stock of popular sizes so they can ship the next day for replacements or unexpected project growth. This responsiveness is very helpful when working with building plans where delays affect many trades that depend on each other.

For initial sales, ask for approved dimensional inspection reports to set quality standards before committing to large-scale purchases. Sampling tools make sure that production fits meet specs. This keeps expensive field rework from having to be done on parts that aren't within tolerance.

Why Choose Our Black Male-Female Union 331 Pipe Fittings?

Since 2006, Shanxi Taigu Zhiyuan Malleable Steel has been making precision-threaded pipe fittings. We've built our name on providing steady quality and quick customer service. Our 50,000-square-meter building has 156 machine units and eight medium-frequency electric furnaces that make 30,000 tons of products every year that meet more than 1,000 different standards.

Manufacturing Excellence and Certification

At every step of the production process, from checking the raw materials to the final pressure test, our industrial-grade black male-female union 331 pipe fittings are subject to strict quality control. Our methods are governed by ISO 9001 certification, and our products have CE, UL, and FM approvals that are accepted on markets around the world. The annealing process for malleable iron changes the base material into parts that meet the mechanical qualities of ASTM A197. This is shown by regular tension tests and metallurgical analysis.

We take care of two 100-ton natural gas annealing kilns, which make sure that the right heat treatment happens to give the materials the flexibility they need to work reliably in the field. Checking the dimensions with calibrated tools shows that the threads are accurate within Class A tolerances. This gets rid of the fit-up issues that come with using low-quality imports. Fire protection workers trust this level of attention to detail when building sprinkler systems, where a broken part could have terrible results.

Customer-Focused Service Model

Our team knows that buying choices are based on project deadlines. Standard sizes ship within two hours of proof of order from our large inventory, helping builders who need answers right away. For custom orders, a project manager is assigned to them, and the production schedule is adjusted to meet your installation goals. We stand behind our goods by offering replacement guarantees for any parts that are found to be defective during installation. This takes the risk out of the buying process for you.

Technical support extends beyond the sale—our 38-person engineering staff assists with specification selection, dimensional verification, and application troubleshooting. Whether you're a municipal water utility standardizing components across multiple treatment plants or an international trading company serving diverse markets, we adapt to your communication preferences and documentation requirements.

Competitive Advantages for B2B Buyers

Fittings are protected during shipping by double-layer cardboard boxes, so they arrive undamaged even after being shipped across the country. This careful handling cuts down on the time needed for review and gets rid of returns caused by damage during handling, which speeds up the receiving process. With ODM and OEM capabilities, private label programs can help wholesalers build brand recognition in regional markets. Custom marking is possible for small minimum orders.

By using Shanxi Province's abundant resources and effective production methods, prices stay low without lowering quality. Our location 40 kilometers from Taiyuan and 30 minutes from the airport makes it easier to coordinate operations, whether you need to set up urgent air freight or containers for shipping.

We are a black male-female union 331 pipe fittings seller that wants to build long-term relationships with trading businesses, procurement managers, and project engineers. Come experience the Zhiyuan difference. Email our team at q1236800000@gmail.com to talk about your unique needs, get quotes, or set up tours of the building. You can look at all of our products at zymalleablepipefitting.com and download technical specs to help you with your planning work.

Conclusion

It's important to find the right black male-female union 331 pipe fittings by matching the accuracy of the measurements, the performance of the material, and the dependability of the seller. These fittings have been used successfully in a wide range of industrial settings, from fire safety systems to local gas distribution. They are easy to install and keep pressure integrity thanks to their dual-threaded design. Understanding the dimensions makes sure that everything works together, and comparing the different materials helps you make the most cost-effective purchases. When you build and maintain things the right way, they last a lot longer and protect your infrastructure investments. Working with well-known manufacturers guarantees quality and quick help, which are very important when the success of a project rests on the dependability of its parts.

FAQ

What thread standards are available for 331 unions?

Most of the time, these black male-female union 331 pipe fittings are NPT (National Pipe Taper) following ASME B1.20.1 or BSPT (British Standard Pipe Taper) following ISO 7-1. BSPT threads are 55 degrees, while NPT threads have a 60-degree angle and a 1:16 taper. Both make interference seals, but you can't use one instead of the other—mixing standards leads to leaks. Always check the thread type before placing an order to make sure it works with the pipes you already have.

How do black malleable unions differ from galvanized versions?

Since black parts don't get zinc coated, they can be used in places where high temperatures could damage galvanizing, like oil, gas, and steam. They cost 15 to 20 percent less than zinc versions of the same thing, but they don't hold up as well against rust in wet places. It is safer for zinc to flake off of galvanized joints in steam mains above 200°F, but they last longer in condensate lines. Based on the conditions of use, black protection is best for dry areas while metal protection may be better for wet areas.

What pressure ratings do these fittings handle?

Standard black flexible unions usually meet Class 150 standards, which mean they can handle 300 psi of water, oil, or gas at room temperature or 150 psi of full steam. Pressure capacity changes with temperature; rates drop as working temperatures get close to the material's limits, which are around 200°C. Always check the pressure-temperature charts provided by the maker for the specific service conditions. This is especially important for important uses where safety margins are important, such as fire suppression systems or process pipes.

Partner with Zhiyuan Malleable Steel for Your Next Project

Zhiyuan Malleable Steel has been making things for 18 years and has quick customer service that is suited to the needs of businesses that buy things from each other. The quality of our black male-female union 331 pipe fittings meets international standards, and our prices are low enough to help you stick to your budget. Whether you need quick stock shipments for current projects or custom solutions for unique uses, our team can do the job well and backs it up with full certifications and replacement guarantees. Email our sales team at q1236800000@gmail.com to talk about bulk prices, technical details, or setting up shipping of samples. Find out why contractors, distributors, and building companies all over North America trust Zhiyuan to make the best black male-female union 331 pipe fittings. You can get a full quote right now by going to zymalleablepipefitting.com.
