Beaded vs. Plain Couplings: Which Fits Your Ductwork?

If you manage ductwork procurement for industrial or commercial systems, you have likely faced this question: beaded or plain coupling? The short answer depends on your pressure requirements, environment, and budget. A beaded galvanized round edge male-female reducing coupling uses a raised reinforcement collar and precision-threaded male-female ends to deliver tighter seals and greater structural resistance than smooth-edge alternatives. Plain couplings work well in low-demand settings, but in high-pressure water, gas, or steam pipelines, the beaded design consistently outperforms. This article breaks down the differences so you can order with confidence.

Understanding Beaded and Plain Galvanized Reducing Couplings

Before comparing how well these two types of fittings work, it's helpful to know what makes them physically different.

What Is a Beaded Coupling?

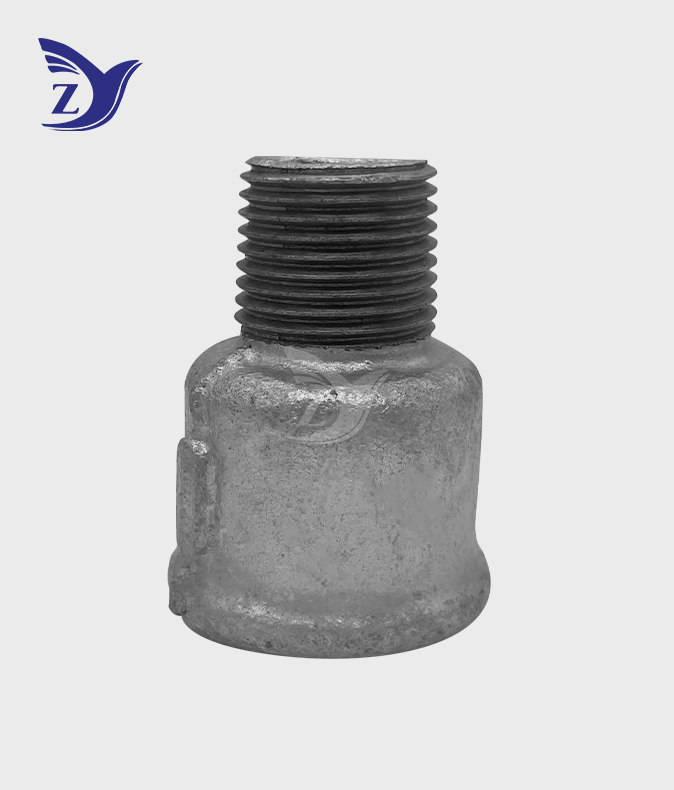

The "bead" is a high ridge that is at the open end of a beaded connection. When installing with a lot of torque, this collar strengthens the fitting so it doesn't break, and it also spreads the stress of the wrench equally around the circumference. Because it has a male-female thread configuration, one end has an external thread and the other has an internal thread. This lets it connect two pipes of different diameters with just one part. Most of them are made from Grade KTH300-06 or KTH350-10 malleable iron and are hot-dip galvanized to meet ASTM A153 or ISO 1461 standards.

What Is a Plain Coupling?

It is sometimes called a smooth-edge coupling. A plain coupling doesn't have the reinforcing bead. Its ends are cut straight, which makes it look better and makes it slightly cheaper to make. Plain couplings work well for dry-system ductwork, low-pressure air lines, and low-cost uses where the fitting doesn't have to deal with a lot of temperature changes or mechanical shaking. They can still be used if the fitting conditions are managed and the torque needs are kept modest.

How the Two Designs Diverge

In the field, the difference in structure between the two types is clear. The dimensions of beaded joints meet ISO 49/EN 10242 standards, and the beaded galvanized round edge male-female reducing coupling makes them more resistant to pressure. Most of the time, plain couplings have lower pressure ratings and follow looser size tolerances. When purchasing dual-thread reducers that are NPT/BSPT suitable and will be used in steam, gas, or high-humidity settings, that difference is not just for looks; it affects how the reducers work.

Key Performance and Functional Differences Between Beaded and Plain Couplings

There are big differences in how well these two types of fittings work in three areas: how well they resist corrosion, how well they seal, and how they install.

Corrosion Resistance and Surface Treatment

Both types of couplings get a zinc layer that protects them from rust during hot-dip galvanization, but the thickness of the zinc layer is important. The zinc coating on a good beaded fitting is thicker than 70 microns (500 g/m²), which forms a strong bond between the metals that keeps water out for much longer than electroplated coatings. Plain couplings from lower-quality suppliers often have thinner zinc layers, which makes corrosion faster in wet or outdoor settings. A proven coating thickness is a must for water and gas pipeline diameter transition joints that come into touch with dirt or condensation.

Thread Precision and Sealing Performance

Beaded galvanized round edge male-female reducing coupling made to BSPT or NPT standards has precision-machined threads with a taper of 1:16 (BSPT) or 1:16 (NPT). This makes an interference fit that closes under pressure without the need for sealant. When the temperature changes, plain connections with looser thread specs can let small leaks happen. If you choose a cheaper fitting for a city gas meter retrofit or a steam condensate return line, the safety and legal risks are much higher if the thread seal fails.

Installation Complexity and Size Range

The male-female design of a round-edge reducing joiner needs to be precisely aligned along its axis during assembly, which is one more step than with plain connections of the same diameter. But with this setup, you don't need any extra connections to switch between pipe sizes, which saves a lot of time on complicated HVAC manifolds or farm irrigation pump stations. Both types come in a wide range of diameters, and reliable companies offer ODM/OEM fitting to fit ducts that don't follow standard sizes.

Advantages of Beaded Couplings over Plain Couplings in Industrial Applications

The beaded design is used on industrial job sites because it has real engineering benefits that plain connections can't match in tough situations.

Below are the main reasons why the threaded design is better for performance:

• Superior sealing under pressure: The bead reinforces the fitting's orifice, preventing deformation when pipe wrenches apply the torque needed for a gas-tight or water-tight joint. This is especially relevant in PN25 (25 bar) rated systems operating between -20°C and 120°C, where joint integrity is tested continuously.
• Vibration and thermal cycle resistance: Malleable iron's controlled ductility allows slight deformation without cracking. In commercial boiler rooms or industrial HVAC systems, thermal expansion and contraction cycles stress rigid fittings repeatedly; the beaded malleable adapter absorbs that stress without fracturing.
• Ergonomic wrench grip: The round edge profile distributes clamping force evenly, reducing the risk of fitting damage or personal injury in confined spaces such as gas meter boxes.

Because of these benefits, engineers who work with industrial pipes, steam systems, and farming networks that are exposed to high humidity prefer to use beaded connections. Plain couplings can still be used for dry air ductwork and non-pressurized enclosures where cost is the most important factor.

Procurement Guide: Selecting the Right Galvanized Reducing Coupling for Your Needs

It takes more than comparing unit prices to find the right size at scale. A clear set of factors must be used by B2B procurement teams to judge sellers.

Certifications and Quality Standards

Give more weight to sellers whose goods have CE, UL, or FM marks and who are certified by ISO 9001. These approvals show that the company has a written quality management system and that the parts meet pressure and material standards that are common in the European and North American markets. Certified ring and plug gages should be used to check the accuracy of the threads, and a magnetic thickness measurement should be used to check the thickness of the zinc coating, not just what is written on the spec sheet.

Pricing Structure and Minimum Order Quantities

The economics of buying in bulk favor sellers who offer different prices for different container loads (20GP vs. 40HQ). Check to see if the supplier's MOQ fits with the way you keep your inventory. When you overstock sizes that don't move quickly, you tie up working capital. When you understock fast-moving NPT/BSPT round-edge male-female reducing couplings during peak season, you create expensive order gaps. Ask about consignment choices and shipping plans that are spaced out if your cash flow needs to be flexible.

Lead Times and Supply Consistency

A beaded galvanized round edge male-female reducing coupling supplier's ability to keep delivery windows during busy and slow times is often what makes or breaks long-term contracts. Check to see how much of your top ten SKUs are in stock and ask for written lead times for custom orders. Your sales team can commit to customers further down the line without worrying about availability when delivery cycles are stable.

FAQ

What distinguishes a beaded coupling from a hex bushing?

There is no extra length in the setup because the hex nut fits fully into the female fitting. A round-edge male-female reducing coupling makes the connection point longer, which is needed when the access depth or distance between components makes it impossible to use a bushing. When you need to reduce the width and still leave some space between the joined parts, choose the reduced coupling.

Can these fittings handle potable water?

Standard for lines that carry non-potable water, compressed air, and gas is hot-dip galvanized iron valves that can be shaped. If the fitting is only going to be used with potable water, make sure it fits the standards of NSF/ANSI 61 and your local plumbing codes. In many U.S. areas, these codes say that products must not contain lead.

What pressure class should I specify?

At room temperature, a Class 150 opening can handle 300 psi (WOG grade). For important industrial lines, Class 300 fittings have thicker walls and higher pressure ratings. Before ordering a lot of something, you should always make sure that the class marking on the fitting body matches the working settings of your system.

Can I weld a galvanized malleable iron fitting?

No, welding malleable iron makes the joints brittle because of the carbon nodules in it, and the zinc coating gives off harmful zinc oxide fumes. Threaded connections should be used throughout the assembly, and welded joints should only be used where non-galvanized carbon steel parts are built into the system.

Conclusion

What determines whether a connection is plain or beaded is where and how it will be used. For pressure water, gas, and steam systems, beaded galvanized round edge male-female reducing couplings have been shown to improve sealing, corrosion protection, and mechanical longevity. When installation is easy and cost is the main concern, plain couplings work well in dry ductwork with low demand. Partnering with a verified maker who has ISO 9001, CE, UL, and FM certifications lowers quality risk and supports consistent performance later for procurement teams that handle large orders with a lot of different specs.

Get a Quote from Zhiyuan Malleable Steel — Beaded Galvanized Reducing Coupling Supplier

Since 2006, Zhiyuan Malleable Steel has been making pipe fittings out of malleable iron. They can make up to 30,000 tons of products each year and have more than 1,000 different product specifications. Our beaded galvanized round edge male female reduction coupling line comes in export-standard boxes and meets the standards of ASTM A153 for zinc finish. To get tiered pricing, samples, or a full catalog, email our technical team at q1236800000@gmail.com or go to zymalleablepipefitting.com. Certified by ISO 9001. You can get marks from CE, UL, and FM.

References

1. American Society for Testing and Materials. ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. ASTM International, 2016.
2. British Standards Institution. BS EN 10242: Threaded Pipe Fittings in Malleable Cast Iron. BSI, 1995.
3. International Organization for Standardization. ISO 49: Malleable Cast Iron Fittings Threaded to ISO 7-1. ISO, 1994.
4. International Organization for Standardization. ISO 1461: Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles. ISO, 2009.
5. American Society of Mechanical Engineers. ASME B1.20.1: Pipe Threads, General Purpose (Inch). ASME, 2013.
6. NSF International. NSF/ANSI 61: Drinking Water System Components — Health Effects. NSF International, 2020.
