Applications of Black Square Face Cross Pipe Fittings In Multi-Pipe Systems

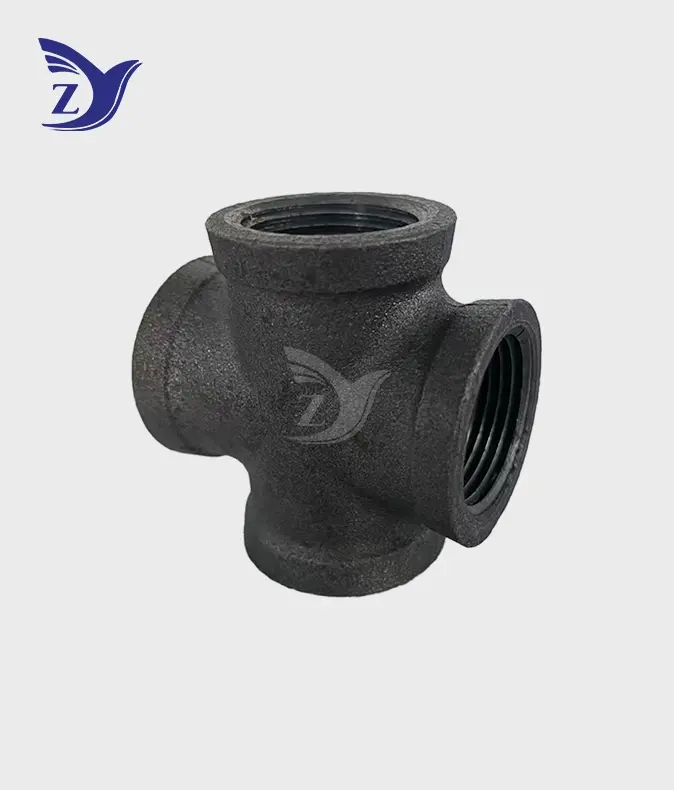

Black square face cross pipe fittings are important four-way distribution parts in multi-pipe systems. They let engineers split fluid or gas flow into three separate paths from a single source. These threaded fittings are made from malleable iron and have precise NPT or BSPT threads. They are used to solve difficult pipe problems in fire protection, HVAC, city water systems, and petrochemical sites. The unique square face design, which has flat, reinforced surfaces at connection points, makes it easier to use a wrench and improves the structure's strength during high-torque installation. This lowers the risk of cracking or deformation that can happen with regular beaded fittings in tough conditions.

Core Applications of Black Square Face Cross Pipe Fittings in Multi-Pipe Systems

Black square face cross pipe fittings are useful in many different types of industries, and each one uses their unique performance qualities to solve problems. Understanding the context of an application helps procurement pros match the proper requirements to the needs of the project.

Fire Protection and Sprinkler Systems

In an emergency, fire control networks need to be completely reliable. When compared to tee-based designs, black square face cross pipe fittings make it easier to distribute water from main supply lines to multiple sprinkler branches by cutting down on the number of joints. The square face design can handle the hydraulic shock of quickly opening and closing a valve and keeps the seal intact for years when the valve is not in use. Some fire safety professionals like the black malleable iron construction because it doesn't rust and works better than galvanized choices in places where zinc rusting could contaminate sprinkler holes.

Municipal Water and Gas Distribution

When planning neighborhood service networks, gas and water companies depend on the ability to distribute power in more than one way. The cross fittings with precision threads make it easier to join branches at meter stations, pressure control points, and service laterals. For foreign infrastructure projects that follow British standards, BSPT compatibility is very useful, while NPT threading is useful for North American city systems. The high strength means that it will last for decades in buried uses where the costs of digging up and replacing parts far outweigh the original material investments.

HVAC and Heating Systems

In business buildings, installing climate control systems often requires complicated pipe plans so that centralized equipment can serve many zones. These industrial-grade pipe crosses with multiple branches make it easier to distribute hydronic heating and cold water. This lets mechanical engineers set up efficient manifolds in small mechanical rooms. When moving pumps vibrate, the malleable iron construction dampens the vibrations better than welded steel options. This keeps noise from traveling through building structures. Temperature changing resistance keeps joints from breaking, which would lower the efficiency of the system and make people less comfortable.

Petrochemical and Process Industries

Chemical processing plants need black square face cross pipe fittings that can handle high pressures and acidic media. Petroleum products, chemicals, and process fluids would quickly damage less durable materials, but the black finish and material makeup keep them from breaking down. Plant engineers choose these fittings for utility systems that help with production, like fire protection circuits, cooling water networks, and instrument air distribution systems. Being able to make small four-way junctions cuts down on pipe runs and works with crowded pipe rack setups that are common in chemical plants and refineries.

Industrial Manufacturing and Compressed Air Systems

Compressed air is used for pneumatic tools, automatic equipment, and process control in manufacturing. The black malleable square-edged cross makes shop air flow more efficiently by providing drop places for multiple desks from overhead trunk lines. The pressure grade works with most compressor outputs, and the threaded connections make it easy to change the setup as production needs change. Maintenance teams like that they can take parts apart for regular cleaning and inspection, which isn't possible with options that are forever welded.

How to Choose the Right Black Square Face Cross Pipe Fittings for Your Multi-Pipe System?

To choose the right parts, you need to carefully look at their working features and compatibility factors. This organized method cuts down on specification mistakes that cause early fails or pricey redesigns of the black square face cross pipe fittings within the layout.

Assessing Pressure and Temperature Requirements

First, write down the highest pressure and temperature that your system will have to work in. Standard Class 150 fittings can handle 362 psi at room temperature, which is enough for most business and light industry uses. For systems to work above these limits, they need better specs or different materials. Pressure rates and seal compound choices are both affected by temperature. For example, thread sealants that work in steam systems above 200°C are different from those that work in cold water systems. Make sure you have enough safety gaps by comparing your working envelope to the manufacturer's pressure-temperature curves.

Material Compatibility Analysis

Fluid chemistry affects how long something lasts. Black iron that can be shaped works well with fuels, natural gas, steam, and water that isn't drinkable, but it can rust quickly in very acidic or basic conditions. The material is resistant to organic chemicals, which is good for petrochemical uses. But for public water systems, they need to think about the chemistry of the water in their area. For example, water that is aggressive and has a low pH or high chloride content may need different coatings or materials. Because black fittings aren't zinc galvanized, there are no worries about dezincification in some water situations. This makes them better for some city uses.

Thread Standard Selection

Location and the machinery that is already in place often determine the type of thread. NPT threading is mostly used in North American projects, while BSPT is more common in Europe, the Middle East, and Asia. When you mix thread standards in the same system, you open the door to leaks and communication problems. Check the specs of current pipes before buying new ones to make sure they will work together. Consider the availability of the supply chain and the familiarity of the staff when planning new installations. For example, choosing thread standards that aren't popular in your area can make future maintenance and growth more difficult.

Comparing Square Face vs. Round Beaded Designs

When installing things that need a lot of assembly pressure or are under a lot of mechanical stress, the square face design really does help. The flat sides keep the wrench from slipping and spread the gripping force more widely, which keeps the surface from getting damaged during installation. This is very important when working with bigger sizes because the link force values go up a lot. On the other hand, round beaded fittings are fine for low-pressure home uses where ease of installation is more important than structural strength. The small cost increase of square face designs should be weighed by procurement managers against the lower chance of installation damage and higher long-term reliability in tough commercial and industrial settings.

Procurement Insights: Buying Black Square Face Cross Pipe Fittings

Strategic choices about where to get black square face cross pipe fittings affect project timelines, costs, and the long-term dependability of systems. Procurement managers can improve the buying process by knowing how the market works and what suppliers can do.

Manufacturer vs. Distributor Considerations

When working with a direct manufacturer, it can be helpful for big jobs or specific needs. Zhiyuan Malleable Steel keeps a large stock of standard configurations, which lets them quickly meet the needs of important projects and also lets them make changes to non-standard configurations. Our yearly production ability of 30,000 tons can handle both large orders and long-term supply deals. Distributors and wholesalers help projects that need smaller amounts or would rather have stock that is close by. However, during replenishment rounds, wait times for odd-sized items may get longer. When choosing procurement outlets, think about the size and length of the job you need to complete.

Customization and Original Equipment Manufacturer (OEM) Services

For some uses, changes that aren't in the list are needed. Custom thread setups, special finishes, changes in size, or upgrades to the material can meet specific needs that standard goods can't. Companies that have their own engineers and flexible production methods can quickly come up with custom solutions. Our technical team works with OEM partners and engineering firms to create custom fittings that meet specific performance requirements. These fittings can be tested and prototyped to make sure they work. Talk about the needs for customization early on in the planning part of the project to make sure there are enough time for development and approval.

Conclusion

When used strategically, black square face cross pipe fittings improve the performance of multi-pipe systems in a wide range of industrial settings. These precision-engineered parts are reliable because they are made of high-quality materials, have a strong square face, and are compatible with standard threads. The four-way distribution feature makes complicated pipe plans easier to understand while keeping pressure integrity and corrosion resistance. It can be used to support fire protection networks, city infrastructure, HVAC installations, or petrochemical operations. Careful specification selection that matches system parameters, along with the right way to put it and regular upkeep, guarantees years of reliable service. Even though multi-pipe systems are getting more complex, high-quality malleable iron cross fittings are still essential for running a successful business.

FAQ

What are the benefits of the square face style over regular threaded fittings?

The square face shape makes the structure stronger because the link points have flat, reinforced sides. This shape spreads installation pressure out more evenly, which lowers stress levels that lead to cracks in regular beaded designs. The flat sides make it easier for the wrench to grip, so the tool doesn't slip and the surface doesn't get damaged when putting together larger diameter fittings with a lot of force. The better mechanical stability helps systems that are vibrating or going through temperature cycles for black square face cross pipe fittings.

Can these fittings be used in potable water systems?

Black malleable iron cross valves work great for gas, oil, steam, and water that isn't drinkable, but they should not be used in drinking water systems without careful thought. Some acceptable coatings are antimicrobial, but the black finish isn't one of them, and in some places, non-galvanized iron can't be used in drinkable water service. Before using these fittings to distribute drinking water, check your local plumbing rules and water company standards. Alternatives made of galvanized, moldable iron might work better for uses with drinkable water.

How do I figure out which thread sealant I need for my job?

The temperature, pressure, and chemicals of the fluid affect the choice of thread glue. PTFE tape can be used for many things and can handle temperatures up to 260°C. It is resistant to chemicals and easy to use. Anaerobic pipe seals work better in places with a lot of shaking, but the surface needs to be carefully prepared first. For example, graphite-based materials that can handle harsh circumstances may be needed in high-temperature steam systems. Sealants that contain gasoline distillates should not be used with air because they could catch fire. Manufacturer suggestions and industry norms give advice that is specific to the purpose.

Partner with Zhiyuan Malleable Steel for Reliable Multi-Pipe System Solutions

Zhiyuan Malleable Steel can help procurement managers and engineering teams find a reliable black square face cross pipe fittings supplier in a number of ways. We have been researching and making pipe fittings for 26 years, and our quality is backed by ISO 9001, CE, UL, and FM certificates. We can easily handle both standard needs and custom OEM projects thanks to our 30,000-ton annual capacity and more than 1,000 product specs. Our standard inventory ships within two hours, and our expert team works together on non-standard specs to meet the needs of each project. Double-layer cardboard wrapping protects products while they're being shipped internationally, and our policy for replacing broken products shows that we care about customer happiness. Connect with our team at q1236800000@gmail.com or visit zymalleablepipefitting.com to talk about your needs for a multi-pipe system. Let us help you with your next project by providing industrial-grade parts that are built to last.
