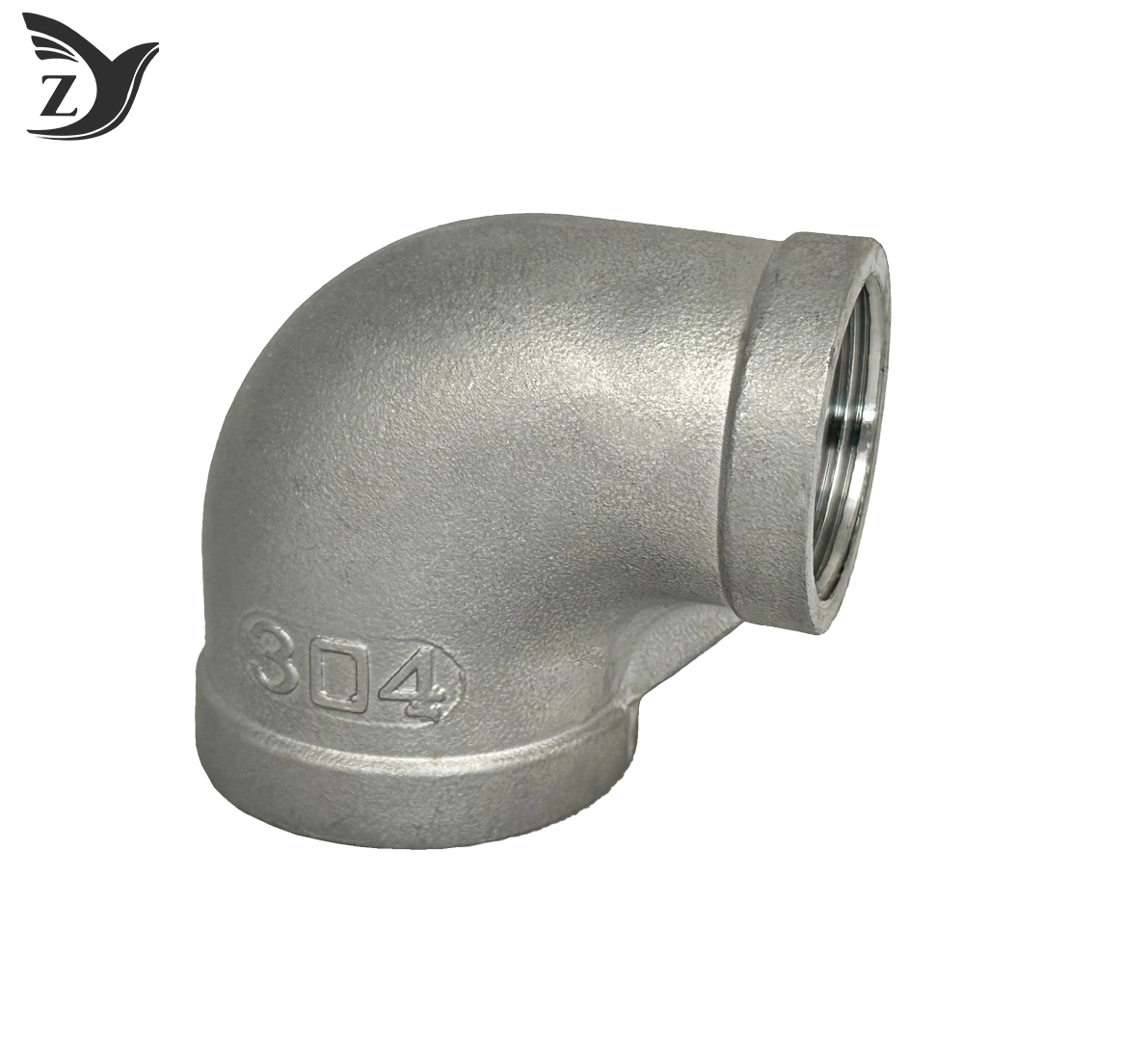

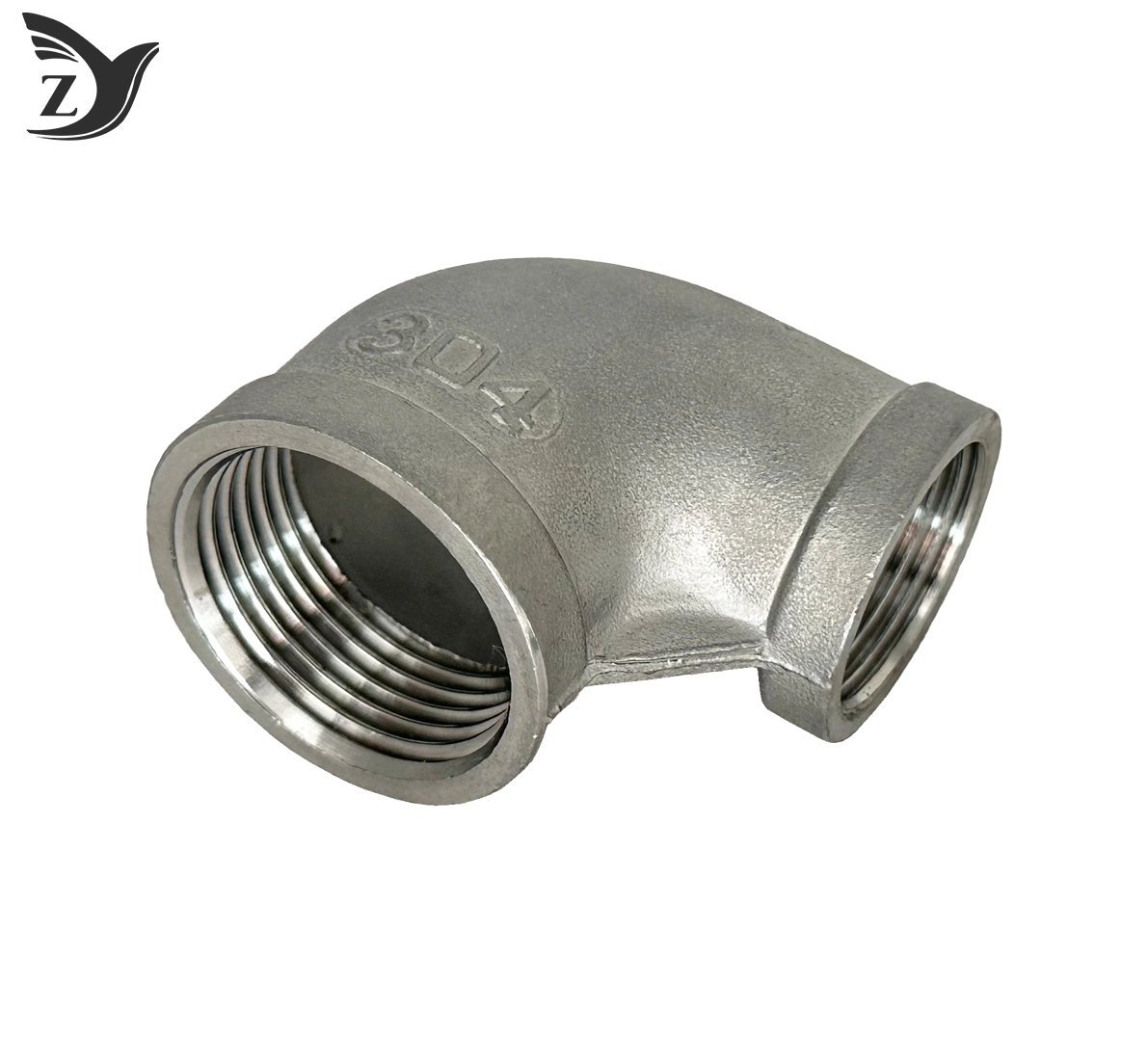

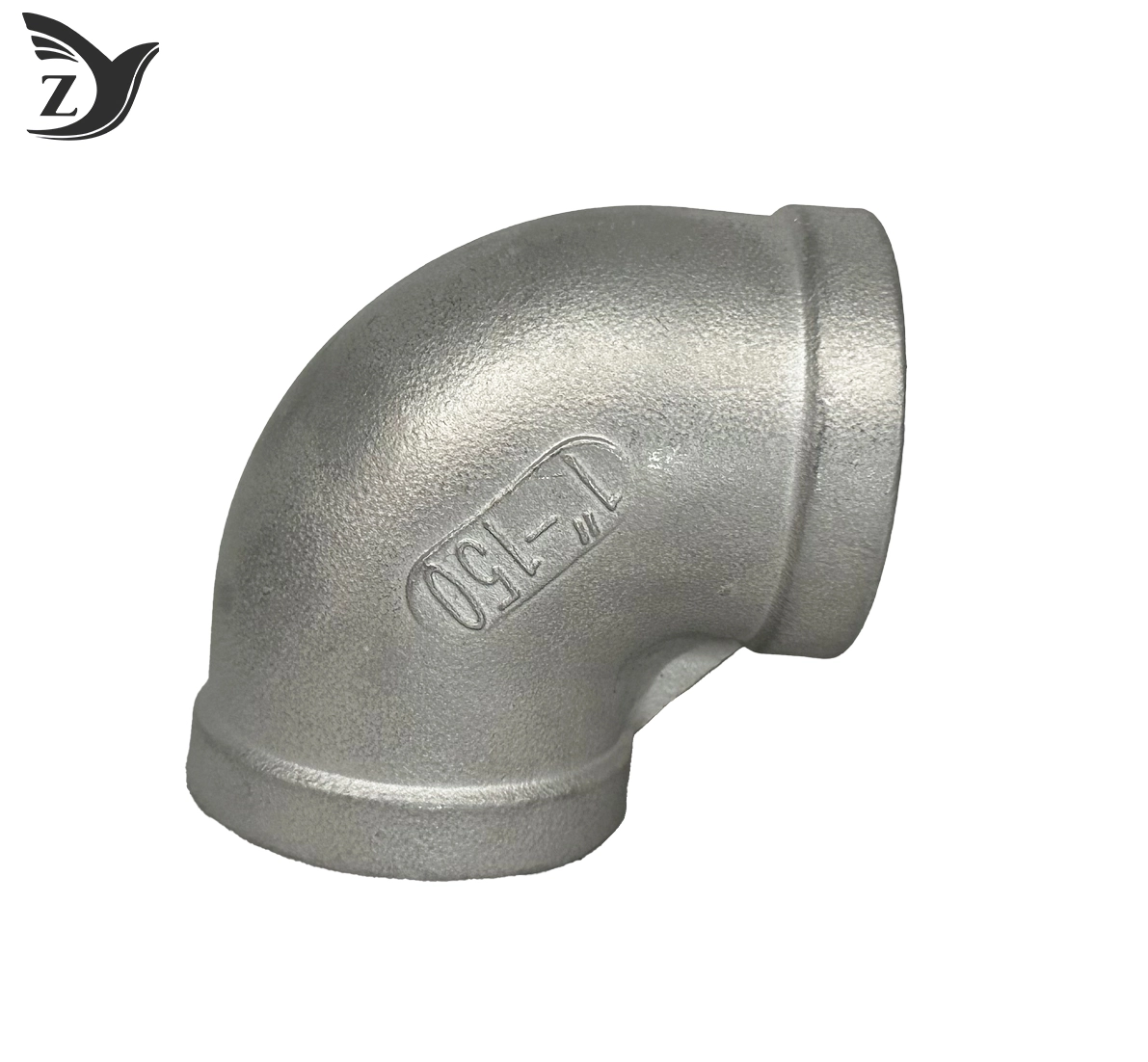

304 Stainless Steel Reducing 90° Elbow
2.Precision BSPP threaded, tight sealing without leakage .
3.Reducing 90° elbow design for pipeline size transition .
4.Smooth polished surface, no sand holes and burrs .
5.Uniform wall thickness, stable high‑pressure performance .
6.Easy to install, reliable connection for plumbing system .
7.Suitable for water, gas, irrigation and petrochemical pipelines .
8.Multiple sizes available, support OEM customization
Description
304 Stainless Steel Reducing 90° Elbow
Engineered for reliable angle‑change & size transition of pipeline, our ASTM SS304 reducing 90° elbow serves as premium threaded fitting for water, oil and gas piping systems. It adopts precision‑machined BSPP / NPT female threads, realizing leak‑proof threaded sealing and simplifying on‑site pipeline turning and caliber conversion installation. Manufactured from standard 304 stainless steel with smooth surface, the fitting delivers outstanding rust resistance. The elbow‑shaped design realizes 90‑degree pipeline turning and size reduction connection. It maintains stable sealing performance under long‑term high‑pressure working conditions. Optional polishing surface finishing improves appearance quality and extends service life for indoor and outdoor piping projects. Regular stocked specifications cover mainstream pipe sizes for fast bulk shipment. Custom thread types, OEM laser logo engraving and special‑size machining services are available upon request. These 304 stainless steel reducing 90° elbows are widely applied in plumbing systems, heating networks, gas pipelines, irrigation, petrochemical and general industrial piping facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 304 Stainless Steel Reducing 90° Elbow |
| Pressure Class | Medium‑High Pressure Grade |
| Raw Material | ASTM‑compliant SS304 stainless steel with compact uniform microstructure, excellent rustproof and anticorrosion performance |
| Surface Finish | Optional mirror polishing / matte treatment; smooth surface without burrs |
| Connection Type | BSPP / NPT female thread connection; precisely machined threads for tight‑fitting, reliable leak‑proof sealing performance |
| Working Temperature | -20℃ ~ 120℃ |
| Applicable Medium | Drinking water, heating circulating water, neutral industrial fluids, oil and gas media |
| Certification Standard | Produced following international standards for stainless steel threaded pipe components |
| Application Scenario | Pipeline direction turning & caliber transition, plumbing systems, heating networks, gas pipelines, irrigation, petrochemical facilities, industrial equipment, general piping projects |
Key Features
1.Superior Environmental Adaptability
Forged from ASTM‑certified 304 stainless steel, this reducing 90° elbow withstands humid coastal atmosphere, domestic water and weakly corrosive liquids. It keeps stable performance in outdoor piping and general industrial working environments for long‑term service life.
2.Reliable Thread Sealing Performance
Precision‑machined BSPP / NPT female threads ensure tight thread‑to‑thread engagement. Good sealing effect can be achieved with proper thread sealant, effectively preventing medium seepage under long‑term pressurized operation.
3.Elbow‑Shape Structure for Pipeline Turning & Size Transition
Elbow‑shape design realizes 90‑degree pipeline turning together with caliber reduction connection. Standard thread size matches common pipe fittings perfectly, simplifies on‑site piping installation operation and shortens construction period.
4.Thick‑wall Body Ensures Structural Stability
Thick‑wall elbow body guarantees pressure‑bearing capacity. Compact forging structure resists deformation under pressure, delivers reliable mechanical performance for pipeline turning and reducing connection work.
5.Diversified Scenarios & Flexible Customization
Suitable for pipeline direction turning & caliber transition, plumbing systems, heating systems, gas pipelines, irrigation, petrochemical and general industrial piping projects. Conventional sizes are stocked for bulk orders; customized wall thickness, laser marking and non‑standard dimension processing are supported for OEM cooperation.
Dimensions and Specifications
Our 304 stainless steel reducing 90° elbows cover a full range of standard inch reducing sizes, mainstream specifications are listed below:
- 1/2"‑3/8", 3/4"‑1/2", 1"‑3/4"
- 1‑1/4"‑1", 1‑1/2"‑1‑1/4", 2"‑1‑1/2"
- Custom dimensions, OEM laser marking and dedicated export packaging services are available
Each fitting is manufactured under strict dimensional tolerance management. Its precision‑machined BSPP / NPT female thread structure matches standard threaded counterparts to sustain stable sealing performance, effectively preventing medium leakage during long‑term operation in diverse working scenarios.
Materials and Surface Treatments
1.Main Body Raw Material
Fabricated from ASTM‑compliant SS304 stainless steel, the reducing 90° elbow delivers outstanding rust and corrosion resistance against water, oil, gas and weak acidic media. It operates stably in food processing, chemical production, water treatment and marine piping systems for pipeline turning and caliber transition connection.
2.Surface Finish
Standard pickling and passivation treatment forms a compact passive anticorrosive film to isolate rust, moisture and mild chemical erosion, supporting reliable use for indoor and outdoor industrial pipelines. Two surface options are available as requested: natural matte finish and mirror polishing finish.
3.Connection Processing
Adopt precision‑machined BSPP / NPT female threads with accurate thread pitch and tooth profile for smooth mating with standard threaded fittings. Proper thread sealant auxiliary ensures stable leak‑proof performance for pipeline turning & reducing connection service.
Standards and Certifications
Our products are manufactured in strict accordance with global industrial quality norms:
- Fabricated following official process specifications for stainless steel threaded pipe fittings
- Production system certified to ISO 9001 quality management standards
Prior to packaging and shipment, every 304 stainless steel reducing 90° elbow undergoes comprehensive testing. Inspection items include sealing reliability, thread dimensional accuracy and anticorrosion performance.
Applications
1.Petrochemical & Industrial Pipeline
Our 304 stainless steel hex‑head plugs work steadily in factory piping systems for water, gas, oil and low‑corrosion fluid transmission. They perform pipeline port‑blocking and temporary closure to simplify later equipment maintenance and pipeline upgrading.
2.Shipbuilding & Marine Pipeline Systems
Commonly used for offshore domestic water supply, fuel delivery and heating pipe networks. Outstanding anti‑rust and salt‑spray resistant performance enables stable operation in damp, corrosive marine environments for pipeline end sealing.
3.Food & Water Treatment Piping
Ideal for drinking water projects, beverage production lines and water treatment piping systems. 304 stainless steel meets high hygiene requirements and will not cause secondary pollution to transported media for safe port closure.
4.Heating & General Industrial Fluid Delivery
Suitable for central heating circulation pipelines, compressed air pipelines and various industrial fluid conveying lines. Standard threaded connection is easy to disassemble, greatly improving efficiency during daily system maintenance, testing and pipeline plug‑off work.
Installation Instructions
- Thread Pre-treatment: Clean the BSPP/NPT threaded sections and matching pipe threads; remove rust, oil stains and burrs before assembly.
- Controlled Torque Fastening: Tighten the fitting with appropriate torque. Excessive tightening shall be avoided to prevent thread deformation and sealing surface damage.
- Pressure Leak Test: Conduct pressure testing after installation to confirm reliable sealing of threaded joints and elbow turning surfaces.
- Periodic Inspection: Inspect threaded connections regularly to guarantee long-term safe operation of the piping system.
Comply with industrial threaded piping specifications and local safety regulations during installation.
Packaging and Shipping
Every 304 stainless steel reducing 90° elbow is wrapped with anti-collision protective film to prevent surface scratches during transit. Moisture-proof packaging protects the pickled passivated surface. Bulk orders are palletized with export-standard pallets for convenient handling and container loading.
Our factory is located in Taigu, Shanxi Province. We cooperate with seasoned global logistics networks covering main overseas ports, providing steady and cost-effective bulk shipment services for industrial piping projects across the world.
Quality Control
1.Raw Material Spectral Composition & Mechanical Test
Every batch of ASTM SS304 stainless steel raw material undergoes full spectral analysis and mechanical property testing, to meet the official technical standards for stainless steel pipe fittings.
2.Hydraulic Sealing Pressure Inspection
Finished 304 stainless steel reducing 90° elbows are randomly sampled for hydraulic sealing tests under rated working pressure, to confirm zero‑leakage performance of threaded connection surfaces.
3.Thread Dimension Precision Calibration
Special go‑no‑go gauges are used to check thread pitch, thread diameter and tolerance. This guarantees tight matching with standard NPT/BSPT threads and stable sealing after assembly.
4.Full Surface Visual Defect Screening
After pickling and passivation, all products go through 100% manual visual inspection. Workers remove burrs, stains and surface imperfections on threads and outer shells, so the fittings can maintain reliable corrosion resistance during long‑term use.
OEM and Customization Services
We maintain stable annual production capacity and accept bulk OEM & ODM custom orders. Our professional engineering team provides one‑stop customized solutions for various industrial pipeline projects, including customized wall thickness, non‑standard dimensions, laser‑engraved brand logos and dedicated export packaging. We own a complete set of molds covering sizes from 1/2 inch to 4 inches, which can effectively shorten the lead time for sample trial production and mass delivery.
FAQ
Q:Can this 304 stainless steel reducing 90° elbow be buried underground?
A: Outer anti‑corrosion treatment must be carried out before buried installation. Direct burial without protective measures will greatly shorten the service life of the fitting. We can provide customized anti‑corrosion schemes upon your demand.
Q: What is the standard installation method for this stainless steel reducing 90° elbow?
A: Clean the thread and sealing surface thoroughly first. Apply suitable thread sealant or PTFE tape, then tighten manually with standard pipe wrenches according to torque requirements. Do not over‑tighten to avoid thread damage, achieving stable long‑term leak‑free connection.
Q: Can it withstand pipeline thermal expansion?
A: The fitting belongs to rigid connecting parts. For long‑distance pipelines with obvious temperature changes, it is suggested to install expansion joints to offset stress caused by thermal deformation.
Q:Is it compatible with different steel pipes?
A:Fits standard NPT / BSPT threaded steel pipes. Please confirm thread specification before ordering.
Q:Why pick 304 stainless steel reducing 90° elbow rather than carbon steel ones?
A:ASTM 304 stainless steel features outstanding rust and corrosion resistance for water, oil, gas and weak acid media. Standard threaded structure enables easy assembly and disassembly, suitable for piping systems in food processing, water treatment, marine engineering and corrosive medium scenarios.
