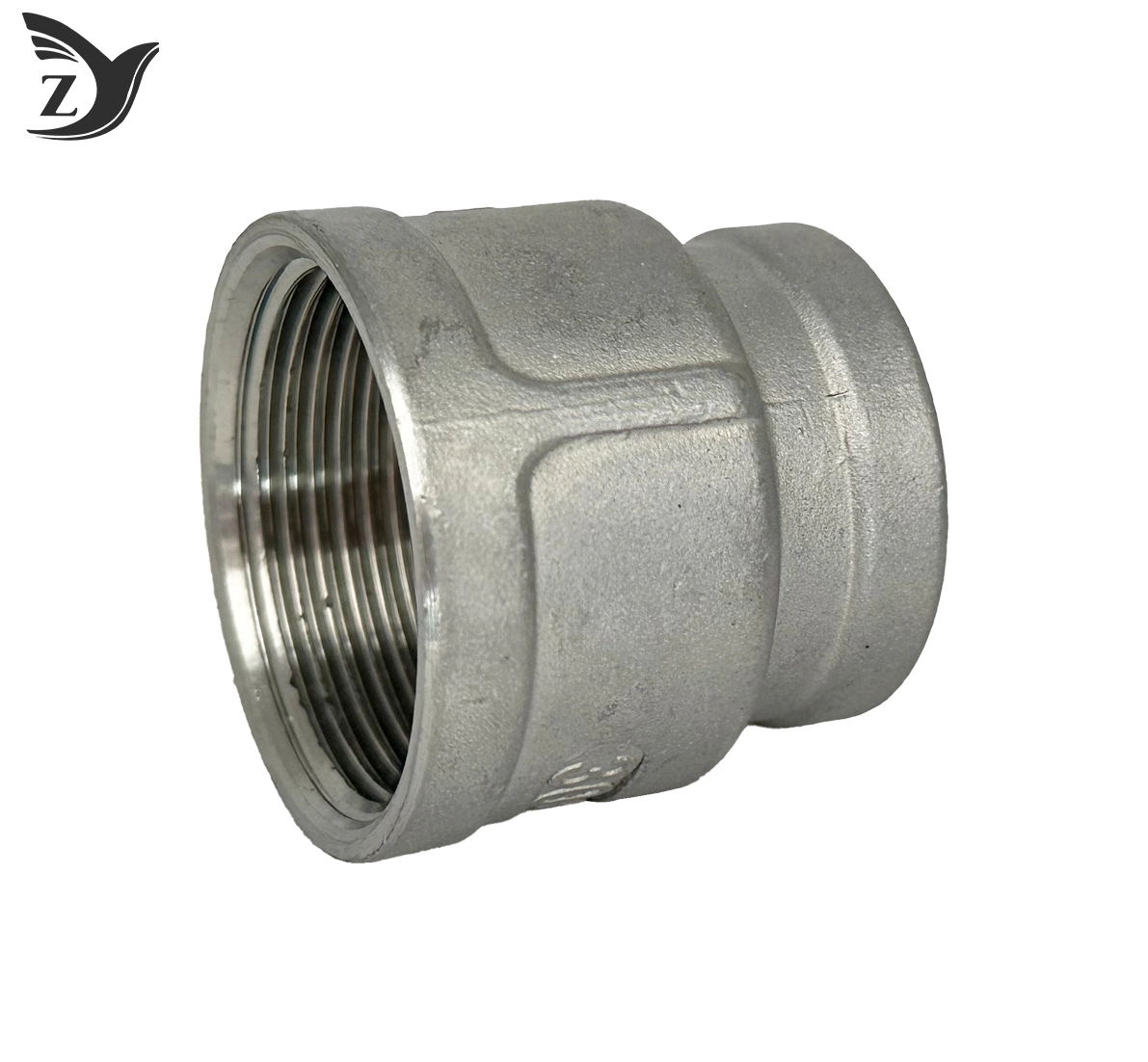

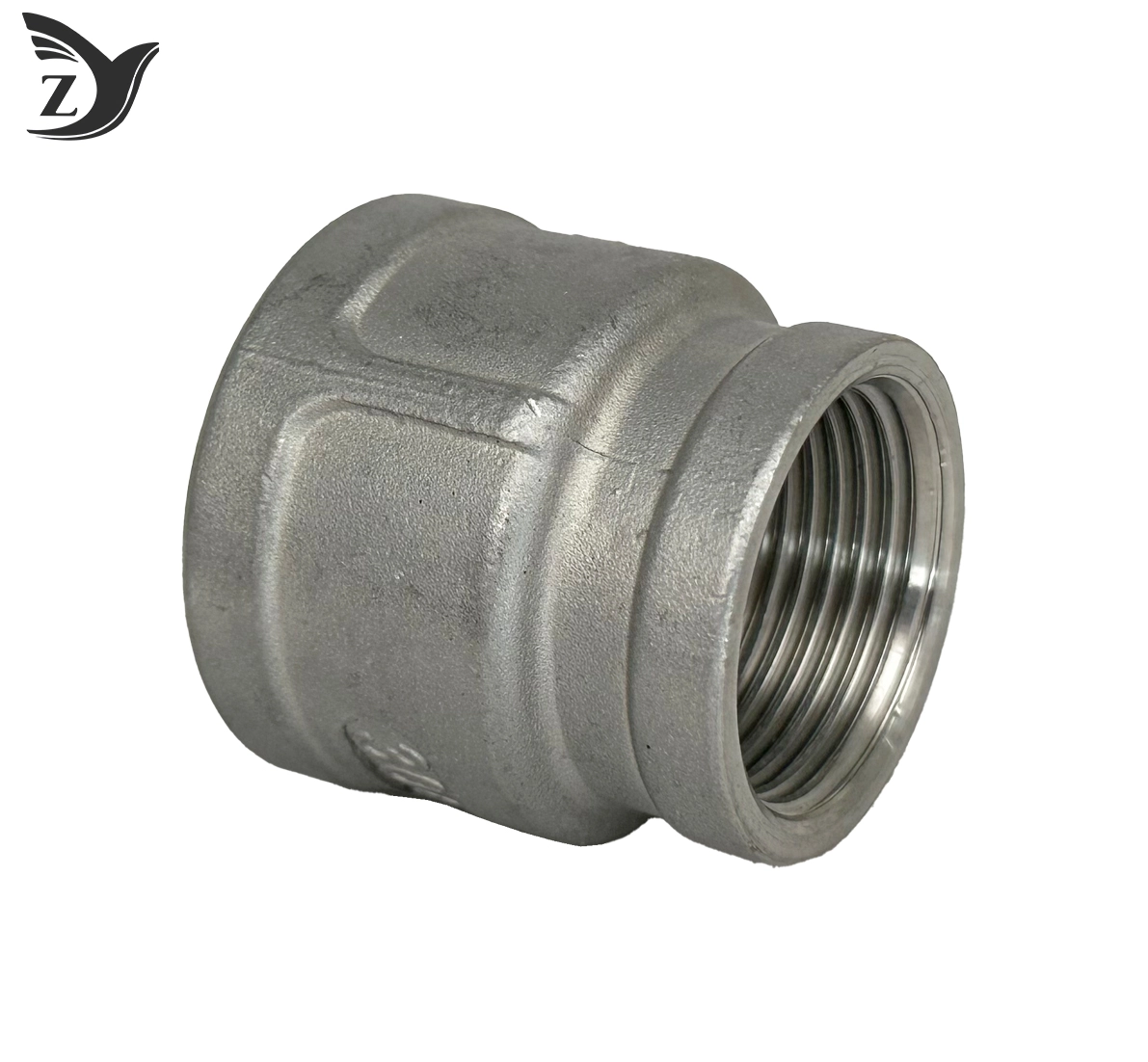

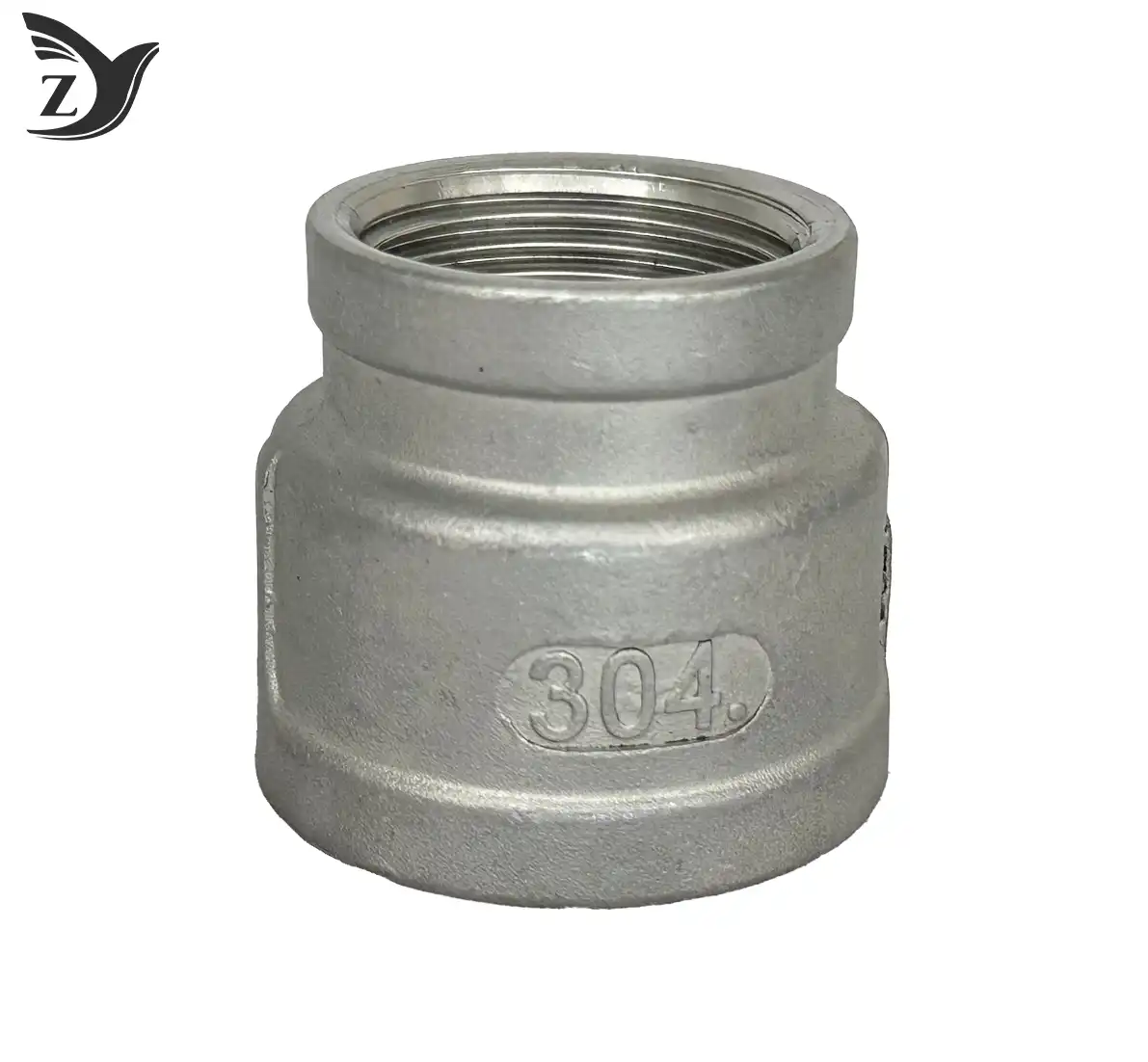

Stainless Steel Reducing Nipple
2.ASTM SS304 raw material with reliable anticorrosion performance .
3.Accurate internal and external threads for quick installation .
4.CNC turned NPT/BSPT taper threads for tight sealing .
5.Smooth inner wall lowers pipeline flow resistance .
6.Stable structure fits plumbing and industrial piping systems .
7.Tight threaded joint effectively prevents liquid leakage .
8.Polished surface reduces scale adhesion for easy maintenance
Description
304 Stainless Steel Reducing Nipple Threaded Pipe Fitting
Engineered for pipe diameter conversion in industrial pipeline systems, our ASTM SS304 reducing nipple serves as a dependable connection part for water supply, chemical, marine and food‑grade projects. It adopts CNC precision‑turned NPT/BSPT standard taper threads, realizing stable caliber transition among different pipes and simplifying field pipeline installation procedures. Fabricated from standard 304 stainless steel with dense and uniform internal structure, the product delivers outstanding rust resistance and corrosion tolerance against water, oil, gas and weak acidic media. It maintains stable sealing performance during long‑term continuous operation. Optional surface finishing optimizes appearance quality and prolongs service life for both indoor and outdoor piping systems. Regular stocked specifications range from 1/2" to 4", supporting fast bulk shipment. Custom wall thickness adjustment, laser OEM logo engraving and special‑size machining services are available on request. These stainless steel reducing nipples are widely applied in food processing workshops, petrochemical plants, shipbuilding projects, heating pipe networks and water treatment pipeline facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 304 Stainless Steel Reducing Nipple Threaded Pipe Fitting |
| Pressure Class | Medium & High Pressure Grade |
| Raw Material | ASTM‑compliant SS304 stainless steel with dense uniform metallographic structure, outstanding rustproof and anti‑corrosion properties |
| Surface Finish | Multiple optional treatments: mechanical polishing & pickling passivation; neat surface finish for stable long‑term corrosion resistance |
| Connection Type | Precision machined NPT/BSPT dual‑standard taper threads on both ends; smooth diameter transition ensures tight joint sealing |
| Working Temperature | -20℃ ~ 180℃ |
| Applicable Medium | Water, natural gas, oil, weakly acidic and weakly alkaline industrial fluids |
| Certification Standard | Manufactured in accordance with international norms for stainless steel threaded pipe fittings |
| Application Scenario | Food processing, water treatment plants, chemical projects, shipbuilding industry and heating pipeline engineering |
Key Features
1.Excellent Corrosion & Rust Resistance
Made of ASTM‑standard SS304 stainless steel, the part resists oxidation, fresh water, oil and weak acid erosion steadily. It delivers long service life in food processing, water treatment and outdoor marine piping scenarios.
2.Leak‑tight Precision Taper Thread & Conical Sealing Structure
High‑precision machined NPT/BSPT dual‑standard taper threads achieve tight meshing between different pipe sizes. Matching conical sealing faces form reliable joints without extra gaskets, keeping zero leakage during long‑time pipeline operation.
3.Optimized Reducing Design for Smooth Caliber Matching
The dedicated reducing structure directly connects two pipelines of different specifications. It simplifies diameter adjustment during project construction and system renovation, cutting on‑site working hours with no additional transition pieces needed.
4.Polished Inner Wall Lowering Fluid Resistance
Seamless polished inner cavity reduces medium turbulence and pressure loss. Compatible with standard threaded steel pipes, it shortens field installation procedures without extra transition fittings.
5.Multiple Application Fields & Customizable OEM Services
Suitable for food production, chemical plants, water supply systems, shipbuilding and heating pipelines. Stock sizes range from 1/2" to 4" for bulk shipment; customized wall thickness, laser logo engraving and special dimension machining are available.
Dimensions and Specifications
Our 304 stainless steel reducing nipples cover full standard inch sizes, mainstream specifications are listed below:
- 1/2", 3/4", 1"
- 1‑1/4", 1‑1/2", 2", 2‑1/2", 3", 4"
- Custom dimensions, OEM laser marking and dedicated export packaging services are available
Every reducing nipple is produced under strict dimensional tolerance control. The dual‑end threaded reducing design paired with matched conical sealing surfaces steadily maintains sealing performance, effectively stopping medium leakage during long‑term operation across diverse working environments.
Materials and Surface Treatments
1.Main Body Raw Material
Made of ASTM‑standard SS304 stainless steel, the workpiece delivers excellent rust and corrosion resistance against water, oil, gas and weak acid media. It runs reliably in food processing, chemical production, water treatment and marine piping systems, perfectly matching pipeline caliber transition arrangements for reducing nipples.
2.Surface Finish
Uniform pickling and passivation builds a dense passive anticorrosive film to block rust, dampness and mild chemical erosion, ensuring stable service for indoor and outdoor industrial pipelines. Two optional finishes are available per customer demand: natural matte finish and mirror polishing.
3.Connection Processing
Dual‑end NPT/BSPT standard tapered threads are precision machined. Neat thread tooth profile achieves tight threaded assembly between different pipe sizes. Paired with precision conical metal‑to‑metal sealing design, the joints stay leak‑free for long‑term fluid conveyance.
Standards and Certifications
Our products follow strict international industrial standards:
- Produced in line with standard processing specifications for stainless steel pipe fittings
- Certified under the ISO 9001 quality management system
Before packing and shipment, every 304 stainless steel reducing nipple goes through full‑range inspections covering sealing performance, thread dimensional precision and corrosion resistance.
Applications
1.Petrochemical & Industrial Pipeline
Suitable for water, gas, oil and mildly corrosive fluid piping inside chemical plants, enabling convenient caliber transition during pipeline maintenance and renovation projects.
2.Shipbuilding & Marine Pipeline Systems
Widely adopted in offshore water supply, fuel delivery and heating pipeline networks. Excellent rust resistance and salt‑spray tolerance fit the humid, corrosive operating conditions at sea.
3.Food & Water Treatment Piping
Ideal for portable water supply, beverage production and water treatment pipeline systems. SS304 stainless steel meets strict sanitary standards without contaminating conveyed media.
4.Heating & General Industrial Fluid Delivery
Applied to central heating circuits, compressed‑air pipelines and industrial fluid transfer lines. The dual‑end threaded reducing design allows quick disassembly for routine system overhaul.
Installation Instructions
- Thread Pre‑treatment: Clean the NPT/BSPT threaded sections and matching pipe threads; remove rust, oil stains and burrs before assembly.
Position Alignment: Apply proper thread sealant evenly, screw the reducing nipple onto the matched pipe threads and keep horizontal alignment without deflection.
- Controlled Torque Fastening: Tighten the fitting with appropriate torque. Excessive tightening shall be avoided to prevent thread deformation and sealing surface damage.
- Pressure Leak Test: Conduct pressure testing after installation to confirm reliable sealing of threaded joints and conical fitting surfaces.
- Periodic Inspection: Inspect threaded connections regularly to guarantee long‑term safe operation of the piping system.
Comply with industrial threaded piping specifications and local safety regulations during installation.
Packaging and Shipping
Every 304 stainless steel threaded reducing nipple is wrapped with anti‑collision protective film to avoid surface scratches and thread deformation during transit. Moisture‑resistant packaging protects the pickled passivated finish and precision‑machined threads intact. Bulk orders are palletized with export‑standard pallets for easy handling and container loading.
Our factory is located in Taigu, Shanxi Province. We partner with mature global logistics networks covering major overseas ports, delivering stable, cost‑effective bulk shipments for industrial pipeline projects worldwide.
Quality Control
1.Raw Material Spectral Composition & Mechanical Test
Every batch of ASTM SS304 stainless steel raw material undergoes full spectral analysis and mechanical property testing to comply with official technical standards for stainless steel pipe fittings.
2.Hydraulic Sealing Pressure Inspection
Finished 304 stainless steel threaded reducing nipples are sampled randomly for hydraulic sealing tests under rated working pressure, verifying zero‑leakage stability of conical sealing surfaces.
3.Thread Dimension Precision Calibration
Custom go‑no-go gauges are adopted to measure pitch, major diameter and tolerance of NPT/BSPT threads, ensuring tight engagement with standard steel pipes and dependable threaded sealing performance.
4.Full Surface Visual Defect Screening
100% manual visual inspection is carried out after pickling and passivation to clear burrs, stains and surface flaws on threads and outer surfaces, securing durable anti‑corrosion capability in long‑term service.
OEM and Customization Services
We maintain steady annual production capacity and accept bulk OEM & ODM custom orders. Our professional engineering team delivers full‑stack customized solutions including customized wall thickness, non‑standard dimensions, laser‑engraved brand logos and dedicated export packaging for diverse industrial pipeline projects. We own a complete set of moulds covering sizes from 1/2" to 4", which effectively cuts down the lead time of sample trial production and bulk shipment.
FAQ
Q:Can this 304 stainless steel threaded reducing coupling be buried underground?
A: Extra external anti-corrosion protection is mandatory for underground buried installation. Direct burial without protective treatment will greatly shorten the service life of the reducing coupling fitting. Custom anti-corrosion protection solutions can be provided on request.
Q: What is the standard installation method for this stainless steel threaded reducing coupling?
A: Apply qualified thread sealant evenly on matching threads, screw the reducing coupling onto corresponding pipes with proper torque. Avoid excessive tightening that may damage threads or conical sealing surfaces, so as to achieve long-term leakproof connection.
Q: Can it withstand pipeline thermal expansion?
A: This fitting is a rigid connection component. We recommend installing expansion joints for long-distance pipelines with large temperature fluctuation ranges to absorb thermal deformation stress.
Q:Is it compatible with different steel pipes?
A: It perfectly matches standard pipes with corresponding NPT/BSPT thread specifications. Please confirm matching thread sizes and pipe wall thickness prior to formal assembly work.
Q:Why choose 304 stainless steel threaded reducing coupling instead of carbon steel pipe fittings?
A:ASTM SS304 material delivers excellent rust resistance and anti-corrosion capability against water, oil, gas and weak acid media. Precision matched conical sealing structure enables convenient repeated disassembly, making it ideal for food, water treatment, marine and corrosive medium piping systems.
