Will black malleable iron elbow rust?

Black iron elbows that are easy to shape can rust over time if they are exposed to air and water. But the dark finish, which is made by heating the iron and covering it with a protective oil, makes it less likely to rust and oxidise than bare iron. Precision threading and long-lasting malleable iron construction are used to make products like NPT black round face 90° elbow pipe fittings that are both cost-effective and good at protecting against rust for gas, steam and HVAC uses. Surface rust may form in damp places, but proper installation and upkeep greatly extend the service life of these fittings. They are a reliable choice for thousands of industrial plumbing, fire protection, and municipal water projects across the country.

Understanding Black Malleable Iron Elbows and Rust Formation

Black malleable iron elbows are an important part of industrial pipe infrastructure because they are strong and easy to work with at the same time. The first step in making something is heating white cast iron over an annealing cycle that lasts for several days. This changes the rigid carbon structures into nodular graphite forms. This heat treatment gives the material its "malleable" quality, which means it can take impact without breaking like regular cast iron does.

The Black Finish Explained

The unique black colour comes from two places: oxidation during the annealing process and the use of rust-preventative oil after the NPT black round face 90° elbow pipe fitting has been made. This finish is very different from galvanised coats. The black oxide layer is only a few micrometres thick. It has some corrosion resistance that works for closed-loop systems but can break down in conditions that are always wet. A lot of industrial buyers like this finish better than galvanisation for natural gas lines and steam systems because zinc chipping into sensitive equipment is a risk with galvanisation.

How Rust Actually Forms

Electrochemical principles explain how rust forms. When oxygen-containing water comes in touch with iron, iron atoms lose electrons. This is called oxidation, and the result is iron oxide, which is what most people call rust. This process is sped up by high humidity (above 60%), changes in temperature that cause condensation, and contact with chemicals that break down things. The black covering slows the first oxidation process by preventing oxygen from getting to the metal, but this protection can be broken by cuts, thread damage during installation, or long-term exposure to water.

Surface Rust Versus Structural Damage

Professionals in procurement should be able to tell the difference between surface oxidation that looks nice and structural damage. Light surface rust that shows up as a reddish-brown discolouration doesn't usually affect the integrity of the fitting or the pressure ratings. When structural rust happens, it shows up as pitting, flaking, or material loss that is more than 10% of the wall thickness. This makes it harder for threads to connect and keep pressure inside. Inspections done on a regular basis help find cosmetic problems that need to be fixed before they become functional ones.

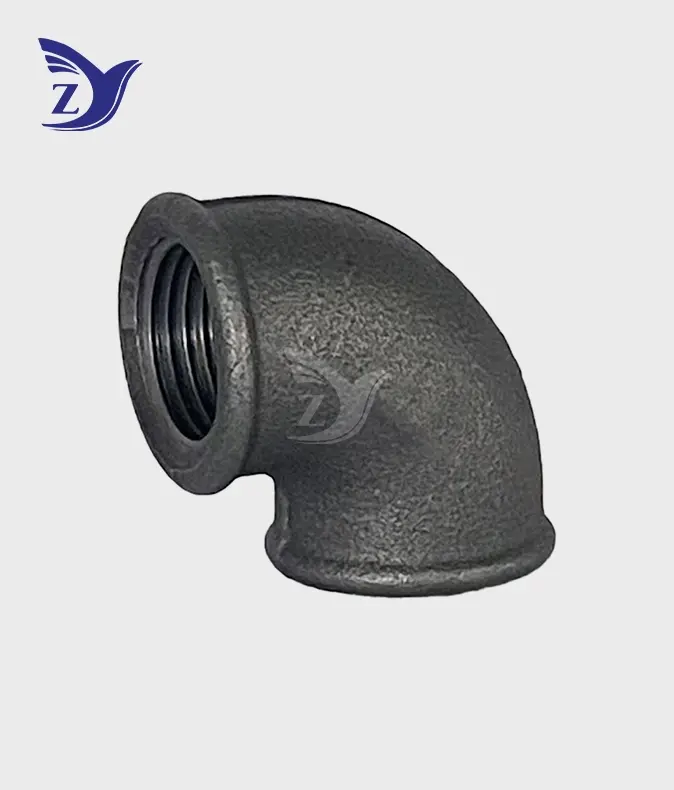

In-Depth Insight into NPT Black Round Face 90° Elbow Pipe Fittings

NPT black round face 90° elbow pipe fittings are precision-engineered parts that allow threaded pipe systems to change directions. It helps procurement teams make choices that balance performance needs with budget limits when they know their technical specifications.

NPT Threading Standards Decoded

ASME B1.20.1 sets the guidelines for national pipe threads (NPTs), which are curved threads that make mechanical seals through interference fit. The 60-degree thread angle and 1:16 taper ratio make sure that when the threads connect, the metal deforms to make a leak-proof joint that doesn't need seals. This design is very important for gas distribution and steam systems that have to deal with vibration and thermal expansion. The term "round face" refers to the beaded rim support at the thread holes, which makes it more resistant to wrench torque during installation than plain-faced options.

Material Composition and Specifications

As per ASTM A197 guidelines, high-quality malleable iron parts must have a minimum tensile strength of 40,000 psi and a yield strength of 30,000 psi. Because of these mechanical features, the pressure ratings can reach Class 150, which is 300 psi for water, oil and gas at room temperature and 150 psi for saturated steam. The carbon percentage is between 2.0% and 2.6%, and silicon and manganese are added to make it easier to cast and stronger. Tight tolerances are used for thread sizes, which are checked with L1 Go/No-Go gauges. This makes sure that threads from different makers will work together and stops fitting problems.

Installation Best Practices

The right way to put something has a direct effect on both stopping leaks and resisting rust. Thread protectors (pipe dope) that work with the medium being sent should only be used on male threads to keep female threads from getting contaminated. When looking at the fitting end-on, the PTFE tape needs to be wrapped around it two or three times clockwise. Tightening usually means going two to three turns past hand-tight to get three to four threads engaged without over-torquing, which breaks the malleable iron. Pipe dope with zinc or graphite particles adds another layer of protection against rust in thread gaps where water could build up.

Procurement and Supplier Guidance for NPT Black Round Face 90° Elbow Pipe Fittings

To find trusted fittings, you have to look at providers in more than just price per unit. How you work with your suppliers affects how long a job takes, how consistent the standard is, and how much it costs in the long run. NPT black round face 90° elbow pipe fittings sourcing requires evaluating multiple material options against specific application demands.

Supplier Evaluation Criteria

Certifications are objective ways to measure quality. ISO 9001 approval shows that quality management is done in a planned way, and ASTM compliance shows that material specs meet industry standards. UL and FM approvals are very important for fire protection uses where products must meet strict rules. Reliable suppliers give mill test reports that show the composition of the materials, the results of mechanical tests, and the measurements that were checked for each production lot.

Production capacity influences delivery reliability. Common sizes (1/2" to 2") are usually in stock and shipped within 48 hours by suppliers. Larger sizes or orders with a lot of them may take 2 to 4 weeks to ship. For distributors, the minimum order quantity ranges from 100 pieces to full container loads (20,000 to 30,000 pieces) for direct factory purchases. This changes the price per unit by 15 to 30 percent.

Zhiyuan Malleable Steel Manufacturing Advantage

Shanxi Taigu Zhiyuan Malleable Steel Co., Ltd. has been offering industrial buying services for 26 years and has a lot of experience with casting and pipe fitting. Our factory has eight medium-frequency electric ovens and two 100-ton natural gas annealing kilns, which allow us to make 30,000 tonnes of products every year that meet more than 1,000 different standards. This scale can handle both big project orders and a wide range of product mix needs.

Throughout the production process, quality verification follows ISO 9001 rules. We can do a lot of different tests, such as hydrostatic pressure testing, thread gauge verification according to ASME B1.20.1, and dimensional inspection that makes sure 90° elbows have a +/- 0.06 inch angularity tolerance. Products have CE, UL, and FM certifications to make them legal in different countries and help them sell.

Conclusion

In conclusion, some situations will cause black malleable iron elbows to rust, but knowing how rusting works and taking the right steps to stop it will ensure years of reliable service. For gas, steam, HVAC and fire protection systems, NPT black round face 90° elbow pipe fittings are the best combination of mechanical strength, installation freedom and low cost. The choice of material should be based on the climate, the amount of pressure that needs to be applied, and the budget. For example, black malleable iron works best in controlled indoor settings with moderate moisture levels. As important to the success of a project as the initial product specifications are the relationships between suppliers that focus on quality certifications, technical support, and on-time delivery. This is why evaluating vendors is such an important part of procurement.

Partner with Zhiyuan Malleable Steel for Your NPT Black Round Face 90° Elbow Pipe Fittings Needs

Zhiyuan Malleable Steel makes precision-engineered corrosion-resistant round-edge 90° elbows that meet the demanding requirements of fire protection, municipal infrastructure, and industrial piping projects across North America. As an experienced NPT black round face 90° elbow pipe fittings manufacturer with 26 years of casting expertise, we maintain ample inventory for immediate delivery—standard specifications ship within two hours—while our 30,000-ton annual capacity supports large-scale project requirements. Our ISO 9001, CE, UL, and FM certifications ensure your procurement meets code compliance and quality standards, backed by defective product replacement guarantees that protect project timelines. Whether you need bulk quantities of water/gas industrial pipeline elbows for wholesale distribution or customized OEM solutions for specialized applications, our technical team at q1236800000@gmail.com provides engineering support that optimizes your specifications before production. Visit zymalleablepipefitting.com to explore our complete range of high-strength durable threaded industrial fittings and discover how our competitive factory-direct pricing and flexible ODM services can reduce your procurement costs while ensuring supply chain reliability.

FAQ

Can black malleable iron elbows be used in outdoor applications?

With the right finishes, black iron parts that can be shaped can be used outside. Because the basic black finish doesn't protect against weather very well, bare parts shouldn't be left outside all the time. Using a rust-preventative primer and an industrial enamel topcoat before installation makes the service last a lot longer. On the other hand, choosing galvanised parts for outdoor use protects against rust better without the need for field coating. For buried uses, wrapping or coating systems that work with the soil's corrosivity levels are usually needed. These systems usually include fusion-bonded epoxy or plastic encasing.

What is the difference between NPT and BSPT threading?

The NPT (National Pipe Thread) follows American standards and has a 60-degree thread angle and a 1:16 taper. The BSPT (British Standard Pipe Thread) has a similar shape but a different pitch. Even though the threads are very similar in size, they can't be used interchangeably. Forcing NPT and BSPT links can cause cross-threading and leaks. For international projects, it's important to be clear about the thread type. In European and Commonwealth markets, BSPT is widespread. Zhiyuan Malleable Steel makes precision-threaded fittings that are compatible with both NPT and BSPT so that they can meet the needs of projects around the world.

How do I know when surface rust requires fitting replacement?

Surface rust that looks like a light discolouration and doesn't cause any material loss usually doesn't need to be replaced. When pitting depth goes beyond 20% of wall thickness, thread damage stops them from engaging properly, or structural cracks show up, they need to be replaced. Check the state of the threads using NPT ring gauges. Threads that fail the L1 Go/No-Go test show that they have lost their shape and need to be replaced. During checks, take pictures of the rust and write down the dates on them so that you can see how it's getting worse and replace the part before it breaks.

References

1. American Society of Mechanical Engineers. (2020). ASME B16.3: Malleable Iron Threaded Fittings - Classes 150 and 300. New York: ASME Press.
2. ASTM International. (2019). ASTM A197: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM International Standards.
3. Davis, J.R. (2018). Corrosion of Carbon Steel: Mechanisms, Prevention, and Control Strategies. Materials Park: ASM International.
4. National Fire Protection Association. (2021). NFPA 54: National Fuel Gas Code - Piping Materials and Installation Standards. Quincy: NFPA Publications.
5. Smith, William F. & Hashemi, Javad. (2019). Foundations of Materials Science and Engineering: Sixth Edition. New York: McGraw-Hill Education.
6. United States Pipe and Foundry Company. (2017). Malleable Iron Pipe Fittings: Engineering Manual and Product Specifications. Birmingham: Technical Publications Division.
