Why Choose Galvanized NPT Tee Fittings for Piping Systems?

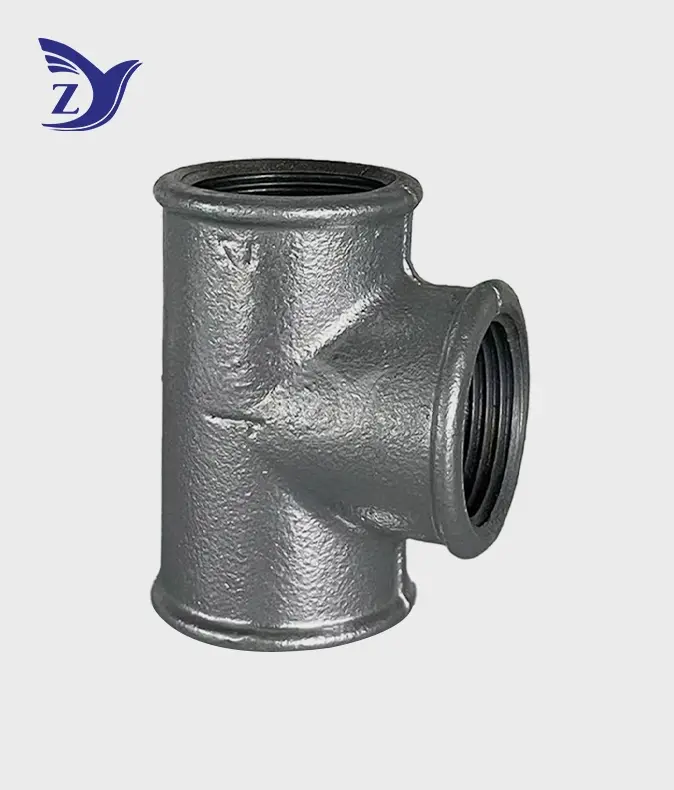

When your piping project demands zero tolerance for leaks and long-term corrosion resistance, the fitting you choose matters more than most contractors initially realize. NPT round face galvanized round edge straight tee pipe fittings deliver precisely that assurance — combining a tapered National Pipe Thread seal, a hot-dip zinc barrier against rust, and malleable iron strength into one compact three-way branch component. Whether you are distributing water across a municipal network or routing gas through a commercial building, these galvanized tee fittings offer the thread precision, pressure integrity, and durability that plumbing and gas installation professionals consistently depend on.

Understanding Galvanized NPT Tee Fittings

What Makes the NPT Thread System Reliable

ASME B1.20.1 sets the standard for the NPT (National Pipe Taper) thread, which has a 60-degree thread angle and a taper of 0.75 inches per foot. As the joint gets tighter, this shape forms a mechanical interference that gets stronger over time. This makes a hydraulic seal that stays in place under pressure. NPT threads engage along their flanks instead of parallelly, which makes the seal tighter with each extra turn. This is a very important benefit in water and gas delivery lines where pressure stays the same.

Materials, Coating, and Dimensional Standards

The iron used to make these NPT round face galvanized round edge straight tee pipe fittings is ASTM A197 malleable iron, which has a minimum tensile strength of 40,000 psi (276 MPa). Each outlet has a round edge that strengthens the fitting mouth against wrench stress. This way, the hoop stress is spread out evenly instead of being concentrated in one place. When hot-dip galvanizing according to ASTM A153 is done, a zinc covering thicker than 86 microns is applied. This creates a protective cathodic shield that lasts much longer than electroplated options. Dimensional compliance follows ASME B16.3 Class 150 standards, which cover sizes from 1/8" to 6". This range means that most projects don't need more than one supplier.

Core Benefits of Choosing Galvanized NPT Tee Fittings

It's a common argument between procurement managers and installation supervisors about whether the extra cost of galvanized fittings over black iron or PVC alternatives is worth it. There is a lot of proof that coated malleable iron is the better long-term investment.

These fittings are great for industrial and commercial pipes because of the following:

• Corrosion resistance that black iron cannot match: The hot-dip zinc layer gives up its electrical charge before the base iron corrodes, which makes the product last a lot longer in wet, buried, or outdoor settings. Field data from municipal water projects shows that galvanized iron fittings stay structurally sound for 40 years or more in moderate corrosion conditions, while black iron that hasn't been treated lasts only 10 to 15 years.
• Pressure performance suited to real-world demands: Class 150 NPT round face galvanized round edge straight tee pipe fittings can handle 300 psi of water, oil, and gas (WOG) at room temperature and 150 psi of full steam. This is more than what most industrial water and gas distribution systems can handle.
• Installation speed through thread precision: NPT ports with precision threads make installation much faster. When threads are machined to ASME B1.20.1 standards and pass the Go/No-Go gauge test, field teams can start the fitting by hand without having to force it. This stops galling and speeds up the connection process on jobs with a lot of parts.

These benefits directly lead to lower costs for rework, fewer failed pressure tests, and better project schedules, all of which are very important for small and medium-sized workers who are trying to make ends meet.

How to Select the Right Galvanized NPT Tee Fittings for Your System

Matching Thread Standard and Size to Your Pipe Schedule

Before you order, make sure you know if your system uses NPT or BSPT threads. While NPT and BSPT threads have a similar taper, they are not the same shape. Mixing them causes a leak risk that can't be fixed with thread sealer. The NPT standard is used for projects in the US. When choosing a size, you should use the pipe's nominal diameter instead of its actual outer diameter. Class 150 fittings should be used with Schedule 40 pipe. Class 300 fittings are the right choice if your application calls for Schedule 80 pipe at high pressures.

Evaluating Supplier Quality Assurance

The difference in quality between parts that are compliant and those that aren't isn't noticeable until a pressure test or check shows holes, axes that aren't lined up right, or threads that are undercut. If you want to buy from a reliable provider, they should have ISO 9001 approval, hydrostatic testing at 1.5 times the maximum working pressure, axis orthogonality verification within 0.5 degrees, and thread gauging according to ASME B1.20.1. Asking for mill test results and records of third-party inspections before placing the first order keeps your project safe from failures that cost a lot of money later on.

Installation and Maintenance Best Practices

Sealing, Torque, and Leak Prevention

For standard NPT threads, you need thread sealant, like PTFE tape or pipe-grade thread compound, to cover the spiral leaking path and keep the joint from galling. To keep the thread from unwinding during assembly, put PTFE tape on the thread in the direction of the helix (clockwise when facing the male end). Once it's hand-tight, use a pipe wrench to move it forward two or three turns more. Too much tightening breaks the fitting, and too little tightening makes a way for water to leak. Once everything is put together, a hydrostatic test at the system's rated working pressure makes sure the joint is solid before the line is backfilled or hidden.

Identifying Hot-Dip Galvanization in the Field

When hot-dip coats are applied, the surface is matte and slightly textured, and it may show spangle patterns, which are a visual sign of zinc that has hardened. Electroplated fittings look thin and shiny all over. If you're not sure about the zinc depth, use a magnetic thickness gauge to be sure. Hot-dip coats on threaded fittings should be at least 45 microns on the outside, according to ASTM A153, and should cover more of the body that isn't threaded.

For regular upkeep, check fittings once a year for white zinc oxidation (zinc hydroxide), which is normal and will go away on its own, instead of red rust breakout, which means zinc depletion and means the fitting needs to be replaced before through-wall corrosion happens.

Procurement and Ordering Guide for B2B Clients

Timeliness and accuracy of specifications are the two things that most often go wrong when you are looking for NPT round face galvanized round edge straight tee pipe fittings for a project that is already underway. The most common way that inventory doesn't match up is when you don't check the minimum size, thread standard (NPT or BSPT), and fitting class before sending in a buy order.

When you buy in bulk, the price per unit goes down by a lot. For a medium-sized contractor working on several projects at the same time, combining fitting orders with a single ISO-certified manufacturer makes quality checks easier, cuts down on freight costs, and builds a relationship with the seller that allows faster reaction times for urgent restocking orders. Setting up blanket order agreements for sizes that are bought in large quantities—usually 1/2", 3/4", and 1" NPT tees—keeps inventory levels stable on the job site without tying up too much working capital in sizes that don't sell as quickly.

Zhiyuan Malleable Steel keeps a lot of common sizes in stock, and things that are in stock are sent out within two hours of an order being confirmed. Customization services from ODM and OEM can meet special marking, packing, or size needs for foreign projects.

Conclusion

NPT round face galvanized round edge straight tee pipe fittings earn their place in water, gas, and industrial pipe systems because they don't rust, have perfect thread geometry, and have a history of working well under pressure. The round edges of the fitting make it stronger against installation stress, and the hot-dip zinc coating makes it last much longer than alternatives that aren't coated. These fittings are a good buy for builders who need accurate threads, reliable sealing, and a source with clear quality controls. They protect both the project and the profit margin. Picking the correct fitting from a reputable maker is not a small part of the buying process; it is essential for a system to work without any problems.

FAQ

1. How do I confirm a fitting is genuinely hot-dip galvanized?

When something is hot-dip galvanized, it gets a harder, slightly rougher, matte finish that might have spangle patterns on it. Electroplating is very thin and shiny all over. To find the zinc depth, use a magnetic thickness gauge. To meet ASTM A153 standards, the coating must be at least a certain thickness, which is something that electroplated fittings rarely do. Always ask your seller for proof of the materials they sell you.

2. Can galvanized NPT tee fittings be used on natural gas lines?

Yes, US codes allow fittings made of malleable iron that have NPT threads to be used for gas service. You need to use a sealant compound that is made for gas. Regular PTFE tape will work, but check your local building codes first. In many places, black iron fittings are still the standard for gas, but galvanized fittings are allowed where the rules allow them.

3. What is the pressure rating for Class 150 galvanized malleable tee fittings?

ASME B16.3 says that Class 150 fittings can handle 300 psi WOG (water, oil, and gas) at room temperature and 150 psi for saturated steam.

4. Do I need a specific thread sealant for NPT connections?

To get a leak-free seal on standard NPT threads, you need to use PTFE tape or pipe dope. NPT threads don't dry-seal; sealant fills the spiral gap and keeps the joint from galling while it's being tightened.

Partner with Zhiyuan Malleable Steel for Your Next Project

Since 2006, Zhiyuan Malleable Steel has been making ISO 9001-certified malleable iron pipe fittings. They can make 30,000 tons of products each year and have more than 1,000 different product specifications. Through our NPT round face galvanized round edge straight tee pipe fittings seller catalog, we have sizes from 1/8" to 6", and standard sizes can be sent right away. Get in touch with our team to get bulk discounts, OEM/ODM customization, and expert help tailored to your project. You can email us at q1236800000@gmail.com.

References

1. ASME B16.3 — Malleable Iron Threaded Fittings: Classes 150 and 300, American Society of Mechanical Engineers, 2021.

2. ASME B1.20.1 — Pipe Threads, General Purpose (Inch), American Society of Mechanical Engineers, 2013.

3. ASTM A197 — Standard Specification for Cupola Malleable Iron, ASTM International, 2020.

4. ASTM A153 — Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware, ASTM International, 2016.

5. Schweitzer, P.A. — Corrosion Engineering Handbook: Corrosion of Linings and Coatings, CRC Press, 2006.

6. Nayyar, M.L. — Piping Handbook, 7th edition, McGraw-Hill, 2000.
