Where to use black square face coupling?

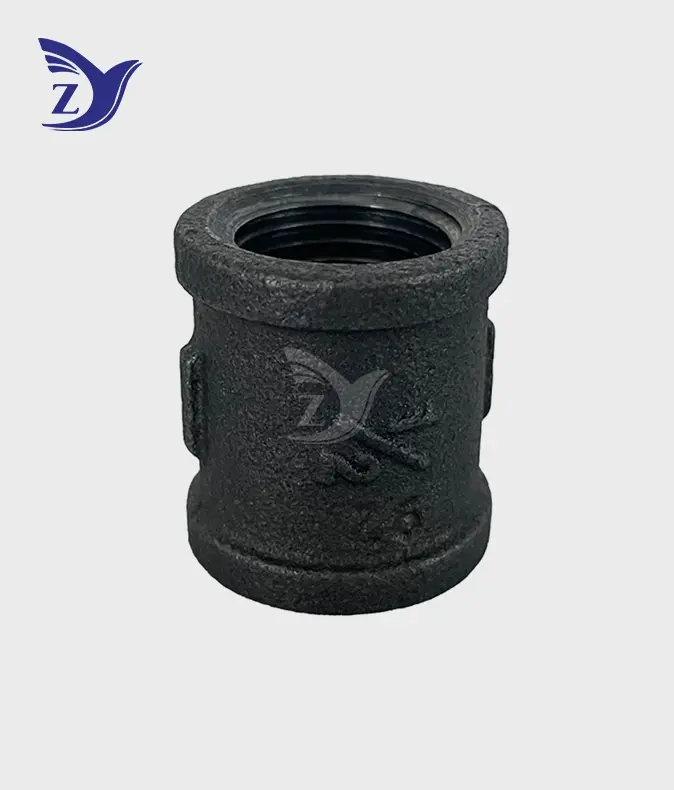

When connecting oil, gas, steam and water systems, NPT black square face coupling pipe fittings are an important part of the process. They join threaded pipes together. These heavy-duty, malleable iron parts have reinforced square-edge profiles that are designed to keep the threads from deforming when they are installed with a lot of torque. This makes them essential for many industries, from fire protection to petrochemical processing. Their black oxide finish and precisely cut NPT threads make them leak-proof in places where system integrity has a direct effect on operating safety and efficiency.

Common and Industrial Applications of Black Square Face Coupling

Durable NPT black square face coupling pipe fittings can be used in a lot of different ways because they can handle tough service conditions while staying the same size. These fittings work great in situations where the reliability of the system has a direct effect on the safety or continuity of production.

Industrial Steam Distribution Systems

In Class 150 setups, steam lines that work at up to 150 psi depend on the unique property of malleable iron to absorb heat shock without breaking. Grey iron is brittle and breaks easily, but the pearlitic matrix of malleable iron can handle the sudden changes in temperature that happen in boiler distribution networks. The square face design lets maintenance workers apply the right amount of force for condensate-tight closing without deforming the fitting body. This is very important because steam leaks waste energy and put people at risk.

Petrochemical and Natural Gas Piping

Black iron valves are needed for natural gas distribution and LP gas lines to keep the gas from getting contaminated. Even though galvanised coatings are good for water uses, the zinc flake off when they are exposed to hydrocarbons. This damages equipment further downstream in metering stations and controllers. The high-strength, corrosion-resistant NPT black square face coupling pipe fitting design can handle gas pressures, and the strengthened square shape keeps the pipe from moving when the pressure goes up. Our factory in Taigu District has sent these fittings to petrochemical installations all over North America. These installations have to follow pressure pipe rules, which require tracking and material approval.

Fire Protection Systems

Dry pipe sprinkler systems and industrial fire suppression setups have their own problems, such as water hammer effects when the system is turned on and static pressure that lasts for a long time. The square-edge fitting that is suitable with both NPT and BSPT has the mechanical strength to handle pressure spikes of more than 200 psi in seconds. Fire protection workers like the square face's wrench-friendly shape, which makes it easy to place in tight areas like pump rooms and underground hydrant feeds. Material certification to ASTM standards makes sure that it meets the requirements for FM and UL approval, which is important for insurance validation.

Water Treatment and Municipal Infrastructure

These threaded pipe joiners are used by municipal water supply companies in the process pipes of treatment plants, in chlorination systems, and to connect distribution mains. Black iron that can be shaped well stands up to mechanical stress from shifting dirt and heavy traffic when it is used in underground vaults. Hot water recycling systems can use gaskets that can withstand temperatures up to 300°F without breaking down. At our plant, testing procedures include checking the hydrostatic pressure at 1.5 times the working pressure. This makes sure that the casting has the right density and porosity control for decades of service life in city uses.

How to Select and Measure NPT Black Square Face Coupling Size?

The right size has a direct effect on how well the system works. Fittings that are too small cause pressure drops, while connections that are too big cause noise and make installation harder. For accurate procurement, you need to know how to use dimensional notation and measurement methods.

Thread Size and Pressure Rating Specifications

In normal setups, NPT thread sizes range from 1/8" to 6" based on nominal pipe sizes. It is not the thread diameter that is meant by the size designation; it is the approximate internal diameter of the pipe that the fitting will connect to. The thread's main width on a 1" NPT black square face coupling pipe fitting is about 1.315" wide. Pressure rates are based on the class of the fitting. For example, Class 150 fittings can handle working pressures of up to 300 psi for gas and water uses, while Class 300 fittings can handle 600 psi. As the pressure class goes up, so do the width of the material and the wall support, which changes both the weight and the cost.

Dimensional Verification Methods

Thread measuring is the first step in getting accurate measurements. For internal threads, L1 plug gauges are used, and for external thread checking, L3 ring gauges are used. These precise tools check the taper angle, pitch diameter, and thread depth—things that a calliper can't see but are very important for the sealing to work. When you measure across the flats, the square face measurement is usually between 1.5 and 2 times the standard pipe size. This gives you enough wrench engagement area. For couplings 2" or bigger, we suggest using laser alignment tools to check for coaxiality, since axis misalignment greater than 0.5 degrees causes bending stress during pipe installation.

Comparing Reducing vs. Standard Couplings

Standard couplings connect pipes of the same diameter, while reducing configurations change the size of the pipes that are connected in a single fitting. Size changes are needed to improve flow speed and reduce pumping energy, and a reducing coupling eliminates the need for separate reducer fittings and extra threaded joints, which lowers the number of possible leak points. When specifying reducing couplings, always make sure that the thread taper orientation matches your installation sequence; trying to thread pipes from the wrong direction can damage precision threads.

Procuring Quality NPT Black Square Face Coupling Fittings

Sourcing choices have effects on projects that go far beyond the original purchase price. A good procurement process balances cost with quality assurance, on-time delivery, and technical support.

Identifying Certified Manufacturers

Quality NPT black square face coupling pipe fitting suppliers keep their ISO 9001 certification, which shows that they manage quality in a systematic way, but buying pipe fittings needs more proof. Look for companies that offer material tracking with metallurgical test records and heat lot numbers that connect finished parts to casting batches. Through our four-step production process, from melting in a medium frequency electric furnace to CNC machining, Zhiyuan Malleable Steel keeps full traceability. Our 30,000-ton-a-year production capacity across more than 1,000 specs shows how economies of scale help us make sure that the material qualities and dimensions are always the same.

Evaluating Bulk Ordering and Customization Capabilities

Large projects benefit from providers who have a lot of goods and can make changes to the way they make things. Standard delivery of common sizes within 48 hours keeps building projects on schedule, and the ability to make to special requirements means that they can be met. For non-standard thread configurations, material grades, or coating specs, our plant keeps a ready stock of Class 150 fittings in sizes 1/2" through 2". We also offer ODM/OEM services. Cutting lead times from weeks to days gives distributors and project-based buyers who manage just-in-time supply plans a competitive edge.

Conclusion

Black square face couplings are the most reliable industrial connectors because they are made with a smart design that combines pliable iron metal with precise NPT threads. Their reinforced construction addresses real-world failure modes while keeping the ease of installation that contractors like. To make the right choice, you need to know the quality indicators, application parameters, and size standards that set engineered fittings apart from generic options. When these specialised parts are used to connect natural gas infrastructure, fire protection systems, or networks that distribute steam, they are the result of combining material science and practical engineering. This makes piping system integrity a reality in many industrial sectors around the world.

FAQs

What material grade should I specify for high-pressure applications?

The tensile strength of ASTM A197 malleable iron is 40,000 psi, which means it can handle Class 150 and Class 300 pressure levels. Make sure that the parts come with a material approval that lists the carbon content, silicon levels, and annealing process parameters. For applications with higher pressure, you may need better materials or walls that are thicker and stronger. Check with the manufacturer to see what specs they have that match your working conditions.

How do I distinguish authentic products from inferior imitations?

Real precision-threaded fittings have casting lines that show the maker, size, and pressure class. The machining patterns on thread surfaces are uniform, and there are no tool chatter lines or measurement errors. Ask for material test results and hydraulic test data to back up claims of compliance. Suppliers with a good reputation make it easy to track products by connecting them to quality control paperwork.

Can I mix NPT and BSPT fittings in the same system?

Threads that aren't compatible with NPT and BSPT standards make sealing fail even when they seem to fit at first. Make sure that the thread specs are the same across all of the piping systems. There are transition adapters for planned changes in standards, but they add more places where pressure can drop and leaks can happen.
