When to use galvanized female-female 90° long radius elbow pipe fittings?

Optimal fluid flow characteristics may be maintained while rerouting piping systems at 90-degree angles using galvanized female-female 90° long radius elbow pipe fittings. When little pressure loss, excellent corrosion resistance, and seamless direction changes are critical, these specialist fittings are the way to go. This kind of elbow is perfect for water supply systems, HVAC installations, gas pipelines, and industrial process applications where turbulence and erosion are major concerns. Its large radius design makes it excellent for these situations.

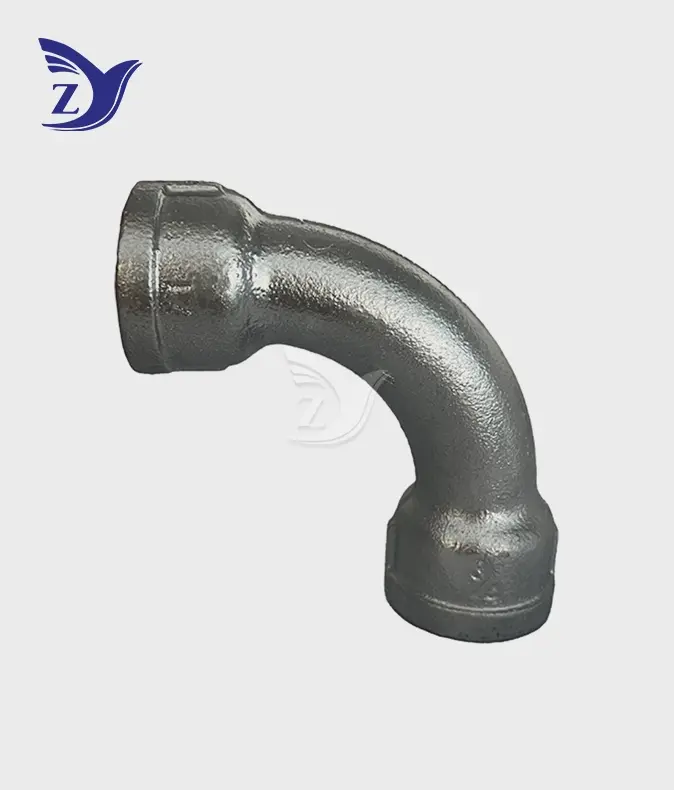

Understanding Galvanized Female-Female 90° Long Radius Elbow Pipe Fittings

Defining Core Characteristics and Threading Specifications

Specialized pipe fittings with threads on both ends allow for tight 90-degree directional shifts in pipe systems and are compatible with male-threaded connections. A "long radius" is an extended curvature radius that is 1.5 times the nominal pipe diameter; this kind of pipe greatly minimizes fluid turbulence in comparison to the more common short-radius options. They are compatible with a wide variety of international pipe standards and are available with either the National Pipe Taper (NPT) or the British Standard Pipe Taper (BSPT) threading requirements.

By hot-dip galvanizing, a protective zinc coating is applied during the galvanization process, forming a strong barrier against electrochemical corrosion. This coating, which usually stays between 70 and 85 microns thick, will provide dependable service in harsh settings for decades to come. In spite of many heat expansion and contraction cycles seen in industrial settings, the malleable iron structure provides outstanding endurance.

Structural Advantages Over Standard Elbow Designs

By decreasing the K-factor, or coefficient of local resistance, the expanded radius design provides quantifiable hydraulic advantages. Lower pressure dips across the fitting are the result of this decrease, which improves system efficiency and reduces pumping costs. The system's integrity and service life are preserved over longer periods of operation due to the reduced erosion-corrosion at impact locations caused by the smoother flow transition.

In order to fulfill the tight dimensional tolerances needed for leak-proof installations, manufacturing quality is essential. This guarantees correct threading and uniform wall thickness. By linking different pipeline components in a female-female fashion, the system may be easily expanded or modified in the future while still integrating with the current infrastructure.

Key Benefits and Applications of Galvanized Female-Female 90° Long Radius Elbows

Superior Corrosion Protection and Environmental Durability

Multiple layers of protection against air corrosion, chemical exposure, and mechanical damage are formed when zinc and base iron are metallurgical bonded during the hot-dip galvanizing process. This shield is invaluable in situations where moderately corrosive material is present, in damp surroundings, or during outdoor installations. With its cathodic protection, the zinc coating effectively sacrifices itself to shield the iron below from oxidation, prolonging the service life beyond 20 years in most situations.

When weighing the initial investment against the maintenance needs throughout the lifespan, galvanized fittings provide better value than other materials. Although stainless steel is more resistant to chemicals, galvanized alternatives provide the same or even better performance for most common uses at much cheaper prices. Although galvanized fittings are more cost-effective in the long run, black iron ones are less costly up front but need repair and maintenance more often in corrosive conditions.

Versatile Industrial and Commercial Applications

The fittings are quite versatile and may be used in a variety of industries. They can handle different types of pipes and yet function to the same high quality. They ensure the safety of sprinkler networks, hydrant installations, and pump house layouts by providing dependable connections in fire prevention systems. Throughout the system's operating life, the corrosion resistance guarantees stable water flow characteristics, ensuring compliance with fire safety rules.

The adaptability of the fittings to different pressures, flows, and seasonal temperature swings makes them useful in municipal engineering and water supply. Reduced energy consumption in pumping systems and less silt collection that might impair water quality are also benefits of the smooth interior surface, which promotes laminar flow. Water and refrigerant lines are both connected to these fittings in HVAC systems. The galvanized female-female 90° long radius elbow pipe fittings provide dependable service even in hidden places where maintenance is difficult to reach.

How to Choose the Right 90° Long Radius Elbow Pipe Fitting for Your Project?

Evaluating System Requirements and Performance Specifications

Consideration of the system's operating pressures, temperature ranges, flow rates, and media compatibility is essential for choosing the right fittings. Class 300 fittings can withstand pressures up to 1000 PSI, making them ideal for severe industrial operations, whereas standard Class 150 fittings can withstand pressures up to 300 PSI at ambient temperatures, making them suitable for water, oil, and gas applications. Acquiring knowledge of these ratings ensures sufficient safety margins and avoids needless expense increases caused by over-specification.

It is important to consider the fitting's effect on the system hydraulics when calculating the flow rate, especially in cases when the pressure budget is limited. By improving system efficiency, the large radius design may justify somewhat higher beginning costs by reducing the equivalent pipe length for friction loss calculations. Joint design and support spacing are affected by thermal expansion estimates, which in turn impact material selection and installation procedures.

Sourcing from Certified Manufacturers and Quality Assurance

It is important to give preference to suppliers that have shown their production skills, thorough quality control systems, and ISO 9001 certification when making procurement selections. When it comes to product dependability promises, reputable manufacturers back them up with extensive paperwork such as material certificates, dimensional inspection reports, and pressure testing results. Material purity and surface polish have a direct effect on water quality, making these certifications especially relevant for applications using potable water.

Logistics capabilities that work with project timelines and budget limitations, minimum order quantities, and lead times are all factors to think about when planning a supply chain. Manufacturers such as Zhiyuan Malleable Steel simplify procurement by providing extensive product lines with defined requirements. This ensures consistent quality across several orders and reduces procurement complexity. They have the industrial scale required for dependable supply chain performance, as shown by their 26 years of casting competence and yearly production capacity of 30,000 tons.

Installation and Measurement Guide for Galvanized Female Elbow Fittings

Professional Installation Techniques and Best Practices

Before installing, make sure the pipe ends are clean, check the threads, and choose the right sealant. For assembly to go smoothly, check that the pipe threads are clean, undamaged, and appropriately chamfered. It is crucial to carefully apply thread sealants or PTFE tape to cover male threads, ensuring that no substance extends beyond the pipe end that might contaminate the system.

Be cautious while choosing a wrench and applying torque so as not to over-tighten and damage the threads or under-tighten and undermine the joint integrity. Tightening the tapered threads to the ideal degree requires practice due to the fact that sealing is achieved by thread deformation and sealant compression. The visual evaluation of thread engagement depth and monitoring of torque requirements allow professional installers to detect adequate engagement.

Dimensional Verification and System Integration

Successful fitting selection and installation are ensured by accurate measuring procedures, which in turn reduce expensive rework and system delays. Proper thread engagement requires that the nominal dimensions of the pipe and fittings be same, and that the outer diameters be double-checked. Installation tools and future maintenance access must have enough space around the galvanized female-female 90° long radius elbow pipe fittings enable routing choices to be made during system design.

It is important to pay close attention to the support needs, thermal expansion, and vibration isolation while integrating with existing pipe systems. The shape and weight of the fittings have an effect on the system-wide stress distribution, which in turn affects the details of the connections and the distance between supports. With careful preparation, you can account for these considerations while keeping the system adaptable to changes or improvements down the road.

Comparison and Decision-Making: Why Choose Galvanized Female-Female 90° Long Radius Elbows?

Material Performance Analysis and Lifecycle Economics

After comparing materials thoroughly, it becomes clear that galvanized steel fittings have balanced performance qualities, which make them appealing for a variety of uses. Although there are PVC alternatives that are lighter and more resistant to chemicals, they do not have the mechanical strength or temperature tolerance that are necessary for industrial use. For the majority of commonplace uses, the galvanized female-female 90° long radius elbow pipe fittings provide the best of both worlds: basic carbon steel performance and premium stainless steel alternatives.

Rather of relying just on upfront costs, lifecycle cost analysis shows that it's more economical to choose materials according to application needs. Avoiding the expensive price of stainless steel, which offers no discernible advantage in terms of improved chemical resistance, and the regular maintenance and replacement cycles of unprotected steel are both made possible by the galvanized coating. Total cost of ownership is optimized and dependable performance is maintained throughout the operating life of the system using this balanced approach.

Hydraulic Performance and System Efficiency Impact

Less pressure loss and less erosion caused by turbulence are two ways in which the extended radius design improves the system's efficiency. When applied to big systems, these advantages become much more apparent as incremental efficiency gains lead to enormous reductions in energy use. In pump suction applications, the smooth flow characteristics lessen the likelihood of cavitation, which safeguards costly equipment while ensuring constant performance.

Accurate threading and uniform wall thickness provide ideal flow properties, which in turn affect hydraulic performance. When it comes to dimensional tolerances, reputable manufacturers keep them tight to avoid flow constraints or anomalies that might cause turbulence. Despite satisfying basic dimensions requirements, economy alternatives may degrade system performance, but professional-grade fittings are distinguished by their attention to manufacturing quality.

Conclusion

For a wide variety of commercial and industrial pipe applications, galvanized female-female 90° long radius elbow pipe fittings are the best option because to their affordability, longevity, and performance. You won't find them in water supply systems, fire protection networks, HVAC installations, or industrial process pipes without them. Their mechanical strength, exceptional corrosion resistance, and hydraulic efficiency are just a few of the reasons why. Their selection over conventional alternatives is justified by the substantial operational advantages they give, thanks to their large radius design, which decreases pressure losses and extends service life via decreased erosion. When purchased from reputable manufacturers and fitted correctly, these fittings provide dependable service for many years while keeping the system efficient and safe.

Partner with Zhiyuan Malleable Steel for Premium Galvanized Pipe Fittings

Zhiyuan Malleable Steel delivers industry-leading galvanized female-female 90° long radius elbow pipe fittings backed by 26 years of casting expertise and ISO 9001 certification. Our precision-manufactured fittings feature hot-dipped galvanized coatings, high-strength malleable iron construction, and NPT/BSPT compatibility ensuring optimal performance across diverse applications. With 30,000-ton annual production capacity and comprehensive quality control, we serve as your reliable galvanized female-female 90° long radius elbow pipe fittings supplier for bulk orders and customized solutions. Contact our expert team at zhiyuan@mifittings.com for competitive quotes and technical consultations tailored to your specific project requirements.

FAQ

What are the main advantages of long radius over short radius elbows?

Long radius elbows provide significantly reduced pressure drops and turbulence compared to short radius alternatives. The extended curvature radius, typically 1.5 times the pipe diameter, creates smoother flow transitions that minimize energy losses and reduce erosion-corrosion at impact points, extending system life while improving efficiency.

Are galvanized female-female elbows suitable for potable water applications?

Yes, when manufactured to appropriate standards and properly installed, these fittings are suitable for potable water systems. The galvanized coating must comply with relevant health standards, and the zinc content should meet drinking water regulations. Many jurisdictions approve galvanized fittings for cold water applications while restricting their use in hot water systems.

How can I verify supplier compliance with industry standards?

Request material certifications, dimensional inspection reports, and copies of relevant quality certifications such as ISO 9001, UL, FM, or CE markings. Reputable suppliers provide comprehensive documentation demonstrating compliance with applicable standards and maintain traceable quality control systems throughout their manufacturing processes.
