When to assume threaded elbow vs flaged?

Choosing between a threaded elbow and a flanged elbow often determines the long-term efficiency and cost-effectiveness of your piping system. A threaded elbow uses screw-in connections with NPT or BSPT threads, making it ideal for smaller diameter pipes (typically 1/8" to 6") in medium-to-low pressure applications ranging from PN16 to PN25. These fittings excel in water supply, gas distribution, fire protection, and HVAC systems where quick assembly without welding is essential. In contrast, flanged elbows are bolted connections suited for larger diameters and high-pressure environments where frequent maintenance access is critical. Understanding these distinctions helps procurement managers, installation contractors, and distributors make informed decisions that balance upfront costs with operational reliability.

Understanding Threaded and Flanged Elbows

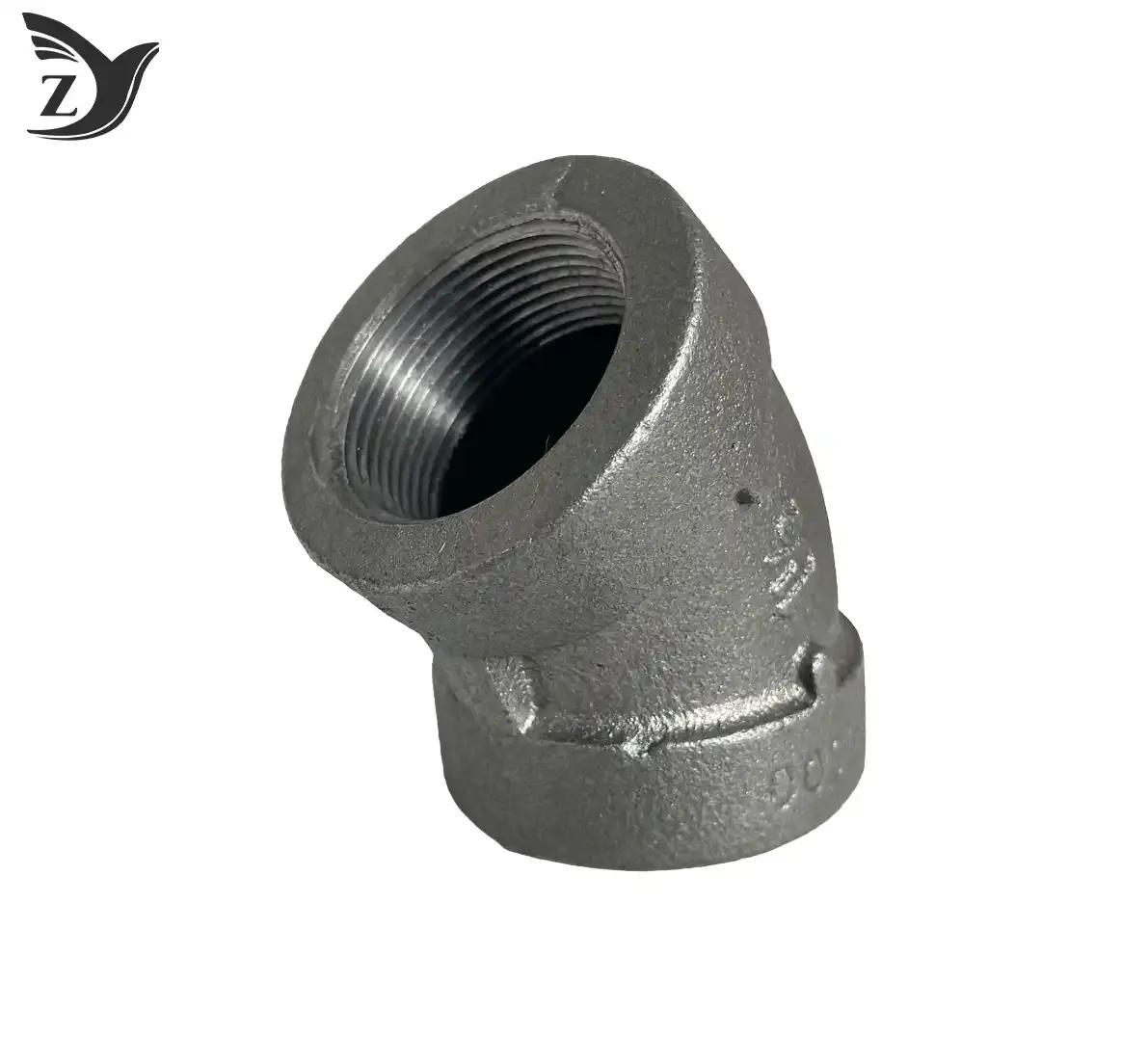

What Defines a Threaded Elbow?

With its threaded sides, a threaded elbow can change the direction of flow in a pipeline without the need for bonding. There are different types of configurations, such as street elbows (male-female), but the standard one has female-by-female internal threads on both ends. 90-degree and 45-degree bends are common angles. Iron that can be shaped, carbon steel, and different types of stainless steel, such as 304 and 316, are all used in manufacturing. The thread types meet the standards for NPT (National Pipe Taper) in North America or BSPT/RC (British Standard Pipe Taper) in other markets. These fittings are great for retrofit projects or systems that need to be inspected on a regular basis because the screw-in connection doesn't require welding and is easy to put together and take apart.

How Do Flanged Elbows Differ in Structure？

Flanged elbows have flat, round disks that are welded or forged onto the body of the elbow. These flanges have holes in them for bolts that fit into matched flanges on pipes or equipment next to them. A sealed joint is made by the bolts, nuts, and gaskets that hold the parts together. Compared to threaded options, this design can handle much higher pressure ratings—often more than Class 300 or PN40. When working with big pipes (usually more than 2 inches) or media that is very hot or acidic, flanged connections are essential to make sure the joint stays strong even when it's under a lot of stress. In exchange, the material costs are higher, the installation takes longer, and more room is needed because of the larger flange width.

Material Considerations Across Both Types

Threaded and flanged elbows can be made from the same basic materials, but the choice of material affects performance in different ways depending on the type of connection. Because they are strong and easy to work with, malleable iron threaded elbows are most often used in low-pressure water and gas uses. Versions made of carbon steel work well in oil and gas lines where middling corrosion protection is enough. Stainless steel options, especially grades CF8 (304) and CF8M (316), can handle harsh conditions in chemical processing and marine settings. For flanged elbows, forged construction from ASTM A182 materials is better at handling pressure than cast options. Material approvals that meet ISO 9001, ASTM, and ANSI standards make sure that everything is the same, which is very important for tactics that use more than one source to buy things.

When to Choose Threaded Elbows vs. Flanged Elbows？

Pressure and Temperature Parameters

When choosing between these types of connections, pressure levels are the most important thing to look at. In home and light business settings, threaded elbows can usually handle pressures of up to 300 PSI. Class 150 rated fittings are good for most water, air, and low-pressure gas systems. When installing fire safety systems, installation contractors often ask for threaded connections for branch lines where the pressure stays below 175 PSI. When the system pressure goes above 600 PSI or when temperature cycling causes expansion forces that could break threaded joints, flanged elbows are needed. Flanged connections are especially useful for high-temperature steam systems above 400°F because the bolted unit stays together even when the temperature changes.

Installation Environment and Accessibility

Conditions at the site have a big impact on the choice of fitting. Threaded connections are easy to install because they only need a few tools, like pipe wrenches and thread sealant. This means they can be used in tight spaces where welding equipment can't go. This benefit is very important for repair projects in buildings that are already occupied, since hot work permits and fire watch rules add a lot to the cost. Maintenance and ease are both important. Threaded fittings that remove without cutting the pipe are useful for systems that need to be inspected or parts replaced often. On the other hand, flanged or welded connections are better for fixed installs underground or in embedded systems because they don't break up over time due to vibrations.

Economic Factors in Bulk Procurement

When procurement managers look at the total cost of ownership, they need to think about more than just the unit price. Threaded elbows have lower starting material costs—sometimes 40–60% less than flanged versions in smaller sizes. This makes them appealing to distributors who keep a wide range of products in stock. Installation labor costs go down even more because threaded assembly doesn't require as much skilled work as flange bolt-up procedures, which need the right gasket choice and torque specs. Threaded fittings are small, which makes them better for bulk sales because they make it easier to load containers. Threaded elbows can fit in a standard 40-foot container much more easily than flanged ones, which lowers the cost of freight per unit. But flanged systems might be cheaper in places with a lot of shaking, where threaded joint repair costs add up over time.

Technical and Practical Insights on Threaded Elbows

Common Variants and Dimensional Standards

In addition to normal 90-degree female-female fittings, the threaded elbow family has a number of other unique designs. With reducing elbows, you don't need separate reducers because they change both the direction and the width of the pipe in one piece. Street elbows have two ends, one male and one female. They can be used as both an elbow and a nipple, which saves room in small systems. This is especially useful in hydraulic manifolds and OEM equipment panels. For NPT thread specs, ASME B1.20.1 is used as a guide, and ASME B16.14 is used for malleable iron connections. Distributors should keep a stock of popular sizes from 1/4 inch to 2 inches, which make up about 80% of market demand in plumbing and HVAC uses.

Installation Best Practices to Prevent Failures

The reliability of a system is directly affected by how well it is installed. At least four full threads should be engaged, but two to three threads should still be visible so that the fitting body doesn't crack from being too tight. It is very important to use the right thread sealant. PTFE tape placed in the direction of thread rotation works for most water and air uses, but anaerobic pipe sealant is better for gas and oil systems because it seals better when the system shakes. Because they are prone to galling, stainless steel threads need extra care. Using a nickel-based anti-seize compound stops the cold-welding process that can make it impossible to take apart the parts again in the future. Don't mix thread types; NPT and BSPT threads have different taper angles (60° vs. 55°), so even if they look like they fit, they won't.

Performance Comparison with Alternatives

When you compare threaded joints to flanged and soldered ones, you can see that there are some trade-offs. Because the internal thread shape gets in the way of flow, threaded joints cause a slightly higher pressure drop than welded bends. This difference is usually not noticeable in systems with speeds below 10 feet per second, but it can be seen in situations with high flows. When working in places that shake a lot, flanged or welded connections are more reliable than threaded ones because the threads can come loose over time even with the right sealant. But threaded fittings work better when the temperature changes because thermal expansion doesn't put as much stress on the link as it does with hard welds. Corrosion resistance rests more on the base material than the type of connection. However, chlorides or sulfur compounds can cause crevice corrosion in threaded joints that are exposed to them.

Procurement Considerations for Threaded vs. Flanged Elbows

Pricing Dynamics and Volume Advantages

Understanding how prices are set helps builders and sellers get the best deals on goods. The price of a threaded elbow is predictable and depends on the size and material. For example, malleable iron is the cheapest choice, costing 30 to 50 percent less than carbon steel versions. Stainless steel versions cost more—often three to four times as much as malleable iron versions—but they don't rust in chemical and marine settings, so the extra money is worth it. If you buy more than 500 pieces, you can get big discounts. For container-load quantities, tier pricing can sometimes cut unit costs by 15 to 25 percent. Custom manufacturing adds value when serving certain markets. In competitive markets, OEM packaging with distributor branding, non-standard thread types, or special material certifications can help suppliers stand out.

Evaluating Supplier Capabilities

To choose trusted makers, you need to look at more than just price quotes. Delivery reliability is based on production capacity. Facilities that can make 30,000 tons per year, like well-known Chinese makers, can meet big framework agreements without the allocation delays that smaller shops have to deal with. Quality certifications like ISO 9001, CE marks, and UL/FM listings give you basic peace of mind, but third-party inspections give you even more trust for important uses. Managing inventory tells you which providers are quick and which ones have long lead times. Manufacturers who keep a lot of standard items in stock (usually in sizes 1/2" to 2" in common materials), including threaded elbow fittings, can usually ship within 48 hours, which is very important for dealers who work with installation companies who are having problems with delays on the job site.

Quality Assurance Through Standards Compliance

Material certification paperwork is necessary for uses that need to be able to track materials. ASTM standards spell out the chemical make-up and mechanical features of castings. For example, ASTM A197 governs castings made of malleable iron, and ASTM A351 governs castings made of stainless steel. Thread adherence to ASME B1.20.1 makes sure that goods from different sources can be used together, which avoids expensive field compatibility problems. Performance guarantee comes from pressure testing; trustworthy makers do hydrostatic testing on sample lots to confirm pressure numbers. For export markets, it's important to follow area guidelines, like WaterMark certification for Australia, NSF/ANSI 61 for drinking water in North America, and WRAS approval for the UK market. As standard paperwork that comes with shipments, distributors should ask for mill test reports and material certificates.

Real-World Applications and Case Studies

Threaded Elbows in HVAC and Plumbing Systems

The main places where threaded elbows are used are in plumbing systems in homes and businesses. For water distribution in a three-story commercial building, a typical retrofit project might call for 500 90-degree bends made of malleable iron in sizes ranging from 1/2" to 2". With a threaded link, plumbers can put together pipes in areas that are already filled during business hours, without needing a welding permit or a fire watch. When compared to soldered copper systems, these systems have a similar service life of more than 30 years and require about 35% less work for installation. Threaded PVC or malleable iron elbows are also useful for HVAC condensate drain systems because they don't need to be welded together, which means they won't damage temperature-sensitive building finishes during installation.

Industrial Applications Favoring Flanged Connections

In chemical plants and refineries, large-diameter process pipes show where flanged elbows are needed. For a project to expand a petrochemical plant and add 12-inch carbon steel pipes for hydrocarbon service, ANSI Class 300 flanged elbows would be required because the working pressure is 850 PSI and the temperature is 450°F. The fixed flange connection lets planned maintenance shutdowns replace elbows that are wearing down because of catalyst particles without having to cut and re-weld pipe sections. In these situations, being able to inspect something is very important. Removing the flange bolts lets you look inside and use ultrasonic thickness testing to keep an eye on the rate of corrosion. The higher starting cost of flanged fittings—about $800 per 12-inch elbow compared to $45 for a 2-inch threaded equivalent—is justified by the fact that they require less upkeep work and keep the system running for longer.

Cost Optimization Case Study

A local plumbing distributor that works with installation contractors looked at the total cost effect of moving from buying fittings one at a time to framework deals with approved makers. By promising to buy 2,000 mixed-size threaded elbows every three months, the dealer got 18% off the price and first choice when there were gaps in the industry. When you stick to a single source with full certifications, you get rid of the quality differences you used to see when you shopped around. Even though there were more orders, the costs of keeping inventory went down because of expected wait times that let just-in-time restocking instead of safety stock buffering. The distributor's competitive position in a price-sensitive market was strengthened because the contractor customers could always get the products they needed. This also made their own buying tasks easier.

Conclusion

When choosing between threaded and flanged elbows, you have to weigh the costs and technical needs. A threaded elbow connection is most common in situations where the diameter is less than 2 inches and the pressure is less than 300 PSI. This is because they are easy to install and save money. Their weld-free assembly works well for renovation projects, cuts down on the need for skilled workers, and makes upkeep possible without the need for special tools. When there are bigger diameters, higher pressures, or uses that need to be inspected often, flanged elbows are needed. To make sure quality is uniform across global supply lines, good procurement strategies use bulk buying, seller certifications, and the ability to track materials. By knowing these basic differences, wholesalers, contractors, and purchase managers can improve system performance and keep the total cost of ownership low over the life of the pipeline.

FAQ

1. What are the main structural differences between threaded and flanged elbows?

Threaded elbows connect with tapered screw threads (NPT or BSPT), which need thread sealant and assembly by rotating. They work best when they are up to 6 inches across. Flanged elbows have flat, round disks with holes for bolts. Gaskets and bolts are used to make joints that are completely sealed. The flanged design can handle higher pressures and bigger diameters, but it takes longer and more space to install.

2. Can threaded elbows handle high-pressure applications?

Standard threaded elbows work with systems that have medium to low pressure, from PN16 to PN25 (about 230 to 360 PSI). Class 150 fittings made of malleable iron can easily handle up to 300 PSI at room temperature. When these pressures or temperatures are exceeded, Class 3000 forged fittings or flanged connections must be used to keep the joint strong while it is under stress.

3. How do I select the correct material for my application?

Iron that can be shaped easily works well with water, air, and low-pressure gas in places that don't corrode. Carbon steel works well in oil and gas systems that are exposed to chemicals in a mild way. Grades 304 and 316 of stainless steel are both resistant to corrosive media. For naval or chemical processing uses, grade 316 is better at resisting chloride. Choose materials that will work with the media and the environment.
