What sizes are available for threaded street elbows?

When designing compact piping systems for industrial equipment, selecting the correct threaded street elbow size can mean the difference between a leak-free installation and costly rework. Threaded street elbows are available in a broad size range spanning 1/8" to 4", offering versatility across fire protection, gas distribution, plumbing, and equipment interfacing applications. These specialized fittings—also called street ells—feature one male external thread and one female internal thread, eliminating the need for additional nipples and saving critical installation space. Understanding the available sizes and their technical specifications enables procurement managers and engineers to optimize material selection, reduce assembly complexity, and ensure long-term system reliability.

Introduction

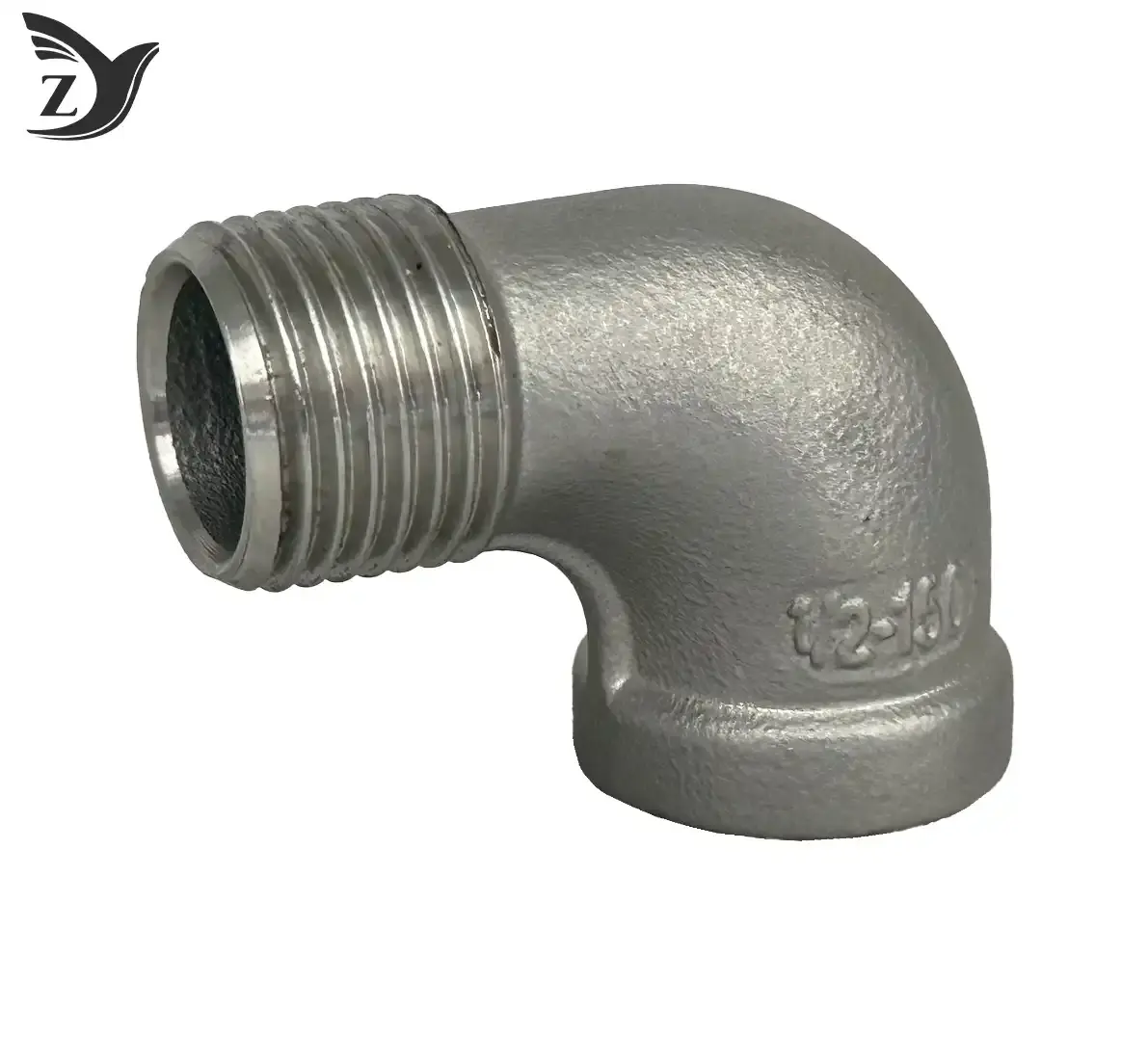

Threaded street elbows are basic elements used in pipelines of fluids and gases. They allow the joining of pipes at certain angles and also prevent any leaks at the joints. Female-female elbows require additional nipples to attach, whereas threaded street elbows have male threads integrated into the body of the fitting for quicker construction in tight spaces. It is highly vital for procurement managers and engineers who are responsible for the manufacture of equipment, integration of valves or naval pipe systems to know the many sizes that are out there so they may pick fittings that satisfy system requirements, standards and installation specifications.

The document provides detailed information regarding threaded street elbow diameters, including crucial measurement data, relevant standards and application-dependent parameters. I want to provide information to B2B customers from all walks of industry that is valuable in helping them make wise purchase choices that are cost-efficient while ensuring that systems are secure and perform properly. Whether you are a procurement director debating annual framework contracts or a research engineer picking components for a novel compressor design, you may carefully investigate sizing, landscapes, supplier catalogues and more with this guide.

Overview of Threaded Street Elbow Sizes

What Makes Street Elbows Different?

Threaded street elbows are distinct from elbow fittings in the combination of threads. The standard female-female elbow requires pipe nipples on both ends to connect to equipment ports or valves. Threaded street elbows take care of this extraneousness, with one male end that screws directly into female-threaded ports. This reduces the number of joints from three to two. This little improvement in design results in real advantages such as a smaller number of potential leak spots, a shorter duration of assembly and simpler inventory management for businesses with tight schedules of manufacturing.

Common Nominal Pipe Size Ranges

Threaded street elbows are available in the nominal pipe size (NPS) from 1/8” to 4”. Small diameters such as 1/8", 1/4" and 3/8" are often utilised for instrumentation lines, pneumatic systems and small hydraulic circuits when space savings are necessary. 1/2" to 2" is the most frequent size in typical industrial plumbing, fire prevention systems, and equipment cooling circuits. Used in process industries, naval engine rooms and utility distribution systems, the 2-1/2" to 4" size offers a compromise between installation footprint and flow capacity.

Thread Standardisation: NPT and BSP

Thread compatibility determines whether a threaded connection will function or not. There are two standards that dominate the worldwide market, and they are NPT (National Pipe Taper) and BSPT (British Standard Pipe Taper). NPT threads are 60 degrees and are prevalent in North America and Asia. BSPT has 55-degree angles with rounded crests and roots and is widespread in Europe and the Commonwealth. Mixing these standards will result in cross-threading, leaks and premature fitting failure. When purchasing parts for international projects or exporting equipment, procurement teams need to check the kind of thread in the specification reviews.

Key Size Dimensions Explained: Dimensional Analysis Approach

Nominal Diameter and Pipe Compatibility

Nominal pipe size (NPS) or DN (Diameter Nominal) tells you how well a fitting fits with nearby pipes and equipment ports. For example, a 1" threaded street elbow fits with 1" nominal pipes, but the actual thread diameters can be a little different depending on the schedule and standard. To make sure the fitting fits correctly, engineers should look at ASME B1.20.1 for NPT dimensions or ISO 7-1 for BSPT dimensions. Not matching nominal sizes can cause flow restrictions, pressure drops, and mechanical stress concentrations that damage the system's integrity.

Thread Size and Pitch Considerations

The thread pitch, or the distance between two neighboring thread crests, changes depending on the stated size and standard. Smaller fittings with coarser pitches (14 threads per inch on 1/8" NPT) are easier to put together but have a slightly smaller sealing surface area. Larger sizes with finer pitches (8 threads per inch on 2" NPT) offer more engagement length, which makes the seal more reliable when it comes to vibration or temperature changes. Purchasing managers should choose thread tolerance classes (Class A for normal fits and Class B for tighter fits) based on how important the application is and what situations it will be used in.

Elbow Angle Options: 90° and 45°

Industry surveys show that the 90-degree configuration meets about 85% of threaded street elbow demand, making it the most popular choice. This angle works well for changes in direction that are perpendicular at valve outlets, pump inlets, and manifold branches. The 45-degree form is used for diagonal routing, especially in small machinery spaces where a right-angle turn would get in the way of parts that are next to it. Some OEM buyers ask for custom angles between 30° and 60°, but these usually have minimum order amounts that mean they can only be used for large production runs.

Face-to-Face Length and Installation Geometry

In pipe chambers that are already full, face-to-face length—the space between the male thread shoulder and the female thread face—affects how the parts are put together. When there is only a few centimeters of space between the pipe and a wall or another pipe, shorter lengths are useful because they keep the pipe from sticking out past the connected fitting. Longer designs take up more space but give you more leverage when installing them. This size should be made very clear on drawings in supplier catalogs, since it varies from manufacturer to manufacturer even for the same nominal size.

Standards and Material Considerations Affecting Size Selection

International Standards Compliance

Following international standards helps build trust in global buying and makes sure that measurements are always the same. For threaded fittings made of malleable iron in North America, ASME B16.3 sets the rules for size tolerances, pressure-temperature ratings, and marking requirements. When it comes to foreign markets, ISO 49 covers the same ground. European standards are given by BS EN 10242. When buying things for international projects, procurement managers should make sure that the suppliers they're looking at have certifications that recognize these standards. Fittings that don't meet these standards may fail third-party checks at the job site or at port customs.

Material Selection Impact on Size Availability

The properties of the material have a direct effect on the sizes that are available and how well they work. Here are the main types of materials and how their sizes affect threaded street elbows:

• Malleable iron is still the best choice for general industrial plumbing. The full size range from 1/8" to 4" is made from this high-strength, medium-cost metal. The annealing process turns soft white iron into tough, ductile iron that can be shaped and threaded without breaking. When the wall thickness is normal, the pressure number usually goes up to Class 150 (PN20).
• Carbon steel is better for high-pressure uses because it has higher tensile strength than malleable iron. Sizes available tend to be mostly between 1/2" and 3" because smaller sizes are too expensive compared to other options. Fittings made of forged carbon steel can get Class 3000 grades, which are needed for hydraulic systems and high-pressure steam lines.
• Stainless steel is better at resisting corrosion, which is important in naval, food preparation, and chemical handling settings. For investment casting, sizes bigger than 1/4" are best because smaller fittings are harder to make with mold tolerances. Grades 304 and 316 are most common, with 316 preferred for chloride exposure. Anti-seize compounds or PTFE tape are needed during installation to prevent thread galling.

Pressure Rating Assessments by Size

Due to wall thickness-to-diameter ratios, pressure ratings go down as nominal size goes up. At room temperature, a 1/4" Class 150 malleable iron threaded street elbow can safely handle 300 PSI. A 4" fitting in the same class, on the other hand, can only handle 150 PSI. In Europe, the numbers PN16 and PN25 are roughly equal to 232 PSI and 363 PSI, respectively. Engineers need to compare the system's design pressure to the fitting's pressure class at the working temperature. Pressure-temperature tables for the whole size range should be included in supplier datasheets; the lack of such information is a sign of poor technical support.

Comparison of Threaded Street Elbow Sizes vs. Other Elbow Types (Decision Support)

Street Elbows vs. Regular Threaded Elbows

To connect the second end of a regular female-female elbow to a valve or equipment port, you need a pipe nipple. Compared to a threaded street elbow straight connection, this adds about 1.5 to 2 inches to the length of the assembly. In a small pump skid with a lot of direction changes, threaded street elbows can save up to 10-15% of the total footprint by saving room. On the other hand, once a threaded street elbow is put into place, the rotational direction cannot be changed. Regular elbows with nipples let you fine-tune alignment by rotating the nipple inside the elbow.

Threaded vs. Welded Elbow Size Ranges

Welded elbows, also called socket weld or butt weld, come in bigger sizes, up to 24" and beyond, which is much larger than the practical threading limit of 4". Socket weld fittings get rid of the leak risks that come with threaded joints, but they need to be welded by trained welders and be inspected afterward. When you compare the costs of buying things, you need to take into account the time it takes to install them. For example, threaded street elbows can be put together in minutes with simple hand tools, but welded joints take hours to prepare, weld, and check for quality. Threaded street elbows offer better total installed cost below 2" nominal size for valve lines in skid-mounted equipment.

Material-Specific Size Comparisons

Most suppliers offer 1/4" to 3" stainless steel threaded street elbows, which is because of the economics of investment casting. Brass versions range from 1/8" to 2", which are common in residential plumbing and compressed air systems where corrosion resistance is less important than cost. Malleable iron has the largest range, from 1/8" to 4", so it's the best choice for industrial procurement when exotic materials aren't required. Procurement managers who need to balance technical needs with budget constraints should choose malleable iron unless corrosion, temperature, or industry regulations require stainless upgrades.

Conclusion

To choose the right threaded street elbow size, you need to carefully look at the system pressure, available space, thread standards, and how well the materials will work together. Most industrial uses are covered by sizes from 1/8" to 4", with 90-degree configurations being the most common and 45-degree shapes being used for lateral routing. Choosing between carbon steel, stainless steel, and malleable iron affects both the sizes that are available and the cost over the product's life. If purchasing managers and engineers know about these dimensions, understand how pressure ratings affect them, and build relationships with suppliers who keep a wide range of sizes in stock, they will be able to complete projects more quickly and with better results. This includes less time spent putting things together, fewer places where leaks can happen, and better equipment performance in areas like plumbing, fire protection, gas distribution, and machinery interface.

FAQ

1. What are the threaded street elbow sizes that are most often used in industry settings?

Between 1/2" and 2" sizes make up about 70% of commercial orders. The 3/4" and 1" sizes are very popular in hydraulic systems, machine cooling circuits, and compressed air distribution because they have the right amount of flow capacity and fitting space. To meet NFPA flow requirements and keep pipe weights manageable, fire protection systems often specify 1" to 2" sizes.

2. Can I use NPT threaded street elbows with BSPT fittings?

No. Even though their stated sizes are the same, NPT and BSPT threads cannot be used together. The NPT thread angle is 60 degrees, while the BSPT thread angle is 55 degrees. This means that the two threads don't fully engage, which can cause leaks and damage to the threads. Cross-threading might look tight at first, but it won't work when pressure is applied and removed. Always make sure that all of the thread standards on an assembly are the same, and check that they are being followed by inspecting the dimensions or getting proof from the seller.

3. How do I verify pressure ratings for different sizes?

Pressure-temperature rating tables from reputable manufacturers are included in their product catalogs. These tables show the highest pressure that each size can handle at different temperatures. As the size and temperature rise, ratings usually go down. For a 1" Class 150 malleable iron threaded street elbow, the grade should be around 300 PSI at room temperature and 200 PSI at 300°F. For important uses, you should ask for approved material test reports (MTRs) that confirm the tensile strength and pressure test results that back up what the catalog says.

Partner with Zhiyuan Malleable Steel for Comprehensive Threaded Street Elbow Solutions

Working with an experienced manufacturer and supplier makes it easy to find the right threaded street elbow size. Zhiyuan Malleable Steel was founded in 2006 and has over 26 years of experience casting and fitting pipes. They keep stock of all sizes from 1/8" to 4" in malleable iron, carbon steel, and stainless steel. Our 30,000-ton annual production capacity and ISO 9001 quality system make sure that the equipment manufacturers and system integrators need consistent dimensional accuracy and batch-to-batch stability.

We know how hard it is for procurement managers to deal with unpredictable lead times, inconsistent thread quality, and limited customization options. That's why our Shanxi facility keeps standard sizes in stock and can ship them the same day. We also offer ODM/OEM services for special angles, non-standard dimensions, and custom coatings. CE, UL, and FM certifications give your projects the compliance documentation they need, whether you're sending valve manifolds to North American markets or marine systems to European shipyards.

You can email our technical team at q1236800000@gmail.com to talk about your specific size needs, get samples, or look into volume pricing for annual framework agreements.

References

1. ASME B1.20.1-2013, "Pipe Threads, General Purpose (Inch)," American Society of Mechanical Engineers, New York, 2013.

2. ASME B16.3-2016, "Malleable Iron Threaded Fittings: Classes 150 and 300," American Society of Mechanical Engineers, New York, 2016.

3. ISO 49:1994, "Malleable Cast Iron Fittings Threaded to ISO 7-1," International Organization for Standardization, Geneva, 1994.

4. Nayyar, M.L., "Piping Handbook," 8th Edition, McGraw-Hill Education, New York, 2016, Chapter 6: Pipe Fittings.

5. Crane Co., "Flow of Fluids Through Valves, Fittings, and Pipe," Technical Paper No. 410, Crane Company, Stamford, 2013.

6. British Standards Institution, "BS EN 10242:2013 - Threaded Pipe Fittings in Malleable Cast Iron," BSI Standards Publication, London, 2013.
