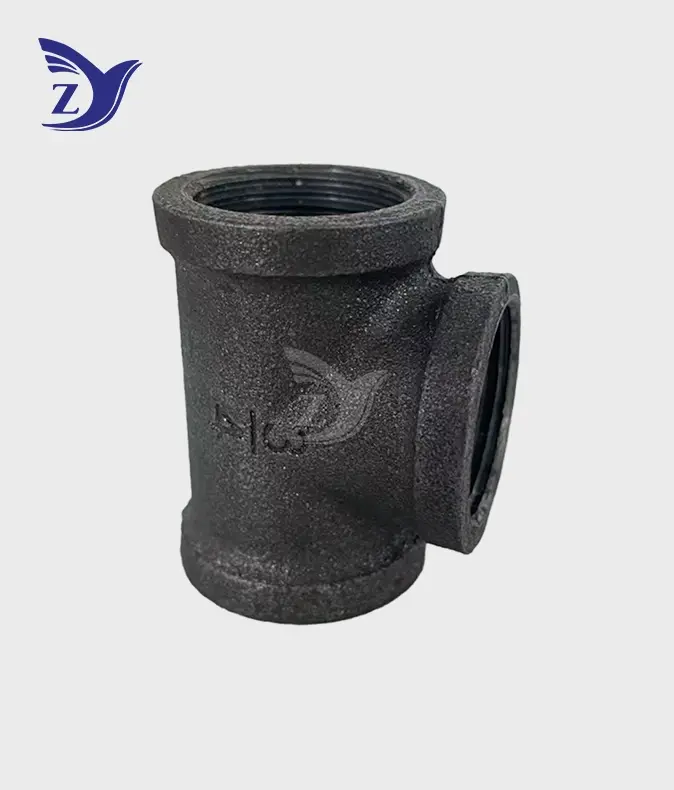

What sizes are available for NPT thread straight tee?

There is a wide range of options for NPT black square face straight tee pipe fittings, with standard diameters ranging from 1/8 inch to 4 inches. These threaded industrial fittings are 3-way pipe distribution parts that can handle different flow needs in systems that use water, gas, and industrial fluids. The sizes are based on ASME B1.20.1 guidelines, and each one is carefully designed to make sure that threaded pipeline splitting is safe. It is important for procurement managers and engineers who need correct fitment and leak-proof performance in their piping systems to understand these size choices.

Sizes Available for NPT Thread Straight Tee Fittings

Standard Size Range Overview

The market for industrial water and gas pipeline splitting has a wide range of NPT black square face straight tee pipe fittings that can meet different flow needs. The standard widths of common sizes are 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", and 4". Smaller sizes, like 1/8" and 1/4", are good for instrumentation and control lines. Larger sizes, like 1/2" to 2", are more common in home and business plumbing installations. Larger sizes than 2-1/2" are used for city water supply, heating distribution, and industrial process uses where high flow rates support the extra cost of the materials.

What makes each size group different is this:

• Small Bore (1/8" to 1/2"): These small fittings work well in tight places and low-flow situations, like air controls, gauge connections, and branch lines that feed individual fixtures. They are easier to handle and install in overhead systems because they have less mass.
• Medium Bore (3/4" to 1-1/2"): This range of sizes is the workhorse for commercial buildings; it includes common branch connections in fire sprinkler systems, hydronic heating loops, and general-purpose water distribution. Wholesale distributors like these sizes because they strike a good balance between flow capacity and material economy.
• Large Bore (2" to 4"): These strong fittings are used for heavy-duty tasks and can handle large amounts of water in municipal infrastructure, industrial cooling systems, and process plant headers. The thicker walls and reinforced square beads make them resistant to the higher installation torques needed to seal larger threads.

Precision in sizing has a direct effect on how well a system works. For example, an NPT 1-inch NPT black square face straight tee pipe fitting has 11.5 threads per inch and an outside diameter of about 1.315 inches at the pipe connection. Knowing these details keeps you from making the common mistake of matching nominal sizes without checking the actual thread dimensions.

Dimensional Specifications and Thread Parameters

Each nominal pipe size has a precise thread pitch, outer diameter, and length that are needed for seamless integration. The black square face design has different face dimensions that affect installation footprint and alignment compared to standard round-face fittings. Accurate measurement is needed to make sure that fittings seat properly—even a half-turn difference in engagement depth can weaken the seal in gas applications.

Installers use thread gauges and precision callipers to check the sizes of things. An NPT thread gauge checks both the pitch diameter and the thread form to make sure the fitting meets the tolerances set by ASME B1.20.1. Digital callipers check the overall length and face width to make sure the fitting fits with the pipe spacing in crowded mechanical rooms. We suggest keeping calibrated measuring tools on-site to catch problems with the way the fitting was made before installation starts.

Choosing the Right NPT Straight Tee Size for Your Project

Matching Fittings to System Requirements

Choosing the right size depends on how well the fitting fits the system's flow needs, the design of the pipes, and the pressure levels. Calculating the minimum diameters is based on the flow velocity; in water systems, keeping the velocity between 5 and 10 feet per second stops erosion and keeps the transport working well. Branch connections usually step down one or two sizes from the main line, which needs tees with different outlet dimensions. However, equal tees like the NPT black square face straight tee pipe fittings remain most common due to inventory simplicity.

It's helpful for procurement teams to know what suppliers have to offer, including standard sizes and the ability to make things to order. For example, Zhiyuan Malleable Steel keeps a large stock of common sizes, and delivery times are measured in hours instead of weeks. Their 30,000-ton annual production capacity supports both standard product availability and custom OEM/ODM services for non-standard dimensions needed in specialised petrochemical and power generation applications.

Cost and Lead Time Optimization

The costs depend on the size, the number of items ordered, and the time it takes to get them. Buying in bulk can save you money, but keeping the goods in stock can cost you money and time. Wholesale distributors can usually get better prices on full-carton quantities, which vary by size—for example, 100 units of 1/2-inch fittings versus 20 units of 3-inch versions. Buyers in charge of projects should plan ahead for all the items they will need so they can combine orders and save money per unit.

Coordinating lead times becomes very important when many trades depend on the piping being finished. Standard sizes ship right away from suppliers who keep them in stock, but unusual sizes or custom specifications could take 4-6 weeks to make. We've learned that keeping a strategic buffer stock of commonly used sizes stops project delays when changes need to be made during installation. Knowing these logistics helps procurement specialists balance just-in-time delivery with risk mitigation.

Maintenance, Identification, and Best Practices for NPT Straight Tee Sizes

Thread System Identification

When installing something, it's important to know the difference between NPT threading and similar systems like BSP. NPT threads have a 60-degree angle and flatten at the crest and root, while BSP threads have a 55-degree angle and rounded profiles. NPT threads look a little sharper, but you'll need a pitch gauge to be sure. Mixing thread types can cause problems like leaks, galling, and fittings failing under pressure, which can be dangerous in commercial installations.

Thread pitch gauges quickly tell the difference between NPT's coarser pitches (8 TPI for 1-inch) and metric options. Manufacturers usually cast identification marks into fitting bodies, showing material designation (often "MI" for malleable iron), pressure class (such as "150"), and country of origin. Zhiyuan Malleable Steel products have clear markings along with ISO 9001, CE, UL, and FM certifications, confirming the fitting is one of the high-quality NPT black square face straight tee pipe fittings.

Installation and Maintenance Protocols

Proper installation methods and regular inspection are needed to keep the size and integrity of the seals. Thread sealants are very important. A mixture of PTFE tape and pipe joint compound that is compatible with the service media lubricates the threads during assembly and fills the helical clearance between mating surfaces. For petrol applications, yellow PTFE tape rated for fuel service must be applied in the direction of thread rotation to keep it from coming apart during installation.

Inspections should look for wear, corrosion, and mechanical deformation that could damage the sealing surfaces. Because iron is malleable, fittings deform before cracking, giving clear warning signs unlike brittle cast iron that breaks quickly. Thermal cycling in low-pressure industrial steam systems gradually hardens the material, but properly annealed iron can handle thousands of heating and cooling cycles. These maintenance practices increase the life of components and make them more reliable in process, fire protection, and HVAC applications where system downtime costs a lot.

Application Examples Across Size Ranges

Correct sizing is important for both safety and efficiency in the workplace. For example, 1/2" to 2" NPT black square face straight tee pipe fittings are used for distributing natural gas in commercial kitchens and boiler rooms. The black iron material meets code requirements, and the square face design makes it easier to install with the high torques needed for gas-tight seals. 3/4" to 1-1/2" fittings are used for heavy oil and lubrication lines in manufacturing facilities. The robust square bead reinforcement keeps the thread engaged despite constant vibration from adjacent machinery.

Larger 2" to 4" tees are used at distribution points, and the sizes get smaller as the lines branch off to individual service connections. The industrial-grade 3-way fluid distribution feature lets system designers cut down on the number of joints, which lowers the risk of leaks and keeps the system flexible for future growth. Each application needs to choose the right size based on the pressure needs, flow capacity, and installation limitations that are unique to that setting.

Conclusion

It's important to find the right NPT black square face straight tee pipe fittings size by weighing technical specs, application needs, and the logistics of purchasing it. The wide range, from 1/8" to 4", covers almost all industrial water and gas pipeline branching situations, and the black malleable iron construction ensures high strength and durability in tough environments. We've already talked about how the square face design improves installation reliability, how material choice affects pressure ratings, and how proper identification prevents costly errors.

When purchasing managers and engineers know these basic rules about sizes, they can choose fittings that fit perfectly into existing systems and meet safety standards. These fittings are essential for fire protection, public works infrastructure, and industrial processes because they have precise threading, don't rust, and have been tested to work with gas, steam, and oil.

Reliable NPT Black Square Face Straight Tee Pipe Fittings—Partner with Zhiyuan Malleable Steel

Our Shanxi facility has eight 3-ton medium frequency electric furnaces and two 100-ton natural gas annealing kilns, which together produce 30,000 tonnes of more than 1,000 different product specifications every year. Every NPT black square face straight tee pipe fittings manufacturer order goes through strict quality control according to ISO 9001 standards, and we have CE, UL, and FM certifications to back it up. These meet the requirements for international procurement.

There are many benefits to buying from us, such as double-layer cardboard packaging that protects fittings during global shipping, standard product delivery within two hours from a large inventory, and the ability to customise products for non-standard sizes through ODM/OEM. Our defective product replacement guarantee and factory-direct pricing structure lower the total cost of ownership while maintaining supply chain reliability. Engineering professionals can get technical advice on size selection, thread compatibility, and pressure rating optimisation that is specific to their system designs.

You can talk to our team about your project needs by emailing q1236800000@gmail.com or visiting zymalleablepipefitting.com. We can ship standard sizes right away or make custom fittings for unique uses. Either way, we provide precision-threaded, NPT/BSPT compatible fittings that keep your installation schedule on track and your systems running safely.

FAQ

What is the functional difference between square face and round bead fittings?

The square face (flat bead) has a wider, flatter surface that pipe wrenches can grip more securely. This lets them apply more torque without slipping or crushing the fitting. This design works better for heavy-duty manual installation in tight spaces where precise tool positioning is hard. Round bead fittings work fine for low-pressure applications, but they don't have the reinforcement needed for gas-tight seals in commercial fuel distribution.

Can NPT black square face straight tee fittings be used for potable water systems?

It is not advisable to use black malleable iron fittings for potable water applications because the black finish doesn't protect well against corrosion in water, which can cause rust to form and the material to break down over time. Also, standard malleable iron often doesn't meet the lead-free certification standards needed by drinking water regulations. Galvanised or brass fittings are still the best options for potable water systems because they are resistant to corrosion and meet health standards.

How do you ensure proper size compatibility with existing piping?

For proper compatibility checking, you need to use precise tools to measure both the pipe and fitting threads. For example, use a thread pitch gauge to make sure that the TPI (threads per inch) matches between components—11.5 TPI for a 1-inch NPT, for example. Digital callipers should be used to measure the pipe's outside diameter to make sure it matches the standard dimensions for the nominal size. When replacing existing fittings, bring a sample to visually compare thread profiles and look for damage or wear that could affect sealing. Always test-fit components before applying sealants to find any problems early so that fixes are easy using NPT black square face straight tee pipe fittings.

References

1. American Society of Mechanical Engineers. (2020). ASME B1.20.1: Pipe Threads, General Purpose (Inch). New York: ASME International.
2. Nayyar, M. L. (2019). Piping Handbook (8th ed.). New York: McGraw-Hill Education.
3. Ellenberger, J. P. (2018). Piping and Pipeline Calculations Manual: Construction, Design Fabrication and Examination (2nd ed.). Oxford: Butterworth-Heinemann.
4. American Water Works Association. (2021). Steel Pipe: A Guide for Design and Installation (M11, 5th ed.). Denver: AWWA.
5. Stewart, H. L., & Mohitpour, M. (2017). Pipeline Design and Construction: A Practical Approach (3rd ed.). New York: ASME Press.
6. Frankel, M. (2016). Facility Piping Systems Handbook (4th ed.). New York: McGraw-Hill Professional.
