What sizes are available for malleable iron 90 degree elbows?

Malleable iron 90 degree elbows are critical fittings for altering pipe pathways in fire prevention, gas distribution, HVAC, and industrial applications. The proper choice of size has an influence on system safety, flow efficiency, and durability over the long term. The fittings are available in a wide range of dimensions, generally from 1/8” to 6”, and are produced to fulfill strict international standards like EN10242, ASME B16.3, and GB/T3287. Choosing the right size guarantees the best pressure ratings, reduces turbulence, and makes it easier to integrate into existing infrastructure. This handbook covers size basics, dimensional differences, and practical selection criteria to assist procurement teams, fire protection system integrators, and MEP contractors in making educated selections.

Understanding Malleable Iron 90-Degree Elbows and Their Sizes

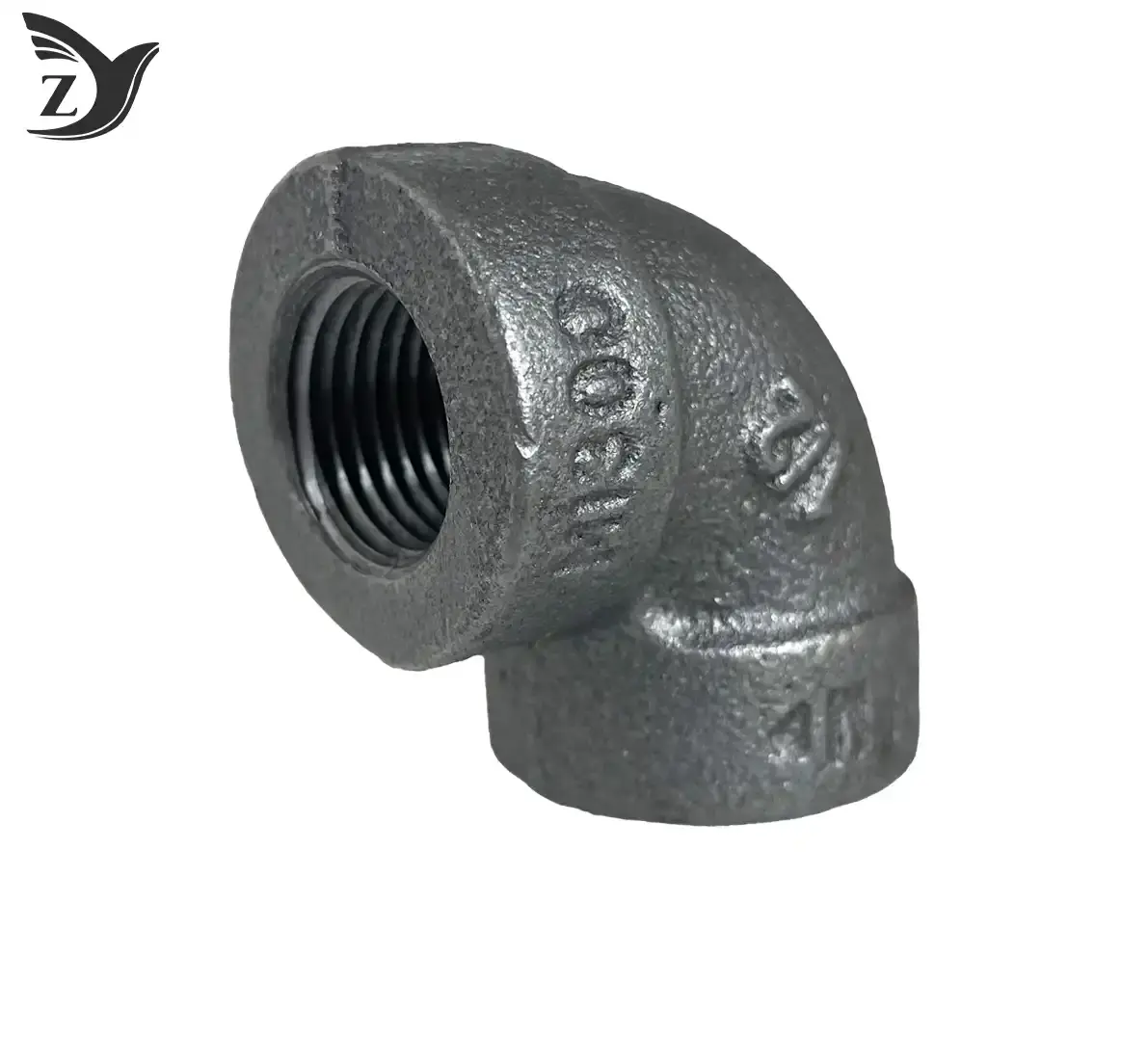

Malleable iron 90-degree elbows are used in a network of pipes to alter the direction of flow of liquids, gas, or vapor. These fittings are composed of malleable iron in a blackheart process cast in sand. They are then annealed in a regulated way to make them more flexible and stress resistant, something that conventional brittle cast iron can’t do. The ultimate product is a fitting that will not break after being struck with anything hard or going through temperature fluctuations.

Applications Across Critical Systems

These elbows are needed when good pressure management saves lives, such as in fire sprinkler systems. You’ll also find them in commercial HVAC systems, industrial steam lines, and city gas pipes. In every environment, the fitting needs to balance being tiny and allowing fluids to pass through readily, all while battling rust and preserving the threads for decades.

Why Size Selection Matters？

Size has a direct bearing on three performance factors: the capacity to withstand pressure, flow resistance, and convenience of installation. If the fittings are too tiny, they will create delays and too much friction loss. If they are too huge, they will waste money on the materials and take up unnecessary space. The size of the fitting is its nominal pipe size (NPS), and the width of the threaded connection is defined by that size. The wall thickness of the elbow is also important, sometimes specified by pressure class, since it indicates how much internal force it can take without breaking. Standards such as ASME B16.3 provide specified restrictions on dimensions so that parts are interchangeable and rules are met.

Standard Sizing Metrics

NPS is used by professionals to speak rapidly regarding fitting size. The NPS number is about the same size as an internal diameter that corresponds to threaded steel pipe. Other key dimensions are the outer diameter, center-to-face distance, and thread pitch (BSPT or NPT). Malleable iron wall thickness schedules are not as varied as butt-weld elbows but still affect weight and pressure rating. Armed with this information, engineers may be certain that a 2" elbow from a supplier will fit a 2" pipe from another provider.

Detailed Size Range and Dimensional Analysis of Malleable Iron 90-Degree Elbows

Malleable iron 90-degree elbows are available in standard diameters from 1/8" to 6". Smaller sizes (1/8", 1/4", and 3/8") are utilized for instrumentation lines, compressed air systems, and water branches in residences. Medium-sized pipe (1/2" to 2") is most frequent in commercial fire sprinkler laterals and light industrial gas distribution. Big pipes (2-1/2" to 6") include major water risers, heavy-duty steam headers, and principal gas feeds in big structures.

Dimensional Attributes and Their Impact

• Diameter and Radius: Threaded malleable iron elbows have a standard center-to-face size for each NPS, while butt-weld elbows are separated into long radius (1.5D) and short radius (1.0D). This reduces layout and inventory management, while the interior radius is intended to minimize turbulence without increasing the footprint of the fitting.
• Wall Thickness Malleable iron elbows are rated generally for pressure classes PN16 to PN25, 1.6 to 2.5 MPa. Thicker walls are more resistant to bursting and have a longer life, particularly if loaded repeatedly or exposed to thermal expansion. Thread depth and engagement length are still highly critical since not enough wall beneath the thread root might cause stripping under torque.
• Weight Variation: A malleable iron 90 degree elbow in 1/2” may weigh about 100 grams, while a 6” fitting might weigh over 5 kilos. Weight influences shipping cost, handling of the fittings, and support of the structure. The hot-dip galvanized variants are a little heavier due to the zinc coating, but this is worth it for superior corrosion resistance, vital for outdoor or maritime applications.

Pressure and Temperature Performance

Malleable iron elbows are rated PN16 (about 230 psi at room temperature) and are acceptable for low-pressure steam and normal municipal water. PN25 ratings (about 360 PSI) are appropriate for fire sprinklers in high-rises and industrial gas systems.

Custom Sizes and Special Orders

Occasionally mega-projects and specialized industrial units require intermediate or larger connections. Custom casting offers non-standard NPS, strengthened walls, or dual-certification threading (BSPT and NPT on the same fitting). For bespoke orders, our lead times are typically 4-8 weeks depending on the tooling requirements and order volume. Custom scaling is only available for large-scale infrastructure or OEM relationships, and minimum order quantities may apply.

Comparing Malleable Iron 90-Degree Elbow Sizes with Other Materials

Figuring out how the sizes of malleable iron and other materials compare makes it easier to choose the right one. Steel and stainless steel butt-weld elbows come in a wider range of sizes (often up to 48" or more) and can handle higher pressures, but they need to be welded by a professional and heat treated after the welding process. Copper elbows, which come in sizes up to 4 inches, are great at conducting heat and are easy to braze, but they can cost two to three times as much per unit as malleable iron.

Compatibility in Hybrid Systems

Mixed-material installations are common for MEP contractors. A galvanized malleable iron elbow connected to a copper pipe through a dielectric union stops galvanic corrosion. When switching from malleable iron to ductile iron (usually in 3" and above), it's important to check the thread compatibility carefully because ductile iron fittings may use ISO instead of ASME thread profiles. Stainless steel elbows have thread friction factors that make them use different torque values, even though they are the same size.

Installation Nuances by Material

In contrast to stainless steel, malleable iron threads can withstand a modest amount of installation pressure. Compounds that are rated for gas are different from those that are rated for water, so the thread glue or PTFE tape must match the system medium. Copper and brass fittings need flexible joints or expansion loops because they expand more when they get hot. When putting together galvanized iron surfaces that can be shaped, care must be taken not to damage the zinc layer, which could make the iron less resistant to rust.

Cost-Benefit Analysis

At an affordable price, malleable iron provides reliable performance. A 2" black bendable elbow could cost $8 to $15, while a similar stainless steel threaded elbow could cost $25 to $50. This price difference can have a big effect on the budget for large fire sprinkler projects that need hundreds of fittings. However, places with acidic condensate or high chloride content may be better off with stainless steel, even though it costs more, because galvanized coatings can wear off over time.

How to Choose the Right Size for Your Application？

To choose the best malleable iron 90-degree elbow size, you have to combine system design parameters with legal and operational limits. First, you need to figure out the flow rate and acceptable pressure drop. Flow charts or piping design software can help you find the minimum NPS that keeps the velocity within the allowed range, which is usually 5 to 10 feet per second for water and slower for steam.

Key Selection Criteria

• Flow Rate and Velocity: Higher speeds cause more wear and noise. Oversizing slightly lowers friction loss but adds cost and weight. To find the right balance between these factors, you have to figure out the total equivalent length, which includes the extra resistance that each malleable iron 90 degree elbow adds.
• Pressure Regime: Match the elbow's PN rating to the system's highest working pressure, then add a safety factor. Fire codes usually require Class 300 pressure ratings for tall buildings, which means that the elbow must have a PN25 or higher rating in terms of malleable iron.
• Environmental Corrosion Factors: Surfaces that are hot-dip galvanized or epoxy-coated are needed for outdoor installations, chemical processing areas, or seaside areas. Black finishes are fine for dry indoor settings or fuel gas lines with moisture control.

Aligning with Engineering Codes and Client Specifications

NFPA 13 (the fire sprinkler standard) and local building codes often specifically mention ASME B16.3 fittings. Procurement teams must make sure that the elbow's certification documents, such as material test certificates (MTC 3.1) and dimensional inspection reports, match the project's requirements. Using a non-compliant fitting instead, even if it looks the same in size, can void insurance coverage and cause the project to be accepted later than planned.

Custom and OEM Solutions

Large contractors who are negotiating multi-year supply agreements can benefit from OEM customization. Zhiyuan Malleable Steel, which has an annual capacity of 30,000 tons and over 1,000 SKUs, provides both ODM and OEM services. Custom thread profiles, reinforced wall sections, or pre-applied sealant coatings make installation easier and require less labor on-site. Lead times and minimum order quantities vary, so getting involved early in the design phase makes sure that project schedules and production cycles are in sync.

Practical Installation Tips Related to Size

Careful malleable iron 90-degree elbow size selection protects the integrity of the fittings when they are installed correctly. Standard pipe wrenches are needed to tighten smaller fittings (1/2" to 1"), and moderate force can be used to tighten them by hand. Chain wrenches or strap wrenches are needed to evenly distribute torque and keep the fitting body from cracking for larger sizes (2" and up).

Tools and Handling by Size

• 1/2" to 1-1/4": Standard pipe wrenches with handles that are 10 to 18 inches long are strong enough. For a leak-proof lock, the threads should be engaged at least four full turns.
• 1-1/2" to 3": Chain wrenches or complex leverage tools keep the steel surface from getting scratched. If you don't want to over-tighten, which can damage threads or cause tiny cracks, use a torque chart.
• 4" to 6": These parts are very heavy and need two people to install them or mechanical pulling aids. It's easier to get things lined up in the air if you put together big joints on the ground first and then lift the subassembly into place.

Alignment and Joining Techniques

Stress doesn't build up when lines that fit together are aligned in a circular way. Misalignment causes bending moments at the thread contact, which speeds up the failure due to wear. Laser levels or temporary alignment guides can help keep things straight while they are being put together. Applying thread sealer evenly, without too much that could get into the flow stream, makes sure that the joint is sealed and that it is easy to take apart again in the future.

Troubleshooting Size Mismatches

Finding a difference in sizes during installation slows down work and raises the cost of labor. Some common reasons are mixing imperial and metric NPS, getting BSPT and NPT threads mixed up, or having fittings with walls that aren't the standard width. Having a calibrated thread gauge on hand makes it easy to check quickly before putting things together. If there is a mismatch, reducing bushings or increasing couplings can cover one size step, but each adapter adds more places for leaks and pressure drops.

Conclusion

Understanding system flow needs, pressure rates, weather conditions, and compliance standards is essential to choosing the right size for malleable iron 90 degree elbows. Most commercial and industrial uses are covered by sizes from 1/8" to 6". Each size has its own pros and cons when it comes to weight, cost, and installation difficulty. When you compare malleable iron to other materials, you can see when threaded fittings work best and when welded or brazed parts are better. The performance benefits of proper sizing are fully realized on site thanks to practical installation tips that cover everything from choosing the right tools to managing pressure. Now that procurement workers and engineers know this, they can safely choose parts that meet safety, efficiency, and cost requirements.

FAQ

1. What Are the Most Common Sizes for Malleable Iron 90 Degree Elbows in Fire Protection Systems?

For fire sprinkler laterals, 1", 1-1/4", and 1-1/2" elbows are common. For main risers, 2", 2-1/2", or 3" fittings may be used. These sizes are in line with the hydraulic calculations in NFPA 13 and make sure that there is enough flow to the sprinkler heads without too much speed or pressure drop.

2. Can Incorrect Sizing Compromise System Safety?

Of course. When angles are too small, they cause turbulence and pressure loss, which lowers the sprinkler flow rates below what was planned. Oversized parts lose money and may need to be reinforced in the structure. It's possible to not follow the rules in both situations during fire marshal inspections.

3. How Quickly Can Custom Sizes Be Manufactured?

Standard custom orders from companies like Zhiyuan Malleable Steel take four to eight weeks, which includes making the pattern and checking the quality. There may be extra charges for rush orders, but they can usually be filled if the tools we already have can be changed.

Partner with Zhiyuan Malleable Steel for Precision-Sized Fittings

Since 2006, Zhiyuan Malleable Steel has been providing reliable threaded pipe options to fire protection integrators, gas pipeline builders, and MEP professionals all over the world. Our malleable iron 90 degree elbow products come in sizes from 1/8" to 6" and are all approved by EN10242, ASME B16.3, and GB/T3287. We get rid of the quality problems that slow down projects by using hot-dip galvanizing that passes long salt-spray tests and in-house measurement checking that goes beyond ISO 9001 standards. Because we can do both OEM and ODM, we can make sizes, thread configurations, and coatings that are exactly what you need. Standard items in stock are shipped within two hours, and custom orders have clear production plans with reports at key points. You can talk to our technical team about your next purchase at q1236800000@gmail.com. When you need a single container or an annual supply deal, Zhiyuan Malleable Steel is ready to help you succeed. They are a trusted maker of 90-degree malleable iron elbows.

References

1. American Society of Mechanical Engineers, "ASME B16.3: Malleable Iron Threaded Fittings, Classes 150 and 300," 2021 Edition.

2. British Standards Institution, "EN 10242: Threaded Pipe Fittings in Malleable Cast Iron," 2020 Revision.

3. National Fire Protection Association, "NFPA 13: Standard for the Installation of Sprinkler Systems," 2022 Edition.

4. ASTM International, "ASTM A197: Standard Specification for Cupola Malleable Iron," 2019 Reapproved.

5. Crane Technical Paper No. 410, "Flow of Fluids Through Valves, Fittings, and Pipe," 2020 Update.

6. International Organization for Standardization
