What size coupling for 3/4 inch pipe​?

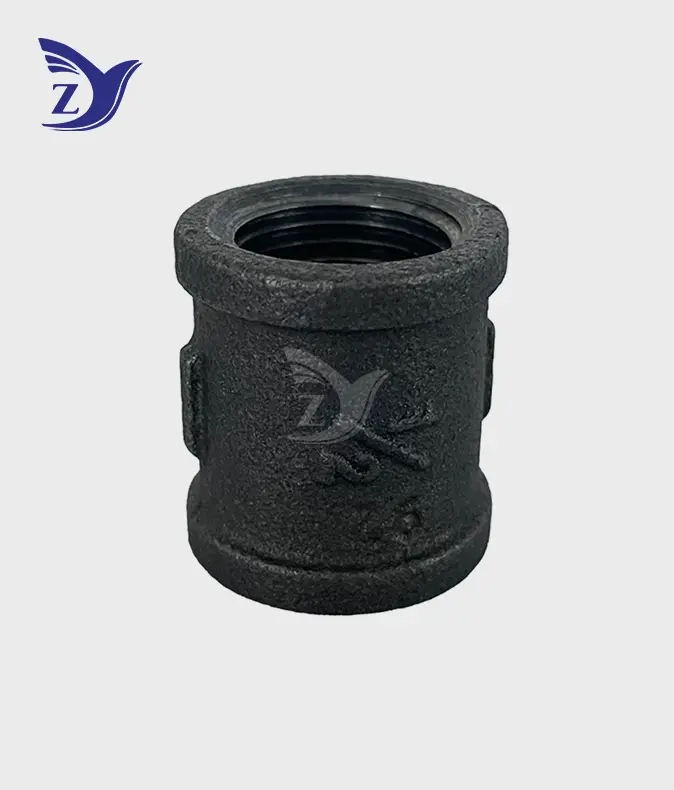

For a 3/4 inch pipe, you need a coupling with a 3/4 inch NPT (National Pipe Taper) thread size. The nominal pipe size (NPS) designates the fitting, not the actual outer diameter — a 3/4 inch NPS pipe measures approximately 1.050 inches OD. A standard NPT black square face coupling pipe fitting in 3/4 inch size features 14 threads per inch (14 TPI), conforms to ASME B16.3 Class 150 dimensions, and delivers a 300 psi WOG pressure rating at ambient temperature. This makes it a dependable choice for fire protection, gas distribution, and industrial pipeline systems with NPT black square face coupling pipe fittings.

Understanding the Size and Dimensions of Couplings for 3/4 Inch Pipes

Nominal Pipe Size vs. Actual Dimensions

I see a lot of people make the mistake of mixing nominal pipe size with real outer diameter when they are buying NPT black square face coupling pipe fittings. The true outside diameter (OD) of a 3/4-inch NPS pipe is 1.050 inches, not 3/4 inches. The "3/4 inch" label is a trade name that comes from old iron pipe standards; it is not a real measurement. This difference is very important when choosing a coupling because the coupling's internal thread diameter needs to match the pipe's actual OD and thread geometry, not just the label.

Critical Dimensions of a 3/4 Inch Square-Edge Coupling

When made according to ASME B16.3 standards, a 3/4-inch black malleable iron coupler has the following important size requirements:

• Thread standard: ASME B1.20.1 NPT thread standard, with 14 threads per inch, a 60° thread angle, and a 1°47' taper. This taper makes a metal-to-metal interference fit that closes under pressure without the need for gaskets.
• Pressure rating: Class 150 has a 300 psi WOG (Water, Oil, Gas) rating at room temperature, and Class 300 goes up to 2,000 psi WOG, making it suitable for high-pressure commercial settings.
• Square face reinforcement: When compared to a normal plain coupling, the square banded shape adds 20–30% more material mass at the threaded openings. This makes "bell-mouthing" failure much less likely when torque or temperature changes.
• Material: KTH330-08 or KTH350-10 cupola malleable iron that meets ASTM A197 standards with a minimum tensile strength of 40,000 psi (276 MPa) and 5% elongation, which is what keeps the iron from breaking easily during water hammer events.

For fire suppression pipe systems, these size and material standards must be met. To be in line with NFPA 13, all parts of the system must be pressure-tested and approved.

Differences Between NPT Black Square Face Couplings and Other Coupling Types

NPT vs. BSPT: Thread Geometry and Sealing Logic

The choice between NPT and BSPT threads depends on the purpose and the rules in the area. NPT (American) threads have a 60° included angle and a 1°47' taper. The thread deforms to seal. In the Middle East and Southeast Asia, BSPT (British Standard Pipe Taper) threads are widespread. Mixing the two without a transition adapter causes leakage, which is a costly installation mistake on big fire prevention projects. You can get both types of threads on high-quality NPT black square face coupling pipe fittings that are made to ASME B16.3 and ISO 49 standards.

Square Face vs. Flanged and Threaded Alternatives

Flanged connections make it easy to take apart large-bore, high-pressure lines, but they are more expensive and take longer to install. Threaded couplings with a plain end are good for uses with less force and smaller bores. The square-edge threaded pipe coupler is a good compromise because it has a flat surface that can handle high installation pressure, stays small, and doesn't need any extra gasket or flange hardware. For 3/4-inch fire protection branch lines and gas distribution networks, the durable square-edge threaded pipe coupling remains the industry standard.

Material Choice: Black Malleable Iron vs. Stainless Steel

For steam, gas, and dry fire control systems, black malleable iron works very well and doesn't cost too much. Stainless steel couplings are much more expensive per unit than black iron fittings of the same type, but they are better at resisting corrosion in chloride-rich or wet environments. High-strength, corrosion-resistant black malleable couplings are the most cost-effective choice for fire protection headers and gas delivery in industrial buildings.

How to Select the Right Size Coupling for 3/4 Inch Pipe

It's not enough to just match the nominal size when choosing the right coupling. The decision process for procurement experts selecting NPT black square face coupling pipe fittings should be based on three factors:

• Verify pressure class against system design pressure. Black Class 150 square-edge connections meet the requirements if your fire control system works at or below 300 psi. If you have a dry chemical or foam suppression system with higher surge pressures, you need Class 300 fittings.
• Confirm thread type against regional pipe inventory. NPT Schedule 40 or Schedule 80 steel pipe is used for work in North America. BSPT threads are often required for projects in the Middle East or Southeast Asia. Cross-project confusion is avoided by getting precision-threaded couplings from a single-source supplier.
• Check fluid media compatibility. Black iron can be used in devices that use gas, oil, steam, or closed-loop water. Galvanized variants are available for different uses, like drinkable water and oxygenated open-loop systems.

These factors collectively help you narrow down your selection to the right product before you even ask for a sample. When NFPA 13 compliance is checked, including this rationale strengthens the inspection paperwork.

Installation and Maintenance Guidelines for NPT Black Square Face Couplings

Step-by-Step Installation on 3/4 Inch Pipe

Before engaging, cover the male NPT threads with PTFE tape or pipe thread sealant compound. Tighten the NPT black square face coupling pipe fittings by hand until they fit snugly, then use a pipe wrench to move them two or three full turns past hand-tight. The NPT taper will compress the threads, making the seal. Do not over-torque, as this can break the fitting body or strip the threads. Never attempt to back-turn the fitting after the sealant has hardened, as the seal will be broken.

Maintenance and Leak Prevention

In dry fire suppression systems, you should check the connections every 12 months or whenever the system is put through a pressure test. At the banded support zone, look for rust pits, thread galling, or very small cracks on the square face surface. Magnetic particle inspection (MPI) can find flaws in the casting below the surface of suspect fittings before they fail in the field. Replace any coupling that has thread wear that can be seen, as the cost of replacement is negligible compared to system downtime.

Procurement and Sourcing Strategies for NPT Black Square Face Coupling Pipe Fittings

When looking for the right industrial connection fitting, you should look at more than just price. You should also look at the level of certification, production capacity, and customer service after the sale. An ISO 9001 certification, UL listing, and FM approval are the minimum requirements for a trusted seller of NPT black square face coupling pipe fittings. A company with an annual production capacity of 30,000 metric tons can take on big orders without affecting wait times. Procurement managers should request thread gage test results, hydraulic test certificates, and material spectroscopic analysis with every order to ensure parts match the datasheet.

Conclusion

A 3/4-inch pipe needs a 3/4-inch NPT or BSPT coupling, but the specific measurements below that simple answer determine the long-term integrity of your fire suppression or gas distribution system. Connection reliability is affected by the thread geometry, pressure class, material grade, and square face reinforcement. Matching these parameters to your application avoids the rework, failed inspections, and safety risks that come from parts that aren't properly defined. Checking the credentials of a seller before placing an order for NPT black square face coupling pipe fittings saves both project timelines and system performance.

FAQ

1. What is the actual thread size of a 3/4 inch NPT coupling?

As required by ASME B1.20.1, a 3/4-inch NPT coupler has 14 threads per inch (14 TPI). When looking at the gage plane, the thread pitch width is about 0.9845 inches. The 1°47' taper seals through thread deformation, eliminating the need for a separate gasket for NPT black square face coupling pipe fittings.

2. Can I use a black malleable iron coupling on a fire sprinkler system?

Yes, in certain industrial fire suppression setups and dry fire suppression systems. ASME B16.3 says that black malleable iron connections can handle water hammer and static pressure spikes when they are activated. They are not meant to be used with open-loop drinking water systems; for those, zinc fittings are the right choice.

3. Is Class 150 sufficient for most fire protection branch lines?

There is a 300 psi WOG rating for Class 150 NPT couplings at room temperature, which is the right pressure for most commercial building fire suppression branch lines according to NFPA 13. Class 300 lines with a 2,000-psi WOG rating may be needed for high-rise systems with high standing head pressure.

4. What is the difference between a square face and a beaded coupling?

The square face (banded) shape has a flat ridge on the outside that makes it easy for a pipe wrench to grip firmly during high-torque installation. The rounded shape of the beaded design makes it easier for the wrench to slip, which means it's not as good for the 3/4-inch diameter range where full engagement needs significant torque.

Partner with Zhiyuan Malleable Steel for Certified NPT Black Square Face Couplings

Since 2006, Zhiyuan Malleable Steel has been making precision-threaded malleable iron parts. They can make 30,000 tons of them each year and have ISO 9001, CE, UL, and FM certifications. Our team always gets the job done, whether you need a lot of NPT black square face coupling pipe fittings or just want to work with a trusted supplier for your next fire safety project. To get examples and prices, email us at q1236800000@gmail.com.
