What is the purpose of a threaded street elbow?

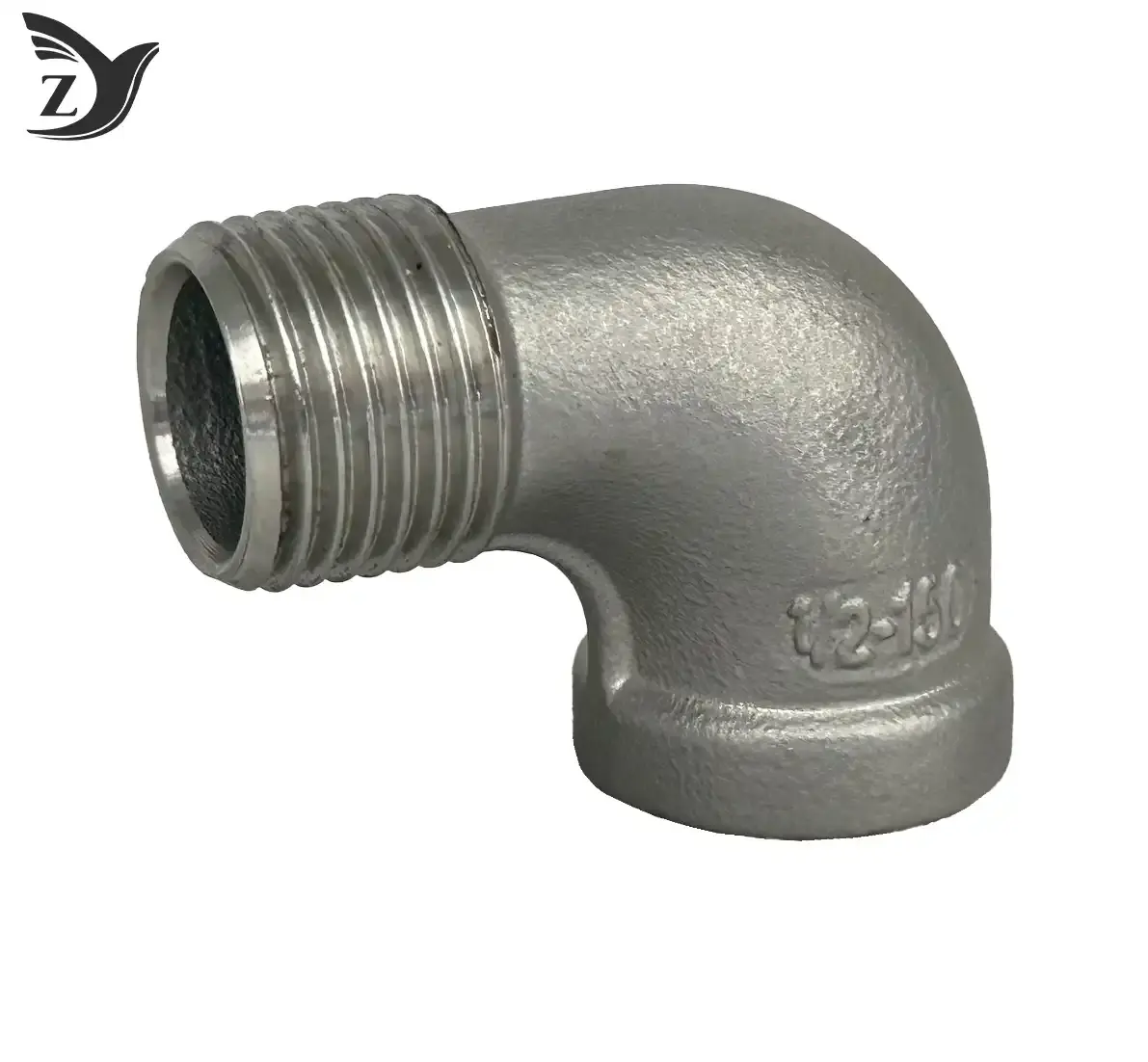

A threaded street elbow serves a fundamental role in piping systems by enabling directional changes while eliminating the need for additional connecting components. This specialized fitting features a unique configuration: one end has male (external) threads and the other has female (internal) threads. This design allows the male end to screw directly into female-threaded ports on valves, equipment interfaces, or other fittings, significantly reducing the number of joints and saving valuable installation space in confined areas such as equipment cabinets, ship engine rooms, and compact machinery assemblies.

Understanding the Purpose and Function of Threaded Street Elbows

The Core Functionality of Street Elbows

A threaded street elbow, also called a street ell, changes the flow direction in pipe systems by acting as both an elbow and a nipple at the same time. In normal pipe layouts, linking two female-threaded parts usually needs a standard elbow plus an extra pipe nipple, which makes two more threaded joints. This is not needed with threaded street elbows because they combine the direction change and link into a single fitting.

From our experience making things at Zhiyuan Malleable Steel, we know that this form that saves room is especially useful in fields where every inch counts. When putting together pump stations, valve manifolds, and hydraulic control blocks, companies that make equipment always choose threaded street elbows to make their plans work best. The fitting can make 90-degree turns in small areas where regular elbow-and-nipple sets won't fit. This makes it an essential part of fire protection stairs, gas distribution networks, and small pipe galleries.

How Street Elbows Differ From Standard Elbows？

Standard elbows have female threads on both ends, so they need different nipples to connect to other female ports. This arrangement makes the process longer, adds more places for leaks to happen, and raises the cost of the materials. With threaded street elbows, these problems are immediately fixed. The mixed-gender threading lets you connect right away to pumps, valves, pressure gages, and other tools without having to use any extra parts.

There are more useful benefits than just saving space. Each joint that is taken out cuts down on possible leak paths by about 50% at that connection point. This makes the system more reliable, which is very important for equipment makers who have to deal with warranty claims and pressures to make the assembly line run more efficiently. Since assembly workers don't have to deal with as many parts, they can finish setups faster. This saves money on labor costs and speeds up production.

Common Applications Across Industries

There are a lot of places where threaded street elbows are needed. They help fire safety systems get around tight turns in sprinkler risers and standpipe assemblies. They are used by gas distribution networks at appliance and meter connections where normal designs can't fit because of lack of room. In marine uses, ship builders put them in the engine room pipes to make the most of every available area. The fewer connection points make them more resistant to vibration.

Threaded street elbows are used by companies that make process equipment in hydraulic power units, cooling systems, and boiler feedwater assemblies. The fittings allow direct mounting to valve bodies and instrument ports, which makes installations cleaner and easier to maintain. They are useful for plumbing contractors working on both residential and commercial water supply systems, especially when they have to work around structural issues or do retrofits where the pipes can't be moved.

Key Dimensions, Sizes, and Materials of Threaded Street Elbows

Standard Size Ranges and Pressure Ratings

Threaded street elbows come in a wide range of sizes, from 1/8 inch to 4 inches, so they can be used for most industrial and commercial pipe applications. When making tools, the most common sizes given are 1/4 inch to 2 inches, which are also the most common sizes for valve and instrument connections. They can handle medium-pressure situations like those in water systems, compressed air distribution, and light industrial processes. Their pressure values are usually between PN16 and PN25.

To choose the right pressure number, you need to pay close attention to how the system is being used. PN16 fittings can handle pressures of up to 232 PSI, and PN25 parts can handle pressures of up to 363 PSI. Not only do equipment makers have to think about usual working pressures, but they also have to think about short-term situations like water hammer, thermal expansion, and valve closure spikes. Undersized pressure numbers cause things to fail early, while over-specification adds costs that aren't necessary.

Material Selection Considerations

The choice of material has a direct effect on how well it works, how long it lasts, and how much it costs. For general water, oil, and gas applications that don't need a lot of corrosion resistance, malleable iron is the most cost-effective choice. We make malleable iron threaded street elbows that meet KTH350-10 standards and have a tensile strength of more than 350 MPa at Zhiyuan Malleable Steel. This material is very tough and doesn't vibrate easily, which makes it perfect for mechanically stressed equipment.

Carbon steel threaded street elbows are stronger for uses that need to handle higher pressures and easier to weld when system changes need to be made nearby. Options made of stainless steel are better at resisting corrosion, which is important for chemical handling, marine settings, making medicines, and food-grade systems. The 304 grade is good for most uses, while the molybdenum-rich 316 grade is better for chloride-rich environments and stronger acids.

There are options for treating the surface to make it last longer. Black iron fittings offer basic protection against corrosion and can be used in indoor settings with non-corrosive materials. When they are hot-dip galvanized, a safe zinc covering is made that makes them much better at withstanding weather and working in wet places. This two-way access lets system makers perfectly match security levels to environmental conditions without spending too much on corrosion resistance that isn't needed.

Thread Standards and Compatibility

Thread standard is an important thing to think about when buying something because it directly affects how well the fitting goes and how many leaks there are. In North American markets, NPT (National Pipe Taper) threads are the most common. They have a 60-degree thread angle and a 1-in-16 taper that makes a mechanical seal when thread sealer is used correctly. BSPT (British Standard Pipe Taper) threads use a 55-degree angle and a similar cut rate. They are popular in Asian and European markets.

When you mix NPT and BSPT threads, they don't connect properly, the seal doesn't compress enough, and there is leakage. This is a problem we often see when we give advice to foreign equipment makers. Managers of procurement must make sure that all of an assembly's thread standards are the same. Even if the threads are perfectly matched, it is still important to use the right thread sealants, like PTFE tape or anaerobic compounds, to make sure that the joints are reliable, don't leak, and can handle thermal cycling and vibration.

Comparing Threaded Street Elbows With Alternative Fittings

Street Elbows Versus Weld Elbows

Weld elbows get rid of the need for threading completely, making it possible for smooth bore transitions that reduce pressure drop and allow for faster flow rates. Welded joints, on the other hand, need special tools, skilled workers, and checks after the weld is done. When changes are made or parts are replaced, they have to be cut and rewelded, which causes downtime and problems. Threaded street elbows let you take things apart for repair, inspection, and system change without having to use special tools or get a hot work permit.

This freedom is very important to companies that make flexible skid-mounted systems. Field modifications are often needed for hydraulic power units, pump packages, and process skids to work in different places. With threaded connections, workers can make quick changes without having to use welding tools or hire qualified welders. This cuts down on the time and cost of finishing the project. On the other hand, threaded connections have a slightly higher pressure drop and lower maximum pressure ratings than welded systems.

Compression Fittings as an Alternative

Compression fittings are useful for instrumentation and small-diameter tubing because they can be used more than once and don't need any tools to be installed. Because they are more expensive per fitting and can only handle a certain amount of pressure, they are mostly used for instrument connections, sampling lines, and light-duty tasks. When connecting main process pipes and equipment, threaded street elbows offer better pressure capacity, physical strength, and long-term dependability.

When the work is big, the difference in cost gets big. A common compression elbow can cost three to five times more than a threaded street elbow of the same size. This means that threaded connections are a much more cost-effective choice for valve manifolds, distribution heads, and equipment systems that need more than one fitting. Compression fittings need more axial space for the ferrule and nut assembly, which cancels out some of the space savings that threaded street elbows offer.

Material Comparison: Stainless Steel Versus Brass

When used with potable water or for general plumbing purposes, brass threaded street elbows are easy to machine, have smooth threads, and don't rust. Because they are less expensive than stainless steel, they are good for uses that aren't very important. Brass, on the other hand, has copper and zinc in it, which can make some types of water dezincify and makes it unsuitable for use at temperatures above about 200°F.

Stainless steel threaded street elbows can handle much higher temperatures and a wider range of corrosive substances, and their mechanical properties stay the same when temperatures change. Because it doesn't rust, stainless steel is ideal for marine equipment, pharmacy systems, food processing setups, and chemical handling tasks. Media compatibility, temperature requirements, and total cost of ownership estimates that take into account how often the material needs to be replaced and how much it costs to maintain are the main factors that determine the choice of material.

Conclusion

Threaded street elbows are an important part of designing an efficient pipe system because they allow for directional change and joining in a space-saving way. Their mixed male-female threading gets rid of unnecessary parts, cuts down on leak points, and makes them work in tight installation areas where regular fittings can't. Equipment manufacturers, system integrators, and procurement professionals can successfully specify and install these fittings if they know about the material properties, pressure ratings, thread standards, and the right way to install them. Carefully choosing a provider based on quality certifications, manufacturing skills, and expert support makes sure that the product will work reliably for a long time and meet the needs of demanding industrial uses.

FAQ

1. What makes threaded street elbows different from regular elbows?

Regular elbows have female threads on both ends, so you need separate pipe nipples to connect them to valves or equipment ports that also have female threads. Threaded street elbows have both male and female ends, so they can connect directly to female ports without the need for extra nipples. This design shortens the length of the installation, gets rid of one threaded joint, and cuts in half the number of possible leak places at each connection point.

2. Can I use malleable iron street elbows for steam applications?

Threaded street elbows made of malleable iron can handle full steam at temperatures and pressures that are within their pressure limit. PN16 fittings are usually used for low-pressure steam applications, while PN25 fittings are better for slightly higher pressures. Forged steel fittings with the right high-temperature ratings are needed for applications that use superheated steam or pressures that are higher than the rating specifications. When selecting fittings for work at high temperatures, you should always check the temperature derating factors.

3. How do I prevent thread damage during installation?

To keep threads from getting damaged, they should be carefully handled and stored so that they don't get hit. During fitting, use the right thread lubricant to keep the threads from sticking and make them easier to engage. Before using tools, hand-thread the fitting a few times to make sure it is in the right place. Being too tight can crack fitting bodies or strip threads, so be careful not to do that. Use the right size wrench so that it fits flats firmly and doesn't slip. Support the pipes that are connected properly so that mechanical stress doesn't get transferred to the threaded joints.

Partner With Zhiyuan Malleable Steel for Your Street Elbow Requirements

Zhiyuan Malleable Steel is an ISO 9001-certified company with 26 years of experience casting that makes high-precision threaded street elbow fittings. The sizes of our products range from 1/8-inch to 4 inches and are made of malleable iron, carbon steel, stainless steel, and steel that has been treated with either black iron or hot-dip galvanization. As a top threaded street elbow maker, we keep a large stockpile for quick delivery—standard specifications ship within two hours—and our ODM and OEM capabilities allow us to make custom angles, non-standard dimensions, and special coatings that meet the needs of each application.

Our 156 sets of precision machining tools and 30,000-ton annual production capacity give equipment makers, valve system designers, and marine builders the consistent sizes and thread accuracy they need. You can get full material certifications, documentation for pressure tests, and CE/UL/FM certifications upon request to help with your quality control and regulatory compliance needs. We quickly replace products that aren't working right and offer technical support during the specification, sampling, and production stages.

Find out how Zhiyuan Malleable Steel can help your supply chain by offering low prices, dependable service, and professional know-how. You can talk to our team about your specific threaded street elbow needs and request samples by emailing q1236800000@gmail.com.

References

1. ASME B16.3-2016, Malleable Iron Threaded Fittings: Classes 150 and 300, American Society of Mechanical Engineers.

2. ASTM A197/A197M-15, Standard Specification for Cupola Malleable Iron, ASTM International Standards.

3. Parker Hannifin Corporation, Pipe Fittings Division Technical Catalog: Threaded Malleable Iron Fittings.

4. Crane Technical Paper No. 410, Flow of Fluids Through Valves, Fittings, and Pipe, Crane Co.

5. British Standard BS EN 10242:1994, Threaded Pipe Fittings in Malleable Cast Iron, European Committee for Standardization.

6. Victaulic Company, Industrial Piping Systems Installation Handbook, Mechanical Pipe Joining Systems Documentation.
