What is the pressure rating of black malleable iron elbow fittings?

Knowing about pressure rates isn't just nice to know when you're building fire alarm systems, water lines for cities, or networks for distributing industrial gas; it's the difference between a reliable installation and a catastrophic failure. Black malleable iron elbow fittings, especially NPT black round face 90° elbow pipe fittings, are used in a huge range of pipe uses all over North America. For water, oil and gas (WOG) uses at room temperature, these fittings usually have pressure ratings between 150 psi and 300 psi for water, oil, and gas (WOG) applications at ambient temperatures. The exact ratings rely on the size, manufacturing standards, and working conditions. Because the round face design makes the connection points stronger, these threaded industrial fittings can handle the tough conditions of business and industrial settings and keep their leak-proof performance for long periods of time.

Black Malleable Iron Elbow Fittings Pressure Ratings

In the piping industry, black malleable iron has a good name because it has been used for many years and worked well. Unlike brittle cast iron, malleable iron goes through an annealing process that changes the structure of its carbon, making it more flexible and resistant to impact. When we talk about pressure capacity, this way of making things is very important.

Material Composition and ASTM A197 Standards

Following the rules in ASTM A197 is the key to having faith in pressure ratings. This standard says what chemicals are in malleable iron castings that are used to make pipe fittings and how they should behave mechanically. The minimum tensile strength of the material we're looking at is 40,000 psi, and the minimum yield strength is around 30,000 psi. These are the numbers that tell us exactly how much pressure can safely be inside a fitting. NPT black round face 90° elbow pipe fittings are different from galvanized ones because they have a black finish that comes from a protective oil coating or controlled oxidation. This covering does two things: it keeps things from rusting while they're being stored, and it works well with hydrocarbon uses where galvanized coats might not work well.

How Pressure Ratings Are Determined

Scores for pressure don't just appear out of nowhere. Hydrostatic testing is done on fittings by manufacturers, who usually put 1.5 times their rated working pressure on them. A Class 150 fitting that can handle 300 psi WOG is tested at 450 psi to make sure it is structurally sound. The type of thread is also very important. For example, a tapered NPT thread makes an interference fit that gets tighter under pressure, making a mechanical seal that works better under load. The operating temperature has a huge effect on the pressure capacity. The same 300 psi number at 70°F might drop to 150 psi when working with full steam at high temperatures, because heat weakens materials.

Typical Pressure Classes for 90° Elbows

The business world knows of several different pressure classes, and each one is best for a certain job. Class 150 NPT black round face 90° elbow pipe fittings are most often used in normal plumbing, HVAC installs, and low-pressure steam systems. Class 300 fittings are used in fire protection systems and industrial process lines with higher pressures that need extra safety margins in case of sudden pressure surges. Size is very important. Because of the way wall thickness and internal diameter are related, smaller fittings (½" to 1") usually have higher pressure ratings than larger ones (2" to 4").

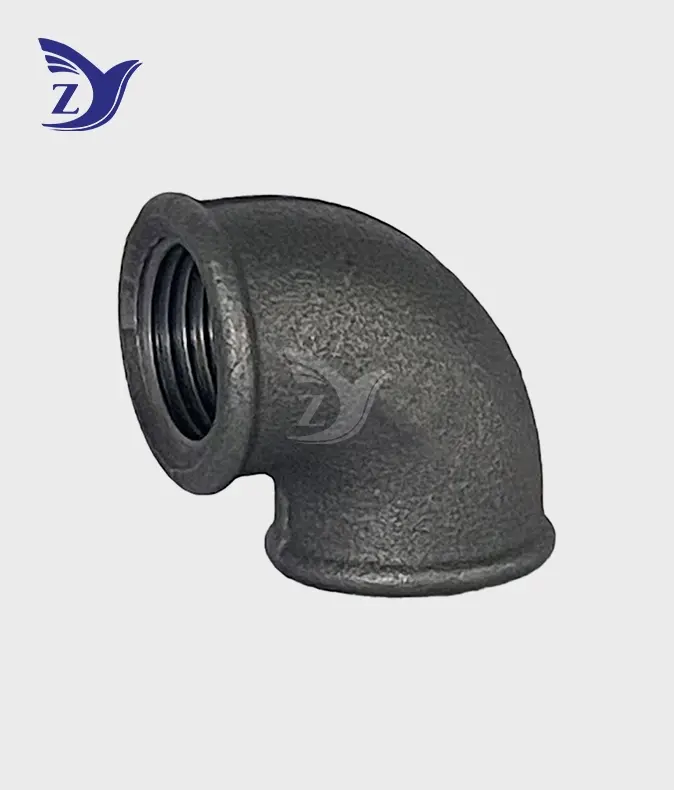

Key Features of NPT black round face 90° elbow pipe fittings

Precision-threaded NPT standards are more than just consistent sizes; they are the result of 100 years of technical progress. The National Pipe Thread specifications call for a 60-degree thread angle and a taper of ¾ inch per foot. This creates the wedging action that makes these connections almost self-sealing.

NPT Threading Standards and Seal Integrity

The curved shape of NPT threads is what makes them special. When you tighten an NPT connection, the male threads move deeper into the female threads and slightly bend to fill tiny gaps. When you use the right thread sealer and this interference fit, you can make joints that can hold pressure without using seals or O-rings. When you install an NPT black round face 90° elbow pipe fittings, the round face design adds a reinforced collar at the connection opening. This adds extra material thickness right where the wrench torque is most needed. This feature keeps the joints from cracking and stress cracks that can happen when temperatures change over and over again.

Black Malleable Iron Construction Benefits

The special chemistry of malleable iron gives it benefits that cast iron and steel can't quite match. The material is very easy to machine, which lets makers keep the tight thread tolerances that are needed for links that don't leak. Because it is ductile, it can bend slightly under shock loads like water hammer or pressure spikes without breaking. In oil and gas uses, the black oxidized surface naturally fights corrosion, so in many industrial settings, extra protective coatings are not needed. When you mix high-strength reliability with resistance to corrosion, you get a fitting that works reliably in water, gas, and industrial pipeline uses without breaking down.

Installation and Temperature Advantages

When labour costs are a big part of a project's prices, how easy it is to setup is important. Threaded joints don't need any special welding tools, hot work permits, or a lot of skilled labour. You only need a pipe wrench, thread sealant, and a basic understanding of how to tighten things correctly. From -20°F to 400°F, these fittings work great in a wide range of temperatures, making them perfect for chilled water systems and low-pressure steam uses. The black ductile iron keeps its shape across this temperature range, which stops the loosening that can happen when materials with different thermal expansion factors come into contact with each other.

Where and How to Source High-Quality Black Malleable Iron Elbow Fittings

Decisions about where to get things affect project timelines, costs, and the long-term dependability of systems. Protecting your business means knowing what makes a supplier reliable and what makes a provider less reliable.

Manufacturer Certification and Quality Assurance

Reputable manufacturers keep their ISO 9001 certification, which shows that they control quality in a planned way throughout the whole production process. Check to see if the product meets the requirements of ASTM A197 for materials and ASME B16.3 for sizes. Independent proof of pressure values and material properties is done by third-party testing approvals from FM (Factory Mutual) or UL (Underwriters Laboratories). When planning big projects, manufacturing capacity is important. For example, a supplier with over 1,000 product specifications and a 30,000-ton annual production capacity can handle large orders without affecting delivery times. We keep these certifications at Zhiyuan Malleable Steel while running many production lines, such as casting workshops with eight medium-frequency electric furnaces and two natural gas annealing kilns that use less energy.

Customization and OEM Capabilities

Most of the time, standard fittings work, but for special projects, non-standard configurations are needed. Check out suppliers based on how well they back unique designs with engineering, how long it takes to make prototypes, and how many are needed to make an OEM product. If a supplier offers ODM services, they can make something exactly the way you want it with private labelling, which is helpful for wholesalers who want to build brand recognition. Along with standard malleable iron fittings, being able to make power fittings, lined plastic versions, and grooved connections shows manufacturing versatility, which helps customers who need complete pipeline solutions from a single source.

Pricing, Lead Times, and Supply Chain Efficiency

The prices are better when you buy in bulk, but the costs of storage must be balanced out by the big savings. Reliable NPT black round face 90° elbow pipe fittings suppliers keep common sizes in stock so they can ship right away. At Zhiyuan, standard products ship within two hours of an order being confirmed. Depending on production plans, custom or less popular sizes usually take two to four weeks to make. Transportation logistics have a big effect on the total landing cost. For example, local suppliers close to major shipping routes charge less for goods and take less time to deliver than sources farther away. Double-layer cardboard packaging keeps fittings safe during shipping and reduces the amount of space needed to load containers. Warranty terms and after-sales support show which makers are customer-focused and which are transactional. Look for providers who offer expert help and replacements for broken products throughout the lifecycle of the product.

Conclusion

Knowing the pressure values for black malleable iron elbow joints helps you make smart purchasing choices that balance safety, performance, and cost-effectiveness. When chosen, installed, and kept correctly, these industrial-grade parts give solid service in a wide range of situations. The round face 90° elbow design makes connection points last longer, and the fact that NPT and BSPT threading are compatible means that joints don't leak and meet strict industry standards. As stated in ASTM A197, the material's qualities ensure uniform pressure capacity. Ratings of 150 to 300 psi are common and meet most business and industrial needs. When choosing fittings for industrial process lines, fire protection systems, or city infrastructure, it's important to pay attention to licensing, quality assurance, and the supplier's ability to do the job. This will ensure the project's success and the system's stability in the long term.

FAQs

What pressure rating should I specify for a low-pressure steam system?

Most low-pressure steam uses can be met by Class 150 fittings that are rated for 150 psi saturated steam service. Keep in mind that pressure values drop as temperature rises. For example, a fitting rated 300 psi WOG at room temperature will usually drop to 150 psi when used with steam. Always check the temperature-pressure charts that came with the product to make sure they work in your particular environment.

Can NPT black round face elbows be used in potable water systems?

Because they don't have the protective coatings needed by drinking water standards and can rust, black malleable iron valves shouldn't be used with drinkable water. For uses with drinkable water, galvanized malleable iron or products that meet NSF/ANSI 61 standards should be chosen.

How do I prevent leaks when installing threaded elbow fittings?

Most problems can be avoided by properly preparing the threads, using the right sealant, and tightening them to the right pressure. For smaller sizes, clean all the threads well, put on either PTFE tape or pipe dope (but not both), and tighten two to three turns past hand-tight. If you tighten the fitting too much, it could crack. If you tighten it too little, the tapered threads won't seat properly.

What distinguishes round face from square face elbow designs?

When connecting two pieces, round face (beaded) elbows have a rounded reinforced collar, and square face (banded) elbows have a flat, squared reinforcement ring. Both forms make the material thicker at stress points, but square face fittings usually have a little more resistance to wrench force, which is why they are better for heavy industrial uses.

Partner with Zhiyuan Malleable Steel for Reliable Pipeline Solutions

Zhiyuan Malleable Steel can help you with your buying needs because they have been making specialised steel products for 26 years. Our NPT black round face 90° elbow pipe fittings provider offers full OEM/ODM customisation services to meet your exact needs, as well as full standards (ISO 9001, CE, UL, FM), fast delivery from a large inventory, and full OEM/ODM customisation services. We serve fire protection companies, local engineering firms, wholesale wholesalers, and industrial businesses across North America with a yearly production capacity of 30,000 tonnes and more than 1,000 different product variations. Our quality control procedures make sure that every part meets the material standards set by ASTM A197 and the size requirements set by ASME B16.3. If for any reason a product is found to be faulty, we will replace it for free. We are located in Shanxi Province, which makes it easy to get to major shipping routes. We send standard goods within two hours and keep in touch with you throughout the whole buying process. You can email our technical team at q1236800000@gmail.com or visit zymalleablepipefitting.com to talk about the needs of your project, get bulk pricing information, or look into custom solutions for unique uses. Customers are happy with us because we offer reliable products, quick service, and support that is focused on building partnerships.

References

American Society of Mechanical Engineers. (2022). ASME B16.3: Malleable Iron Threaded Fittings - Classes 150 and 300. New York: ASME Press.

ASTM International. (2021). ASTM A197/A197M Standard Specification for Cupola Malleable Iron. West Conshohocken, PA: ASTM International.

Nayyar, M.L. (2019). Piping Handbook, 8th Edition. New York: McGraw-Hill Education.

National Fire Protection Association. (2021). NFPA 54: National Fuel Gas Code. Quincy, MA: NFPA.

Smith, P.R. & Zappe, R.W. (2020). Valve Selection Handbook: Engineering Fundamentals for Selecting the Right Valve Design, 6th Edition. Burlington, MA: Gulf Professional Publishing.

Underwriters Laboratories. (2020). UL 155: Standard for Safety Tests for Sprinkler and Fire Protection Products. Northbrook, IL: Underwriters Laboratories Inc.
