What is the difference between a street elbow and a regular elbow?

When specifying pipe fittings for industrial equipment assembly, understanding the structural differences between a threaded street elbow and a regular elbow can significantly impact installation efficiency and system reliability. A street elbow—also called a street ell—features one male external thread on one end and one female internal thread on the opposite end. This mixed threading configuration allows the male end to connect directly into female-threaded ports on valves, equipment interfaces, or other fittings without requiring an additional nipple. In contrast, a regular elbow typically comes with two female-threaded ends, necessitating the use of separate nipples or adapters to complete connections, which adds assembly length and creates additional potential leak points.

Understanding Elbows in Piping Systems

With elbow fittings, you can change the direction of a pipe plan in a way that makes the best use of space and the flow paths for fluids. Teams in charge of buying things can make better choices that meet the goals of the project when they know how different kinds of elbows work.

What is a regular elbow?

An elbow is a pipe fitting that can change the flow direction at an angle of 45 degrees or 90 degrees. Most elbows come with two ends that are female-threaded and have internal threads on both of them. In other words, both sides can fit male-threaded pipes or nipples. There are several ways to connect a regular elbow: socket weld, butt weld, slip-on, and threaded. Socket weld and butt weld forms are often used in solid pipe systems where removal is not planned. Other than that, threaded versions are easier to keep up.

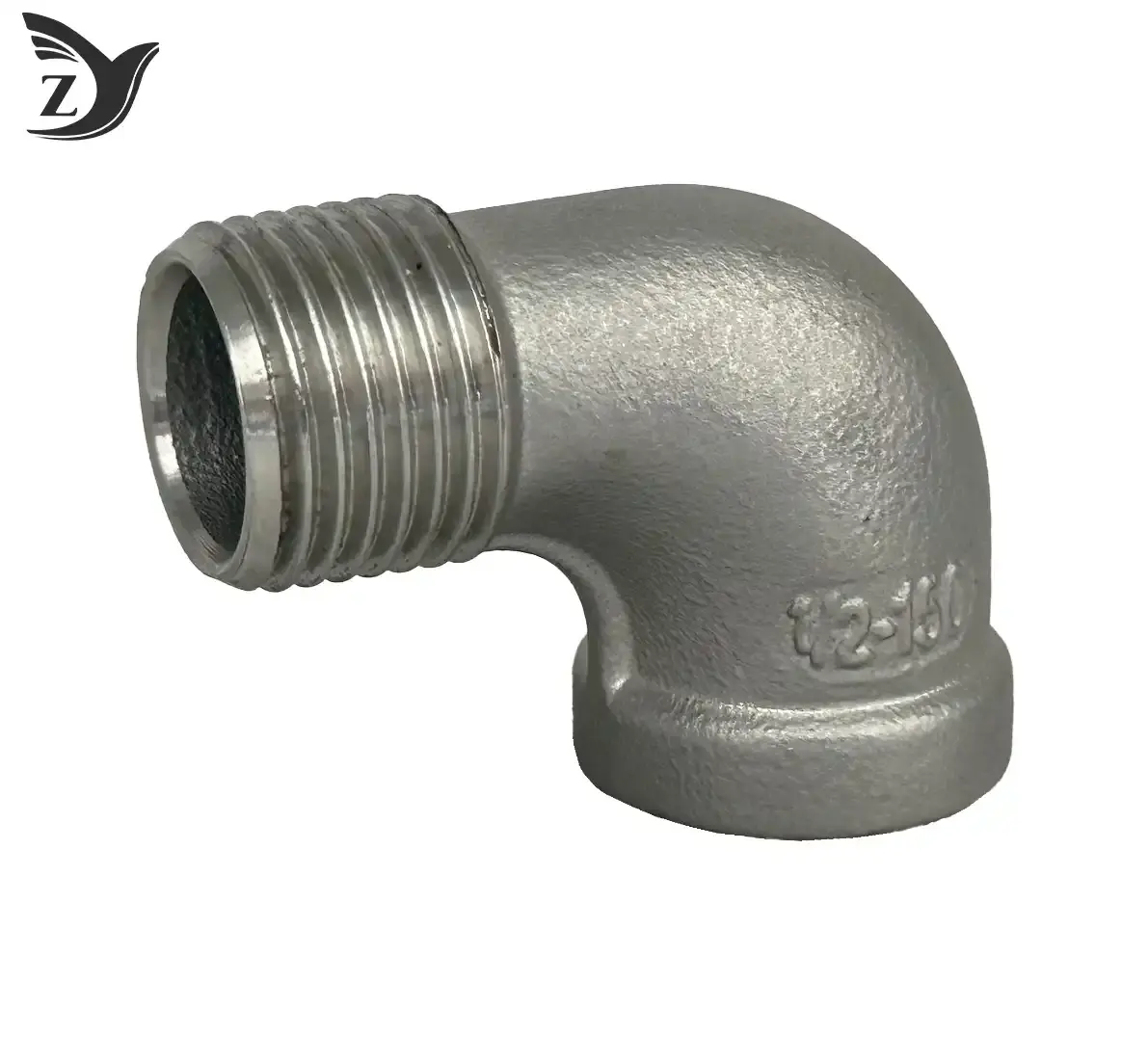

What is a threaded street elbow?

Each end of a threaded street elbow is threaded in a different way, making it unique. The threads on one end are male, and the threads on the other end are female. In this case, there is no need for a middle nipple when connecting the male end directly to a female port. While most threaded street elbows are made with a 90-degree angle, there are also 45-degree elbows for when the direction needs to change more slowly. Most of the time, carbon steel, stainless steel, and iron that can be shaped are used. Sizes range from 1/8 inch to 4 inches, and pressure values go from PN16 to PN25.

Key Structural Differences

The design of the threads is the most important change. An extra male thread called a "nipple" is needed to connect two female ports on a regular elbow. The male thread is built right into the fitting body of the threaded street elbow. This difference in design is good because it cuts down on the length of the assembly, the number of parts you need to store, and the number of threaded joints that could leak. Also, it's easier to set up because the male end can spin as it's being tightened to make sure it fits perfectly with the tools.

Technical Comparison: Dimensions, Materials, and Pressure Ratings

It's important to carefully look at the technical features of each elbow type to make sure they work with the machine and the way it is used. The type of material used, how well the measures are taken, and how much pressure it can handle all affect how well the fitting goes.

Size Standards and Dimensional Compatibility

Both normal and threaded street elbows have standard sizes. Most nominal pipe sizes (NPS) are between 1/8 inch and 4 inches. Different countries use different sets of standards to decide what kind of thread to use. In North America, these standards are called NPT, and in other places, they are called BSPT. NPT threads are 60 degrees off-center, while BSPT threads are 55 degrees off-center. You will get leaks and damage to the threads if you mix these standards. Buyers need to make sure that the thread specs match the current pipe system to avoid having to pay a lot of money to fix things that don't work. It is very important for companies that make equipment to have consistent dimensional tolerance, since differences between batches can slow down the assembly line.

Material Choices and Corrosion Resistance

That which is used determines how long something lasts and how well it works in certain situations. You can form iron like KTH350-10 grade, which has a tensile strength of 350 MPa or more. It is very strong for the price and is used a lot in low-pressure gas, water, and air. Carbon steel is better for moderate-pressure systems because it is more durable, but to keep the surface from rusting, it needs to be pickled or treated in some other way. 304 and 316 types of stainless steel are the only ones that can be used in marine, food-grade, and acidic media because they are so strong against chemicals. When salt or acidic conditions are present, it is important to use Grade 316 stainless steel that has molybdenum in it.

Pressure Ratings and Industry Standards

Around 232 psi to 363 psi is the pressure range that most threaded street elbows can handle. This is enough for most medium-pressure industrial uses. For hydraulic systems with more than 2000 psi of pressure, you need forged valves that follow the rules in ASTM A182. More powerful types of pressure (Class 3000 and up) can fit inside normal joints in socket weld or butt weld designs. They are better for important high-pressure work because of this. For the recommended pressure to work, you need to use the right amount of sealant (PTFE tape or thread compound) and make sure the threads are fully engaged. If procurement teams need to keep track of OEM equipment they buy, they should ask for material certificates and proof of technical properties.

Application Scenarios and Installation Guidelines

If engineers can figure out where threaded street elbows offer the most value, they can make system designs better and installation costs cheaper overall. This type of fitting is very flexible and useful, as shown by how it is used in real life.

Industrial and Commercial Use Cases

Threaded street elbows are great when there isn't enough room for extra nipples in a small pipe setup. Having fewer parts in fire safety gear makes it less likely that they will leak in an emergency. For gas delivery networks in business buildings that need to go through small mechanical rooms that still meet code, threaded street elbows are used. The people who make equipment use threaded street elbows in pump skids, valve manifolds, and hydraulic cooling circuits. If you have valves or tools with female ports, the male end of the elbows can thread straight into them. Steel threaded street elbows don't rust and take up less space in engine rooms that are already tight, which is why they are used on marine and rural sites like them.

Step-by-Step Installation Best Practices

The first step in a proper installation is to check the threads. Check both the male and female threads for damage, burrs, or anything else that could weaken the seal. Pick the right thread lubricant. PTFE tape with nickel in it keeps stainless steel from galling well. Liquid anaerobic sealant, on the other hand, works better for iron and carbon steel that can be shaped. When you look at the end of the tape, wrap it two or three times clockwise. Make sure the first two threads stay out of the way to keep the system clean. Pull the male end tight by hand until you feel resistance. Then, use wrenches to add another one to two turns until the link is hard but not too tight. Threads or iron parts that are easy to shape can break if they are tightened too much.

Troubleshooting and Maintenance Strategies

When the connections are not lined up properly at the start of the installation process, cross-threading often happens. You should always start threading by hand to make sure it fits right. There might not be enough sealer, the threads might be dirty, or the thread standards might not be met. This can cause the joint to leak. If there is a leak after fitting, take the joint apart, clean the threads well, put it back together, and seal it again. Regularly checking galvanized coatings in places that are prone to corrosion can help find early signs of wear and tear. When parts made of stainless steel are polished, they might get a little magnetic. The fact that they look like this doesn't mean they are less resistant to rust.

Choosing Between Street Elbows and Regular Elbows: A Procurement Perspective

When shopping, picking the right type for the job will save you money and make sure that it will work for a long time. You need to know the pros and cons of each option in order to find the best one for your budget and needs.

Performance Characteristics and Application Suitability

Because they are easier to put together and make better use of space, threaded street elbows are great for retrofit projects, equipment OEM integration, and installations where access is limited. This type of elbow has socket weld or butt weld ends that make links that are stronger and won't leak. They can be set up for a long time in power plants, chemical plants, and factories. Since compression valves don't have threads, they're easy to take apart without tools. This is why they're commonly used in labs and equipment. There is no need to worry about the strength of threaded street elbows in low-maintenance designs because they are simple to set up and service.

Cost Implications and Supplier Selection

Many times, threaded street elbows cost a little more per unit than regular female-female elbows. However, because there are no nipples and less work needs to be done, the total cost of installation is less. You can save a lot of money if you buy in bulk from trusted shops. For OEM equipment makers who do a lot of work, this is very important. It's very important that the provider has a good name and is certified. It is best to find companies whose quality management systems have been approved by ISO 9001, CE, UL, or FM. This will show that they can keep track of their supplies and output batches. To meet the needs of each project, well-known businesses like Zhiyuan Malleable Steel can make changes to their goods, such as adding laser writing, non-standard sizes, and unique finishes.

Buying Guide and Procurement Tips for B2B Buyers

To find good fittings, you have to deal with a lot of different sources, price systems, and shipping problems. Buying things in a strategic way helps keep risks low and the supply chain strong.

Sourcing Quality Threaded Street Elbows

Buyers can find verified manufacturers on trusted B2B sites like Global Sources, Alibaba International, and sites that are just for one industry. When looking for a provider, make sure you get samples to check the threads, the surface finish, and the material's make-up. A third-party inspection service can make sure that guidelines set by ASTM, ASME, or DIN are being followed. Many wholesalers keep stock close to home, which speeds up the process for jobs that need to be done quickly. People who want custom orders, like those with special coatings or angles, usually have to wait longer and place smaller orders, so it's best to start working with suppliers early on.

Pricing Factors and Lead Times

The price is based on the type of metal, the sizes that are available, the finish (galvanized or black iron), and the quantity that is bought. Because the raw materials are more expensive, fittings made of stainless steel cost more than those made of iron that can be shaped. Lead times are not all the same. Sizes that are already in stock may be able to ship within days, but sizes that are made to order can take up to eight weeks to make and check. When international buyers make plans for projects, they should think about how long it takes to ship, get through customs, and maybe even pay taxes.

Establishing Long-Term Supplier Partnerships

Building relationships with dependable service providers is good for more than just saving money at first. Partners who stay with you for a long time offer better payment terms, faster technical help, and more flexible schedules for output. You can escape quality problems by asking for support promises after the sale, like fixing things that break. In order to make it easier for regulators to accept goods and keep track of them, it's helpful to keep records of third-party inspections, material test reports (MTRs), and certificates of conformance (COCs). Suppliers who are good at both OEM and ODM can make parts that fit certain pieces of equipment together. This makes them stand out from other suppliers.

Conclusion

A normal elbow and a threaded street elbow are structurally and functionally different. When procurement workers know these differences, they can choose where to get them in a way that improves system performance and installation speed. Because the threaded street elbow has both male and female threads, it cuts down on the number of leak points, eliminates the need for extra nipples, and makes the assembly shorter. Because of these advantages, it is easier to work with tight pipe layouts, combine equipment, and do retrofitting projects. Still, it's very important to think about the material you choose, the pressure values, and the thread standards. By working with certified manufacturers and putting quality papers first, buyers can get fittings that are reliable, meet strict technical requirements, and help businesses succeed in the long run.

FAQ

1. What is the main advantage of using a threaded street elbow over a regular elbow?

There is no longer a middle nipple, which is the biggest benefit. This shortens the piece, saves money on materials, and gets rid of a place where it might leak. With this in mind, threaded street elbows are very useful in small spaces and for connecting tools with female-threaded ports, such as valves, pumps, and instrumentation.

2. Are street elbows suitable for high-pressure applications?

Class 150 malleable iron threaded street elbows can handle pressures between PN16 and PN25, which means they can be used for a lot of different medium-pressure tasks. Pressures greater than 2000 psi should be used on hydraulic or steam lines. The best fittings are made of cast stainless steel that meets ASTM A182 standards. They can handle both hoop load and hydraulic shock.

3. How do I ensure compatibility with my existing piping system?

Before you choose an NPT or BSPT thread standard, make sure it works with your machine. You can't change these. Make sure that the size, material, and pressure rating are all lined up correctly. You can avoid mistakes that cost a lot of money by asking the supplier for material certificates and drawings of the sizes.

Source Reliable Threaded Street Elbow Fittings from Zhiyuan Malleable Steel

The company Zhiyuan Malleable Steel makes threaded street elbows very well and has been making pipe fittings and casting malleable iron for over 26 years. They have a lot of parts that are made to meet the exact needs of companies that make industrial equipment, valve programmers, and projects in marine engineering. We follow strict ISO 9001 quality management rules at our plant in Taigu, Shanxi. Every year, we can make up to 30,000 tons of goods, so we can always meet big orders. As long as they meet foreign safety and performance standards, our parts are safe and work well. They have been approved by CE, UL, and FM. We can make changes to your order, like giving you non-standard sizes, special finishes, or OEM branding. The technical support we offer is quick, and we guarantee that any broken goods will be replaced. Right now, email us at q1236800000@gmail.com to get a personalized price and learn how our bendable steel threaded street elbows can help you better plan and buy your pipe system.
