What Is a Grooved Flange? Uses, Benefits, and Selection Guide

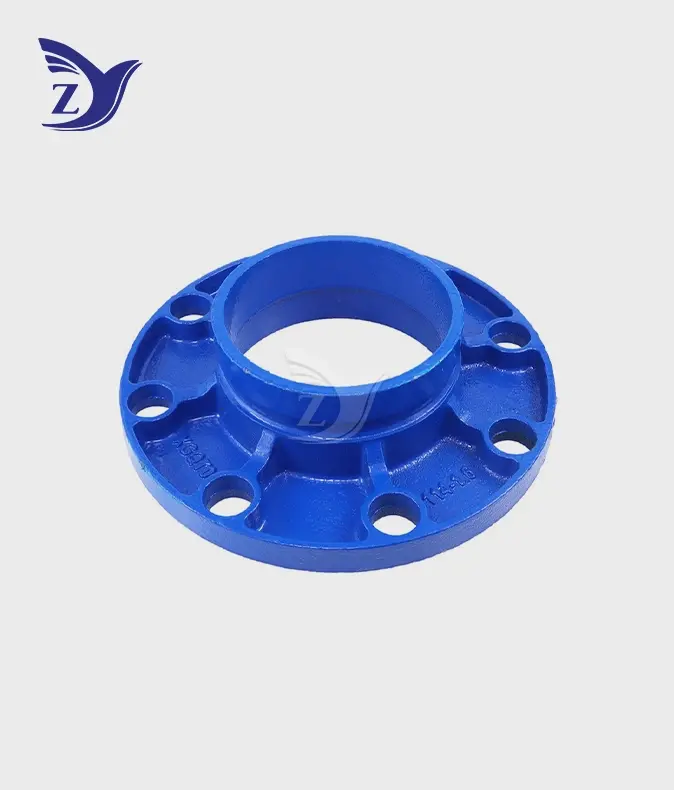

A grooved flange is a mechanical pipe connection used to convert grooved piping systems to flanged equipment such as valves, pumps, flow meters, etc. Instead of a welded or threaded connection, this adapter has a grooved profile that mates with mechanical couplings on one side and a standard bolt hole pattern on the other side that will fit ANSI Class 125/150 or PN10/PN16 standards. No need for hot works (welding), rotatable alignment is possible, and the misalignment problem is solved, which is a common problem of stiff connections. Grooved flanges, typically made from ductile iron (ASTM A536), provide fast installation, greater vibration dampening, and reliable sealing for fire protection, HVAC, and industrial water applications.

Understanding Grooved Flanges: Definition and Working Principle

What Makes Grooved Flanges Unique?

The technology that makes grooved lips operate has two pieces. The grooved end is then connected to the pipe via a mechanical connection, often two segments that clamp around the groove previously rolled into the pipe. On the opposite end, there is a flat surface with drilled bolt holes that are the same size as a typical flange. This two-in-one feature allows existing grooved systems to be connected to regular flanged parts without requiring unique welding skills or extended lead times.

The gasket is located in a gap between the flange adapter and the matched equipment. When bolts are torqued to the necessary amount, generally 100 to 200 ft-lbs for diameters 2” to 8”, it is equally squeezed. The bolt pads provide metal-to-metal contact to ensure the gasket is squeezed correctly and to prevent blowouts when system pressures exceed 300 PSI, which is a common requirement in fire control networks.

Types and Material Composition

Grooved flange fittings are available in a variety of forms and diameters to suit various building demands. Socket-end types provide additional support for thin-wall pipe, while plain-end models fit over cut pipe and are locked in place using ordinary couplings. The weld-neck variants give a stronger connection in high-vibration areas like pump rooms.

The material is selected as per the necessity of the purpose. Ductile iron (ASTM A536) is most typically used in fire protection devices because of its low cost and strong tensile strength. Carbon steel types are suitable for oil and gas pipelines. Galvanized coatings help them endure longer where corrosion is widespread. Zhiyuan Malleable Steel produces grooved flanges from KTH330-08 and KTH350-10 malleable cast iron. These are materials that have to fulfill stringent tensile strength criteria yet be flexible enough to accommodate thermal expansion and seismic movement of high-rise structures.

Compliance with International Standards

Standards help all worldwide initiatives operate together. The ANSI B16.1 Class 125/150 flanges are rated for air and water pressures of 300 PSI. The European specifications are DIN PN10/PN16. ISO 9001 accreditation assures continuous quality in production, while FM/UL certifications validate performance in fire protection applications, essential for commercial building projects requiring inspection compliance.

Uses and Application Areas of Grooved Flanges

Fire Protection Systems

Firefighting systems employ grooved flange adapters to connect fire pumps, pressure lowering valves, alarm check valves, and subterranean mains and vertical risers. They do not transmit tension between pump flanges, which would otherwise lead to small fractures that may put the system at risk during emergency operations. Project managers are happy with the 60% faster installation time compared to welded connectors since it means teams can fulfill tight construction plans without compromising safety requirements.

HVAC and Water Treatment Facilities

Grooved flanges are used to connect flow meters, control valves, and heat exchangers in chilled water loops and cooling tower circuits. Welded systems need the perfect alignment that does not require rotating the flange 360 degrees before final tightening, which reduces the amount of rework that has to be done on-site. For water treatment facilities that cannot afford protracted shutdowns, the ability to quickly swap out sections during maintenance means minimizing downtime at the facility.

Industrial and Oil & Gas Applications

Grooved flanges are utilized for chemical plant and pipeline foam control systems and overflow manifolds. The split-hinge design enables it to be placed on fixed runs of pipe, which cannot be done with a solid ring, as it would slip off the end of the pipe. This is a big plus for improvement efforts in active facilities.” The tight seal protects the chemicals from leaking out, and the flexibility in the design enables the system to expand incrementally without having to shut it down.

Advantages Over Traditional Methods

From an operational standpoint, grooved fittings are certainly superior to weld-neck and slip-on flanges. Installation does not need hot work permits or trained welders; therefore, it removes legal concerns in existing inhabited buildings. The mechanical connection is more suited to heat development and building movement than stiff welds, which reduces the expense of long-term maintenance. The leak rates come down so much because the compression of the gasket is the same for the complete joint. This is unlike threaded connections, which need thread sealant chemicals that degrade over time.

Grooved Flange Installation and Maintenance Guide

Step-by-Step Installation Process

Cutting the pipe into a square shape and getting rid of any burrs that could damage the gasket is the first step in a proper fitting. For Schedule 10 pipe, the depth of the groove should be 0.093", and for Schedule 40, it should be 0.125". Make sure the gap on the grooved flange adapter fits all the way into the coupling pieces before sliding it onto the pipe.

Place the gasket in the hole in the flange and make sure it sits flat and doesn't twist or fold. Align the bolt holes with the equipment that fits, turning the flange as needed. Put bolts through both ends and tighten nuts by hand in a star design. To make sure the gasket doesn't compress unevenly, use a calibrated torque wrench to build up to the required torque in three stages: 30%, 60%, and then 100%.

Essential Tools and Safety Practices

The people who are installing need a roll grooving machine, a torque wrench, alignment pins, and gasket lubricant (only water-based products that are safe for drinking water systems). As part of safety procedures, the system must be depressurized before it can be taken apart, and the groove shape must be checked with a depth gage to make sure it meets AWWA C606 standards. Compressed elastomers lose their ability to seal, so don't use the same gaskets more than once.

Routine Maintenance and Troubleshooting

Check grooved flange joints every three months for the first year, and then once a year after that. Look for gaskets that stick out, rust spots that mean the seal is weeping, and bolts that are losing their tension. In high-pressure systems, gaskets should be replaced every five years, or sooner if vibrations cause them to wear out faster.

Leaks from mismatched gasket grades (never mix manufacturers' gaskets because the cavity geometry is different) and flange deformation from over-torquing are two common problems. If there is a leak, don't just tighten the bolts; this will damage the seal and make the problem worse. Instead, let the line lose its pressure, take off the flange, check the width of the groove, and put in a new OEM gasket.

How to Select the Right Grooved Flange for Your Project？

Evaluating Pressure and Temperature Requirements

Match the pressure class of the flange to the design parameters of the system. ANSI Class 125 can handle non-shock water services up to 175 PSI, and Class 150 can handle working pressures up to 300 PSI with safety limits for water hammer events. Temperature values rely on the type of gasket used. Grade E EPDM gaskets are good for cold water (32°F to 230°F), while silicone gaskets can handle some industrial fluids up to 400°F.

Material Compatibility and Environmental Factors

Carbon steel grooved flanges work well in dry indoor settings, but they need to be galvanized for use outside or in situations that are likely to rust. Use dielectric isolation seals to stop galvanic rusting when connecting metals that are not the same, like ductile iron pipe to stainless steel valves. Check out ASTM G82 for charts that show how well different materials work together with your process fluid.

Supplier Certification and Customization Needs

Managers in charge of buying things should check that sellers are ISO 9001 certified and give them material test records (MTRs) that show what the materials are made of and how they work. For fire safety projects, you can't go without FM and UL listings. Zhiyuan Malleable Steel can produce up to 30,000 tons of steel each year, and our 50,000-square-meter facility can ship large orders within two hours. Our ODM/OEM services include unique bolt patterns, special gasket materials, and marks that are specific to the project and make it easier to find them in the field during installation.

Cost Considerations and Total Ownership

Grooved flanges may cost 15 to 20 percent more than plain pipe ends, but they save 30 to 40 percent on installation costs because they don't require as much welding work, hot work permits, or specialized contractor fees. The true total cost of ownership can be found by adding up the shorter downtime for maintenance and the longer service life (25 years or more with proper care). Orders of 500 or more units qualify for volume discounts, and tiered price systems help mid-sized contractors who are working on multiple jobs at the same time.

Technical Specifications and Industry Standards

Dimensional Tolerances and Groove Profiles

AWWA C606 specifies the groove's dimensions: the depth, width, and radial location tolerances must all stay within ±0.005" to ensure proper coupling engagement. The groove's rounded bottom stops stress concentrations that cause cracks under cyclic loading. The bolt-hole spacing for flanges follows ANSI B16.1, with 4 holes for 2" to 3" sizes and 8 holes for 8" to 12" sizes.

Gasket Selection and Pressure Ratings

EPDM rubber is best for water applications because it is resistant to chlorine and lasts a long time. Nitrile gaskets work well with oil products, and PTFE can handle harsh chemicals. Pressure class ratings are based on water at room temperature; lower the rating by 25% for higher temperatures. Always specify gaskets by the flange manufacturer's part number to make sure they fit the cavity—generic gaskets are what fail 80% of the time in the field.

Pipe Material Compatibility

Grooved flanges easily connect to Schedule 10, 40, and 80 steel pipes, as well as ductile iron that meets AWWA C151 standards. For PVC and HDPE, you need transition adapters with reinforced backing rings to keep them from crushing under bolt loads. Stainless steel pipes need specific groove depths because they harden during the rolling process.

Conclusion

Grooved flange adapters are a tried-and-true way for fire protection contractors, HVAC engineers, and industrial facility managers to make code-compliant pipe connections without the risks of welding. Their modular sectional design makes maintenance easier and faster, and they can handle building movement and vibration. To make sure they work well, you need to make sure the pressure classes match the needs of the system, specify OEM gaskets, and work with certified manufacturers who follow ISO 9001 processes to keep quality consistent. At Zhiyuan Malleable Steel, our 26 years of casting experience and wide range of products, from elbows to couplings, make us your go-to grooved flange supplier for projects that need to be both reliable and accountable.

FAQ

1. What are the primary advantages of grooved flanges over welded connections?

Grooved flange adapters get rid of the dangers of hot work, cut installation time by 60%, and let you rotate them 360 degrees to fix misaligned bolt holes. They absorb vibrations better than rigid welds, which means connected equipment is less stressed. Maintenance is easier because technicians can take apart joints without cutting pipes, which lets them fix things faster in an emergency.

2. Can grooved flanges handle high-pressure fire suppression systems?

Yes, as long as the right information is given. ANSI Class 150 grooved flanges can handle working pressures up to 300 PSI, which is enough for most commercial fire protection systems. Make sure the pressure rating matches your hydraulic calculations, and make sure the gaskets are rated for the expected pressure class. FM-approved models go through rigorous testing to make sure they work well with fire pumps.

3. How long does grooved flange installation take compared to welding?

A trained crew can install a grooved flange connection in 15 to 20 minutes, which includes cutting the pipe, grooving it, placing the gasket, and tightening the bolts. Welding the same joint takes 45 to 90 minutes, which includes fitting it up, welding it, and cooling it down, plus extra time for X-ray inspection of important services. The time savings are even bigger for big projects with hundreds of connections.

Partner with a Certified Grooved Flange Manufacturer

Zhiyuan Malleable Steel offers engineering-grade grooved pipe fittings that are backed by ISO 9001, CE, UL, and FM certifications. These credentials protect your project against non-compliance failures. Our full product range includes flanges, elbows, tees, couplings, and reducers, so you can buy everything you need in one place, which makes your supply chain more efficient. With 156 sets of precision machining equipment and the ability to process 30,000 tons of steel every year, we guarantee that we can deliver large orders on time, keeping your construction schedules safe from supplier delays.

Whether you're specifying grooved flange supplier partnerships for municipal fire systems or industrial retrofit projects, our 26 years of malleable steel expertise ensure that your connections meet the stringent demands of life-safety applications. You can email at q1236800000@gmail.com.

References

1. American Water Works Association. (2018). AWWA C606: Grooved and Shouldered Joints. Denver, CO: AWWA Publications.

2. American National Standards Institute. (2020). ANSI B16.1: Gray Iron Pipe Flanges and Flanged Fittings. Washington, DC: ANSI Standards Committee.

3. Factory Mutual Research Corporation. (2019). FM Approval Standard 1680: Couplings Used in Fire Protection Service. Norwood, MA: FM Global.

4. ASTM International. (2021). ASTM A536: Standard Specification for Ductile Iron Castings. West Conshohocken, PA: ASTM Publications.

5. National Fire Protection Association. (2022). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy, MA: NFPA Press.

6. Underwriters Laboratories. (2020). UL 213: Standard for Rubber Gasketed Fittings for Fire Protection Service. Northbrook, IL: UL Standards Division.
